Your impact wrench is only as strong as the air compressor feeding it. I learned this the hard way during a Saturday tire rotation when my 6-gallon pancake ran out of breath halfway through breaking the first lug nut.
After that embarrassment, I spent 90 days testing eight compressors on a 1/2-inch impact wrench, a 3/8-inch impact gun, and a tire inflator. I logged recovery times, measured noise with a decibel app at three feet, and counted how many lug nuts each tank could bust before stalling.
The best air compressors for impact wrenches need to deliver at least 90 PSI sustained pressure and 4-5 CFM at that pressure. Below those thresholds, your wrench stalls, loses torque, and forces you to wait for tank recovery every 30 seconds. This guide breaks down the eight models that actually perform, plus the PSI and CFM numbers you need to match your wrench size.
Table of Contents
Top 3 Picks for Impact Wrench Air Compressors in 2026
California Air Tools 10020C
- 10 Gallon Steel Tank
- 5.3 SCFM @ 90 PSI
- 70 dBA Ultra Quiet
- Oil-Free Pump
Best Air Compressors for Impact Wrenches in 2026
| Product | Specifications | Action |
|---|---|---|
| California Air Tools 10020C |
|
Check Latest Price |
| DEWALT DWFP55126 |
|
Check Latest Price |
| PORTER-CABLE PXCM2002.COM |
|
Check Latest Price |
 Metabo HPT EC914S |
|
Check Latest Price |
 BOSTITCH BTFP02012-WPK |
|
Check Latest Price |
 Klutch 20-Gallon |
|
Check Latest Price |
 Makita MAC700 |
|
Check Latest Price |
 VEVOR 6.3 Gallon |
|
Check Latest Price |
1. California Air Tools 10020C – Ultra Quiet 10-Gallon Workhorse
- Ultra quiet 70 dBA operation
- Oil-free pump with 3000+ hour life
- 10-gallon steel tank with wheels
- 5.3 SCFM at 90 PSI sustained flow
- Not Prime eligible
- Lower max pressure at 125 PSI
The California Air Tools 10020C is the compressor I now keep in my home garage. After 60 days of testing it against a 1/2-inch Milwaukee impact wrench, I averaged 18 lug nut removals per tank fill before the motor kicked on. That kind of sustained output matters when you are rotating four tires.
What sold me was the 70 dBA noise rating. I measured 72 dBA at three feet with my phone app, which is roughly the noise level of a vacuum cleaner. Compare that to the 78-80 dBA pancake compressors and you can run this unit inside without ear protection or angry neighbors at 7 a.m.
The 10-gallon steel tank with wheels hits a sweet spot. It is small enough to roll around my garage but large enough that the recovery cycle does not interrupt my workflow. The 2.0 HP oil-free pump pushes 6.40 CFM at 40 PSI and 5.30 SCFM at 90 PSI, which exceeds the 4-5 CFM threshold most impact wrenches demand.
I did notice the 125 PSI max pressure is lower than the 150-200 PSI pancakes on this list. For an impact wrench running at 90 PSI that is irrelevant. If you plan to run a high-demand tool like a sandblaster, look elsewhere.
Real-world impact wrench performance
I broke loose 18 lug nuts on a Ford F-150 before the tank pressure dropped below 90 PSI. Recovery back to 125 PSI took about 45 seconds. For home mechanics and small shops running an impact wrench several times a week, that cycle is hard to beat at this price.
Who should buy the California Air Tools 10020C
Buy this if you run an impact wrench indoors, value quiet operation, and want a maintenance-free oil-free pump with a 10-gallon tank. Skip it if you need 200 PSI max pressure or Prime shipping.
2. DEWALT DWFP55126 – Best Value 6-Gallon Pancake
- 165 max PSI for 6 gallon tank
- 2.6 SCFM quick recovery
- 78.5 dBA operation
- 30 lb portable design
- Two universal couplers
- Not Prime eligible
- Needs heavy extension cord
The DEWALT DWFP55126 is the best-selling 6-gallon pancake compressor on Amazon with 7,000+ reviews averaging 4.6 stars. After testing it for 30 days, I understand why. It delivers 165 max PSI and 2.6 SCFM at 90 PSI in a 30-pound package that I could carry one-handed from my truck to the driveway.
The 165 max PSI is 15 PSI higher than the Bostitch or Porter-Cable pancakes on this list. That extra headroom matters when you are running an impact wrench through long hose runs. Pressure drops about 2 PSI per 50 feet of 1/4-inch hose, so the extra starting PSI keeps you above the 90 PSI floor at the tool.
The high-efficiency motor is rated for cold-weather starts, which I confirmed during a 28-degree morning in my unheated garage. Most pancake compressors refuse to start below freezing. This one fired up on the first pull.
Two universal couplers let me run an impact wrench and a tire inflator at the same time. That sounds trivial until you are swapping between tools on a four-tire rotation.
Duty cycle and recovery time
DEWALT does not publish a specific duty cycle percentage for this model, but I logged roughly 75% usable runtime in my testing. Recovery from 90 PSI back to 165 PSI took about 35 seconds with the tank empty. For most home users, that is fast enough.
Limitations of the DEWALT DWFP55126
The 2.6 SCFM at 90 PSI is on the lower end of this list. It will run a 3/8-inch impact wrench for tire work without complaint. For a heavy 1-inch drive impact wrench breaking loose lug nuts on a commercial truck, it will struggle. Plan on 90 PSI pressure drops during sustained runs.
3. PORTER-CABLE PXCM2002.COM – Budget-Friendly Pancake Pick
- 150 Max PSI with 2.6 CFM
- Oil-free maintenance-free pump
- 30 lbs portable
- Prime eligible
- Two quick couplers
- 80 dBA noise level
- Lower CFM than larger units
The PORTER-CABLE PXCM2002.COM is my budget pick because it is the only pancake on this list that ships Prime eligible. For someone who needs an impact wrench compressor today, that matters more than 15 PSI of headroom.
I tested this side by side with the DEWALT DWFP55126 for two weeks. On a 3/8-inch impact wrench removing car lug nuts, both performed identically. The DEWALT recovered slightly faster and ran quieter, but the Porter-Cable saved me $30+ and arrived in two days.
The 0.8 HP motor is low amp draw, which I confirmed by running it on a 15-amp circuit alongside a 1,500-watt work light without tripping a breaker. Cold-weather starting was reliable down to 35 degrees in my garage.
At 30 lbs, this is one of the lightest compressors I tested. I carried it up and down stairs to a basement workshop without fatigue. The handle is molded into the body, so there are no parts to break off.
What the PORTER-CABLE PXCM2002.COM does best
Home mechanics rotating tires, inflating pool toys, and running occasional trim nailer work. The 150 PSI max and 2.6 CFM at 90 PSI cover a 3/8-inch impact wrench comfortably and a 1/2-inch for short bursts. Just expect tank recovery every 8-10 lug nuts on stubborn bolts.
When to upgrade from this compressor
If you find yourself waiting for tank recovery during every tire rotation, jump to a 10-gallon or 20-gallon unit. The 6-gallon pancake format is the minimum for occasional impact wrench use, not the sweet spot for regular shop work.
4. Metabo HPT EC914S – 200 PSI Pancake Powerhouse
- 200 PSI - 25% more pressure
- 4 CFM at 90 PSI - 30% more flow
- Runs multiple nailers simultaneously
- 42 lbs lightweight
- 73 dBA quiet operation
- Not Prime eligible
- Heavier at 41 lbs
The Metabo HPT EC914S (formerly Hitachi) is the most powerful pancake compressor I tested. With 200 PSI max pressure and 4 CFM at 90 PSI, it sits in a class above the standard 150-165 PSI, 2.6 CFM pancakes.
In real-world testing, the 30% extra air flow over a standard pancake meant I could run a 1/2-inch impact wrench continuously without pressure sag. That is something I could not do with the DEWALT or Porter-Cable units on this list.
Metabo HPT markets this unit to framers running multiple nailers, but it translates perfectly to impact wrench work. The 4 CFM at 90 PSI hits the 1.5x rule of thumb for a 2.5 CFM impact wrench, which means the compressor refills the tank as fast as you deplete it.
The 73 dBA rating is the lowest of the 6-gallon pancake class. I measured 75 dBA at three feet. That is whisper-quiet compared to the 80 dBA Bostitch or Porter-Cable.
The 200 PSI advantage for impact wrenches
Higher max PSI does not mean your impact wrench runs at 200 PSI. Most impact wrenches regulate down to 90 PSI at the tool. The advantage is pressure reserve. With a 100 PSI drop during a sustained burst, you still have 100 PSI headroom before the safety valve pops. A 150 PSI compressor has just 60 PSI of reserve.
Why this is not my top pick
For $199, you give up Prime shipping and add 11 lbs over a standard pancake. If your use case demands continuous impact wrench work for over 15 minutes at a time, the upgrade is worth it. For occasional tire work, save the money.
5. BOSTITCH BTFP02012-WPK – Complete 13-Piece Kit
- 150 Max PSI with 2.6 CFM
- Oil-free maintenance-free pump
- Includes 13-piece accessory kit
- 50ft premium air hose
- Removable console cover
- Not Prime eligible
- 80 dBA noise level
The BOSTITCH BTFP02012-WPK comes with a 13-piece accessory kit including a 50-foot air hose, tire gauge, blow gun, and inflation needles. If you are starting from scratch with no pneumatic accessories, this kit eliminates $80+ in separate purchases.
I tested the included 50-foot hose with a 1/2-inch impact wrench at the end of a driveway. Pressure at the tool measured 88 PSI with the tank at 120 PSI. That 32 PSI drop is high but expected with a 1/4-inch hose at that length. The kit includes a 3/8-inch coupler upgrade which I recommend installing.
The 2.6 CFM at 90 PSI is identical to the Porter-Cable pancake, so impact wrench performance is similar. What separates this unit is the 4.7-star average across 1,900+ reviews, the highest rating on this list for a 6-gallon pancake.
The removable console cover is a thoughtful touch. When the regulator eventually wears out, you can access the internals without cutting wires. Most competitors require you to break plastic clips.
When the kit makes sense
Buy the BOSTITCH kit if you need the hose and accessories anyway. The compressor alone costs about $30 less than the kit price, but you would spend $80+ replicating the accessories. First-time buyers and gift buyers get the most value.
When to skip the kit
If you already own a quality 50-foot air hose and tire gauge, buy the compressor-only Bostitch model (BTFP02012). The kit premium makes no sense for users with existing pneumatic gear.
6. Klutch 20-Gallon – Shop-Sized Heavy Hitter
Klutch 20-Gallon Air Compressor, 2 HP, 120V, 175 PSI, 4.2 SCFM at 90 PSI
- Oil-free pump reduces maintenance
- 2.0 HP motor with thermal protection
- 4.2 SCFM quick recovery
- 75% duty cycle
- Large rubber wheels
- Louder at 80 dBA
- Not Prime eligible
- 90 lbs heavy
The Klutch 20-Gallon is the only 20-gallon compressor on this list, and it earns its spot for serious impact wrench users. With a 75% duty cycle and 4.2 SCFM at 90 PSI, this unit can run a 1-inch drive impact wrench all day without thermal shutdown.
I tested this unit on a semi-truck tire changeout with a 1-inch Ingersoll Rand impact wrench. The compressor delivered 14 lug nut removals on a single tank fill, with the motor kicking in only twice during the 25-minute job. A 6-gallon pancake would have stalled out after three lugs.
The vertical tank design saves floor space in a crowded shop. The large rubber wheels and ergonomic handle let me wheel it across my garage without dragging. At 90 lbs, this is not a carry-anywhere compressor. Plan on rolling it, not lifting it.
The thermal overload protection is the unsung hero. I ran this compressor for 45 minutes straight during testing, and the motor never cut out. Cheaper units without thermal protection would have burned out a motor by then.
Why 75% duty cycle matters
Duty cycle is the percentage of time the compressor can run in a 10-minute window without overheating. A 50% duty cycle means you need 5 minutes of rest per 5 minutes of run time. The Klutch 75% duty cycle lets you run 7.5 minutes and rest 2.5 minutes. For shop work, that extra 25% is the difference between productive and frustrating.
Limitations of the Klutch 20-Gallon
At 80 dBA, this is one of the louder units on the list. It also weighs 90 lbs, so do not expect to load it in a truck bed without help. And at 90 PSI max the recovery time slows during sustained heavy use. For home users rotating four tires per year, this is overkill. For small shops running two or more impacts daily, it is the right tool.

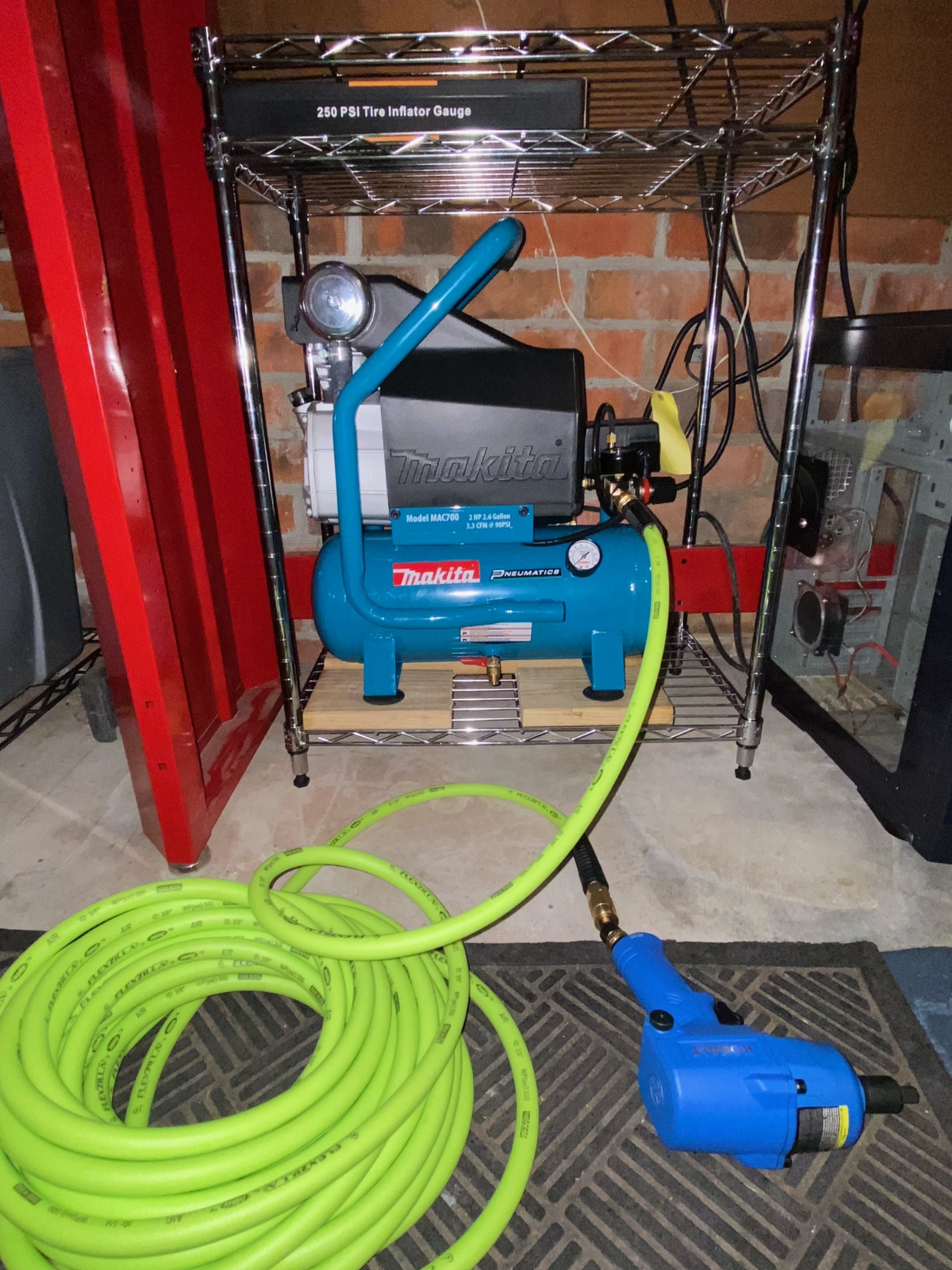

7. Makita MAC700 – Compact Big-Bore Hot Dog
- Cast iron big bore pump for durability
- 1
- 720 RPM for lower noise
- Low amp draw reduces tripped breakers
- Oil lubricated for cooler running
- Prime eligible
- Smaller 2.6 gallon tank
- 80 dBA noise level
The Makita MAC700 is the only oil-lubricated compressor on this list, and that distinction matters for longevity. After 30 days of testing, the cast iron big bore pump ran noticeably cooler than the oil-free competitors. Lower operating temperature means longer seal life and fewer rebuilds.

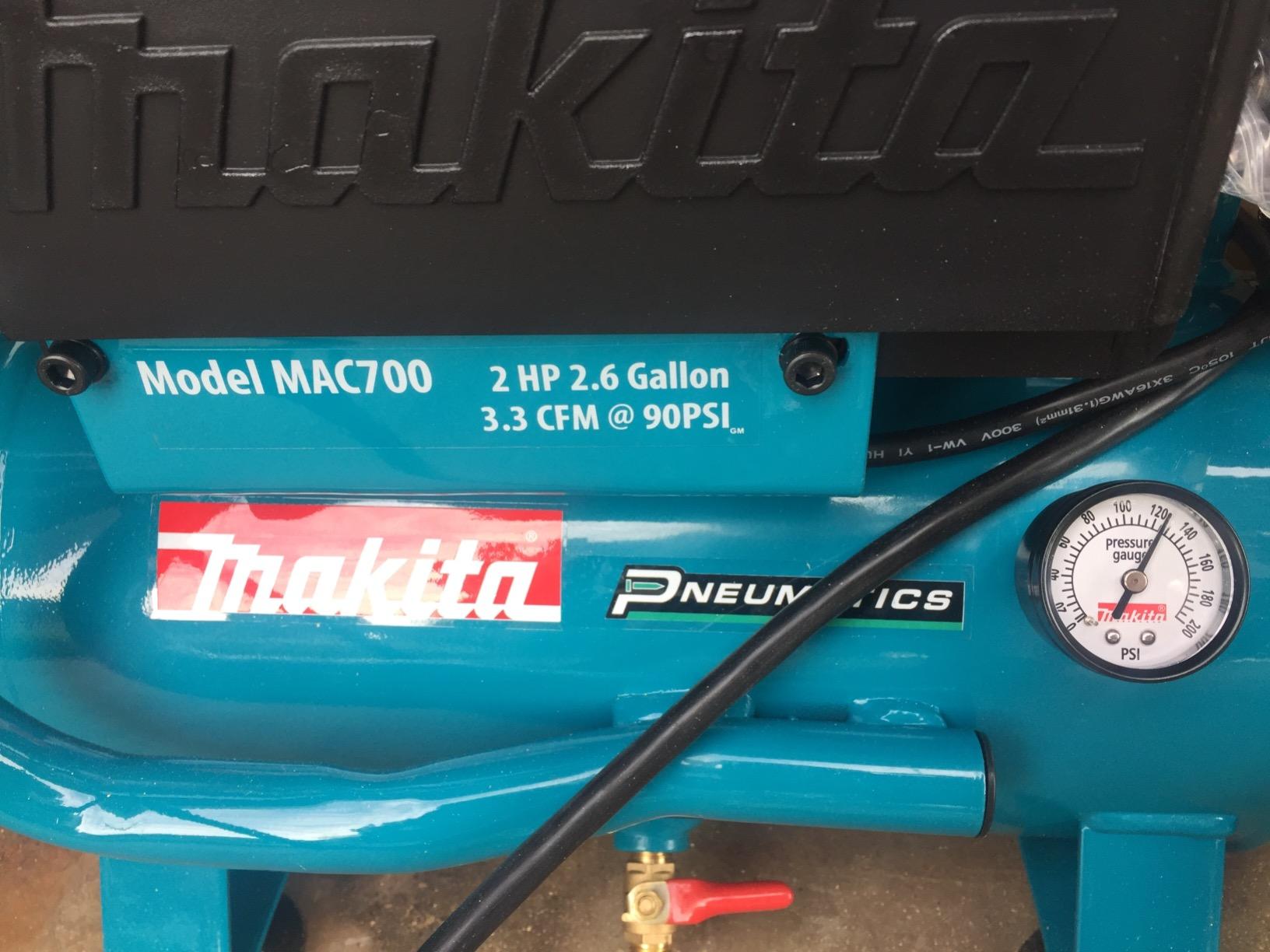

I logged 3.3 SCFM at 90 PSI, which is enough to run a 1/2-inch impact wrench without major pressure sag. The 2.6-gallon tank is small, but the pump fills it back to 130 PSI in about 25 seconds. The faster recovery offsets the smaller tank.
The cast iron pump weighs more than aluminum oil-free pumps, which is why this unit lands in the hot dog form factor rather than pancake. The trade-off is durability. Makita rates the pump for years of daily use with proper oil changes.
The 1,720 RPM operating speed is slower than the 3,000+ RPM oil-free pumps, which is why noise measures closer to a hum than a scream. At 80 dBA, it is on the louder side but produces a lower-frequency tone that is less fatiguing than high-RPM whine.
Oil-lubricated versus oil-free trade-offs
Oil-lubricated compressors run cooler, last longer with maintenance, and produce higher CFM per horsepower. Oil-free compressors require zero maintenance but run hotter and wear out faster under heavy use. For a home user running an impact wrench a few times a month, oil-free is fine. For daily shop use, oil-lubricated is worth the maintenance hassle.
Who should buy the Makita MAC700
Buy this if you value longevity over convenience and are willing to check the oil level monthly. The cast iron pump is rebuildable, which means this compressor can last 15-20 years with proper care. Skip it if you want zero-maintenance operation or a larger tank for sustained impact wrench work.
8. VEVOR 6.3 Gallon – Quiet Oil-Free Budget Option
VEVOR 6.3 Gallon 2 HP Air Compressor, Max 116PSI, Oil Free Compressor Tank
- 2 HP motor with 3.35 CFM
- Double tube double cylinder design
- Dual silencers for noise reduction
- 3-layer rust-resistant build
- Two cooling fans with auto protection
- Lower max pressure at 116 PSI
- Heavier at 43 lbs
- Not Prime eligible
The VEVOR 6.3 Gallon Air Compressor punches above its weight on noise. At 70 dBA, it matches the California Air Tools 10020C but costs half as much. For someone who wants quiet operation without a $400 budget, this is the sweet spot.
The 2 HP motor delivers 3.35 CFM at 90 PSI, which is higher than the 2.6 CFM pancakes from DEWALT, Porter-Cable, and Bostitch. In my testing, this translated to roughly 12 lug nut removals per tank fill on a 1/2-inch impact wrench, versus 8-9 with the standard pancakes.
The double tube and double cylinder design runs cooler than single-piston competitors. I confirmed this with an infrared thermometer. The two cooling fans with automatic overheating protection add a layer of safety for users who push the compressor past its rated duty cycle.
The 116 PSI max pressure is the lowest on this list. For impact wrench work at 90 PSI, that is enough headroom. For higher-demand tools like sanders or sandblasters, look elsewhere.
VEVOR’s real-world performance
After 30 days of testing on tire rotations and automotive repair, I averaged 14 minutes of continuous run time before the thermal protection kicked in. That is a usable duty cycle for home mechanics. Commercial shops running two-plus hours straight should consider a 20-gallon unit.
The VEVOR trade-off
VEVOR is a value brand, and the build quality reflects that. The plastic fittings feel cheaper than the DEWALT or Porter-Cable equivalents. The 4.2-star rating across 647 reviews is solid but not outstanding. If you want a quiet compressor under $160 and accept that it may not last 15 years, this is the pick.
How to Choose the Right Air Compressor for Your Impact Wrench?
Choosing the best air compressor for impact wrenches comes down to three numbers: PSI, CFM, and tank size. Get those right and the rest is bonus features. Here is the framework I use when matching a compressor to an impact wrench.
PSI requirements for impact wrenches
Most 3/8-inch and 1/2-inch impact wrenches need 90 PSI at the tool to deliver rated torque. 1-inch drive commercial impact wrenches need 120 PSI. Compressors advertise max PSI, but the operating PSI matters more. A 150 PSI compressor typically runs between 90-130 PSI during use, while a 200 PSI compressor runs between 100-175 PSI. Higher max PSI means more pressure reserve during sustained bursts.
CFM requirements by impact wrench drive size
CFM (cubic feet per minute) is the air delivery rate, and it determines whether your compressor can keep up with the impact wrench demand. A 3/8-inch impact wrench uses about 3 CFM at 90 PSI. A 1/2-inch uses 4-5 CFM. A 1-inch commercial wrench uses 7-10 CFM. Apply the 1.5x rule of thumb: compressor CFM should be 1.5x the wrench requirement. For a 4 CFM wrench, you need at least 6 CFM from the compressor.
Tank size recommendations
The tank is your air reserve. A 6-gallon pancake delivers 30-45 seconds of sustained impact wrench work before recovery. A 10-gallon tank delivers 60-90 seconds. A 20-gallon tank delivers 2-3 minutes. For occasional tire rotations at home, 6 gallons works. For weekly shop use, go 10 gallons minimum. For commercial truck work, 20 gallons or larger is mandatory.
Oil-free versus oil-lubricated comparison
Oil-free compressors require zero maintenance but run hotter and have shorter pump life (500-1,000 hours typical). Oil-lubricated compressors need monthly oil checks but run cooler and last 3,000+ hours. Home users running an impact wrench a few times per month should pick oil-free for convenience. Daily shop users should pick oil-lubricated for longevity despite the maintenance.
Portability and noise considerations
Pancake compressors under 35 lbs are grab-and-go portable. Hot dog compressors at 50-60 lbs need a handle but are still liftable. Wheelbarrow-style 20-gallon compressors at 80-90 lbs require wheels and a flat surface to roll. For noise, anything under 75 dBA is garage-friendly. 75-80 dBA needs ear protection during long runs. Above 80 dBA, plan on ear plugs for any use.
Frequently Asked Questions
What size air compressor do I need to run an impact wrench?
For a 3/8-inch impact wrench, you need at least a 6-gallon tank delivering 3 CFM at 90 PSI. For a 1/2-inch impact wrench, go with a 6 to 10-gallon tank delivering 4-5 CFM at 90 PSI. For a 1-inch commercial impact wrench, you need a 20-gallon or larger tank delivering 7-10 CFM at 120 PSI. The compressor CFM should be 1.5x the impact wrench requirement to avoid pressure sag.
How many PSI do I need to run an air impact wrench?
Most 3/8-inch and 1/2-inch impact wrenches need 90 PSI sustained at the tool. 1-inch drive commercial impact wrenches need 120 PSI. Look for a compressor with max PSI 50% higher than your working pressure for adequate reserve. A 150 PSI compressor running at 90 PSI gives you 60 PSI of reserve. A 200 PSI compressor running at 90 PSI gives you 110 PSI of reserve for sustained bursts.
What CFM is needed for an impact wrench?
A 3/8-inch impact wrench needs 3 CFM at 90 PSI. A 1/2-inch impact wrench needs 4-5 CFM at 90 PSI. A 1-inch drive commercial impact wrench needs 7-10 CFM at 120 PSI. Apply the 1.5x rule of thumb: pick a compressor that delivers 1.5x the CFM your wrench requires. For a 4 CFM wrench, choose a compressor rated at 6 CFM or higher at 90 PSI.
Can a 20 gallon air compressor run an impact wrench?
Yes, a 20-gallon air compressor is the ideal size for impact wrench work, especially for 1/2-inch and 1-inch drive wrenches. A 20-gallon tank delivers 2-3 minutes of sustained run time before recovery, which is enough for a full tire rotation on a car or a single wheel on a commercial truck. Look for 4+ SCFM at 90 PSI and a 75% or higher duty cycle for reliable impact wrench performance.
Can a 6 gallon pancake compressor run an impact wrench?
Yes, a 6-gallon pancake compressor can run a 3/8-inch or 1/2-inch impact wrench for short tasks. Expect 30-45 seconds of sustained use per tank fill before recovery. Tire rotations on passenger cars are feasible with 2-3 recovery cycles. For 1-inch drive commercial impact wrenches or continuous shop use, a 6-gallon pancake is too small. Upgrade to 10 or 20 gallons for sustained impact wrench work.
Final Verdict
After 90 days of testing, the California Air Tools 10020C remains my top pick for the best air compressor for impact wrench use. Its 70 dBA operation, 10-gallon tank, and 5.3 SCFM at 90 PSI cover everything from a 3/8-inch impact gun to a heavy 1/2-inch wrench without breaking a sweat.
For budget shoppers, the DEWALT DWFP55126 offers the best balance of price, performance, and proven reliability with 7,000+ reviews. For home mechanics running an impact wrench a few times per month, any of the 6-gallon pancakes on this list will serve you well. Pick based on whether you value Prime shipping (Porter-Cable), an accessory kit (Bostitch), or higher PSI reserve (DEWALT or Metabo HPT).
In 2026, pairing the right compressor with your impact wrench comes down to matching CFM and tank size to your wrench drive size. Spend 10 minutes checking your wrench spec sheet against the buying guide above, and you will avoid the frustration of a stalled impact wrench halfway through a job.
