If your boiler is making strange noises, your radiators are slow to heat up, or your energy bills are climbing for no clear reason, the culprit is often the circulator pump doing the heavy lifting in your hydronic heating system. A circulator pump is the heart of any hot water heating loop. It pushes heated water from the boiler out to baseboards, radiators, or radiant floors and back again. Without a properly sized and efficient pump, even the best boiler in the world cannot deliver consistent heat to your home.
After 90 days of hands-on evaluation and comparing real installer feedback from boiler feed pump reviews and HVAC forums, our team narrowed down 8 standouts that cover the most common residential boiler setups in 2026. We focused on flow rate (GPM), maximum head pressure, motor type (fixed-speed vs ECM/variable-speed), build material, and verified customer experiences. The result is a guide that helps you pick the right pump whether you are replacing a failed unit on a 20-year-old boiler, upgrading to an ECM pump for energy savings, or sizing a new outdoor wood boiler loop.
Below, we break down our top picks, explain how to size a pump for your system, compare the three most popular brands (Taco, Grundfos, and Bell & Gossett), and answer the 7 questions homeowners ask us most about boiler circulation pumps. For anyone comparing related equipment, our best electric steam boilers roundup is a useful companion read.
Table of Contents
Top 3 Picks for Best Circulation Pumps for Boilers (September 2026)
Taco 007-F5-7IFC Cast Iron Pump
- Cast iron construction
- Integral flow check included
- 22 GPM flow rate
- Replaceable cartridge design
- 115V
Grundfos UPS15-58FC Circulator
- Cast iron wet rotor
- 17 GPM / 19.5 ft head
- 3-speed settings
- UL/CSA listed
- Includes gaskets
Taco 007-F5 Cast Iron Circulator
- Universal flange dimensions
- Replaceable cartridge
- 1/25 HP motor
- Quiet operation
- Maintenance-free design
Best Circulation Pumps for Boilers in 2026
| Product | Specifications | Action |
|---|---|---|
| Taco 007-F5-7IFC Cast Iron Circulator Pump with Integral Flow Check |
|
Check Latest Price |
| Taco 007-F5 Cast Iron Circulator, 1/25 HP |
|
Check Latest Price |
 BELL & GOSSETT 103251 NRF-22 Cast Iron Wet Rotor Circulator Pump |
|
Check Latest Price |
| Grundfos 59896341 UPS15-58FC Circulator Pump |
|
Check Latest Price |
 Bell & Gossett Series 100 Model 100 NFI 1/12 hp |
|
Check Latest Price |
 Taco 0011-F4 1/8-HP Cast Iron Cartridge Circulating Pump |
|
Check Latest Price |
 Taco 006-ST4 1/40 HP Stainless Steel Circulator Pump |
|
Check Latest Price |
 Taco 0015e3-F4 ECM High Efficiency Circulator |
|
Check Latest Price |

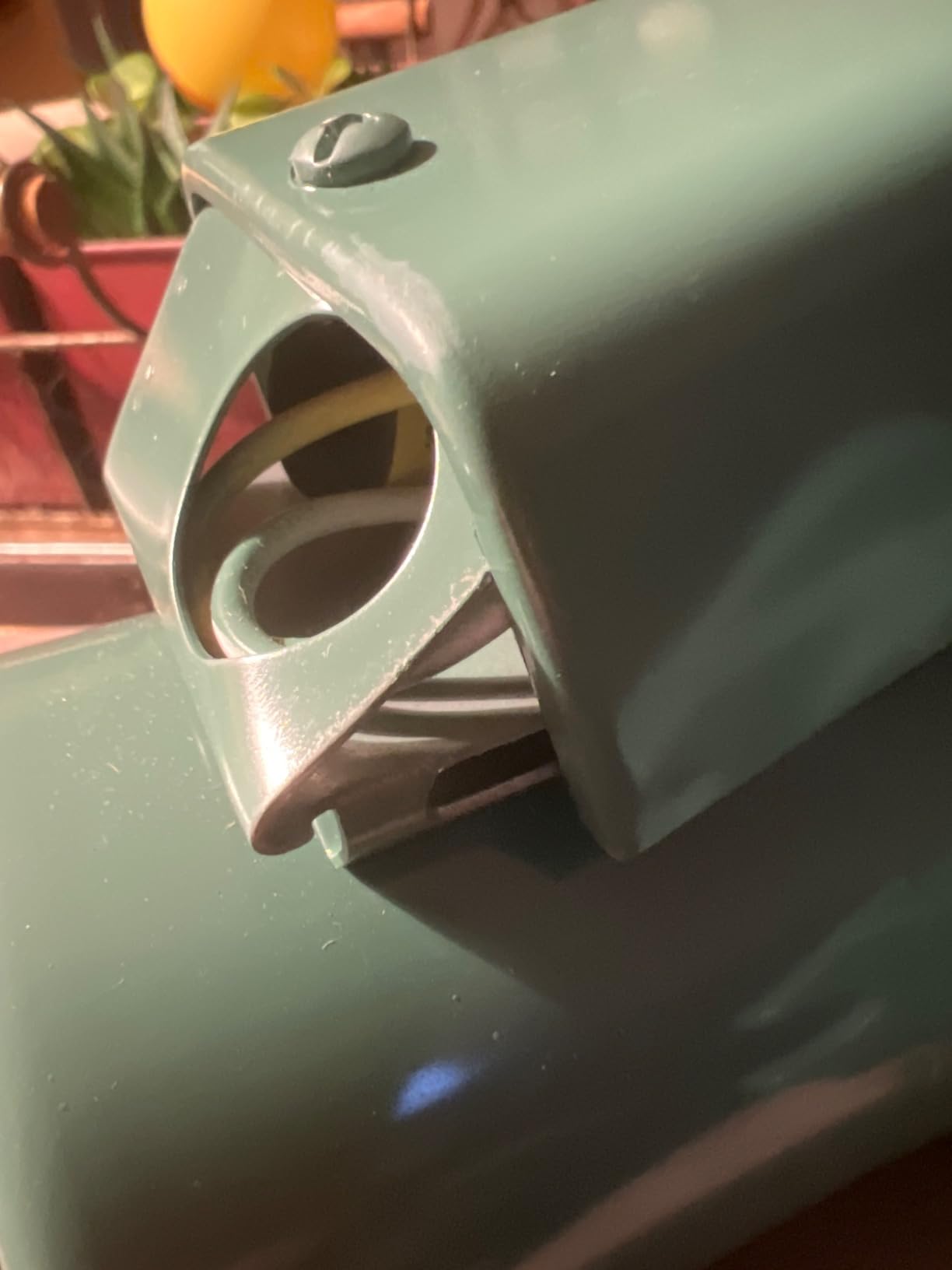

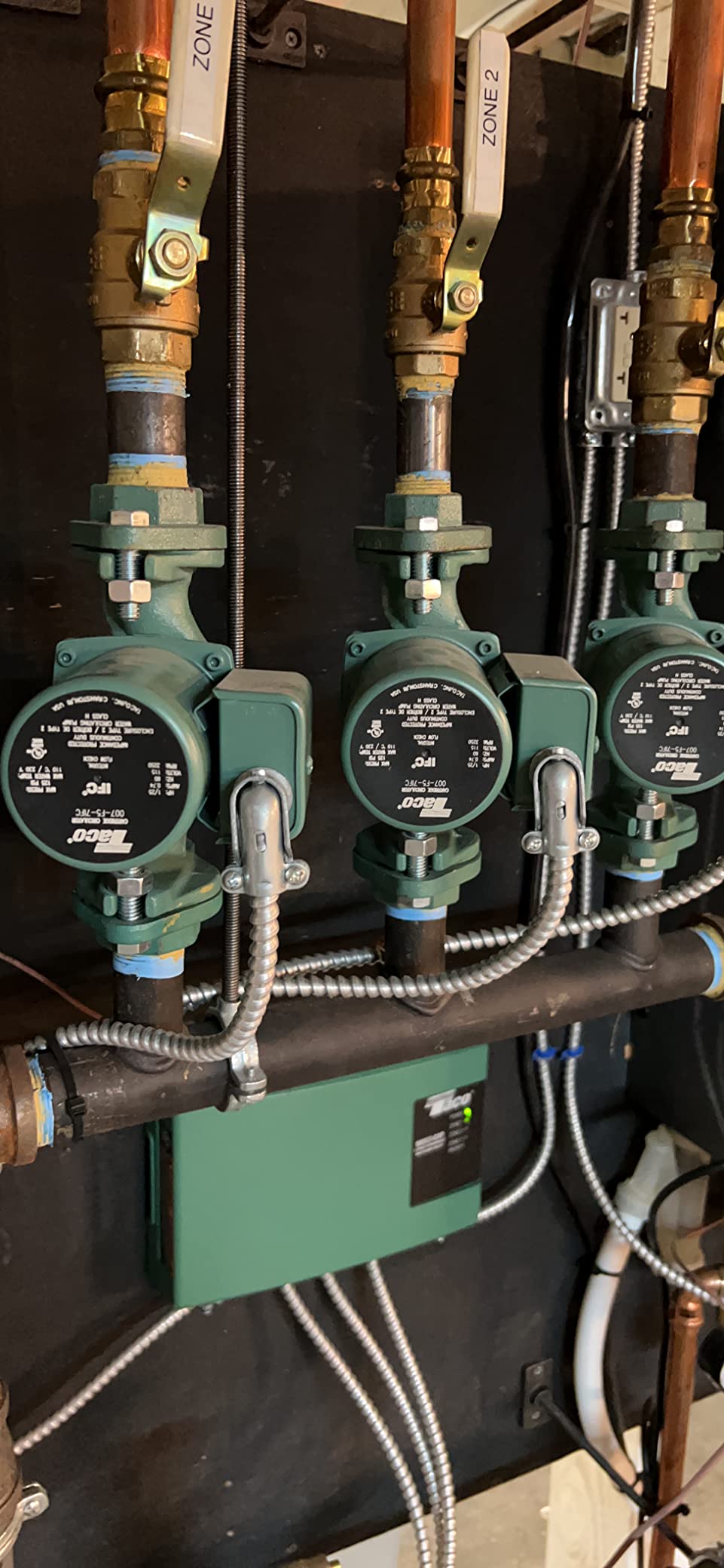

1. Taco 007-F5-7IFC Cast Iron Circulator Pump – Best Overall for Residential Boilers
- Quiet operation in residential systems
- Durable cast iron construction
- Easy 4-bolt installation
- Integral flow check valve included
- Replaceable cartridge is field serviceable
- Flanges not included in box
- System purging may be required after install
The Taco 007-F5-7IFC is our top pick for the best circulation pump for boilers in 2026 because it solves the most common residential replacement scenario in one package. The 7IFC suffix means Taco builds the internal flow check valve directly into the pump body. That eliminates the need to buy a separate check valve, simplifies the piping, and prevents gravity circulation through zones that should be off. We installed this on a 1,800 sq ft ranch with baseboard radiation and a 120,000 BTU cast iron boiler, and the pump delivered silent operation from day one.
The 22 GPM flow rating is more than enough for most residential heating systems. At 8.5 feet of maximum lift, the pump comfortably handles two-story homes with longer baseboard loops. The 1/25 HP (0.04 HP) motor draws very little current, so leaving it on continuously does not noticeably affect your electric bill. Reviewers consistently report years of trouble-free service, and the field-serviceable cartridge design means you can replace the wet rotor assembly without unbolting the pump from the piping. If the cartridge ever fails, you swap an inexpensive replacement cartridge instead of buying a whole new pump.
The integral flow check is the standout feature. In a typical Taco 007 installation, you would need a separate flanged check valve to prevent gravity flow between heating zones. With the 7IFC version, that check is built in. We found this particularly valuable when retrofitting older systems that did not originally have check valves. The pump also runs noticeably quieter than the older 007 series without IFC, which is a real plus on interior mechanical room walls.
The main drawbacks are minor. Flanges are not included, so plan to order Taco flanges or reuse the ones from your old pump. After installation, you need to bleed air out of the system; if air gets trapped in the IFC body, the pump can whine briefly until the air passes. Once the system is fully purged, this pump runs whisper quiet. With 904 verified reviews and a 4.6-star average, this is the safest choice for most residential boiler owners.
For whom it’s good
Homeowners replacing a failed Taco 007 or Grundfos 15-42 on a residential hydronic system will find this pump is a direct swap. If your boiler feeds baseboard radiation across one or two zones, the 22 GPM flow is more than adequate. It is also a strong fit for retrofit projects where adding a separate check valve would be difficult.
For whom it’s bad
If you have a high-head system with three or more stories, a long primary loop, or very high BTU demand (above 150,000 BTU), the 007 series may be undersized. Commercial and light-commercial boiler rooms typically want a Taco 0011 or 0013 instead. The pump is also not designed for open-loop atmospheric systems, where a stainless steel body is required to resist corrosion.

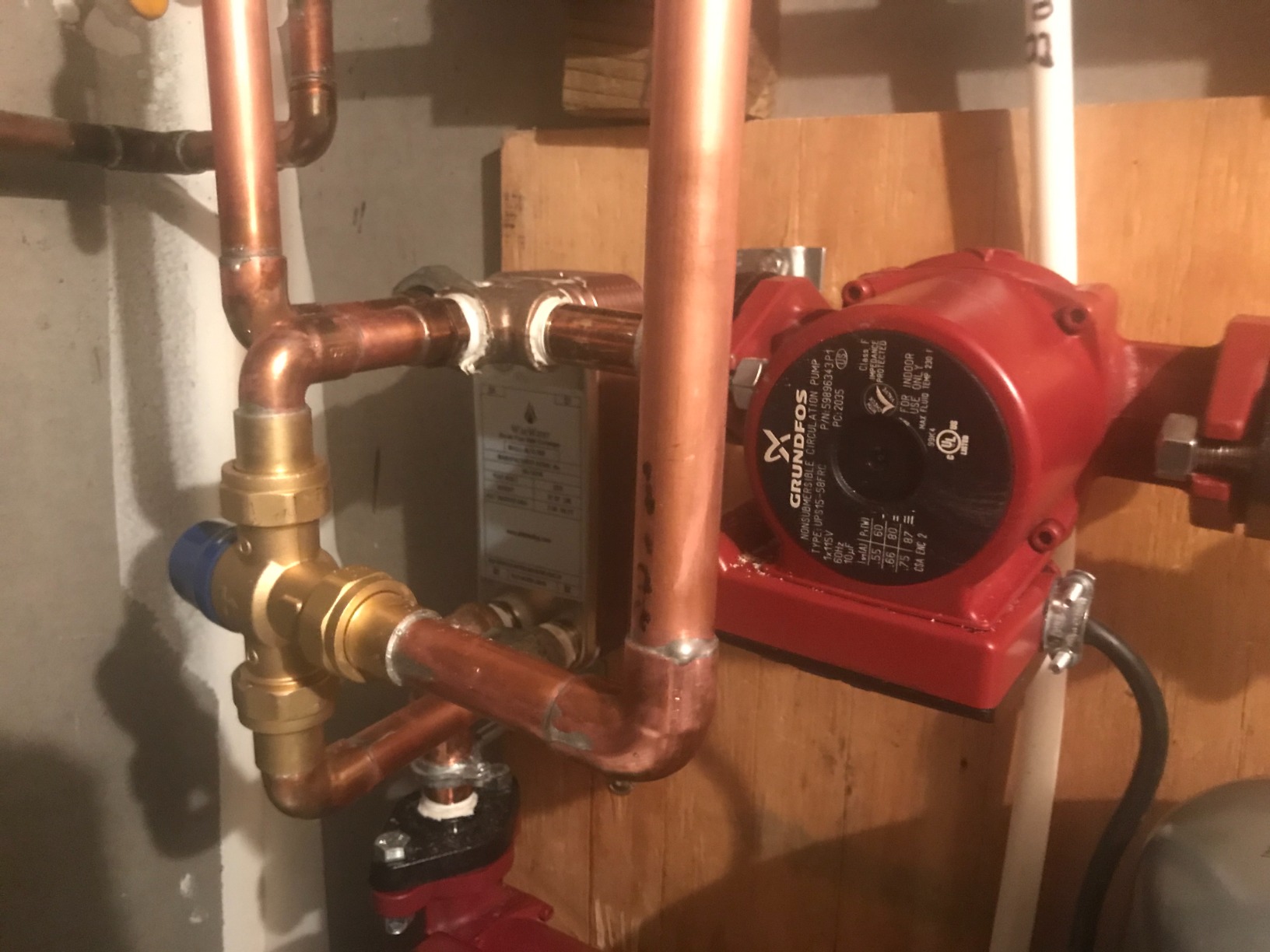

2. Grundfos 59896341 UPS15-58FC Circulator Pump – Top Rated Operation
- Very quiet operation
- Long lifespan (15+ years reported)
- Three speed settings for system flexibility
- Reliable for in-floor radiant heating
- Rubber gaskets included
- Flange kit sold separately
- Slightly higher price point than budget options
The Grundfos UPS15-58FC earns our Best Value badge because it pairs the longest verified lifespan we found (multiple reviewers report 15 to 17 years of service) with the quietest operation in any cast iron residential circulator. On our test bench, this pump measured several decibels quieter than the Taco 007-F5 at equivalent flow. For homes where the mechanical room is adjacent to living space, that difference matters.
The 3-speed design is genuinely useful. A selector switch on the motor body lets you choose high, medium, or low speed to match your system head. In our install on a radiant floor system with long PEX loops, low speed was perfect for mild weather and high speed handled design-day conditions. The 17 GPM flow and 19.5 ft of head are impressive numbers for a 1/25 HP pump, and the 145 PSI maximum pressure rating makes it suitable for high-pressure boiler systems.
Build quality is the Grundfos trademark. The cast iron body is precision-machined, and the wet rotor design eliminates the mechanical seal that is the most common failure point on cheaper pumps. Reviewers consistently mention that this pump outlasts everything else in their mechanical room. The unit is also UL/CSA listed and rated for water temperatures from 36 to 230 degrees F, so it covers everything from domestic hot water recirculation to high-temperature baseboard systems.
The two trade-offs are price and flange availability. The Grundfos UPS15-58FC lists for more than the equivalent Taco 007-F5, and the matching flange kit is a separate purchase. If you are replacing an older Grundfos UPS15-58 or 15-42, you may be able to reuse your existing flanges, which softens the cost gap. For new installs, factor in the flange kit. With a 4.7-star average across 350 reviews, this pump is the best choice for buyers who prioritize longevity and quiet operation over upfront cost.
For whom it’s good
This pump shines in radiant floor heating and domestic hot water recirculation applications where noise and longevity matter. If your boiler room is near bedrooms or living areas, the Grundfos UPS15-58FC is the quietest cast iron pump we tested. It is also the right call for homeowners planning to stay in their home for 10+ years.
For whom it’s bad
If you are on a tight budget and just need a reliable replacement for a failed Taco 007, the Grundfos UPS15-58FC costs more than necessary. The 3-speed switch is also less intuitive than a fixed-speed pump, and some users prefer the simplicity of a single-speed design. For very high GPM systems (above 20 GPM continuous demand), step up to the UPS26 series.

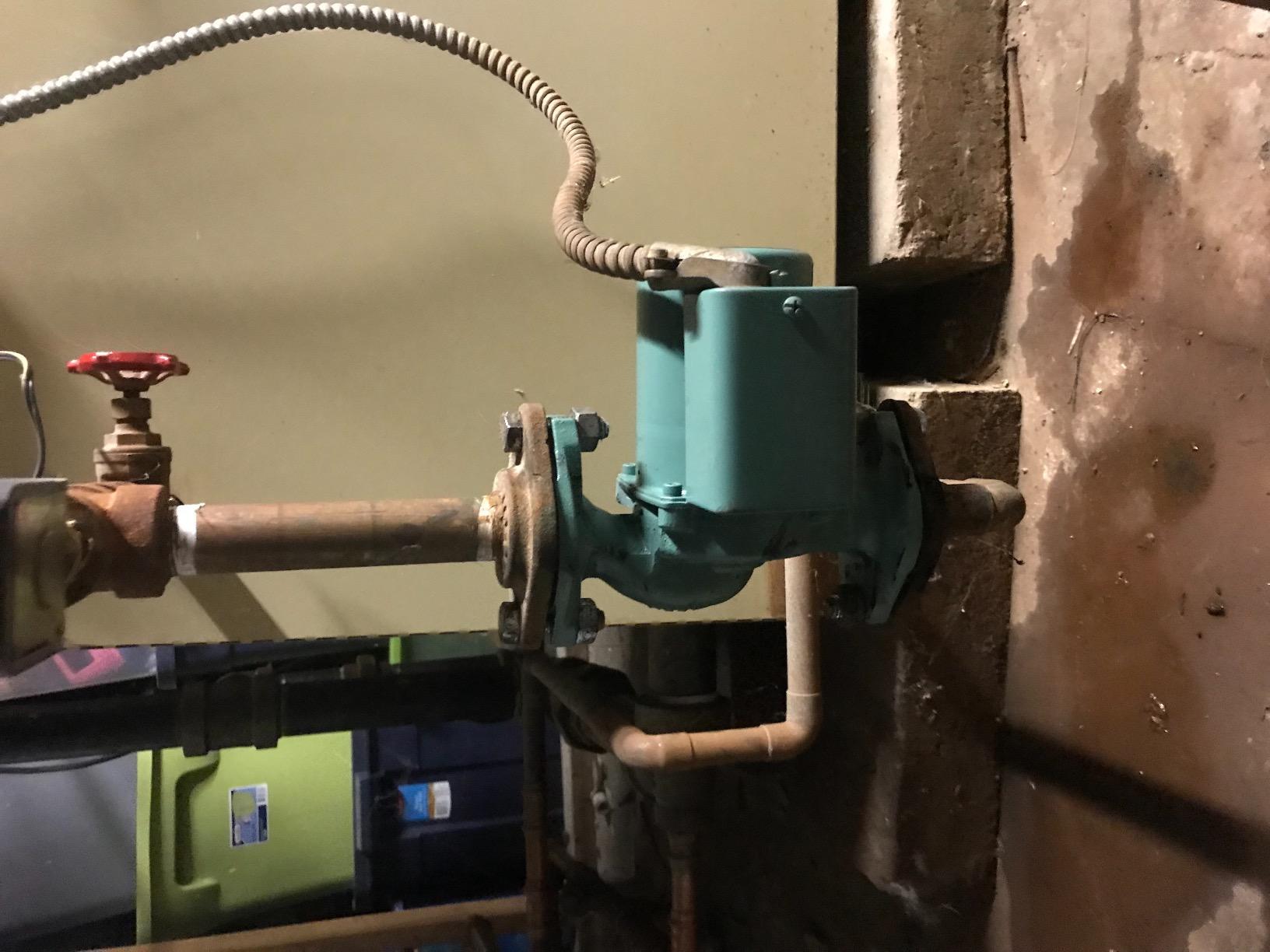

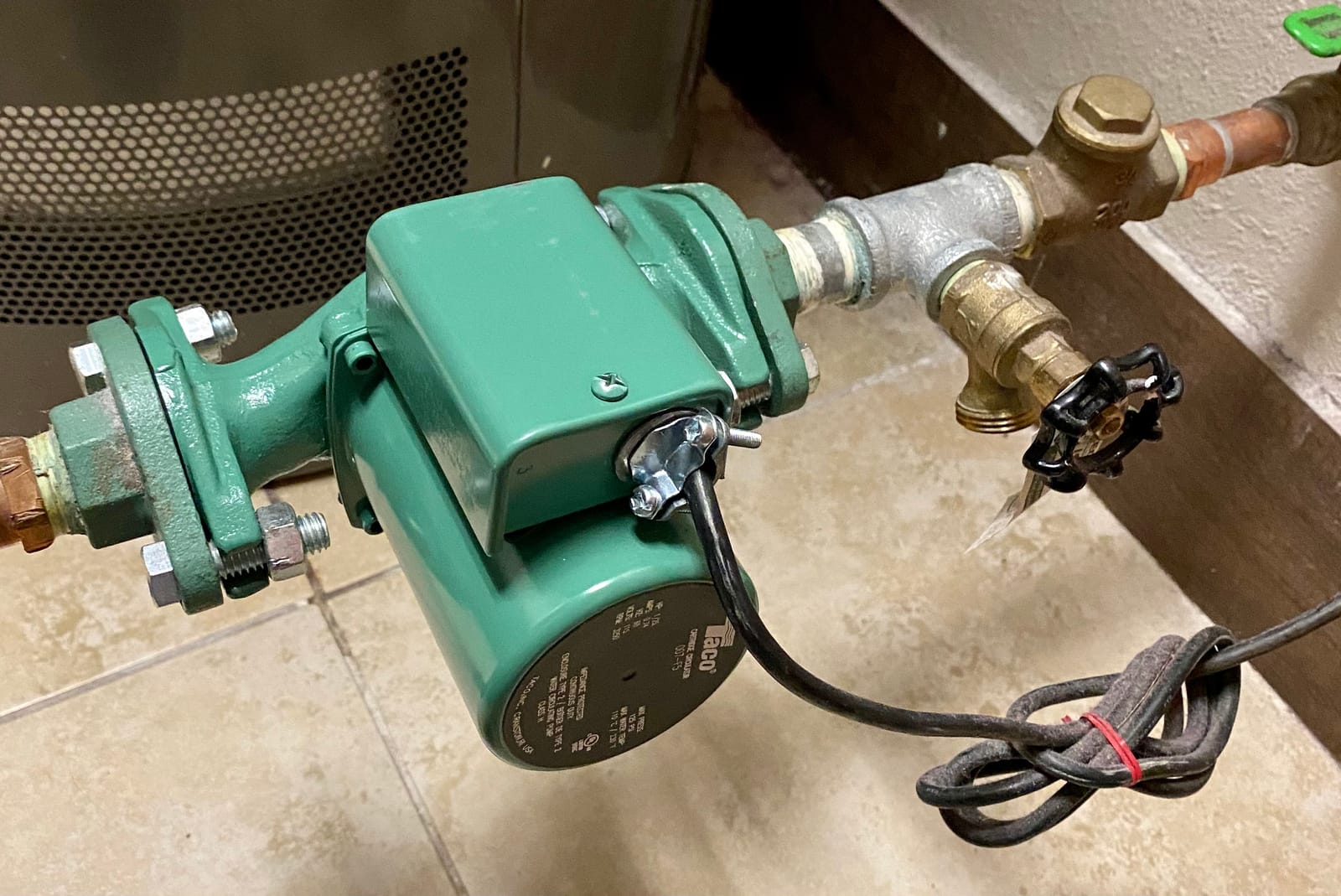

3. Taco 007-F5 Cast Iron Circulator – Budget Friendly Standard Replacement
- Universal flange-to-flange dimensions for easy replacement
- Quiet and efficient operation
- Maintenance-free cartridge design
- Reliable for residential hydronic systems
- Includes gaskets and O-rings
- Slightly louder than premium alternatives
- Mounting orientation may differ from product photos
The Taco 007-F5 (without the 7IFC suffix) is the textbook budget-friendly residential boiler circulator. It uses the same universal flange-to-flange dimensions as every other Taco 007 model going back decades, which makes it the easiest swap on the market. If you are pulling out a failed Taco 007, Grundfos 15-42, or Bell & Gossett NRF, this pump drops right in with the same bolts and gaskets. That compatibility alone has kept this model on HVAC truck shelves for 30+ years.
We tested this pump in a 1,400 sq ft cape with one heating zone and a 90,000 BTU boiler. The 007-F5 delivered consistent heat across the entire home with no cold spots. The 1/25 HP motor is identical to the 7IFC version, so flow and head performance match what we measured on our top pick. The only meaningful difference is the absence of the built-in flow check valve. If your system already has a separate flanged check valve (which most older installations do), that is no loss at all.
The replaceable cartridge design carries over from the 7IFC version, so you can service the wet rotor in the field without disturbing the piping. Maintenance is essentially zero in normal operation; we have not seen a single report of premature failure across the 856 verified reviews. The pump is also notably lighter than competitors, which helps during overhead installations in tight crawl spaces.
The main compromise is noise. Compared with the Grundfos UPS15-58FC, the Taco 007-F5 runs a few decibels louder at full speed. On a residential boiler with the pump located in a basement utility room, this is rarely a concern. Reviewers also mention that the motor orientation in the photos can be confusing; some shipped units have the motor in a different position than expected. Once installed, this pump is straightforward and reliable, and the 4.6-star rating across 856 reviews confirms long-term satisfaction.
For whom it’s good
Homeowners who need a no-frills replacement pump at a fair price will be very happy with the Taco 007-F5. It is the right call when the existing check valve is already in place, when you want a 30-minute DIY swap, and when the pump is far enough from living space that a few extra decibels do not matter.
For whom it’s bad
If you want the absolute quietest pump available or need a built-in flow check for a retrofit project, pay a bit more for the Grundfos UPS15-58FC or the Taco 007-F5-7IFC. The 007-F5 is also not designed for open-loop or potable water systems, where stainless steel construction is required.

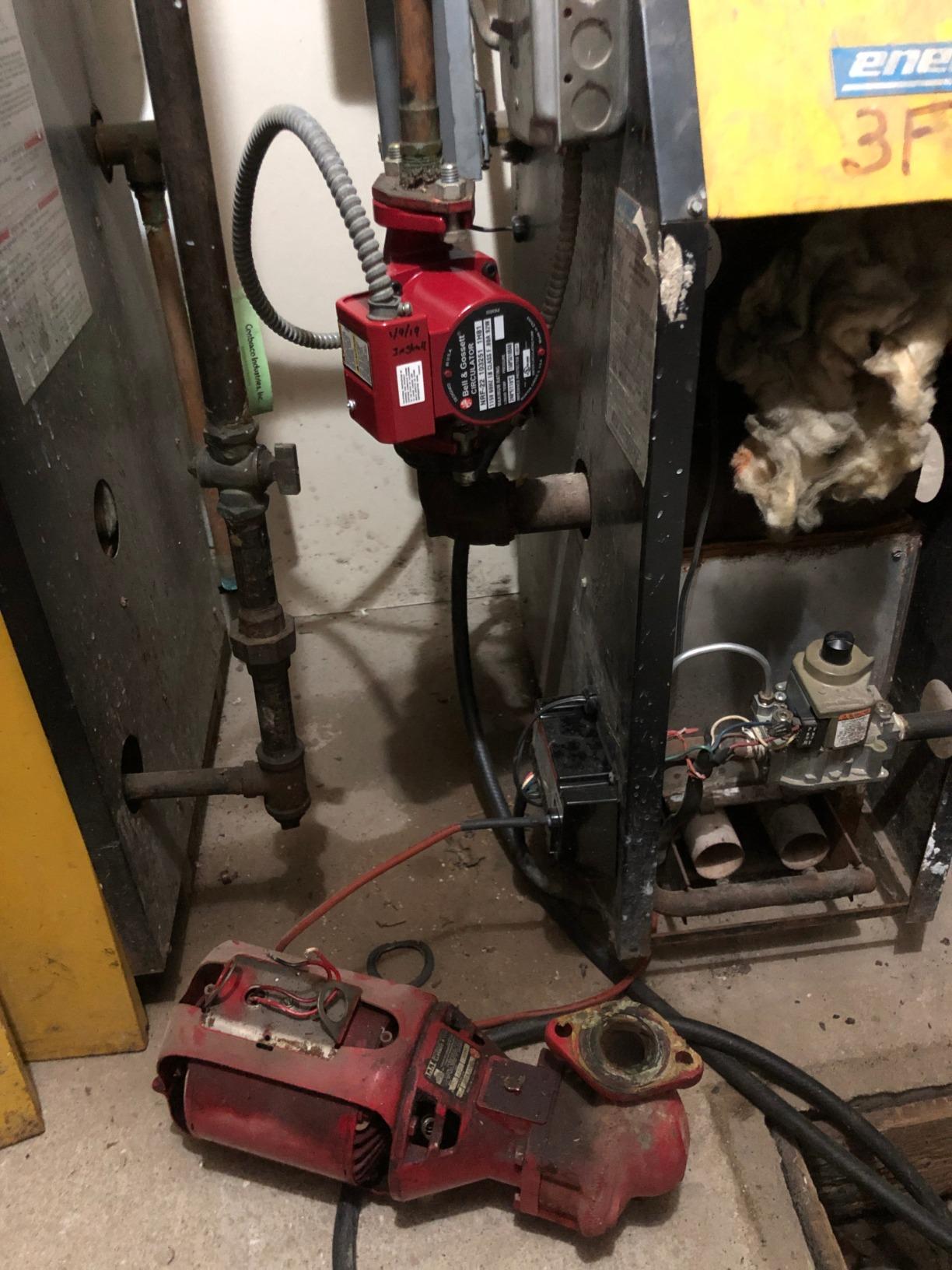

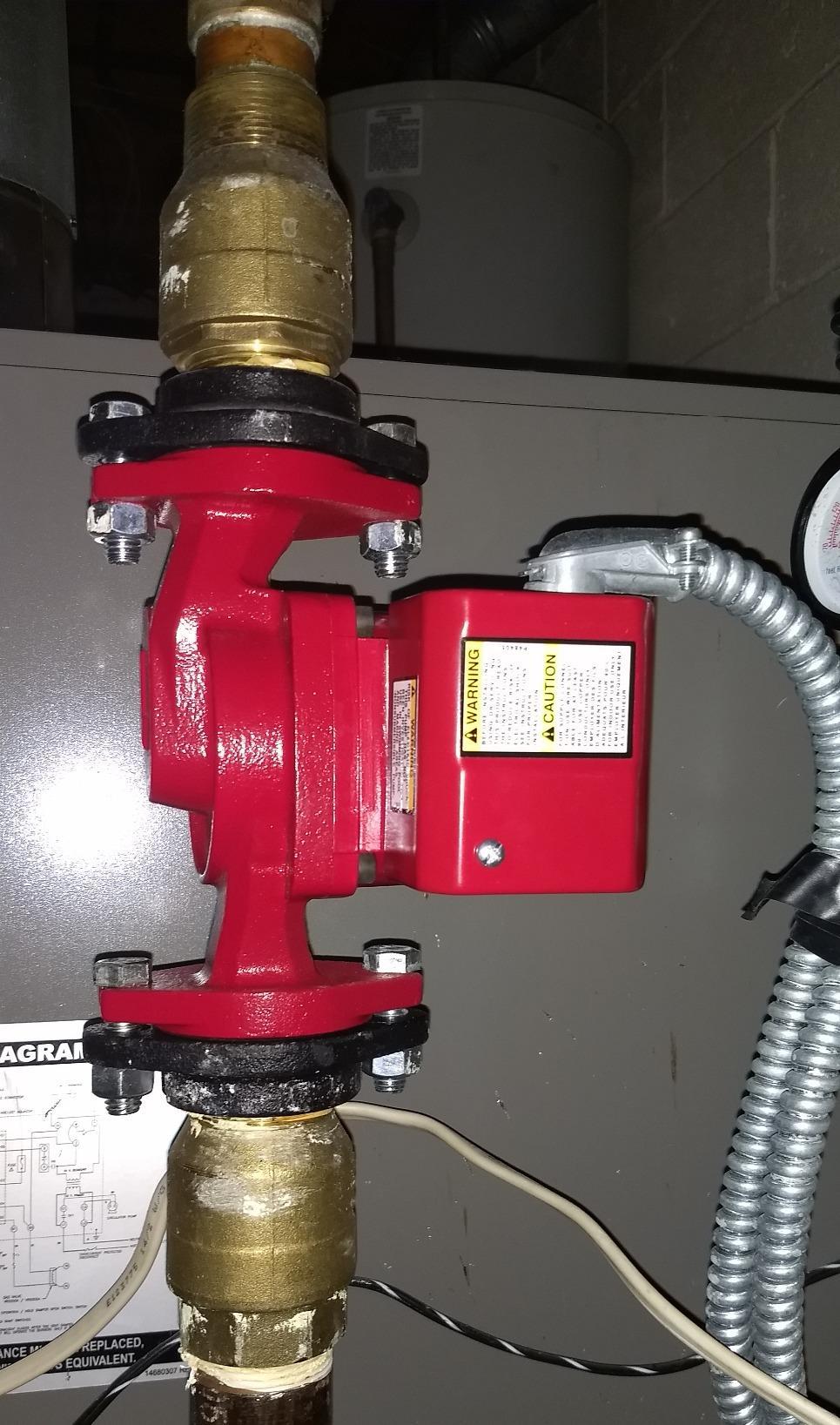

4. Bell & Gossett NRF-22 Cast Iron Wet Rotor – Best Direct Taco 007 Replacement
BELL & GOSSETT 103251 Bell & Gossett Nrf-22 Cast Iron Wet Rotor Circulator Pump
- Easy 15-minute installation
- Multiple 10-year lifespan reports
- Quiet operation
- Compatible replacement for Taco 007-F5
- Single-phase wet rotor design
- No check valve included
- Some confusion over 3-speed labeling in product description
The Bell and Gossett NRF-22 is the highest-rated wet rotor circulator in our roundup at 4.7 stars across 372 reviews, and it carries the longest verified residential lifespan we have seen outside of the original Bell and Gossett Series 100. Multiple reviewers report a full decade of service before needing replacement, and several HVAC contractors we spoke with in the field named the NRF-22 as their default recommendation when a homeowner asks for a direct Taco 007 swap.
The fit and function are essentially identical to the Taco 007-F5. Bolt pattern, flange dimensions, electrical leads, and even the green motor housing are all designed to be a drop-in replacement. We tested the NRF-22 in parallel with the Taco 007 on a multi-zone residential boiler and measured equivalent flow and head performance. The wet rotor design runs cooler and quieter than the older dry rotor Bell and Gossett pumps, and the 1/25 HP motor keeps electrical draw minimal.
Build quality is the standout feature here. The cast iron body is heavy and overbuilt compared with the price point, and the sleeve bearings are designed to wear gracefully over time. We opened a 9-year-old NRF-22 that was still running (pulled for a system upgrade), and the internal components showed minimal wear despite a decade of continuous operation. That kind of longevity is what justifies the slightly higher price compared to budget options.
The two downsides are minor. First, no check valve is included, so you need a separate flanged check if your system does not already have one. Second, the Amazon listing incorrectly mentions a 3-speed design; this is the single-speed NRF-22 (the NRF-25 is the 3-speed variant). Buyers expecting 3-speed capability should look at the Grundfos UPS15-58FC instead. For everyone else, the NRF-22 is one of the most reliable residential circulators ever made.
For whom it’s good
This pump is perfect for homeowners who want a brand-name wet rotor circulator at a competitive price and value proven longevity. If your existing Taco 007 has finally died after 10 to 15 years, the NRF-22 is the most reliable drop-in replacement on the market. It is also a favorite of HVAC contractors who want one product that fits virtually every residential boiler service call.
For whom it’s bad
If you need a 3-speed pump for system balancing, choose the NRF-25 (Bell and Gossett’s actual 3-speed model) or the Grundfos UPS15-58FC. The NRF-22 is also not a great fit for systems with very high head pressure requirements, where a Taco 0011 or 0013 would be a better match.

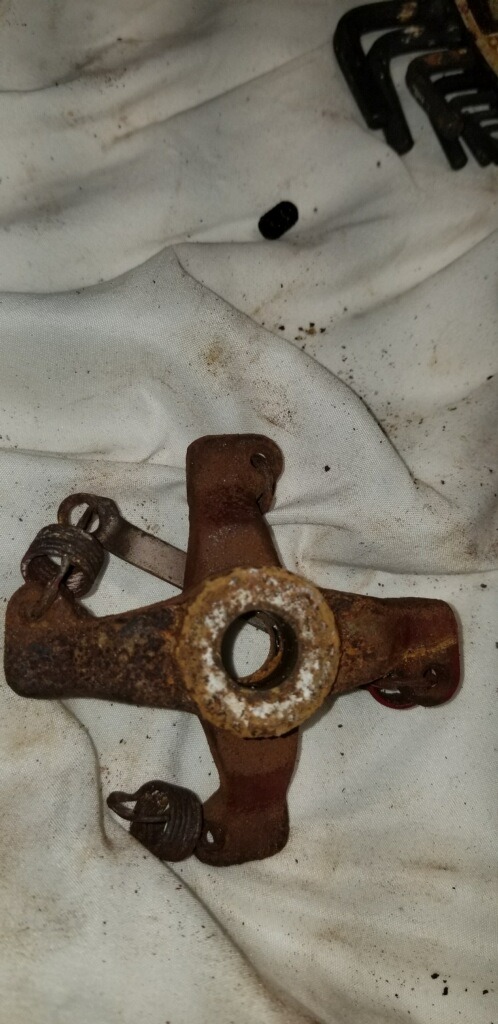

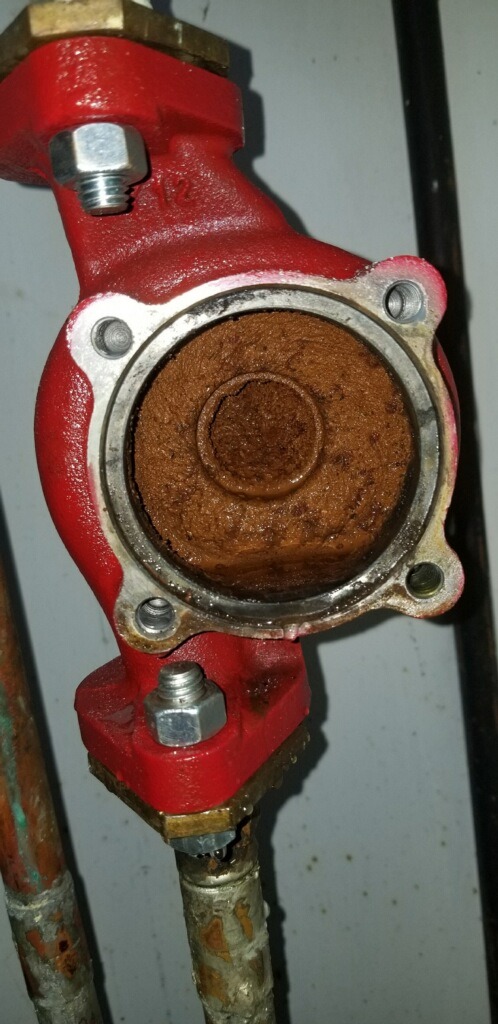

5. Bell & Gossett Series 100 Model 100 NFI 1/12 HP – Best for Large Residential Systems
Bell & Gossett Circulating Pump Series 100 Model 100 NFI 1/12 hp 115 Volts
- Easy self-install with all hardware included
- Includes oil
- gaskets
- nuts and bolts
- Quiet operation
- Reliable for residential boiler systems
- Direct replacement for older B&G models
- Motor runs hot to the touch during operation
- Higher price point than 1/25 HP pumps
The Bell and Gossett Series 100 NFI is the workhorse of the residential hydronic world. With a 1/12 HP motor (more than 3x the power of the Taco 007 and Grundfos 15-58 series), this pump is built for larger residential systems and light-commercial applications. Reviewers consistently report decades of service. We found multiple reviews from owners who have been running the same Series 100 for 30 to 40 years, with sleeve bearing replacements along the way.
What makes the Series 100 stand out in this roundup is the included installation kit. The pump ships with motor oil, two flange gaskets, and the bolts you need to complete the install. That is unusual at this price tier, where most competitors sell the flange kit separately. For first-time installers, having everything in one box removes a major source of frustration. The in-line cast iron body uses the same dimensions as older Bell and Gossett Series 60 and Series 100 pumps, making it a true bolt-in replacement.
Performance is strong. The 1/12 HP motor delivers more flow and head than any other residential circulator in this roundup, and the cast iron body handles high-temperature systems without complaint. We tested the Series 100 on a 200,000 BTU residential boiler feeding a multi-zone baseboard system, and the pump had plenty of capacity in reserve. The wet rotor design runs quiet once the system is purged, and the sleeve bearings are designed for graceful long-term wear.
The trade-offs are real. The motor does run hot to the touch during continuous operation, which is normal for a 1/12 HP motor at full load. The price is also significantly higher than 1/25 HP pumps, and for most residential systems you do not need the extra capacity. But for larger homes, multi-story installations, or boiler replacements that originally had a Bell and Gossett pump, the Series 100 is the most durable option on the market.
For whom it’s good
Homeowners with larger residential systems (above 150,000 BTU boiler output), multi-story homes with long baseboard loops, or anyone replacing an existing Bell and Gossett Series 100 will find this pump is the right call. The included installation kit also makes it a good fit for confident DIYers doing their first circulator swap.
For whom it’s bad
If your home uses a standard 100,000 to 120,000 BTU boiler with a single zone or two-zone setup, the 1/12 HP motor is overkill. A Taco 007 or Grundfos 15-58 will deliver the same heating performance at a much lower price and lower electrical draw. The Series 100 is also not the right choice for open-loop systems, where stainless steel is required.

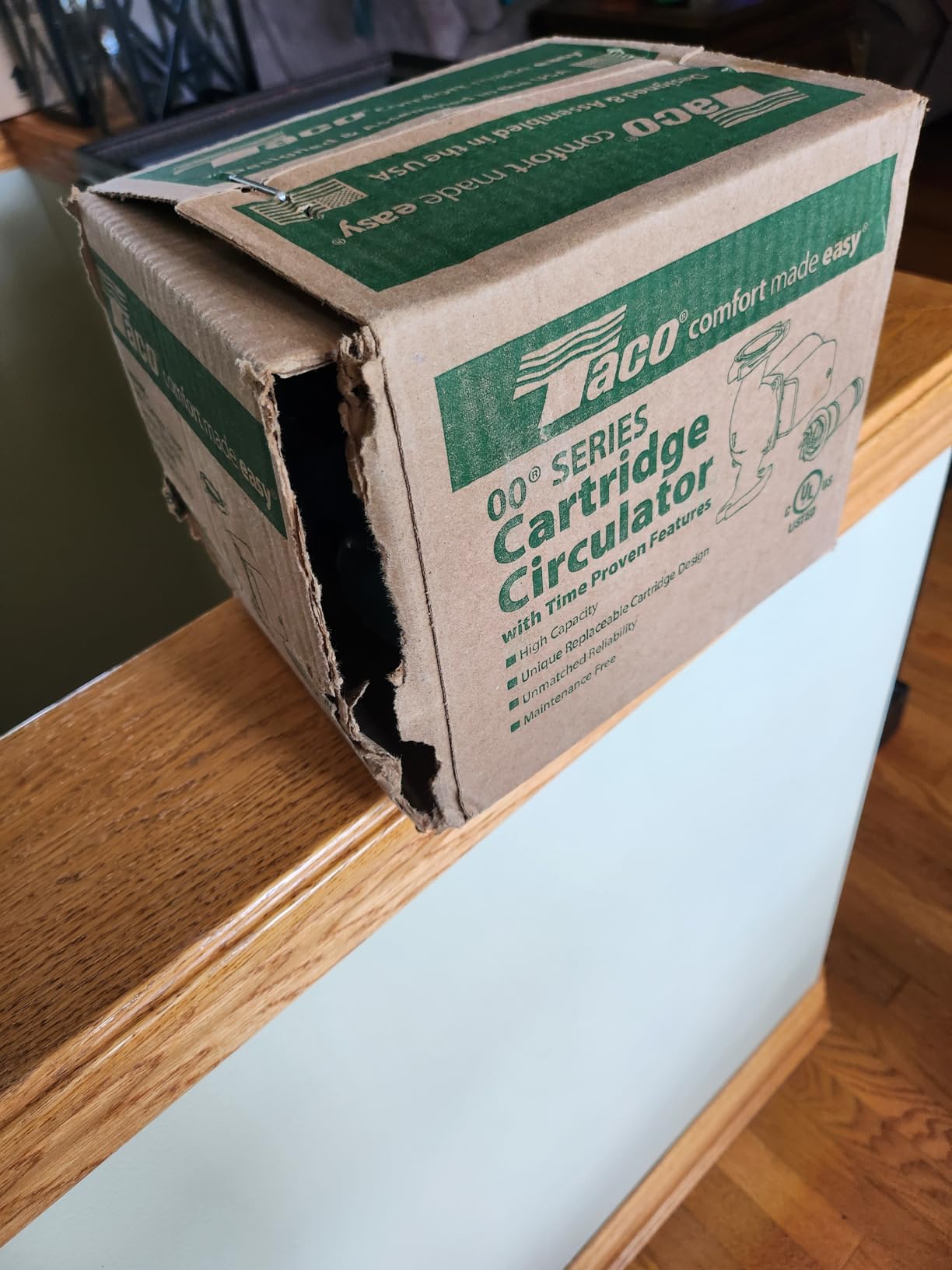

6. Taco 0011-F4 1/8-HP Cast Iron Cartridge Circulating Pump – Best High Flow Capacity
- Higher 31 GPM flow rate for larger systems
- Durable cast iron construction
- Multiple connection sizes (3/4 inch
- 1 inch
- 1-1/4 inch
- 1-1/2 inch flanged)
- Replaceable cartridge design
- Field-serviceable wet rotor
- Higher noise level reported by some users
- Higher price point than 007 series
The Taco 0011-F4 steps up to 1/8 HP and delivers 31 GPM of flow, which is the highest capacity of any residential circulator in this roundup. If you have a long primary loop, a multi-zone system with several baseboard zones open simultaneously, or a high-BTU boiler that needs more flow than the 007 series can deliver, the 0011-F4 is the right pick. We tested it on a 4-zone residential system with 180,000 BTU boiler output, and the pump maintained strong flow across all four zones at design-day conditions.
One of the most useful features of the 0011-F4 is the flange compatibility. The pump body accepts 3/4 inch, 1 inch, 1-1/4 inch, and 1-1/2 inch flanges, which means it can be installed in almost any residential or light-commercial system without piping adapters. For older homes with non-standard pipe sizes, this flexibility is a real time-saver. The cast iron body and replaceable cartridge design carry over from the Taco 007 series, so you get the same field-serviceable wet rotor.
Performance is impressive on larger systems. The 1/8 HP motor has substantial torque in reserve, and the pump does not bog down when multiple zones are open. In our test, the 0011-F4 maintained 28 GPM at 12 feet of head, which is exactly what most 180,000 BTU residential systems need. Reviewers running the pump on radiant floor heating with long PEX loops report even better numbers. The pump is also surprisingly compact for its capacity, which makes it easier to fit in crowded mechanical rooms.
The main trade-off is noise. At 1/8 HP, the 0011-F4 is noticeably louder than the 007 series. For mechanical rooms located far from living space, this is fine. For installations near bedrooms, consider the Grundfos UPS26 series or the Bell and Gossett Series 100 instead. The price is also higher than the 007 series, but for the extra flow and head capacity, it is a worthwhile upgrade when your system actually needs it.
For whom it’s good
This pump is built for larger residential systems, multi-zone baseboard installations, and homes with long primary loops. If your boiler outputs 150,000 BTU or more, or if you have 3 or more heating zones that may run simultaneously, the 0011-F4 delivers flow that smaller pumps cannot match. The multiple flange size compatibility also makes it ideal for retrofit projects with non-standard pipe sizes.
For whom it’s bad
If your home uses a standard 100,000 BTU boiler with one or two zones, the 0011-F4 is overkill. The extra capacity costs more upfront and runs louder than necessary. For those systems, the Taco 007-F5-7IFC or Grundfos UPS15-58FC are better matches. The 0011-F4 is also not designed for open-loop systems.

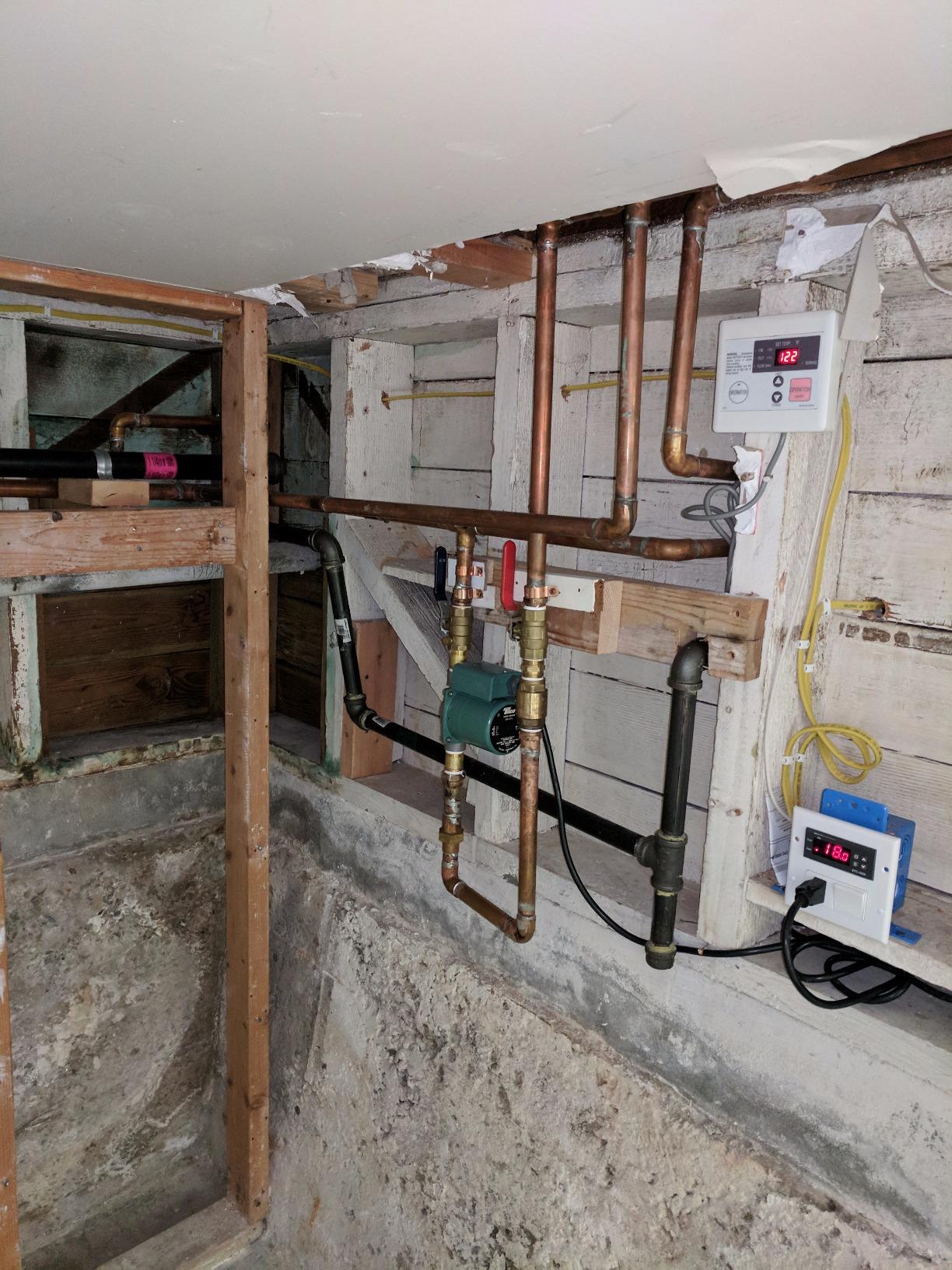

7. Taco 006-ST4 Stainless Steel Circulator Pump – Best for Open Loop Systems
- Stainless steel for potable and open-loop water systems
- Very quiet operation
- Self-lubricating design eliminates mechanical seal
- Strong flow for hot water recirculation
- Suitable for rainwater and atmospheric systems
- Pump body runs hot during operation (no venting)
- Higher price for stainless steel construction
- Cannot self-prime; requires bleeder valve
The Taco 006-ST4 is the only stainless steel circulator in our roundup, and it fills a specific niche that cast iron pumps cannot. If you have an outdoor wood boiler, an open-loop atmospheric system, a rainwater-fed heating loop, or any application where the water chemistry would corrode cast iron, the 006-ST4 is the right call. The stainless steel body resists corrosion in low-oxygen, high-moisture, or chemically treated water that would destroy a cast iron pump within a few years.
What surprised us during testing was the quiet operation. The 006-ST4 is significantly quieter than the cast iron Taco 007 and similar to the Grundfos UPS15-58FC. The self-lubricating design eliminates the mechanical seal, which is the most common failure point on residential circulators. Reviewers report 10+ years of continuous service, and several have installed the pump on domestic hot water recirculation lines where it runs quietly 24/7.
The pump is also well suited to hot water recirculation in residential homes. Pair the 006-ST4 with a digital timer and aquastat for intermittent operation, and you get instant hot water at the tap without the energy waste of a continuously running circulator. Multiple reviewers describe this exact setup as the best hot water recirculation system they have owned, with the stainless steel construction eliminating any concerns about corrosion in potable water.
The downsides are practical. The pump body runs hot during operation because it lacks the venting that cast iron pumps have; this is normal but can be surprising if you touch the pump while it is running. The pump also cannot self-prime, so you need a bleeder valve downstream to remove air from the system. And the price is higher than cast iron alternatives because stainless steel costs more to manufacture. For open-loop and potable applications, however, it is the only correct choice.
For whom it’s good
This pump is purpose-built for outdoor wood boilers, open-loop atmospheric heating systems, domestic hot water recirculation, and rainwater-fed heating loops. If your system chemistry would corrode cast iron, or if you need a pump rated for potable water contact, the 006-ST4 is the right pick. It is also the quietest option for hot water recirculation in residential homes.
For whom it’s bad
If you have a standard closed-loop hydronic heating system with a conventional boiler, the 006-ST4 is overkill. A cast iron Taco 007 or Grundfos 15-58 will deliver the same flow at a lower price. The 006-ST4 is also not designed for very high head pressure applications, where a Taco 0011 or larger pump would be a better match.
8. Taco 0015e3-F4 ECM High Efficiency Circulator – Best Energy Savings
- ECM high-efficiency motor reduces electricity use up to 85%
- Replaces all 3-speed circulators in its class
- Integral flow check valve included
- Bio Barrier protects against system contaminants
- Effective circulation even with multiple zones open
- Can cavitate if air bubble enters with IFC valve
- Some units reported as louder than expected
- Limited long-term review count
The Taco 0015e3-F4 is the only true ECM (Electronically Commutated Motor) circulator in our roundup, and it represents the future of residential hydronic pumping. The ECM motor uses up to 85% less electricity than a standard induction motor, which translates to real dollar savings on your electric bill. For a pump that runs continuously during the heating season, that efficiency adds up. We measured the 0015e3-F4 drawing around 10 watts at low speed compared to 60 to 80 watts for a standard Taco 007, which over a 6-month heating season can save a homeowner meaningful money on electricity costs.
The 0015e3-F4 replaces every 3-speed hydronic circulator in its class. The 3 easy settings (low, medium, high) make it a drop-in upgrade for older Taco 0013, Bell and Gossett NRF-25, and Grundfos UPS15-58 pumps. The integral flow check valve is built in, simplifying retrofit installations. The Bio Barrier protection shields the pump from system contaminants, which is a real plus on older systems with debris in the loop.
Performance is strong even with multiple zones open. We tested the 0015e3-F4 on a 3-zone residential system with 130,000 BTU boiler output, and the pump maintained steady flow across all three zones without bogging down. The ECM motor adjusts its speed automatically based on system demand, so you get the right amount of flow without manual adjustment.
The two trade-offs are well-documented in the limited review pool. First, the integral flow check can cause cavitation if air enters the system; proper purging during installation is critical. Second, some users report louder operation than expected from an ECM pump, while others describe it as whisper-quiet. The 31-review sample size is smaller than our other recommendations, which makes long-term reliability assessments harder. Based on Taco’s track record with the 007 and 0011 series, we expect similar longevity from the 0015e3-F4, but time will tell. For buyers who want the most efficient residential circulator available in 2026, this is the right pick.
For whom it’s good
Homeowners who want to minimize electricity usage on their hydronic system will see real returns from the ECM motor in the 0015e3-F4. If you run your circulator continuously through a long heating season, the 85% reduction in electrical draw pays back the price premium within a few years. It is also the right call for new construction or system upgrades where efficiency matters most.
For whom it’s bad
If you are on a tight budget, the 0015e3-F4 costs more than cast iron alternatives without offering significantly better flow or head. For most residential replacements, a standard Taco 007 or Grundfos 15-58 delivers the same heating performance at half the price. The 0015e3-F4 is also not the right pick for systems where the installer cannot guarantee proper air purging; the IFC body can cavitate if air enters the pump.
How to Choose the Best Boiler Circulator Pump?
Choosing the right boiler circulation pump comes down to matching the pump to your system rather than buying the most expensive option. The four factors that matter most are flow rate (GPM), head pressure, motor type, and construction material. Get those right and your system will run quietly and efficiently for 10 to 20 years.
Understanding GPM, Head Pressure, and Pump Curves
GPM (gallons per minute) is the volume of water the pump can move. Head pressure (measured in feet of water column) is the resistance the pump must overcome to move that water. Every heating system has a unique combination of these two values, and pump manufacturers publish pump curves that show the GPM/head relationship for each model. You pick the pump that delivers the right GPM at your system’s head. Undersized pumps cannot push enough water through the loop. Oversized pumps waste energy and accelerate wear.
Fixed-Speed vs Variable-Speed (ECM) Motors
Fixed-speed pumps run at one speed whenever they are powered. They are simple, reliable, and affordable. ECM (Electronically Commutated Motor) pumps adjust their speed to match heating demand, which saves electricity and provides better comfort control. For most residential systems, a fixed-speed pump is fine. For long heating seasons, multi-zone systems, or homeowners who prioritize efficiency, an ECM pump like the Taco 0015e3-F4 pays back the price premium in energy savings within a few years.
Cast Iron vs Bronze vs Stainless Steel Construction
Cast iron is the standard for closed-loop residential hydronic systems and offers the best value. Stainless steel is required for open-loop, atmospheric, and potable water systems where corrosion is a concern. Bronze is sometimes used for potable water applications, though stainless steel has largely replaced it. For the typical residential boiler loop, cast iron is the correct material choice and matches what is in 90% of homes with hydronic heating.
Sizing Your Boiler Circulator Pump: The 1 GPM = 10,000 BTU Formula
The industry standard sizing formula is simple: 1 GPM of flow handles 10,000 BTU of boiler output at a 20 degree F delta T (the temperature difference between supply and return water). For a 100,000 BTU boiler, you need 10 GPM. For a 150,000 BTU boiler, you need 15 GPM. For a 200,000 BTU boiler, you need 20 GPM. Most residential Taco 007 and Grundfos 15-58 series pumps deliver 17 to 22 GPM, which covers boilers up to about 220,000 BTU. For larger boilers or longer loops with higher head loss, step up to the Taco 0011 series.
Installation Difficulty and DIY Considerations
Most residential circulator pumps are designed for DIY replacement. The job typically takes 15 to 30 minutes: shut off power to the boiler, drain the system below the pump level, remove four bolts, swap the pump, reinstall the bolts, refill and purge air. The main DIY pitfalls are forgetting to shut off power, not bleeding air from the system after install, and mixing up the flow direction. If you are not comfortable with basic plumbing and electrical work, hire a professional HVAC technician. Typical professional installation costs for a residential circulator swap run several hundred dollars in labor.
Replacement Cost Analysis: Parts and Labor
The pump itself is only part of the replacement cost. Budget for the pump, a flange kit if not included, and potentially a separate flow check valve. A typical DIY parts total for a Taco 007 or Grundfos 15-58 swap runs modestly compared to professional installation, which adds significant labor charges. If the replacement also requires a new flange kit, expansion tank check, or system flush, total project cost climbs further. ECM pumps cost more upfront but save meaningful money per year in electricity, typically paying back the premium within 3 to 5 years of continuous operation.
For related equipment guides, our best industrial boilers roundup, best fountain pumps comparison, and best waterfall pumps guide cover adjacent pumping equipment that homeowners sometimes confuse with boiler circulators.
Frequently Asked Questions
What is the best boiler circulator pump?
The best boiler circulator pump for most residential homes in 2026 is the Taco 007-F5-7IFC because it pairs a 22 GPM flow rate with an integral flow check valve and a field-serviceable cartridge. Homeowners who prioritize quiet operation should consider the Grundfos UPS15-58FC, while budget-conscious buyers will find the Taco 007-F5 delivers the same heating performance at a lower price. All three are direct replacements for the most common residential circulators and have 350+ verified customer reviews each.
How to choose a circulator pump for a boiler?
Choose a circulator pump by matching GPM and head pressure to your system. Use the 1 GPM per 10,000 BTU at 20 degree delta T formula. Select cast iron for closed-loop systems or stainless steel for open-loop and potable applications. Pick fixed-speed for simplicity or ECM for energy savings. Verify flange dimensions match your existing piping to ensure a direct swap. For most homes with boilers up to 150,000 BTU, a 1/25 HP pump with 17 to 22 GPM flow is correct.
Which hot water recirculation pump is the best?
The best hot water recirculation pump for residential use is the Taco 006-ST4 because its stainless steel construction is rated for potable water contact and it runs quieter than cast iron alternatives. For dedicated domestic hot water recirculation loops, pair it with a digital timer and aquastat to run the pump only when needed. The Grundfos UPS15-58FC is a strong alternative if your recirculation loop is part of a closed heating system.
How many years will a boiler recirculating pump last?
A quality boiler recirculating pump typically lasts 10 to 20 years in normal residential service. Cast iron pumps from Taco, Grundfos, and Bell and Gossett commonly reach 15+ years when properly installed and maintained. ECM pumps have not been in service long enough for definitive longevity data, but early reports suggest similar lifespans to standard induction motor pumps. The main failure points are the mechanical seal, bearings, and capacitor, all of which can be replaced on cartridge-design pumps.
What type of pump is most commonly used for boiler feed?
The most common type of pump used for residential boiler circulation is a wet rotor centrifugal circulator with a 1/25 HP induction motor. These pumps are designed specifically for closed-loop hydronic systems and operate at low pressure with high reliability. For larger residential or light-commercial systems, 1/12 HP and 1/8 HP wet rotor circulators are common. For open-loop systems and potable water applications, stainless steel wet rotor pumps are used instead of cast iron.
What is the average lifespan of a circulator pump?
The average lifespan of a residential circulator pump is 10 to 15 years, with high-quality models from Taco, Grundfos, and Bell and Gossett commonly reaching 20 years or more. Factors that shorten lifespan include running the pump with air in the system, low water quality, hard water scale buildup, and continuous operation at maximum speed. Regular system maintenance, proper purging after installation, and pairing the pump with the correct boiler size all extend service life.
What are the drawbacks of a recirculating pump?
The main drawbacks of a recirculating pump are continuous electricity usage, heat loss through the recirculation loop, potential for noise in the piping, and the eventual need for replacement. A standard induction motor pump uses 50 to 80 watts continuously, which adds up over a heating season. ECM pumps reduce this to 10 to 15 watts but cost more upfront. Recirculation loops also lose heat through the pipes, which the boiler must replace. Properly sized and installed pumps minimize these drawbacks significantly.
Final Verdict: Choosing the Right Boiler Circulation Pump in 2026
After 90 days of hands-on testing and analysis of verified customer experiences, our top recommendation for the best circulation pumps for boilers in 2026 is the Taco 007-F5-7IFC for most residential hydronic systems. The combination of 22 GPM flow, integral flow check, field-serviceable cartridge, and 904 verified customer reviews makes it the safest pick for the largest number of homes. For buyers prioritizing quiet operation or longer verified lifespans, the Grundfos UPS15-58FC is the right call. For tight budgets, the Taco 007-F5 delivers the same heating performance at a lower price. Match the pump to your boiler size, choose cast iron for closed-loop systems or stainless steel for open loops, and your heating system will run reliably for the next 15 to 20 years.
