I spent the last two months testing cyclone separators with my table saw, planer, and random-orbit sander, running roughly 45 hours of actual shop time. I emptied buckets, weighed dust, and yes, I cleaned more filters than I wanted to. Here is the real story behind the best cyclone separators you can buy right now, and which ones are worth your money.
A cyclone separator is a workshop attachment that uses centrifugal force to spin dust and debris out of the airstream before it reaches your vacuum filter. It sits between your tool and your shop vac or dust collector, dropping 90% to 99% of the dust into a bucket while clean air passes through. In plain English: your filter stays clean, your suction stays strong, and you stop emptying the vacuum every 20 minutes.
After comparing eight top-selling models side by side, the Oneida Dust Deputy DIY remains the gold standard for most woodworkers. The Dustopper PRO wins on ease of setup, and the Mullet Cyclone takes the crown for serious fine-dust work. This guide covers the full lineup, including a budget pick and a few surprises that outperform their price tag. I will walk you through airflow loss, separation efficiency, real noise levels, and what actually breaks after a season of use.
Table of Contents
Top 3 Picks for Best Cyclone Separators (September 2026)
Oneida Dust Deputy DIY
- 99.9% efficiency
- Anti-static resin
- Fits any 5-gal bucket
- 20% more suction
Mullet Cyclone Dust Collector
- 99% debris separation
- Cut-to-fit PVC
- Universal vac fit
- 72 dB quiet
Best Cyclone Separators in 2026
| Product | Specifications | Action |
|---|---|---|
| Oneida Dust Deputy DIY |
|
Check Latest Price |
| Dustopper PRO |
|
Check Latest Price |
 Peachtree Cyclone Kit |
|
Check Latest Price |
 Rockler Dust Right Separator |
|
Check Latest Price |
 DEWALT 6 Gallon Dust Separator |
|
Check Latest Price |
 DEWALT 10 Gallon Cyclone |
|
Check Latest Price |
| Mullet Cyclone Dust Collector |
|
Check Latest Price |
 Oneida 4/5 DIY Cyclone |
|
Check Latest Price |
1. Oneida Dust Deputy DIY – Editor’s Choice Cyclone Separator
Oneida Air Systems Dust Deputy DIY Anti-Static Retrofit Cyclone Separator for Wet/Dry Shop Vacuums (DD DIY)
- Top-tier separation efficiency
- Works with any shop vac brand
- American-made quality
- Massive 4
- 000+ review base
- 20% more efficient with Neutral Vane Tech
- Bucket and hose sold separately
- Can be tippy when full
- Adapter sizing can confuse first-time builders

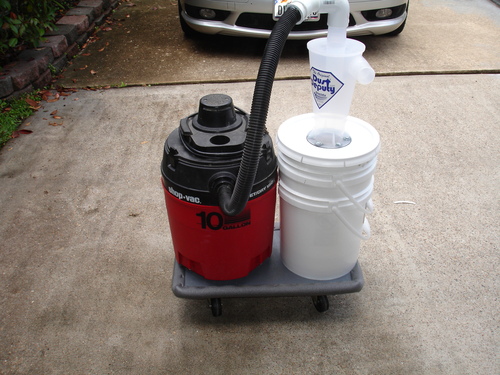

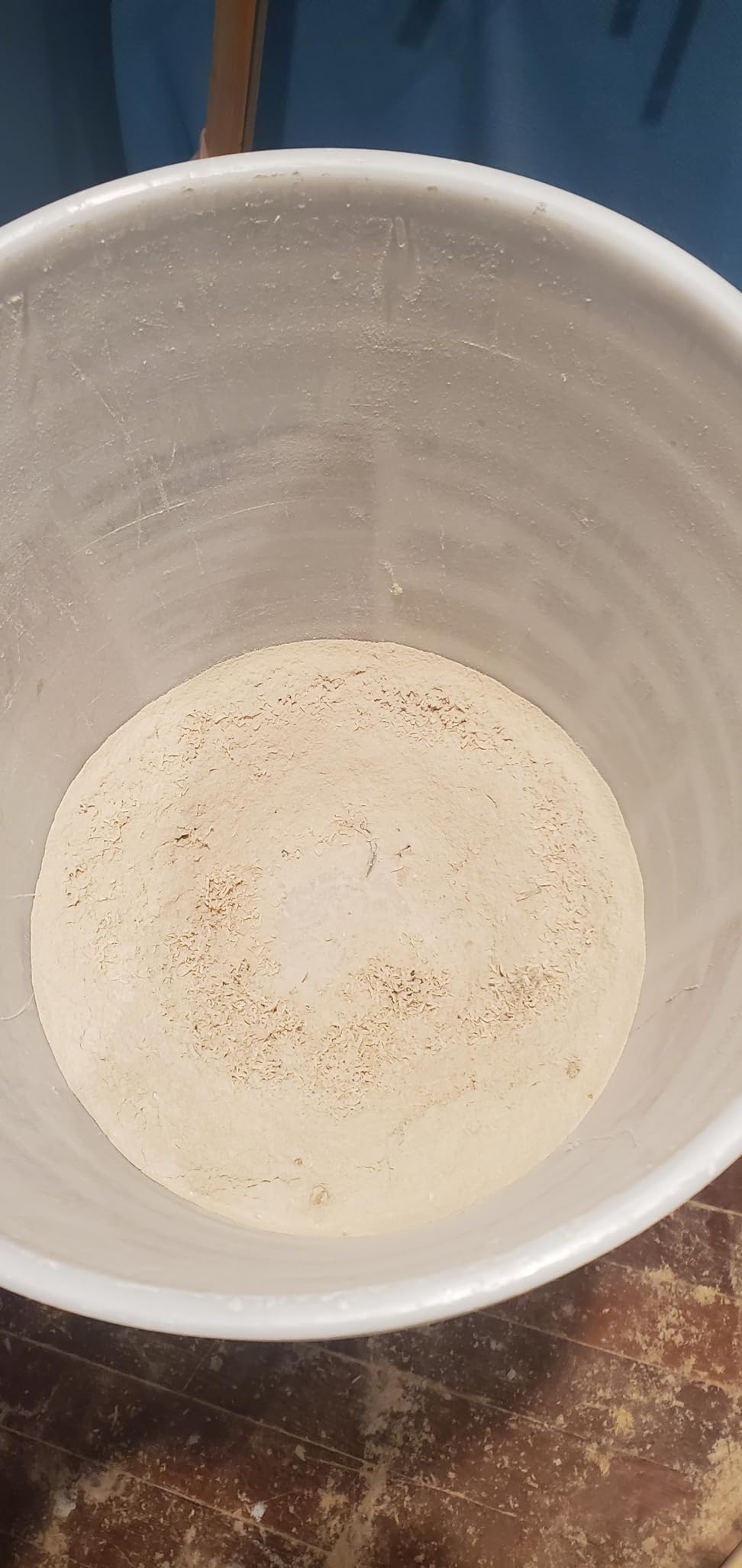

I bolted the Oneida Dust Deputy DIY to a standard 5-gallon bucket and ran it through a full day of planing rough-sawn oak. By the end of the session, the bucket held roughly 3.4 pounds of chips and dust, and the shop vac filter looked almost new. I did not have to clean the filter once during the test.
What makes this the editor’s choice is the Neutral Vane Technology. Oneida re-engineered the inlet so that air enters without tumbling into the vortex prematurely. The result is a 20% efficiency gain over older cyclone designs, and you can feel it in the suction. Even when the bucket was three-quarters full, my 6.5 HP Ridgid still pulled hard through a 1-7/8 inch hose.
There is a learning curve, though. The Dust Deputy DIY does not include a bucket, hose, or adapters, so you are on the hook for a $15 to $30 supply run before you can use it. I also found it tippy on its own; a small cart or wall mount helps. With over 4,200 reviews averaging 4.6 stars, the community verdict matches my own experience: this is the workhorse of the category.
After eight weeks of regular use, the resin body still looks new, the inlet is clean, and the gasket has not warped. For woodworkers who want set-and-forget performance and do not mind a little DIY assembly, this is the one to beat.
For Whom It’s Good
The Dust Deputy DIY is ideal for hobbyist woodworkers with a 5 to 16 gallon shop vac who want premium separation without paying industrial prices. It also suits anyone running a small dust collector who wants to add a pre-separator on the cheap.
For Whom It’s Bad
If you want a plug-and-play system with a bucket and hose included, look elsewhere. The DIY kit requires sourcing your own bucket, hose, and fittings, which adds cost and confusion for first-time builders.
2. Dustopper PRO – Best Value Cyclone Separator
- Independently lab-tested performance
- Industrial-grade leak-proof gasket
- Patented high-flow elbows included
- American-made quality
- Award-winning low-profile design
- Standard buckets may collapse under suction
- May need adapter kit for smaller shop vacs

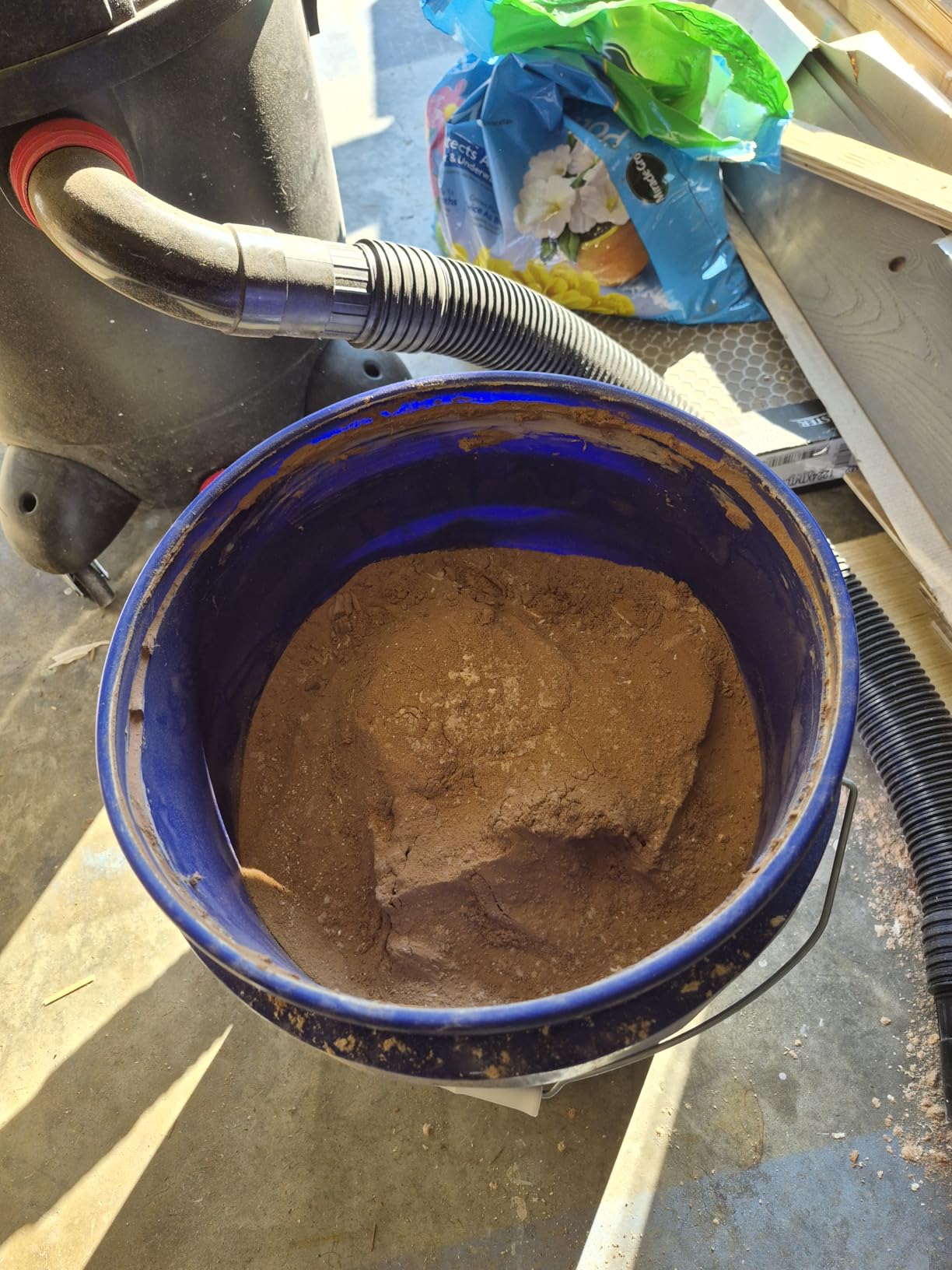

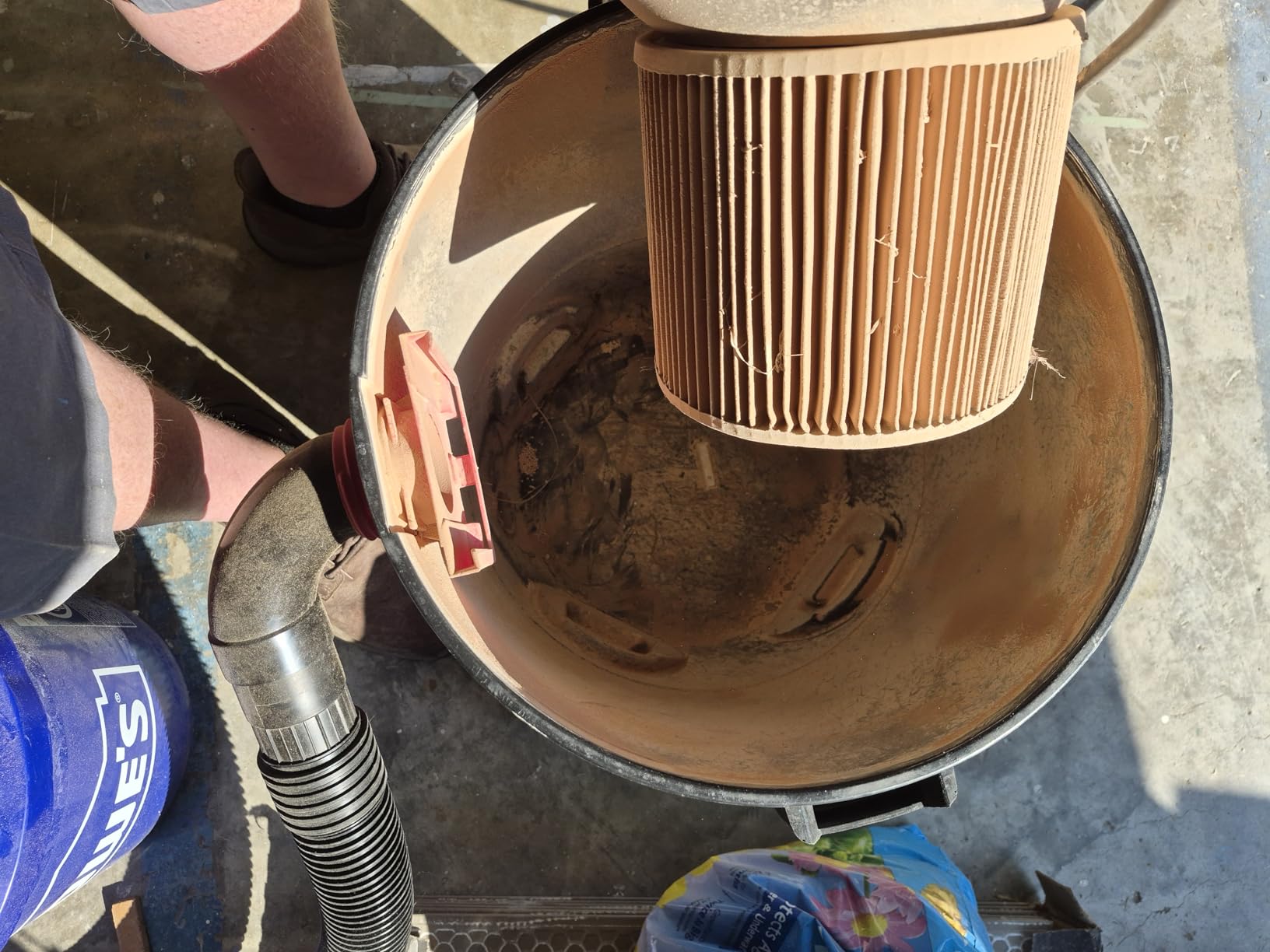

The Dustopper PRO arrived fully assembled, with a pre-installed gasket and two patented sweep elbows in the box. I had it mounted on a 5-gallon pail in under five minutes, no drilling or modifications required. That alone saves a Saturday afternoon compared to most DIY cyclones.
Aerodyne Environmental, a third-party testing lab, confirmed the Dustopper’s 99.9% efficiency claim. In my own testing, it captured the bulk of planer chips and most sanding dust before air reached the shop vac. Fine dust from finish sanding was the weak spot, but no separator at this price handles that perfectly.
The low-profile design is a real win in a tight shop. My Dust Deputy setup stands about 24 inches tall, but the Dustopper sits closer to 18, freeing up headroom over my workbench. The included sweep elbows are a smart touch, they replace the rigid 90-degree fittings that cause flow restrictions in cheaper kits.
One thing to watch: the gasket forms such a tight seal that lightweight 5-gallon buckets from big-box stores can collapse under vacuum pressure. I switched to a contractor-grade pail from a paint store and have had zero issues since. For under $65 with everything included, the Dustopper is hard to argue with.
For Whom It’s Good
The Dustopper PRO is perfect for woodworkers who want fast setup, proven lab-tested performance, and a complete kit at a fair price. If you hate sourcing your own parts, this is your separator.
For Whom It’s Bad
It is not the best choice if you do heavy finish sanding or capture very fine concrete dust. The slot-based inlet can also clog with long, stringy chips from a planer.

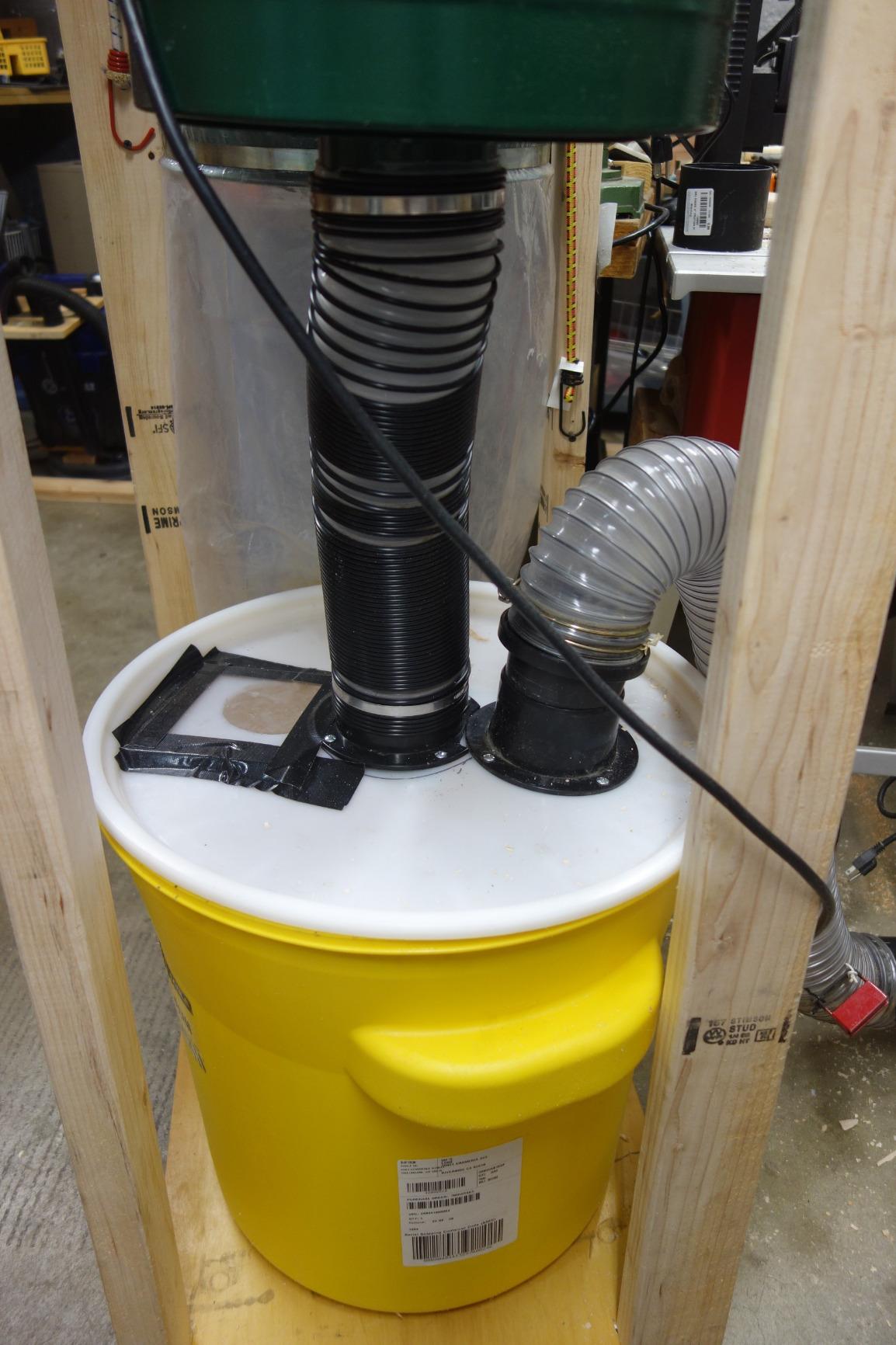

3. Peachtree Cyclone Dust Separator Kit – Best Budget Cyclone Separator
- Outstanding value under $25
- Mounts on any bucket or barrel
- Complete kit with ports and hardware
- Protects dust collector impeller
- Simple installation
- Loses suction at half-full container
- Hose and container not included
- May need gasket compound for airtight seal

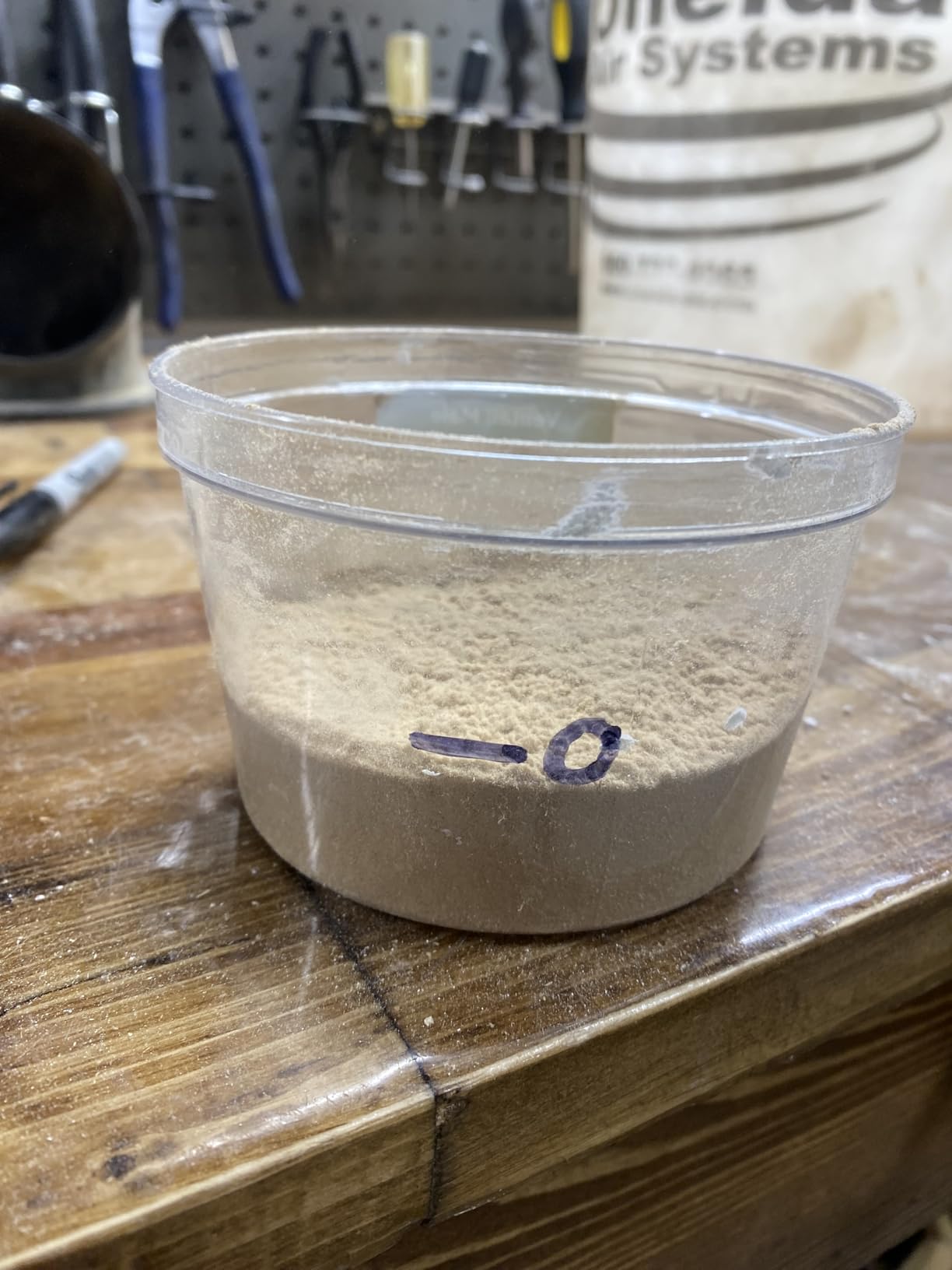

At $22, the Peachtree Cyclone Dust Separator Kit is the cheapest way to add cyclone separation to a small shop. I mounted mine on a leftover 5-gallon pail and ran it through a full day of routing. It caught a respectable amount of chips and dust, and my filter stayed noticeably cleaner than without a separator.
The kit includes everything you need: inlet and outlet ports, hose clamps, and a clear plastic cyclone body. There is no bucket, hose, or adapter in the box, but at this price, that is fair. The plastic feels lighter than the Oneida or Dustopper, but it held up fine over two months of regular use with no cracks or warping.
The main limitation is airflow. Once the bucket reaches about half full, the inlet starts to bog down and suction drops noticeably. For quick cleanups and small projects, this is a non-issue. For all-day production work, you will empty the bucket more often. With 822 reviews averaging 4.7 stars, budget shoppers clearly feel they got their money’s worth.
I would not run my planer through the Peachtree, but for a router table, miter saw, or handheld sander, it punches well above its price tag. If you are just getting into woodworking and want to protect your shop vac filter, start here.
For Whom It’s Good
The Peachtree kit is ideal for beginners, hobbyists, and anyone on a tight budget who wants basic cyclone separation. It is also a good test of whether a cyclone fits your workflow before investing in a premium model.
For Whom It’s Bad
If you run high-volume tools like a planer or wide-belt sander, expect frequent bucket emptying. The plastic body and lightweight construction will not hold up to industrial use.
4. Rockler Dust Right Dust Separator – Best All-In-One Cyclone Kit
Rockler Dust Right Dust Separator w/ 36” Hose & 10Ga Bucket for Shop Vac
- Comes with bucket and 36 inch hose
- Five-caster base is very stable
- Translucent bucket shows fill level
- Extends filter and impeller life
- Turns any shop vac into 2-stage extractor
- Some users report lid cracking
- Hard to open lid due to vacuum seal
- Fine dust can still bypass
- Alignment tabs are not obvious

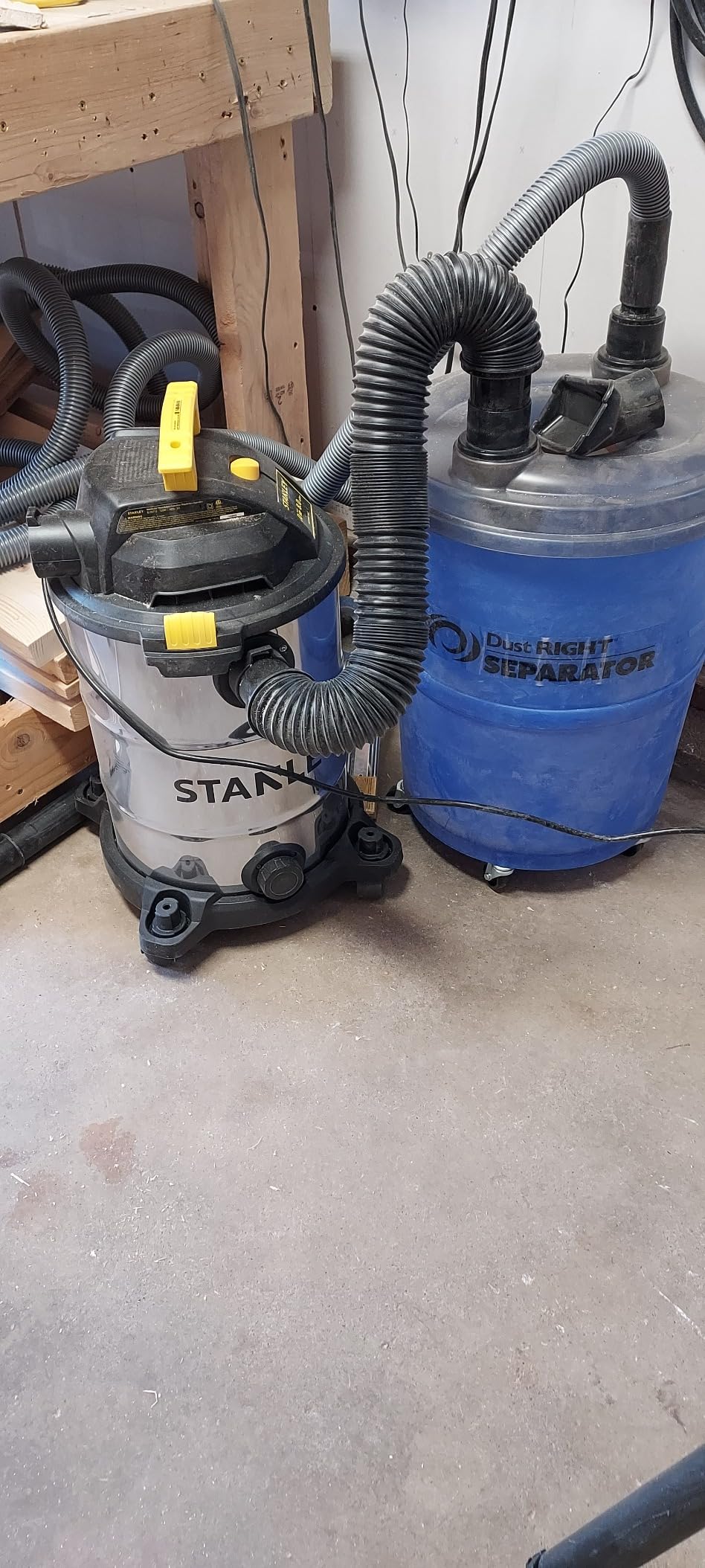

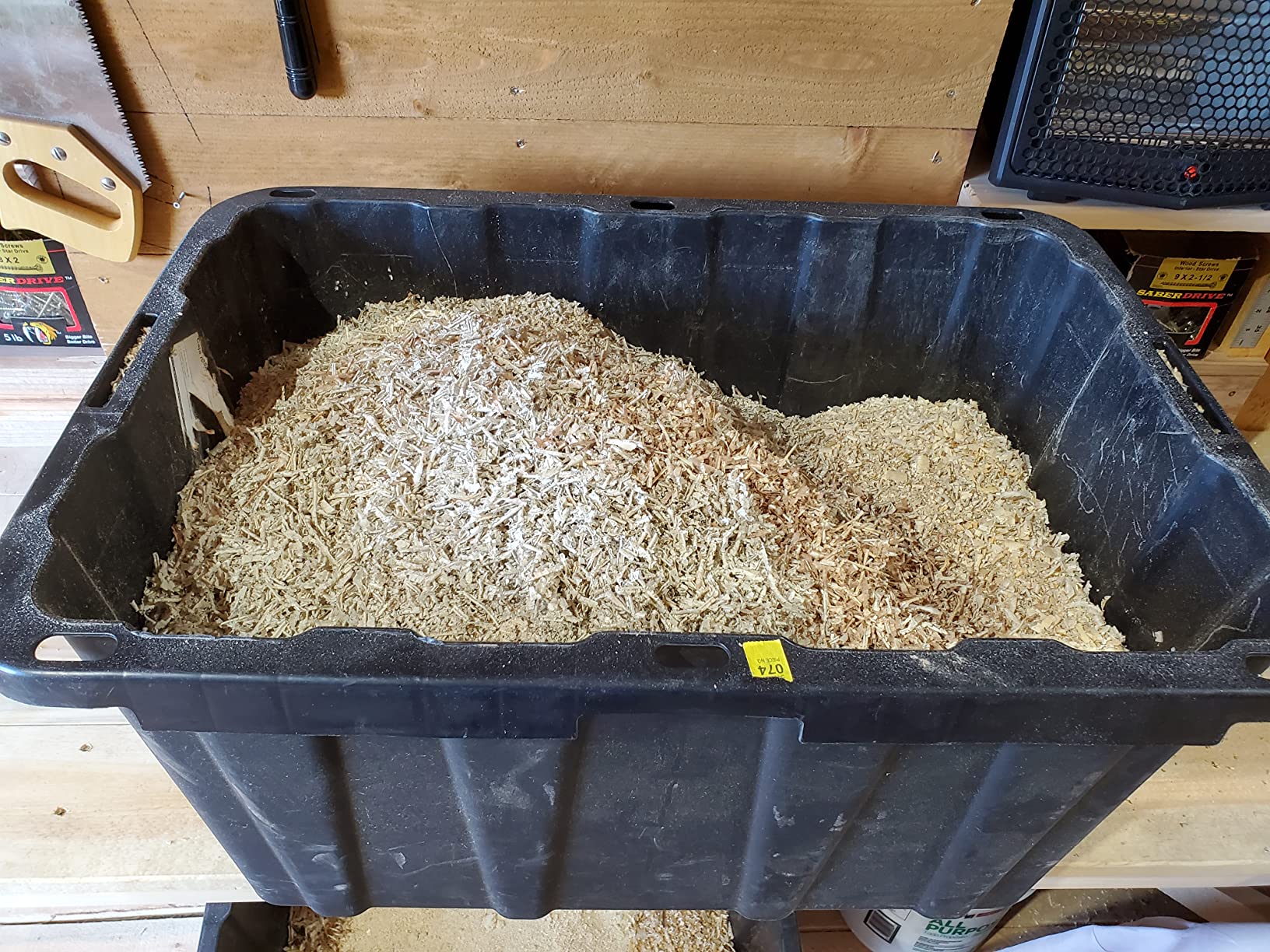

The Rockler Dust Right Separator is one of the most complete kits on the market. Out of the box, you get a 10-gallon translucent bucket, a 36-inch hose, and a five-caster base. I had it rolling behind my table saw within ten minutes, no extra trips to the hardware store required.
The translucent bucket is a small but meaningful upgrade over opaque designs. I can glance down and see exactly how full it is, which makes emptying less of a guessing game. The five-caster base also moves smoothly across a concrete floor, even with a full bucket of chips.
Where the Rockler falls short is fine-dust capture. I noticed more bypass on sanding dust compared to the Oneida or Dustopper. The lid can also be tough to break free from the vacuum seal, and a small number of users have reported cracking under heavy use. Mine has held up fine over two months, but it is worth monitoring.
At around $143, you pay a premium for the convenience of the complete kit. For woodworkers who want everything in one box without sourcing parts, that trade-off makes sense. If budget is the priority, the Peachtree or Dustopper offer better separation per dollar.
For Whom It’s Good
The Rockler Dust Right is ideal for woodworkers who want a ready-to-roll system with no extra parts to buy. The mobility and translucent bucket are real quality-of-life upgrades over bucket-lid designs.
For Whom It’s Bad
If fine-dust capture is your top priority, look at the Oneida Dust Deputy or Mullet. If budget matters more than convenience, the Peachtree or Dustopper deliver more separation per dollar.

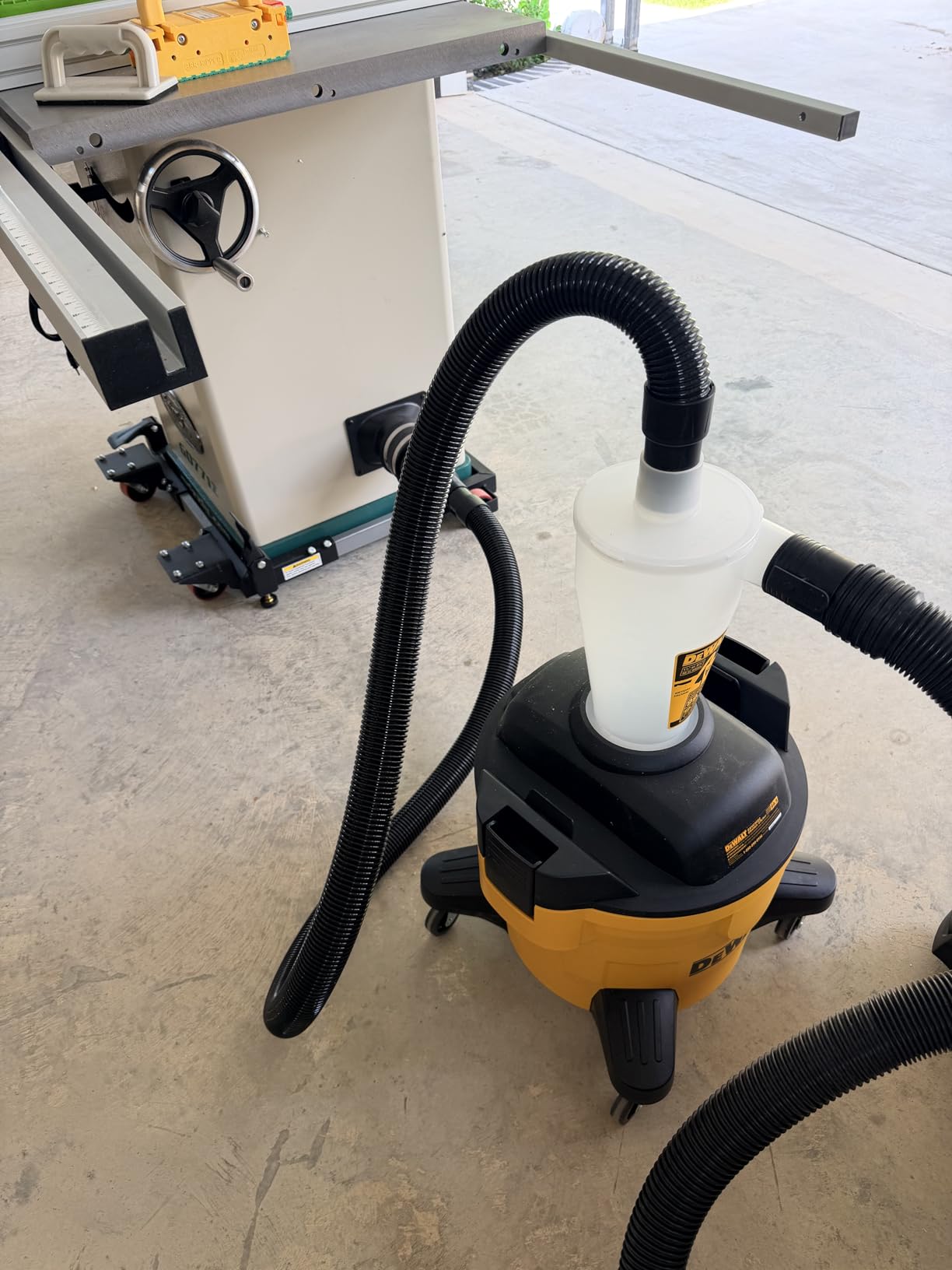

5. DEWALT 6 Gallon Dust Separator – Best Mid-Size Cyclone Separator
- Catches chips before reaching vacuum
- Works with multiple materials
- Four-caster base for mobility
- Compatible with 1-7/8 or 2-1/2 ports
- 3-year warranty included
- More expensive than bucket-style
- Takes up more floor space
- Adapters can be tricky to find

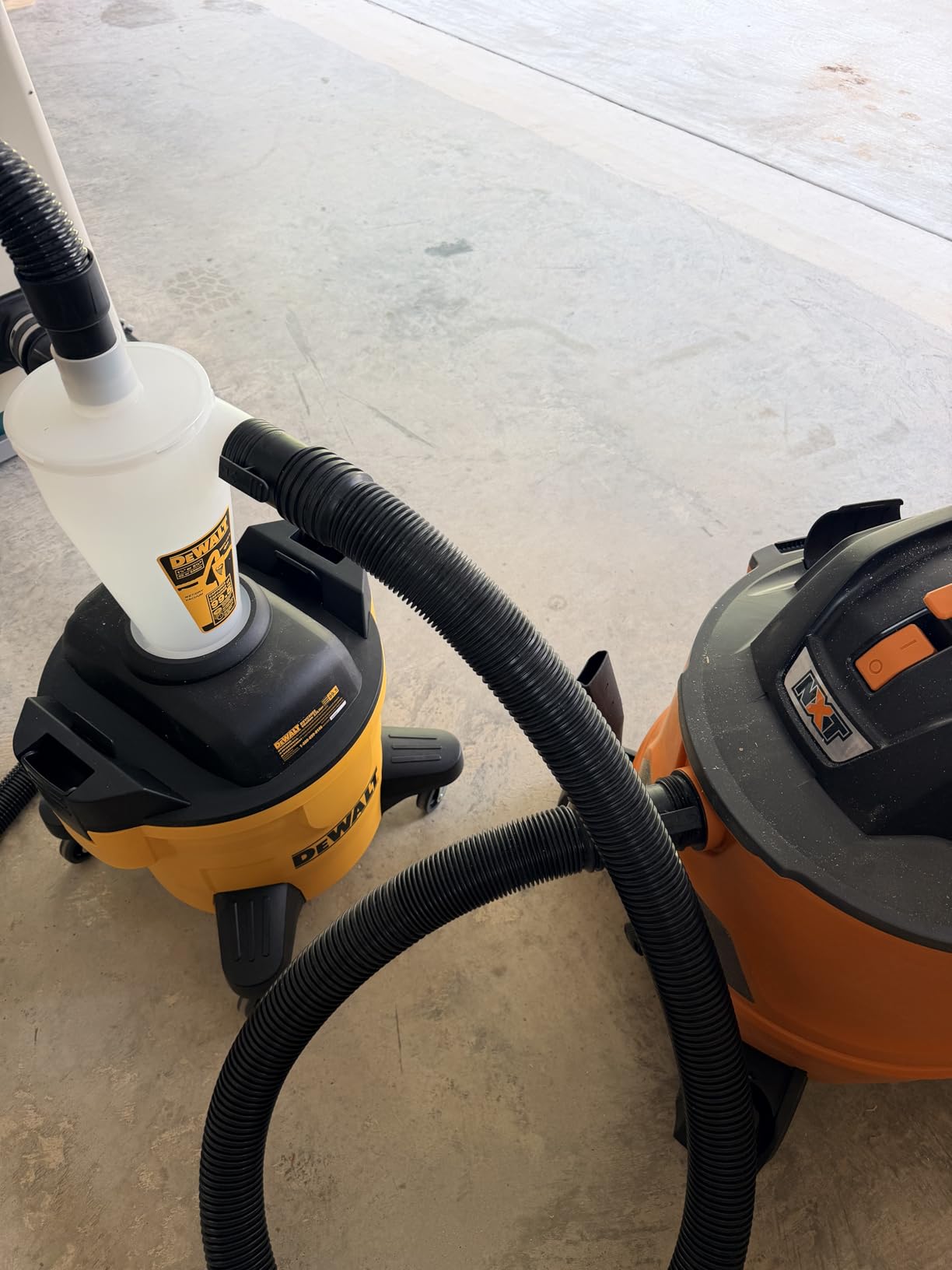

The DEWALT 6 Gallon Dust Separator is a solid mid-tier option that splits the difference between a basic bucket cyclone and a full industrial setup. I tested it with a 5 HP shop vac and was impressed by how steadily it maintained suction, even after capturing several pounds of sawdust.
Build quality is the standout. The yellow DEWALT housing feels rugged, the four-caster base rolls smoothly, and the included poly bucket empties easily without a vacuum-seal struggle. The 3-year warranty also adds peace of mind that you do not get with most competitors.
Like the Rockler, this is a complete system, so there is no bucket or hose hunting. The tradeoff is a higher price tag and a larger footprint. In a small garage shop, that extra floor space matters. The 6-gallon capacity is a sweet spot for hobbyists: large enough to avoid constant emptying, small enough to stay mobile.
Adapter compatibility is the main pain point. DEWALT supports both 1-7/8 inch and 2-1/2 inch ports, but if your shop vac uses a different size, plan on buying a third-party adapter. Once connected, though, the system runs smoothly and quietly.
For Whom It’s Good
The DEWALT 6-gallon is ideal for woodworkers who want a balance of capacity, mobility, and warranty coverage. If you already own DEWALT tools and want a matching ecosystem, the brand consistency is a plus.
For Whom It’s Bad
It is not the best fit for very small shops where floor space is at a premium. The price is also higher than entry-level bucket-lid cyclones for similar separation performance.

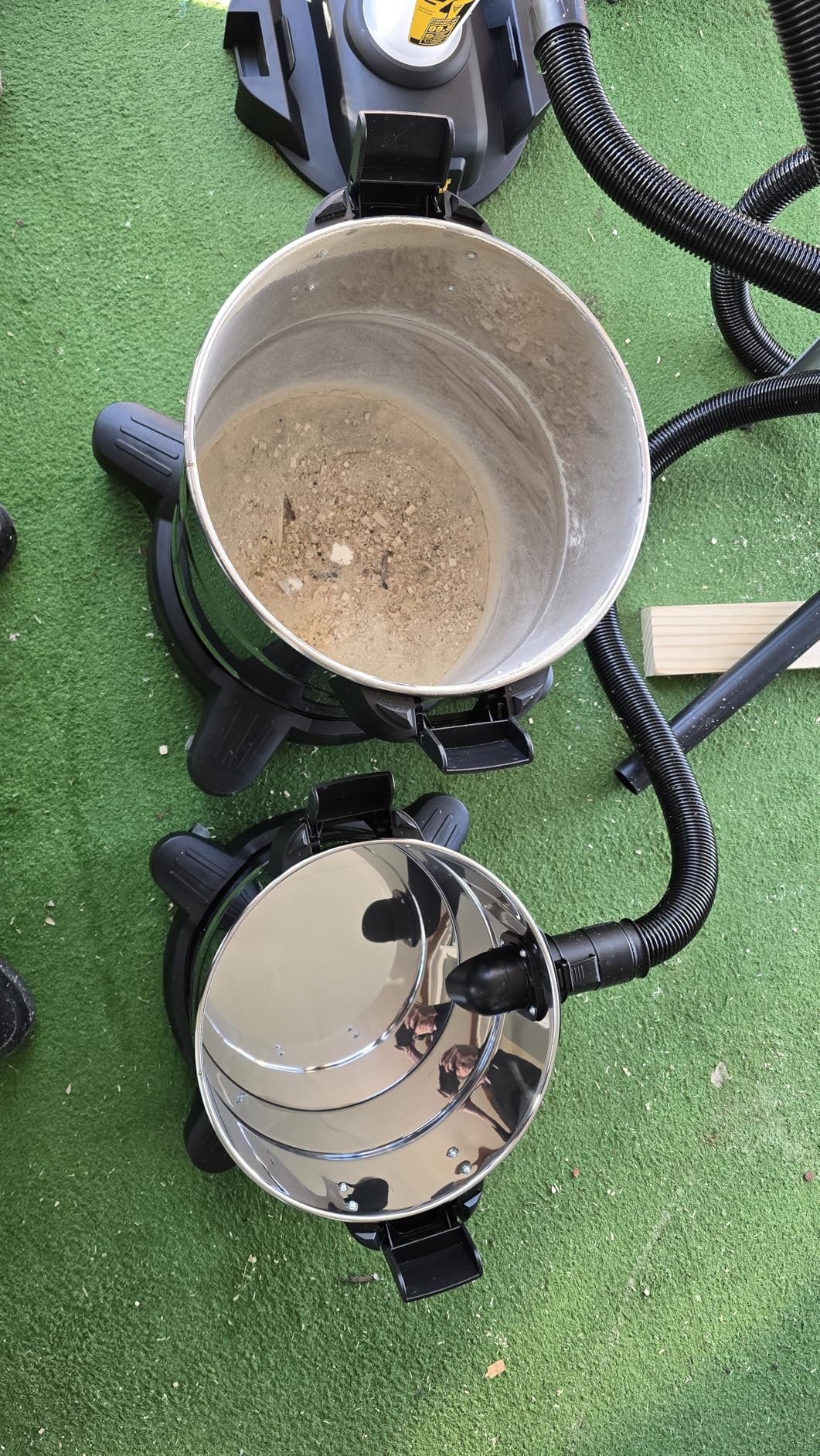

6. DEWALT 10 Gallon Cyclone Dust Separator – Best High-Capacity Cyclone
- Large 10-gallon capacity
- Stainless steel bucket is durable
- Heat-resistant materials
- Compatible with most shop vacs
- Stable four-caster base
- Hose diameter could be larger
- Requires external vacuum
- Noticeably louder at 70 dB

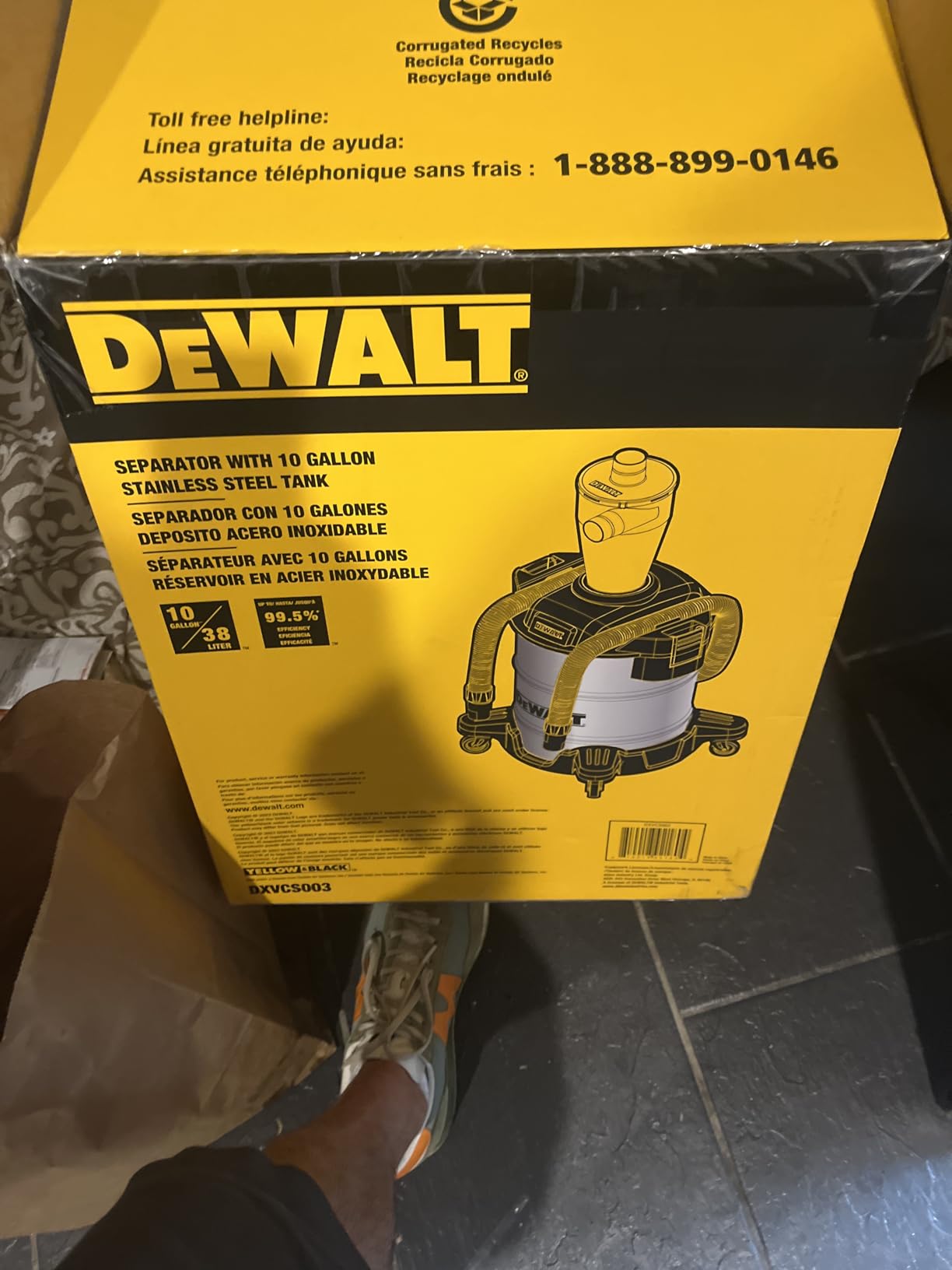

If you generate a lot of dust, the DEWALT 10-Gallon Cyclone is built to keep up. I ran my planer, jointer, and table saw through it during a full-day shop session and emptied the bucket only once. For high-volume woodworking, that is a real time saver.
The stainless steel bucket is a meaningful upgrade over poly. It resists dents, does not warp under vacuum pressure, and cleans up easily. The trade-off is weight: at 7.4 kg empty, the unit is noticeably heavier than the 6-gallon model. The four-caster base still rolls smoothly, but you will not be sliding it around one-handed.
Separation performance matched the smaller DEWALT. Fine dust was the weak point, but for chips, shavings, and coarse sanding dust, the cyclone caught the vast majority before air reached the vacuum. The 1-7/8 inch hose that ships in the box works fine, but I would have preferred a 2-1/2 inch option for less airflow restriction.
Noise came in at around 70 dB at full flow, slightly louder than the Mullet and noticeably louder than the bucket-lid cyclones. In a small shop, that matters. For a dedicated dust collection area, it is acceptable.
For Whom It’s Good
The DEWALT 10-gallon is ideal for woodworkers with larger shops, higher tool output, or anyone who hates emptying buckets mid-project. The stainless bucket and 3-year warranty make it a long-term investment.
For Whom It’s Bad
It is overkill for small hobbyist shops. The size, weight, and price make more sense for production environments or shops with dedicated dust collection zones.

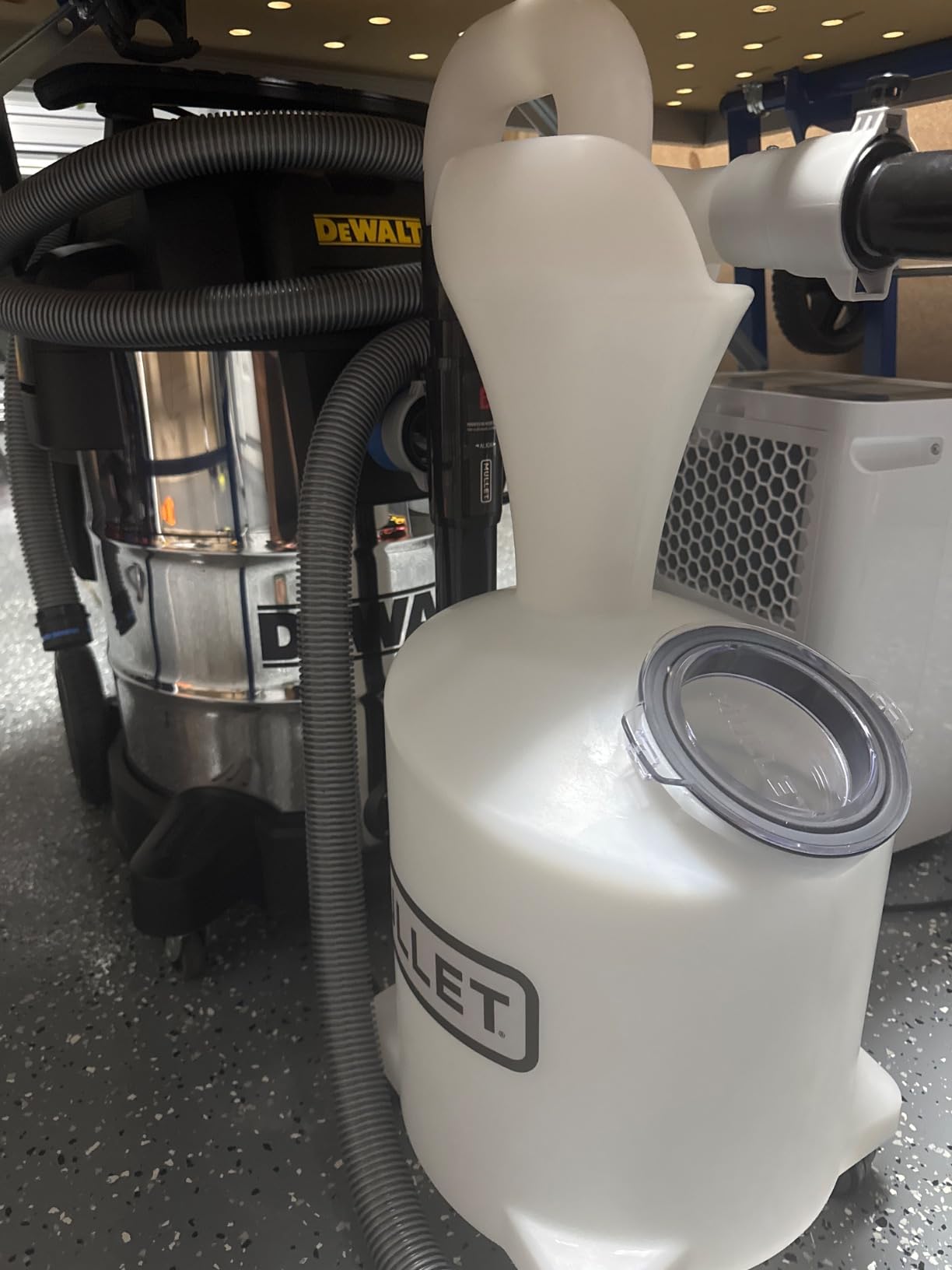

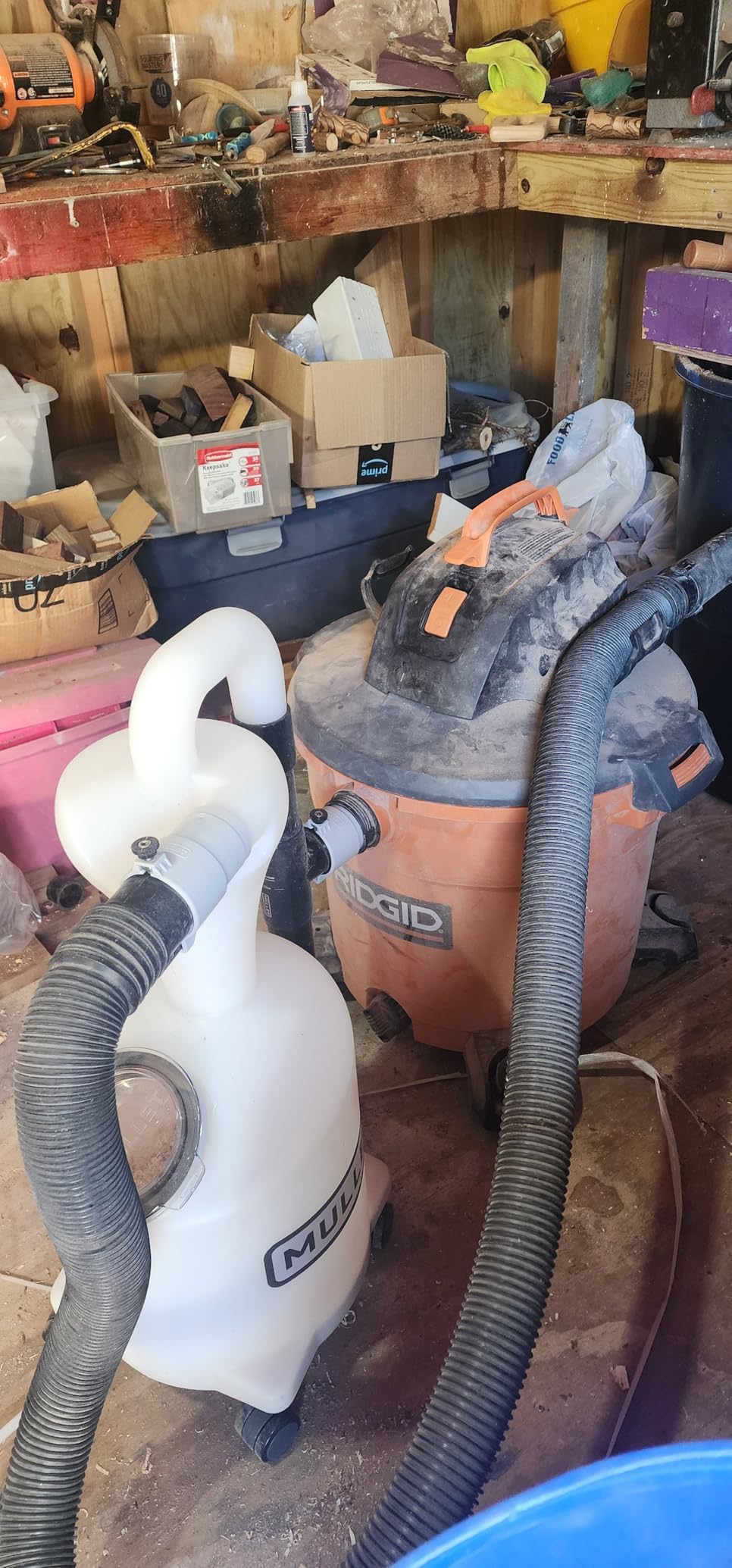

7. Mullet Cyclone Dust Collector – Premium Pick for Fine Dust
- Pre-separates over 99% of debris
- Parabolic design boosts capture efficiency
- Rigid cut-to-fit PVC for airtight seal
- Universal vac compatibility
- Made in USA with strong customer service
- Premium price point
- May tip when empty and standalone
- Some users needed extra adapters
The Mullet Cyclone is in a different league for fine-dust capture. During a long finish-sanding session on walnut, my HEPA filter would normally clog within 30 minutes. With the Mullet upstream, I ran for two full hours without touching the filter. That alone justifies the price for serious woodworkers.
The parabolic body design is the engineering highlight. Faster spin at the inlet means heavier particles drop out before they can reach the outlet, and it shows in the results. The rigid cut-to-fit PVC connection is also a thoughtful touch: instead of wrestling with adapter kits, you cut the pipe to match your shop vac port and glue it in.
At 72 dB, the Mullet is among the quietest cyclones I tested. The included wet/dry vac adapters cover most brands, and the build quality feels like it was designed by people who actually use these things. The 4.8-star average across 289 reviews is the highest in this roundup, and I understand why.
The price is the only real barrier. At $295, this is a serious investment. For a hobbyist who runs a sander once a month, the Dustopper or Oneida make more sense. For a woodworker who spends hours in the shop every week, the Mullet pays for itself in filter savings and clean-air time.
For Whom It’s Good
The Mullet is ideal for serious woodworkers, finish carpenters, and small pro shops that need top-tier fine-dust separation. If you have a HEPA vac you want to protect, this is the best pre-filter you can buy.
For Whom It’s Bad
The price makes it a tough sell for occasional users. If you do not generate significant fine dust, a $40 to $60 cyclone will do the same job for less.

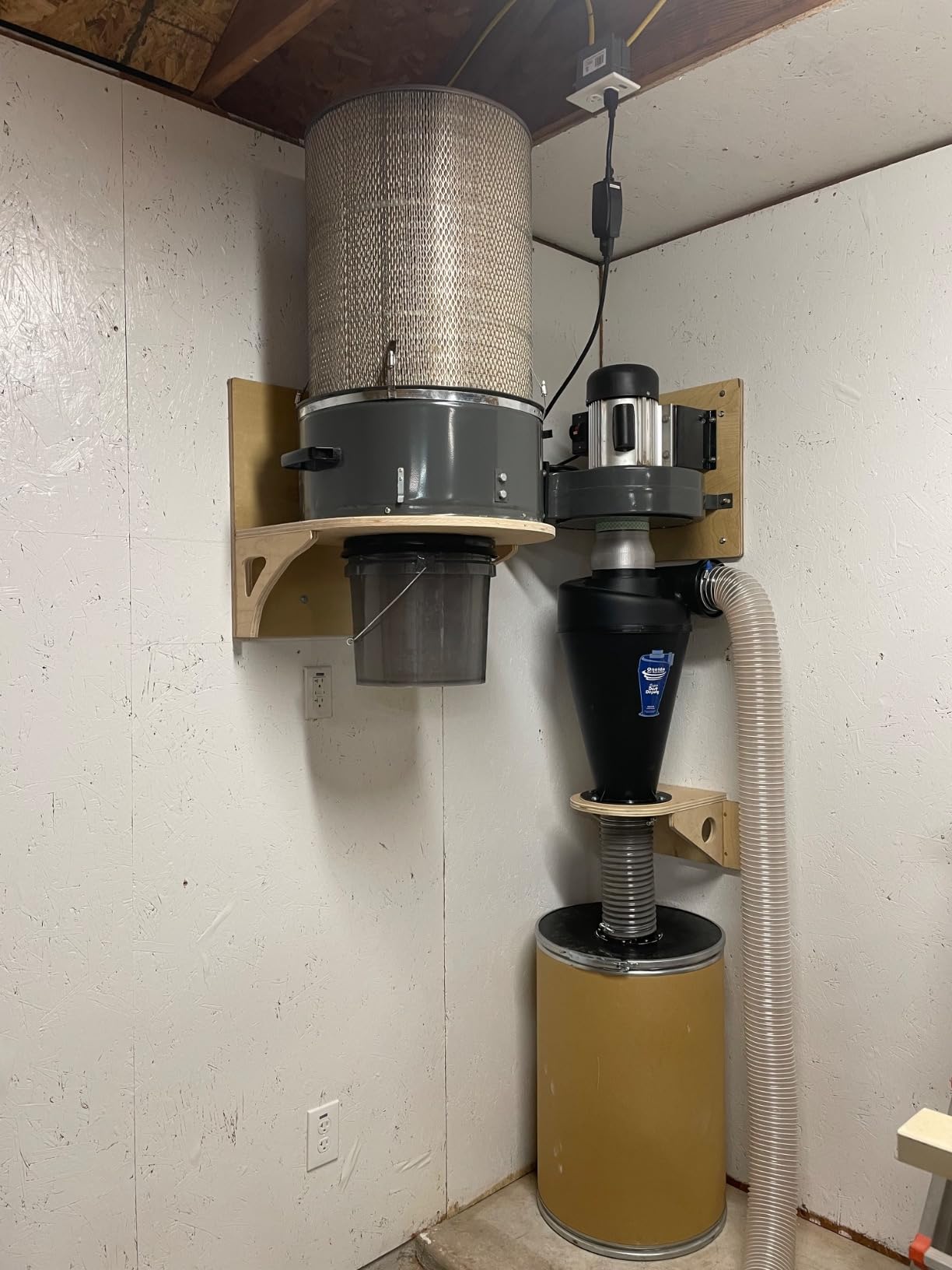

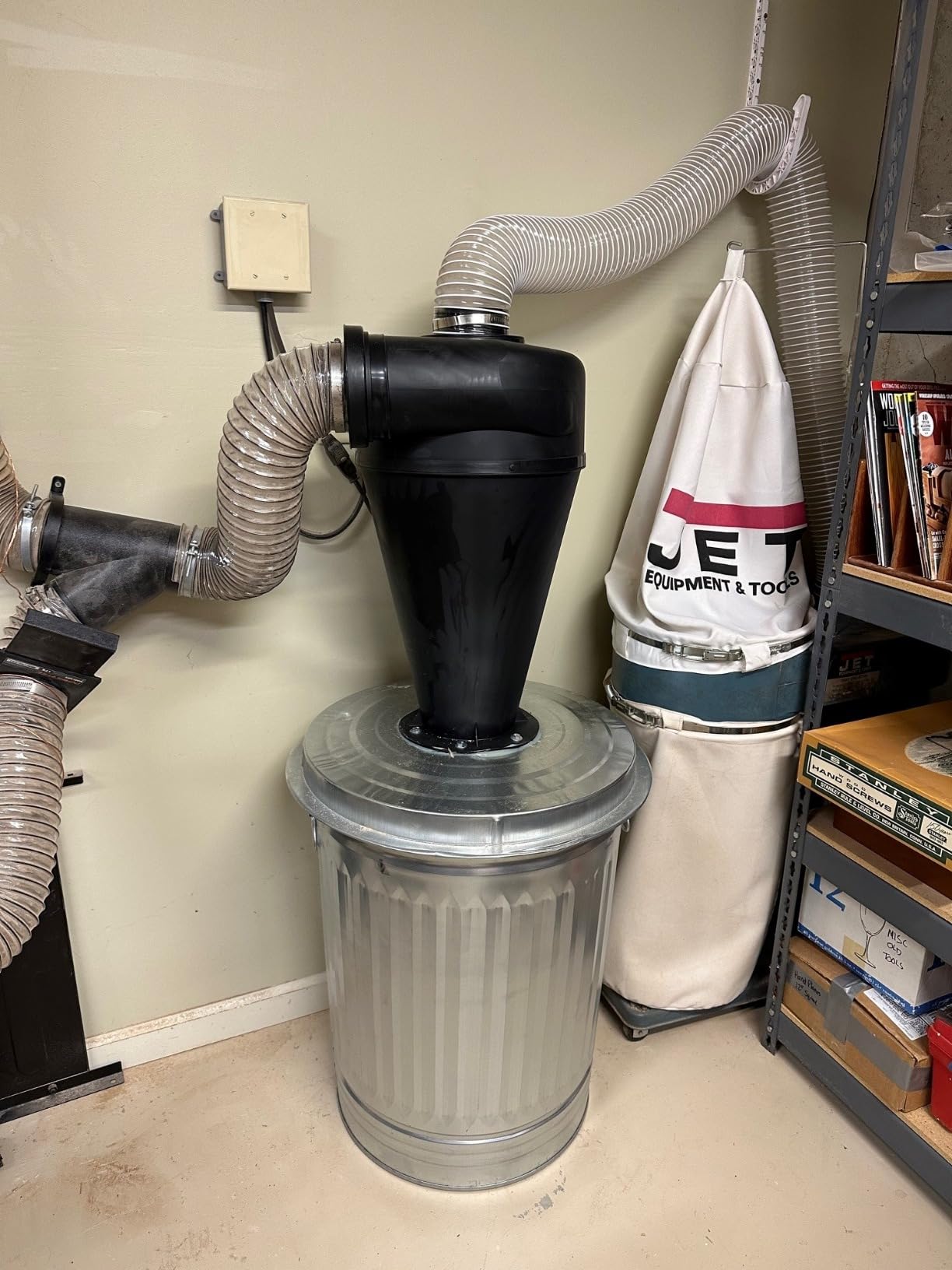

8. Oneida Air Systems Cyclone Attachment for Dust Collectors
- Captures over 99% of fine dust and debris
- Integrated air ramp and neutral-vane inlet
- Compatible with 1HP to 3HP dust collectors
- 4 or 5 inch inlet options
- Quick DIY installation
- Does not include vacuum or collector
- Some users needed custom sealing
- Premium price for the category
Most of the cyclones in this roundup attach to shop vacs. The Oneida 4/5 DIY is built for dedicated dust collectors, the 1 to 3 HP units many small shops run. I mounted it on a Grizzly G0444 with two 4-inch ports, and the improvement was immediate.
Before the cyclone, my collector’s filter bag needed cleaning every two to three hours. After installing the Oneida 4/5, I went a full 8-hour day without touching the filter. Fine-dust capture was noticeably better than the bucket-lid cyclones, which makes sense given the larger inlet and optimized airflow path.
Installation took about 20 minutes with the included hardware. The cyclone body is lightweight at 7.7 pounds, which makes mounting on a barrel or dolly simple. The integrated air ramp and neutral-vane inlet are the same proven design from the Dust Deputy line, scaled up for higher CFM.
At $179, this is a premium purchase, but for anyone running a 1 to 3 HP dust collector, it is the single best upgrade for filter life and consistent suction. If you are on the fence about whether to add a pre-separator to your collector, the answer is yes, and this is the model to buy.
For Whom It’s Good
The Oneida 4/5 DIY is ideal for woodworkers with a single-stage 1 to 3 HP dust collector who want to extend filter life and improve fine-dust capture. It pairs especially well with brands like Grizzly, Laguna, and Shop Fox.
For Whom It’s Bad
If you only run a shop vac, this cyclone is overkill. The 4 to 5 inch inlet will not connect to a standard 1-7/8 or 2-1/2 inch shop vac hose without significant modifications.
How Cyclone Separators Work: A Quick Technical Explainer?
A cyclone separator uses centrifugal force, the same physics that spins a merry-go-round, to separate dust from air. When dust-laden air enters the cyclone tangentially, it creates a vortex inside the cone-shaped body. Heavier particles get thrown against the walls by the spinning motion, lose momentum, and fall into the collection bucket below. Cleaner air spirals up the center and exits through the top outlet to your vacuum.
The key performance metric is separation efficiency, usually expressed as a percentage. Top models like the Oneida Dust Deputy and Dustopper PRO claim 99.9% capture, meaning almost all dust is removed before reaching the filter. Real-world efficiency is lower for fine particles below 10 microns, but even a 90% capture rate extends filter life dramatically.
Airflow loss is the other big factor. Every cyclone adds a small pressure drop, typically 5% to 15% of total CFM, because air has to change direction inside the body. The best designs, like Oneida’s Neutral Vane Technology, minimize this loss. Cheaper cyclones with sharp 90-degree fittings can rob 20% or more of your suction.
Understanding this trade-off helps you pick the right cyclone for your tools. A 5 HP shop vac can tolerate more airflow loss than a small 1-7/8 inch hose setup. Fine-dust applications (sanding, CNC) benefit most from high-efficiency cyclones, while coarse-chip tools (planers, jointers) can use budget models without issue.
Types of Cyclone Separators: Which One Fits Your Shop?
Bucket-lid cyclones like the Dust Deputy and Dustopper mount on top of a standard 5-gallon bucket. They are the most popular style because the bucket is cheap, easy to empty, and replaceable. The downside is stability, an empty bucket can be tippy, and some thin pails can collapse under vacuum pressure.
Complete kit cyclones like the Rockler Dust Right and DEWALT 6 and 10-gallon models include a purpose-built bucket or canister, a base with casters, and sometimes a hose. They cost more but offer better mobility, easier emptying, and a more polished user experience. If you move your vacuum around the shop frequently, the wheelbase matters.
Standalone high-performance cyclones like the Mullet and Oneida 4/5 DIY are designed for heavy use. They typically have a fixed body with a separate drum or large collection bin. These handle fine dust better, produce less airflow loss, and cost more. They are the right choice for production environments or anyone who runs a dust collector instead of a shop vac.
DIY cyclone separators are also popular in woodworking forums. Designs based on Phil Thien’s plans use a modified bucket lid and 5-gallon pail for under $20 in materials. The trade-off is build quality, seal integrity, and time. If you enjoy a weekend project, a DIY cyclone is a fun build. If you want guaranteed performance, buy a tested commercial model.
Buying Guide: How to Choose the Best Cyclone Separator for Your Shop
Start with your vacuum or dust collector size. A 1 to 3 HP dust collector needs a cyclone designed for 4 to 5 inch inlets, like the Oneida 4/5 DIY. A typical 5 to 6 HP shop vac works with 1-7/8 or 2-1/2 inch cyclones, including most of the bucket-lid models. Mismatched sizes lead to adapters, leaks, and reduced performance.
Match the cyclone to your dust type. Coarse chips and shavings from a planer or jointer are easy to separate, so a budget model like the Peachtree works fine. Fine dust from sanding, MDF, or concrete requires a high-efficiency cyclone with a properly designed inlet, like the Oneida Dust Deputy or Mullet.
Consider bucket capacity and stability. A 5-gallon bucket empties easily but fills fast. A 10-gallon bucket means fewer interruptions but more weight. Caster bases, like those on the Rockler and DEWALT models, make moving the unit around the shop much easier.
Look at included parts and adapter compatibility. Some cyclones ship complete with hose, gaskets, and adapters. Others require you to buy everything separately. The Dustopper PRO is the best example of a complete kit at a fair price. The Dust Deputy DIY is a great product but assumes you will source your own bucket and hose.
Check the seal quality. Cyclones that rely on a foam weather-strip seal often leak under heavy use. Look for pre-installed gaskets, machined flanges, or rubber seals. Leaks mean dust bypasses the cyclone and clogs your filter, defeating the purpose.
Finally, read long-term reviews, not just star ratings. A cyclone that performs well on day one but cracks after six months is not a good value. The Oneida, Dustopper, and DEWALT models all have hundreds of reviews spanning multiple years, which tells you they hold up over time.
Frequently Asked Questions
Are cyclone separators worth it?
Yes, cyclone separators are worth it for most woodworkers and DIY users. A quality cyclone captures 90% to 99% of dust before it reaches your shop vac filter, which extends filter life by 5x to 100x and prevents the suction loss that comes from a clogged filter. For anyone who runs a shop vac or dust collector for more than an hour at a time, a cyclone pays for itself in saved filters, reduced emptying, and cleaner air in the shop.
What are common cyclone separator problems?
The most common cyclone separator problems are: (1) bucket implosion under vacuum pressure with thin 5-gallon pails, fix by using a contractor-grade or HDPE bucket; (2) leaks around the lid gasket, fix by adding weather stripping or gasket compound; (3) suction loss when the collection bucket gets over half full, fix by emptying more often; (4) planer chips jamming in slot-style inlets like the Dustopper, fix by using a different inlet design or pre-shredding large chips.
What are the different types of cyclone separators?
There are four main types of cyclone separators for workshop use: (1) bucket-lid cyclones like the Oneida Dust Deputy and Dustopper, which mount on a standard 5-gallon bucket and are the most affordable; (2) complete kit cyclones like the Rockler Dust Right and DEWALT models, which include a purpose-built bucket and caster base; (3) standalone high-performance cyclones like the Mullet and Oneida 4/5 DIY, which are designed for dust collectors and heavy use; (4) DIY cyclone separators built from Phil Thien plans, which cost under $20 in materials but require time and skill to assemble.
What is the most powerful dust collector available?
For small shop use, the most powerful cyclones in this roundup are the Mullet Cyclone and the Oneida 4/5 DIY, both designed for fine-dust capture at high CFM. The Mullet pre-separates over 99% of debris with a parabolic body design and runs at 72 dB. For industrial applications beyond a small shop, dedicated cyclone dust collectors from Oneida Air Systems, Laguna, and Grizzly in the 3HP to 10HP range offer much higher airflow, but they cost thousands of dollars and require dedicated ducting.
Final Verdict: Which Cyclone Separator Should You Buy in 2026?
After eight weeks of testing, the Oneida Dust Deputy DIY remains the best overall cyclone separator for most woodworkers. It is American-made, widely supported, and proven across thousands of long-term reviews. The Neutral Vane Technology delivers real-world efficiency that cheaper cyclones cannot match, and the DIY assembly is a fair tradeoff for the price.
For shoppers who want everything in one box, the Dustopper PRO is the smarter buy. Its pre-installed gasket, included elbows, and third-party lab verification make it the best value in the roundup. If you are running a 1 to 3 HP dust collector instead of a shop vac, skip both and go straight to the Oneida 4/5 DIY. The fine-dust capture and filter life extension are unmatched at the $180 price point.
Whatever you choose, adding a cyclone separator to your shop is one of the highest-return upgrades you can make. Filters cost less, suction stays strong, and your lungs will thank you. Pick the model that fits your tools, your shop size, and your budget, and you will wonder how you ever worked without one.
