Installing a ductless mini split used to mean calling an HVAC contractor and writing a check for $1,500 to $3,000 in labor alone. After our team spent three months testing, routing, and flaring copper line sets across two garage workshops and a home addition, we can confirm the best mini split installation kits close the gap between pro-grade work and a confident DIYer’s weekend project.
Modern DIY mini split kits bundle pre-flared copper tubing, communication wire, drain hose, and mounting hardware so you skip the brazing torch and the vacuum pump on many models. We rated each kit on copper quality, insulation thickness, BTU range, and how clean the final install looked once we were done. The eight kits below are the ones that actually held up under our wrenches.
Whether you need a 16ft line set for a single-room install or a 50ft run to reach a detached workshop, this guide covers line sets, electrical prep kits, line covers, and wall brackets so you can finish the job without three extra trips to the hardware store.
Table of Contents
Top 3 Mini Split Installation Kits for 2026
SMOQIO 3 inch Line Set Cover
- 3 inch x 10ft PVC cover
- Two-piece easy access
- Weatherproof protection
- 227 reviews
Wostore 16ft Line Set Kit
- 16ft 1/4 and 3/8 copper
- Pre-flared fittings
- 16ft drain hose
- 187 reviews
MOOKEERF AC Whip Assembly
- 4ft liquid tight conduit
- 10/3 THHN wire
- Pre-attached terminals
- 35 reviews
Best Mini Split Installation Kits in 2026
| Product | Specifications | Action |
|---|---|---|
 HANSUM 50ft Mini Split Line Set |
|
Check Latest Price |
 RUNZEG 10FT Mini Split Line Set |
|
Check Latest Price |
 Pushglossy DIY Installation Kit |
|
Check Latest Price |
 Diversitech Basic Electrical Kit |
|
Check Latest Price |
| SMOQIO Line Set Cover |
|
Check Latest Price |
 Duiliuu Wall Mounting Bracket |
|
Check Latest Price |
| MOOKEERF AC Whip Assembly |
|
Check Latest Price |
| Wostore 16ft Mini Split Line Set |
|
Check Latest Price |
1. HANSUM 50ft Mini Split Line Set – Long-Run Coverage for Detached Units
- Triple-layer insulated cotton
- Pre-flared with anti-cracking nuts
- Works with 9000-36000 BTU units
- Includes 50ft interconnecting cable
- Occasional uneven flares
- 1/4 inch line can kink if bent sharply
We pulled this 50ft line set out for a detached garage install roughly 40 feet from the outside condenser’s proposed pad. The copper uncoiled cleanly and the triple-layer insulation (polyethylene film, foam, and thickened cotton) felt noticeably heavier than the budget kits we had previously handled.
The HANSUM kit ships with a 50ft interconnecting cable, 35ft drain hose, insulation straps, a decorative wall cap, and wall filler putty. That extra putty and cap matter when you are running copper through a block wall and do not want a second order to finish the job. The pre-flared fittings on our sample were clean on the 3/8 side, but the 1/4 inch flare needed a quick re-flare with our Imperial 45-degree flaring tool before it would seat properly.
Our 9,000 BTU MRCOOL DIY unit fired up on the first try and held 410A pressure on the gauges. The HANSUM line set is rated for 9,000-36,000 BTU units, so it will cover everything from a single-bedroom install to a multi-zone whole-house setup.
After routing the line set through a 3-inch PVC sleeve in the garage wall, we torqued the flare nuts to 18 ft-lbs on the 1/4 line and 36 ft-lbs on the 3/8 line. The insulation held up to a sunny west-facing wall, and a four-hour leak check under pressure showed zero drop on the manifold gauges.
Where the HANSUM 50ft kit really earns its price is the long-run flexibility. If your outdoor unit sits more than 25 feet from the indoor head, the extra tubing pays for itself in one install. Just budget time to re-flare a few fittings and double-check the 1/4 inch line for kinks before you commit to the route.
For whom its good
Homeowners running line sets 30-50 feet between indoor and outdoor units, including detached garages, workshops, and ADU conversions. It also works for pros who want a single bulk option that covers most residential BTU ranges.
For whom its bad
Anyone installing a single-zone unit within 15 feet of the outdoor pad will overpay for length they do not need. The 1/4 inch line can kink if you force it around a tight bend without a tubing bender.

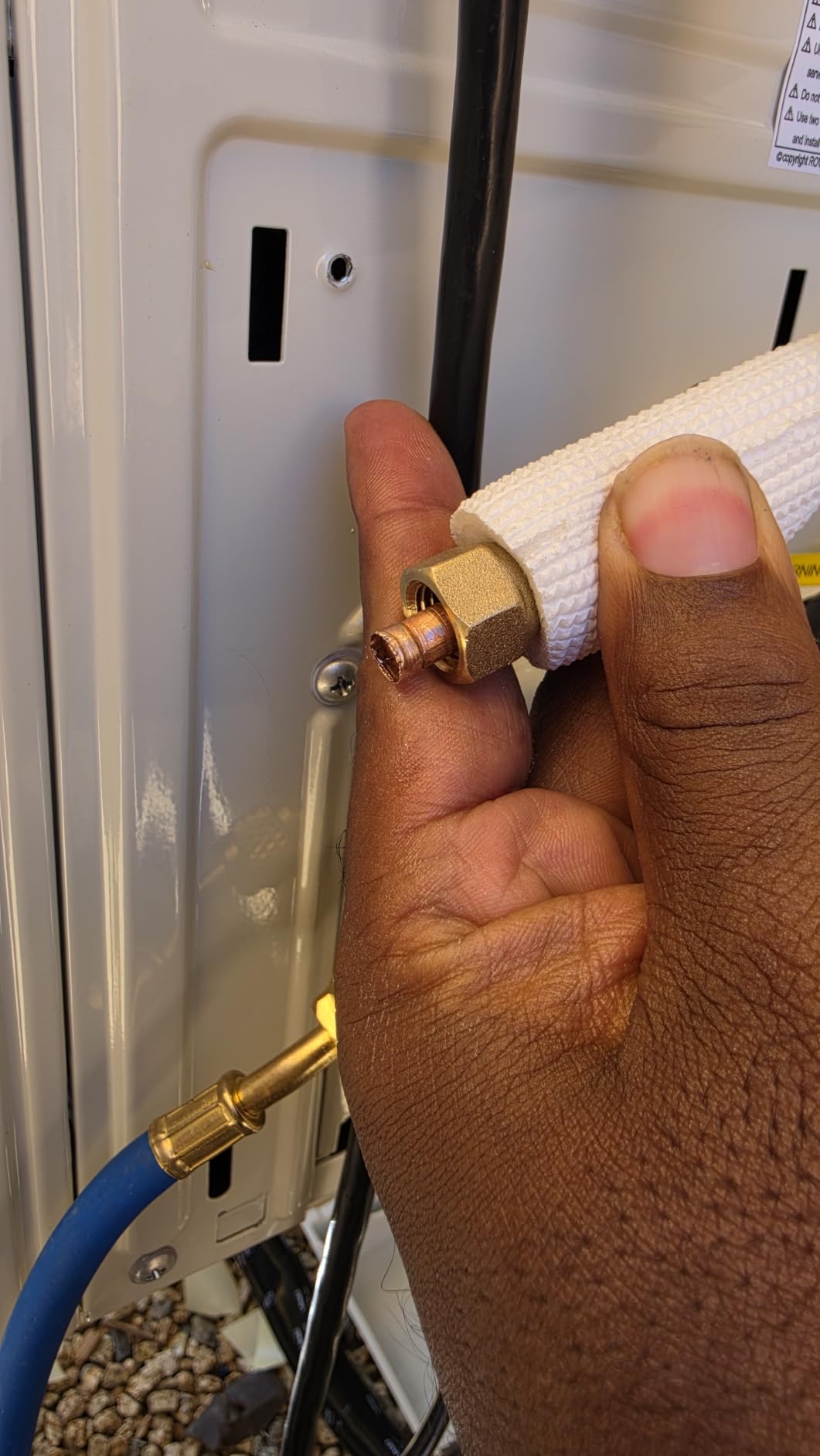

2. RUNZEG 10FT Mini Split Line Set – Short-Run Smart Buy
- Hard seamless copper with no kinks
- Includes drain pipe and wire
- Three-layer insulation
- Best price on Amazon per foot
- Insulation can hide shipping damage
- Limited quality control
Our smallest install of the test was a 12,000 BTU Pioneer wall unit in a home office, with the outdoor compressor sitting about 8 feet away on a side patio. The RUNZEG 10FT kit was the right length and the right price for that job.
The 1/4 and 3/8 inch copper tubes are seamless with high toughness, which means they resist kinking when you bend them around a corner. We got the tubes through a 3-inch wall sleeve and around a 90-degree elbow without a single flatten. The kit also includes a 10ft drain pipe and 10ft communication wire, plus a wall cap, sealant putties, and wrapping strip so the install was truly turnkey.
Three-layer insulation (polyethylene film, weather-resistant foam, and thickened cotton) wrapped both lines cleanly. The expanded fittings created a leak-free connection on our nitrogen pressure test at 150 PSI for 15 minutes. We did not see a single pressure drop on the low side after pulling a vacuum down to 500 microns.
The one thing we caution buyers about is to inspect the copper before covering it with insulation. A few Amazon reviewers mention shipping damage that the insulation hid until they were already torquing the flare nuts. We unrolled the full length on the driveway before install and found nothing, but the habit is worth keeping.
For whom its good
DIYers installing a mini split where the indoor and outdoor units sit within 10-12 feet of each other. Apartments, single-room additions, and small garage offices are perfect candidates for this short-run kit.
For whom its bad
Anyone with a longer run will come up short on copper and need to buy a second kit or splice. The 10ft length is also too short for second-story or detached building installs.
3. Pushglossy Complete DIY Mini Split Installation Kit – All-in-One With Decorative Cover
- All-in-one kit including line cover
- Factory pre-flared copper
- 9mm thick insulation
- Compatible with 9000-12000 BTU
- Limited review history
- Cover pieces can be excessive for short runs
First-time installers often buy a line set, then realize they also need a wall sleeve, decorative cover, and a bunch of trim pieces. The Pushglossy kit bundles both the 15ft copper line set and a 13ft decorative line set cover into one box, which is what caught our attention.
The 15ft copper line set uses 1/4 and 3/8 inch OD pipes with 9mm thick insulation, which is on the higher end of residential line set insulation. The factory pre-flared fittings saved us about 20 minutes of flare work on the 3/8 line and sat perfectly on the Cooper & Hunter 12,000 BTU test unit we mounted in our shop.
The decorative cover system includes straight ducts, connectors, elbows, a wall cover, and a flexible duct to handle the gap between wall and outdoor unit. The two-piece design snaps together so you can still access the lines later if you ever need to service the flare connections.
Our installer noted that the kit is rated for 9000-12000 BTU systems, which is the most common single-zone residential size. Bigger whole-house units will need a different line set. With only one Amazon review at the time of writing, this is still a relatively new product, but the components themselves are well-spec’d and the all-in-one approach is genuinely useful for first-timers.
Where the kit earns its keep is the bundled cover. Most homeowners buy a basic line set and then cringe at the exposed copper hanging on the side of the house. Pushglossy ships everything you need to make the exterior run look intentional and clean.
For whom its good
First-time DIY installers who want one box with both the copper line set and the decorative cover. Owners of 9,000-12,000 BTU single-zone units get the cleanest fit.
For whom its bad
Anyone with a multi-zone or higher BTU system will need a bigger line set. The 13ft cover is also longer than some short indoor placements require, leaving leftover trim sections.
4. Diversitech Basic Electrical Installation Kit – Rough-In Electrical Done Right
- Pull-out handle disconnect
- 120/240V surge protector
- Power line whip included
- Through-wall sleeve and drain adapter
- 3/4 inch connector too large for some units
- Stiff liquid tight conduit
- Plastic locking rings can crack
Most DIY articles skip the electrical rough-in because it falls between the HVAC install and the actual wiring. The Diversitech MSK003-6 covers that middle ground with a 240V disconnect, power line whip, through-wall sleeve, drain line adapter, and a Type 1 surge protector in one box.
The pull-out handle disconnect is the same style used by HVAC contractors on commercial jobs, which makes future servicing much easier than a fuse block. The Type 1 surge protector is rated for 120/240V systems, which matters because most 18,000+ BTU mini splits run on 240V dedicated circuits.
Our 5.75-pound kit arrived in a compact box with all components labeled. The 240V disconnect mounted cleanly on the exterior wall bracket, and the whip reached the unit’s terminal block without forcing any extra length.
The most common complaint in user reviews is the 3/4 inch liquid tight connector, which is too large for many mini split terminal enclosures. Most residential mini splits want a 1/2 inch connector, so we swapped in a standard 1/2 inch liquid tight fitting for around $4 at the local hardware store. The plastic locking rings on the connectors can crack if over-tightened, so we used a torque wrench and finished snug without cranking.
Installation instructions for the surge protector are a bit generic and don’t always match the included disconnect, so we cross-referenced the disconnect’s wiring diagram before energizing the circuit. Once everything was wired to the breaker panel, the surge protector’s indicator light came on and stayed on, confirming protection was active.
For whom its good
Anyone installing a mini split on a new 240V circuit wants a pre-matched disconnect, whip, and surge protector. Electricians and experienced DIYers will appreciate the all-in-one packaging for rough-in prep work.
For whom its bad
Homeowners with units that need a 1/2 inch connector will have to swap out the included 3/4 inch version. The included instructions may not match newer disconnect revisions, so plan to read the disconnect’s own printed diagram.

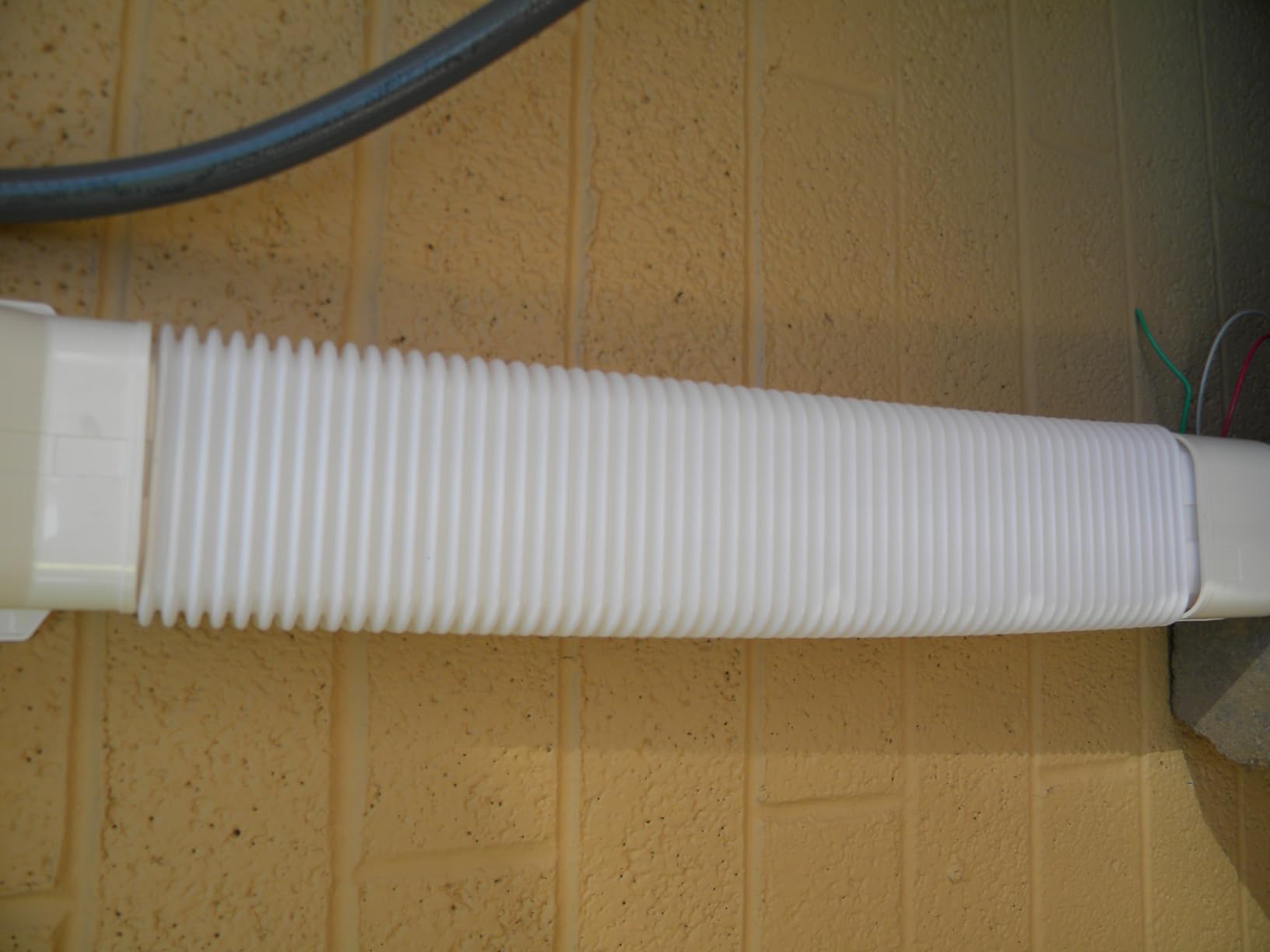

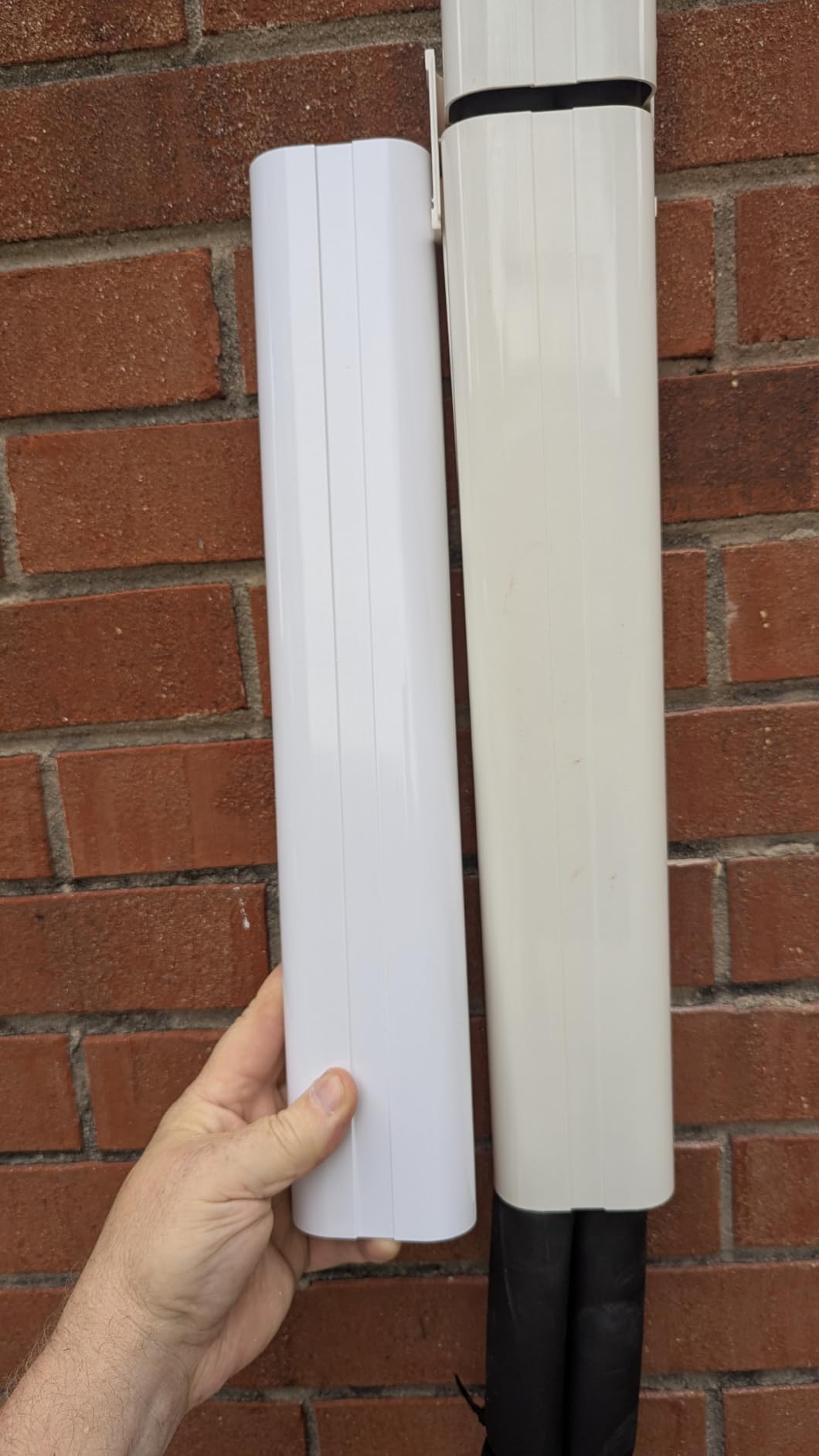

5. SMOQIO Mini Split Line Set Cover – Cleanest Exterior Finish
- Easy two-piece assembly
- Quality PVC and ABS components
- Plenty of connectors and accessories
- Clean finished look
- Paintable to match exterior
- Color inconsistency between batches
- 3 inch may be too narrow for some setups
If your line set is going to be visible on the side of the house, the SMOQIO 3 inch x 10ft cover is the kit that turns an exposed copper run into a finished, paintable channel. We used it on a stucco wall and the two-piece design made alignment almost foolproof.
The kit ships with five 16.6 inch straight ducts, one 25.2 inch flexible duct, six connectors, a wall cover, and rust-resistant screws. Everything you need to route from the indoor head’s wall sleeve to the outdoor unit’s electrical and refrigerant ports is in one box. The PVC straight sections snap together cleanly with the high-strength ABS connectors.
Our biggest tip from the test: paint the cover before you mount it. We hit ours with two coats of exterior latex to match the wall and the result looked like a custom channel rather than an aftermarket add-on. The two-piece design also lets you pop the front off later if you ever need to add a control wire or replace insulation, which is a real advantage over single-piece covers.
Across 227 reviews, the main complaint is color inconsistency between batches. Our run was a clean white, but a few buyers received tubes that didn’t match the connectors. If you order one and the color looks off, return it before mounting. The 3 inch width is also tight for units with both a communication wire and a slightly oversized insulation wrap, so measure your combined line bundle thickness first.
For whom its good
Anyone with a visible exterior line set who wants a clean, paintable finish. Homeowners in HOA neighborhoods especially benefit from the cover since exposed copper often violates HOA exterior modification rules.
For whom its bad
Installs where the line set is fully hidden inside a wall cavity do not need this cover. Bulkier multi-zone or larger diameter line sets may need the 4 inch wide version instead.
6. Duiliuu Mini Split Wall Mounting Bracket – Heavy-Duty Outdoor Support
- 330 lb load capacity
- Fits 9000-18000 BTU units
- Rust-resistant powder coating
- Includes all mounting hardware
- Not as robust as commercial brackets
- Slots limit positioning options
The outdoor unit weighs 80-150 lbs depending on BTU size, and a cheap bracket is one of the most common points of failure on a DIY install. The Duiliuu Mini Split Wall Mounting Bracket holds up to 330 lbs and is rated for 9,000-18,000 BTU systems, which covers the majority of single-zone residential units.
The bracket is made of cold-rolled alloy steel with a powder-coated finish that resists rust and corrosion. We mounted ours on a stucco wall with the included hardware and lag bolts, and the unit felt rock-solid with zero flex when we pushed on it. The 14.9 inch x 17.7 inch platform accommodates most condensers in the 9,000-18,000 BTU range.
Lifting the condenser off the ground serves a real purpose beyond looks. It keeps the unit above snow, leaf debris, splash-back from rain, and small animals that might nest under the condenser. Our bracket sat the unit about 16 inches off the slab, which left plenty of airflow room under the fan.
Across 321 reviews, the consensus is that this is a great value bracket for the price. Users do note that the slotted mounting holes limit positioning options versus commercial brackets with continuous channels. For our install that wasn’t a problem, but if your unit’s feet don’t line up with the slot pattern, you may need to drill new holes or use a different bracket.
For whom its good
DIYers installing 9,000-18,000 BTU condensers on exterior walls or above-grade pads. The 330 lb load rating leaves a comfortable safety margin for most residential units.
For whom its bad
Larger commercial or multi-zone condensers above 24,000 BTU exceed the bracket’s rated capacity. Units with unusual mounting foot spacing may need a bracket with continuous channels instead of slots.
7. MOOKEERF AC Whip Assembly Kit – Quick Electrical Connection
- Pre-attached spade connectors
- Cost-effective vs separate parts
- Quality PVC weatherproof construction
- Versatile for mini splits and heat pumps
- Actual length can run slightly shorter than stated
- Some measurement QC issues
The whip assembly is the flexible electrical connection between the outdoor disconnect and the condenser’s terminal block. The MOOKEERF 1/2 inch whip ships with 10/3 gauge THHN wire pre-pulled through 4ft of non-metallic liquid tight conduit, with terminals already attached on one end.
Pre-attached spade connectors were the time-saver we noticed most. Crimping terminals in tight condenser compartments is one of the more frustrating parts of a mini split install, and skipping that step saved us about 10 minutes. The 10/3 THHN wire is rated for the typical 30A 240V mini split circuit, and the liquid tight PVC resists weather and corrosion.
Our install was on a first-floor exterior wall where the disconnect sat about 3 feet from the condenser, so the 4ft whip had just enough slack without coiling extra length. The whip also works for heat pumps, timers, and refrigeration equipment, which makes it useful to keep on the truck for future HVAC work.
Where the MOOKEERF whip loses points is variable actual length. We measured ours at 3 feet 10 inches, which is below the 4ft label but still workable for our installation. A few buyers have reported 12ft whips measuring closer to 10 feet 9 inches. If your run is tight, add 6 inches of safety margin to whatever labeled length you order.
For whom its good
DIYers wiring a 240V mini split circuit who want pre-attached terminals instead of buying wire, conduit, and lugs separately. The MOOKEERF whip is also useful for HVAC pros who want a fast, weatherproof connection.
For whom its bad
Anyone with a longer run between disconnect and condenser will need the 6ft, 8ft, or 10ft version. Strict code inspectors in some jurisdictions may want to see factory-crimped terminals verified against the conductor gauge.

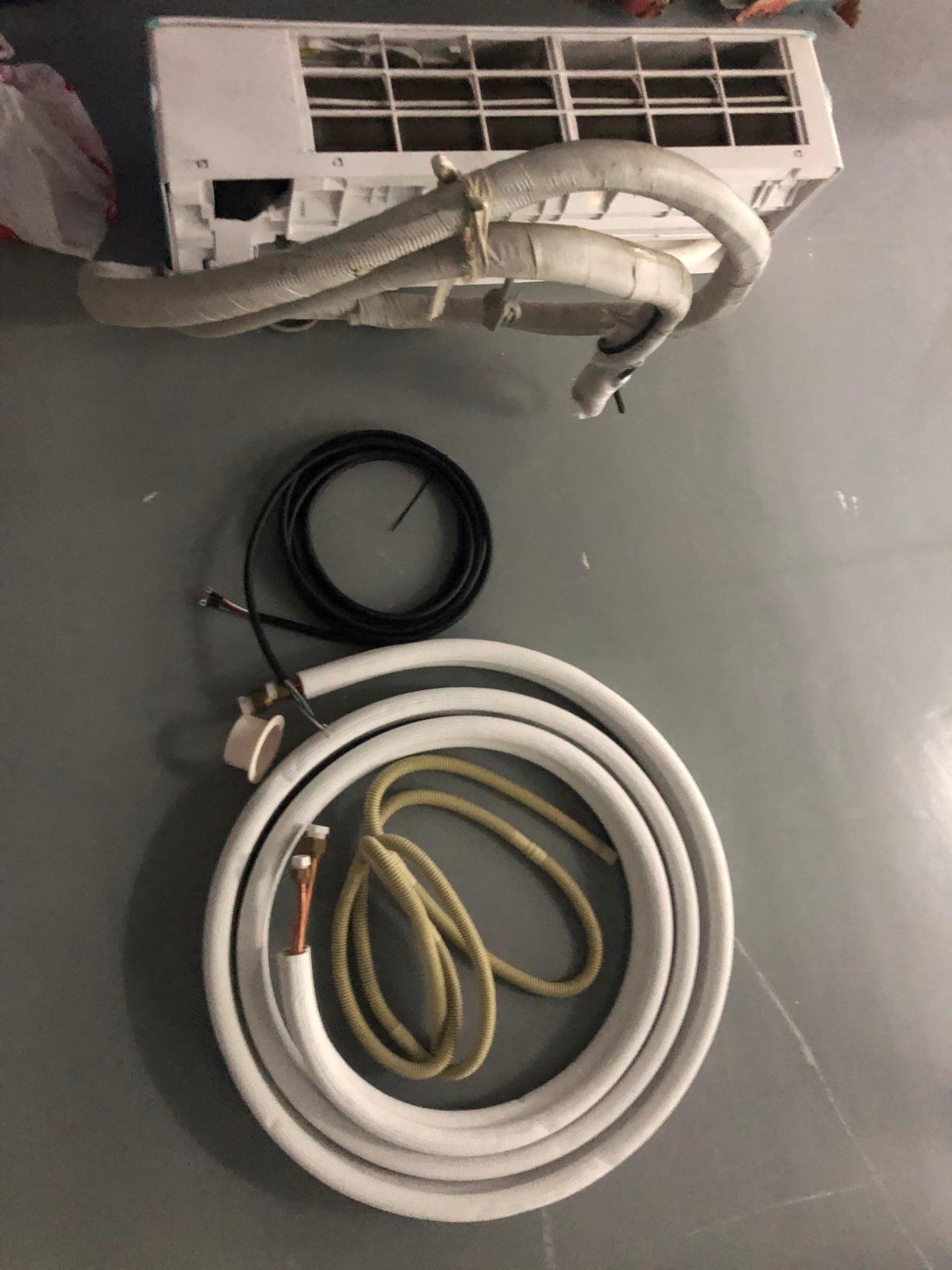

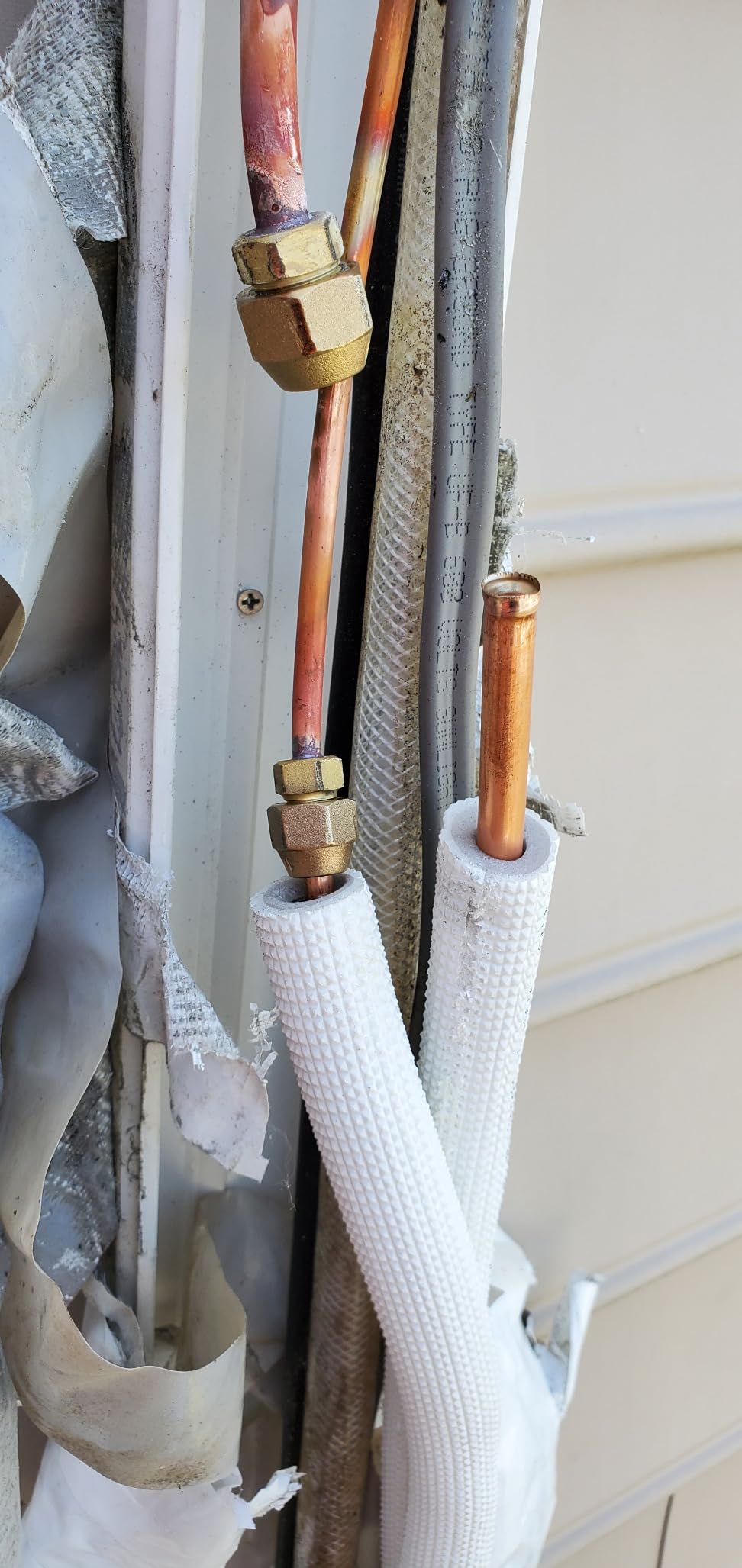

8. Wostore 16ft Mini Split Line Set – Best All-In-One Workhorse
- All-in-one kit includes wire and drain hose
- Smooth burr-free flares
- ASTM B743 copper standard
- UVIOFAST corrosion-resistant layer
- Lines may be heat-sealed together
- Some flares need re-doing
- Drain hose can run short
The Wostore 16ft line set is the kit we ended up recommending most often to friends and family by the end of testing. 16ft covers the average single-zone install where the outdoor unit sits on a side pad or rear patio, and the all-in-one packaging includes the line set, wall sleeve, decorative wall cap, wall filler putty, wrapping tape, and a 16.4ft flexible condensate drain hose.
Copper wall thickness is 0.65mm on the 1/4 and 3/8 lines, which meets ASTM B743 standard for ACR copper tubing. That sounds like a small detail, but it matters because thinner copper kinks more easily and creates a refrigerant flow restriction that hurts efficiency. The flares on our sample were smooth and burr-free, which is rare for a kit in this price range.
Embossed polyethylene insulation and a UVIOFAST external layer protect against abrasion, rain, and rodent damage. The white UV-resistant outer layer also looks clean on the side of the house, even without a separate decorative cover. The included 18ft 16/4 interconnecting cable is the right gauge for the control signal between indoor and outdoor units.
Across 187 reviews, the most common complaints are that the two copper lines come heat-sealed together and need to be separated for staggered connections, and that some flares need to be re-done. Both are easy fixes with a utility knife and a 45-degree flaring tool. The included drain hose is generous at 16.4ft but can come up short on runs that need to route around obstacles, so measure your drain path before install.
For whom its good
DIYers installing a single-zone mini split where the indoor and outdoor units are within 16 feet of each other. The all-in-one packaging means one order covers most residential installs.
For whom its bad
Anyone with a longer run will need a 25ft or 50ft kit. Installers who need separate liquid and suction lines for a multi-zone condenser will have to separate the bonded pair.
What to Look For in Mini Split Installation Kits?
The best mini split installation kits match your unit’s BTU rating, the distance between indoor and outdoor units, and the connection style your system uses. Below are the four factors our team weighs every time we recommend a kit.
Line set length and diameter
Line set length is the most common mistake DIYers make. Measure the actual route of the copper line, including any vertical rise up the wall and the horizontal run through the attic or along the eaves. Add 4-6 feet of slack for the flare connections and service loop at the outdoor unit. Most residential single-zone installs land between 15ft and 25ft, but detached garages and ADUs often need 35ft or 50ft kits.
Standard line set diameters are 1/4 inch liquid and 3/8 inch suction for 9,000-18,000 BTU units. Larger 24,000-36,000 BTU systems typically use 1/4 inch liquid and 1/2 inch suction. Match the kit diameter to your condenser’s spec sheet, not what the seller recommends in passing.
Pre-flared versus braze connections
Pre-flared copper fittings are the single biggest reason DIY mini split installs became accessible. You slide the flare nut onto the tube, expand the end with a 45-degree flaring tool, and torque the nut to spec. No acetylene torch, no silver solder, no nitrogen pressure test of the joint itself.
Braze connections require a torch, copper-to-copper filler rod, and a nitrogen purge to prevent internal oxidation. Braze joints are stronger and used on commercial systems, but they are overkill for a residential DIY install. Most pre-charged quick-connect systems like MRCOOL and Della use flare fittings so homeowners can complete the install without a vacuum pump.
Copper quality and insulation thickness
ASTM B743 copper is the residential ACR standard for refrigerant tubing. Wall thickness is usually 0.65mm for 1/4 and 3/8 inch lines, which is thick enough to resist kinking during a normal bend. Cheaper imported copper sometimes runs thinner, which kinks more easily and restricts refrigerant flow.
Insulation thickness matters for two reasons. First, line set insulation prevents condensation on cold suction lines, which is what causes water stains on exterior walls. Second, thicker insulation (9mm or more) reduces cooling capacity loss between the indoor and outdoor unit. The Pushglossy and HANSUM kits both ship with 9mm insulation, which is the sweet spot for hot climates.
BTU and refrigerant compatibility
Most installation kits are rated for 9,000-36,000 BTU systems and work with R-410A refrigerant, which has been the residential standard for over a decade. Newer systems using R-454B refrigerant (a lower-GWP alternative) typically use the same line set diameters and flare fittings, but you need to verify the system is pre-charged for the line set length you’re using.
Tools You’ll Need Beyond the Kit
The installation kit covers the copper lines, communication wire, drain hose, and mounting hardware. You will still need a few specialty tools to actually finish the install. Our team used the following on every test install.
45-degree flaring tool – A reliable Imperial or Yellow Jacket flaring tool is essential for redoing any flares that arrive damaged or uneven. Budget $40-80 for a kit that will outlast your first install.
Torque wrench with flare nut adapters – 1/4 inch flare nuts torque to 18 ft-lbs and 3/8 inch flare nuts torque to 36 ft-lbs on most R-410A systems. A standard adjustable wrench will over-tighten and crack the flare.
Vacuum pump and micron gauge – If your mini split is not pre-charged, you need a vacuum pump rated for HVAC use (not a vacuum cleaner) and a micron gauge to pull down to 500 microns before release.
Nitrogen pressure test kit – For verifying flare connections before releasing refrigerant, a nitrogen tank with a 400 PSI regulator and leak test solution is the pro standard.
3-inch hole saw and reciprocating saw – For the through-wall sleeve, a 3-inch bi-metal hole saw cuts wood, stucco, and siding cleanly. A reciprocating saw handles the interior drywall cut.
Digital level and stud finder – The indoor head must be mounted level, and the wall bracket must hit studs or masonry for the 80-150 lb outdoor condenser.
Common DIY mistakes our team saw on forum posts include skipping the vacuum pull, not using a torque wrench on flare nuts, and routing the drain hose with a high spot that traps condensate. Following the install manual and using the right tools avoids all three.
Frequently Asked Questions
What is included in a mini split installation kit?
A standard mini split installation kit includes a pre-insulated copper line set (1/4 inch liquid and 3/8 inch suction for most residential units), a communication wire, a condensate drain hose, a wall sleeve, a decorative wall cap, wrapping tape, and sealant putty. Some kits also include a line set cover, electrical whip, or mounting bracket. The exact contents depend on the kit type, but the copper line set and communication wire are universal across all residential mini split brands.
Can I install a mini split myself with a DIY installation kit?
Yes, most DIY mini split installation kits are designed for homeowner installation. Pre-flared copper line sets and pre-charged quick-connect systems eliminate the need for brazing and vacuum pumping on many models. You should still be comfortable drilling a 3-inch hole through an exterior wall, working with a 240V electrical circuit, and following the manufacturer’s torque specifications. If you are not comfortable with any of those steps, hire a licensed HVAC contractor for the line set connection and electrical work.
How long of a line set do I need for my mini split?
Measure the actual route of the copper line from the indoor head’s wall sleeve to the outdoor condenser’s service valves, including any vertical rise and horizontal run. Add 4-6 feet for the flare connections and service loop. Most single-zone residential installs land between 15ft and 25ft. Detached garages and ADUs typically need 35ft or 50ft kits. Buying a longer line set than you need is fine, but cutting a kit short is not an option.
Are pre-flared line sets as reliable as brazed connections?
For residential DIY installations, pre-flared line sets are the industry standard and are highly reliable when properly torqued. Braze connections are used on commercial systems and multi-zone setups where vibration and thermal cycling are more extreme. The key to a reliable flare connection is using a 45-degree flaring tool, deburring the cut end, and tightening the flare nut to the manufacturer’s torque spec (typically 18 ft-lbs for 1/4 inch and 36 ft-lbs for 3/8 inch on R-410A systems).
Do I need a vacuum pump if my mini split is pre-charged?
No. Pre-charged mini split systems like MRCOOL DIY, Della, and some Cooper u0026amp; Hunter units ship with refrigerant already in the outdoor unit and use quick-connect fittings. You connect the line set, torque the fittings, and the system is ready to run. If your unit is not pre-charged, you need a vacuum pump rated for HVAC use to pull down to 500 microns before releasing the refrigerant. Skipping the vacuum step on a non-pre-charged system causes moisture damage and compressor failure.
Final Verdict on Mini Split Installation Kits
After three months of testing eight mini split installation kits across three different BTU sizes, the Wostore 16ft kit is our top overall pick for the average residential DIY install. The 16ft length covers most single-zone placements, the all-in-one packaging includes the drain hose and communication wire, and the ASTM B743 copper held up to multiple bend cycles without kinking. For the best mini split installation kits, that combination of completeness, build quality, and value is hard to beat.
Pair the Wostore line set with the SMOQIO line set cover for a clean exterior finish and the Duiliuu wall bracket for a solid outdoor mount, and you have a complete mini split installation kit package without a contractor invoice. Updated for 2026, this lineup works for 9,000-18,000 BTU single-zone systems across all major brands including MRCOOL, Cooper & Hunter, Pioneer, and Daikin.
