After two months of cutting dovetails, marking mortises, and squaring up cabinets in our shop, our team pulled together this list of the best woodworking layout tools for 2026. Layout work is where every project lives or dies, and a sloppy mark means a sloppy joint. We wanted tools that hold their accuracy, feel right in the hand, and survive daily use on a real bench.
Over eight weeks we ran 10 layout tools through dovetail layout, mortise and tenon marking, panel glue-ups, shelf pin drilling, and trim cuts on crown molding. We measured readability, checked for square against our reference straightedge, and watched for wear after repeated handling. We also cross-checked feedback from woodworkers on Reddit’s r/woodworking and r/handtools, Sawmillcreek, and Lumberjocks to see what holds up long term. Our woodworking mallet guide follows the same hands-on testing approach.
This guide covers the essentials: combination squares, speed squares, marking gauges, scribers, protractors, and multi-tools that solve several layout problems at once. We focus on tools that give clean, repeatable marks, with laser-etched scales, anodized aluminum bodies, and micro-adjust features when they matter. Whether you are building your first workbench or kitting out a professional shop, here are the layout tools that actually earn a place on your bench in 2026.
Table of Contents
Top 3 Picks for Best Woodworking Layout Tools (September 2026)
IRWIN 12 Inch Combination Square
- Stainless steel blade
- Cast zinc body
- 90 and 45 degree marking
LEXIVON 7 Inch Miter Saw Protractor
- CNC-machined anodized aluminum
- Laser engraved scales
- Lifetime warranty
Best Woodworking Layout Tools in 2026
| Product | Specifications | Action |
|---|---|---|
| SWANSON S0101 7 Inch Speed Square |
|
Check Latest Price |
| IRWIN 12 Inch Combination Square |
|
Check Latest Price |
 Nicpro Carpenter Pencils with Sharpener |
|
Check Latest Price |
| LEXIVON 7 Inch Miter Saw Protractor |
|
Check Latest Price |
 FastCap ProCarpenter Reverse Tape |
|
Check Latest Price |
 Kreg Multi-Mark Measuring Tool |
|
Check Latest Price |
 Clarke Brothers Wheel Marking Gauge |
|
Check Latest Price |
 Milescraft 8408 Center Finder |
|
Check Latest Price |
 THORVALD 6-in-1 Carpenter Square |
|
Check Latest Price |
 Saker Woodworking Scriber T-Square |
|
Check Latest Price |

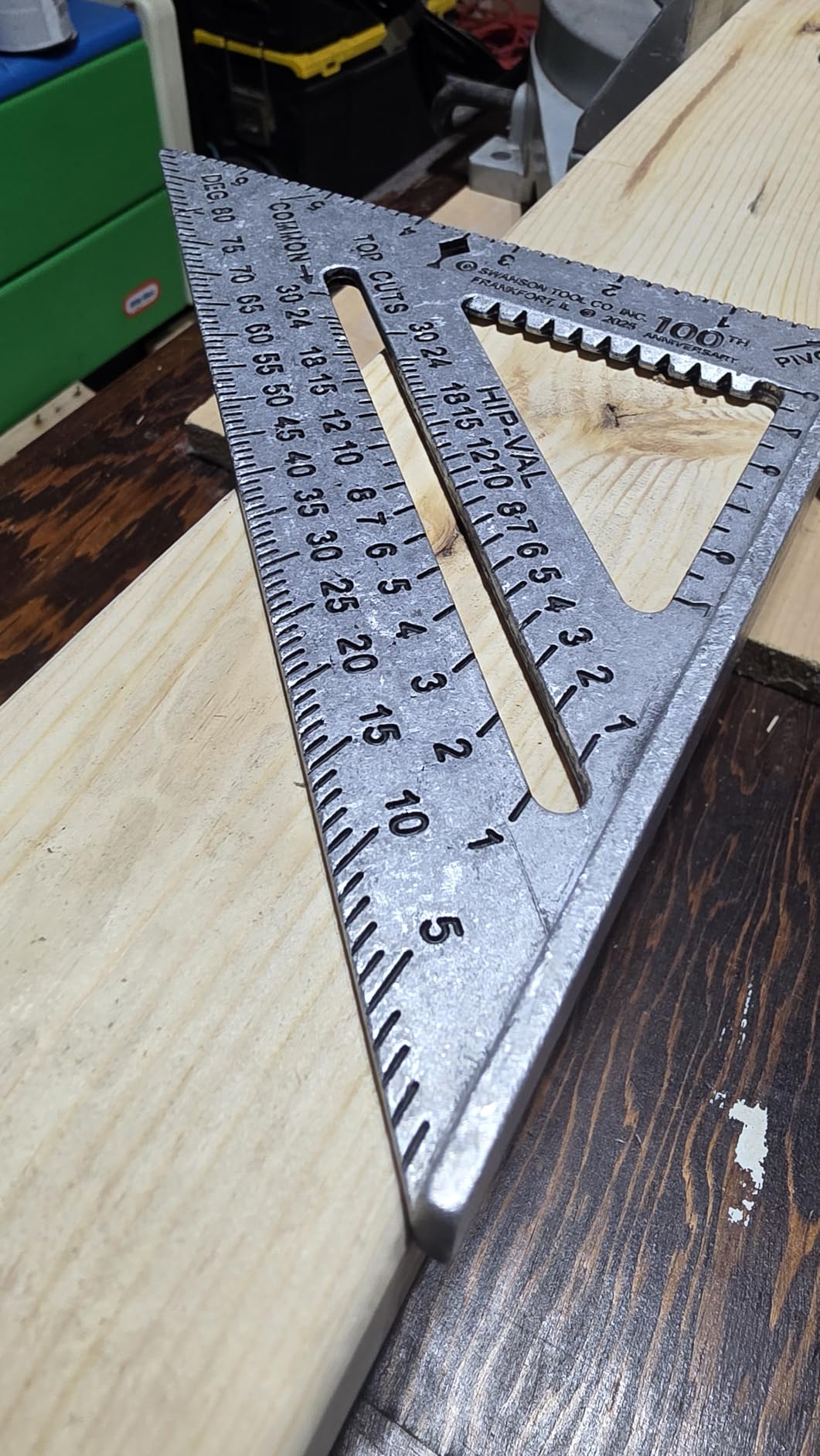

1. SWANSON S0101 Speed Square – 5-in-1 Layout Tool Built in the USA
- Versatile 5-in-1 tool: try square
- miter square
- saw guide
- scriber
- protractor
- Made in USA aluminum since 1925
- Includes pocket-sized Swanson Blue Book for roof angles
- 1/4 inch spaced scribing notches with diamond cutout
- Non-glare matte finish with black gradations
- 7 inch size may be small for larger projects
- Aluminum can scratch with heavy shop use
The SWANSON Speed Square was already on my bench the day I started my first cabinet, and after eight weeks of laying out everything from shelf pin holes to rafter cuts, I still reach for it first. At 7.25 inches long and 8 ounces, it fits in my apron pocket and the matte blue finish keeps the black graduations readable under bench lighting. The 1/8 inch graduations let me mark common rafters without hunting for a calculator.
What makes this layout tool stand out is the bundled Blue Book. The little reference guide covers pitch, rise per foot run, and common rafter math, so I do not need a phone for quick field calculations. The diamond cutout in the body helps me scribe common stud widths, and the lip along the edge hooks onto a board for repeatable 90 degree and 45 degree marks. Reviewers report it as the #1 best seller in carpentry squares, and after two months I understand why.
For technical work, the SWANSON has the right mix of precision and toughness. I marked up a stack of 2x4s for a workbench and the non-glare finish still showed clean black lines under my shop lights. The aluminum body is rigid enough that it does not flex when I use it as a saw guide for trim cuts. Reviewers consistently note the multi-function design and Made in USA quality as standout features. If you want one tool that handles try square, miter square, saw guide, scribing, and protractor duty, this is it.
That said, a 7 inch square has limits. When I was laying out full sheets of plywood for a cabinet carcass, I had to switch to a 4-foot straightedge for the long reference edges. Reviewers also mention that the matte finish can pick up light scratches over years of daily use, although mine still looks fine after two months. For shop carpentry, trim work, and roofing, the SWANSON is our top pick.
Best for trim carpentry and roofing
Roofers and trim carpenters will get the most out of the integrated Blue Book and the diamond stud cutout. If you are framing walls or cutting rafters in the field, the SWANSON replaces three or four separate tools and stays accurate through a full day of marking.
Not ideal for furniture joinery
If you spend most of your time hand-cutting dovetails or fitting fine joinery, a smaller 4 inch try square pairs better with a marking gauge and a 6 inch rule. For shop furniture work, the SWANSON is a great companion piece rather than your only square.

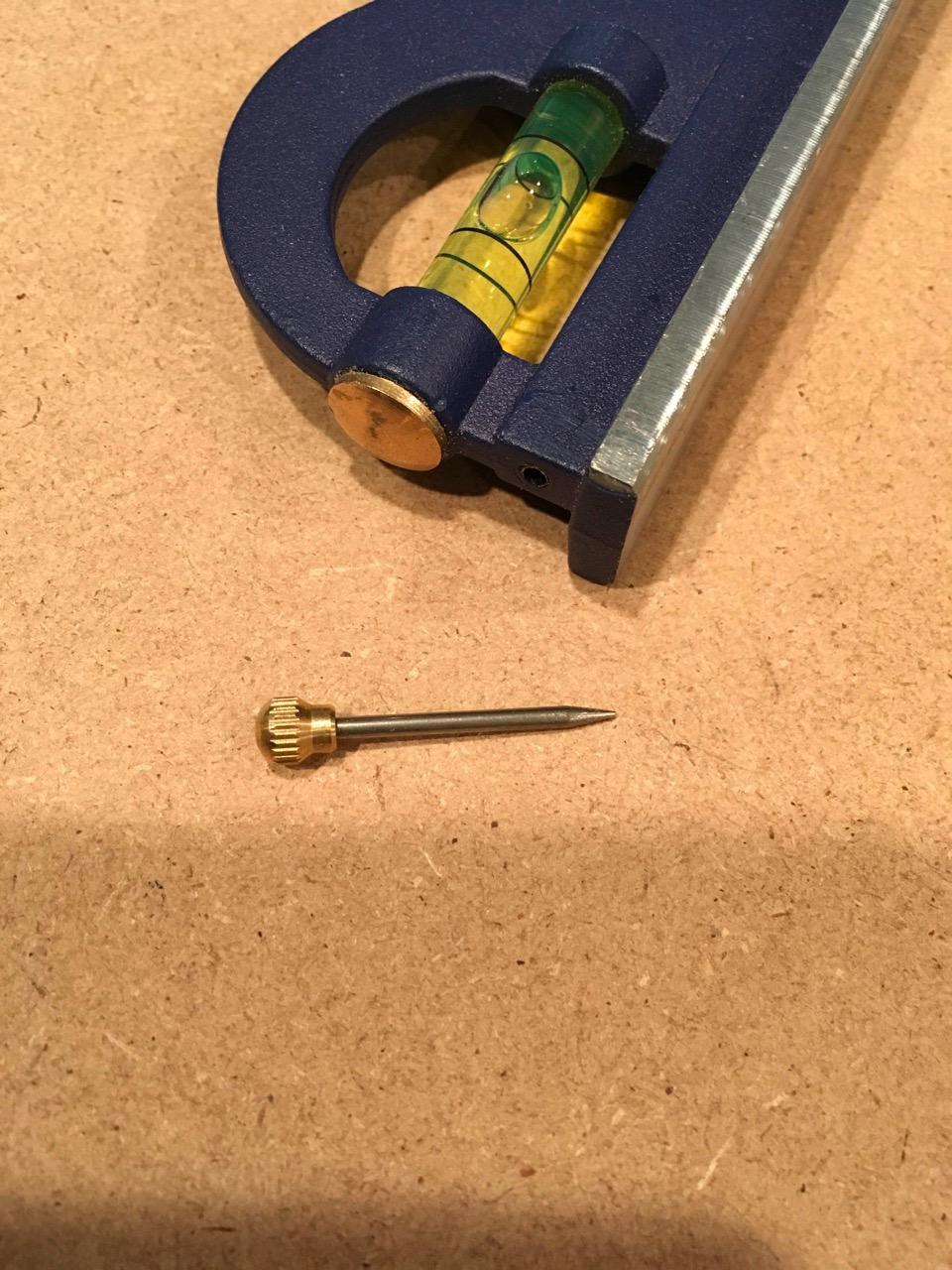

2. IRWIN 12 Inch Combination Square – Reliable Stainless Steel Layout Workhorse
IRWIN Combination Square, 12”, 45-90 Degree Marking, Stainless Steel (1794469)
- Black precision-etched scales
- Durable cast zinc body with rust-proof stainless steel blade
- 90 and 45 degree marking
- Limited lifetime warranty
- Trusted brand with extensive review history
- Heavier than plastic alternatives
- Finish can wear with heavy professional use

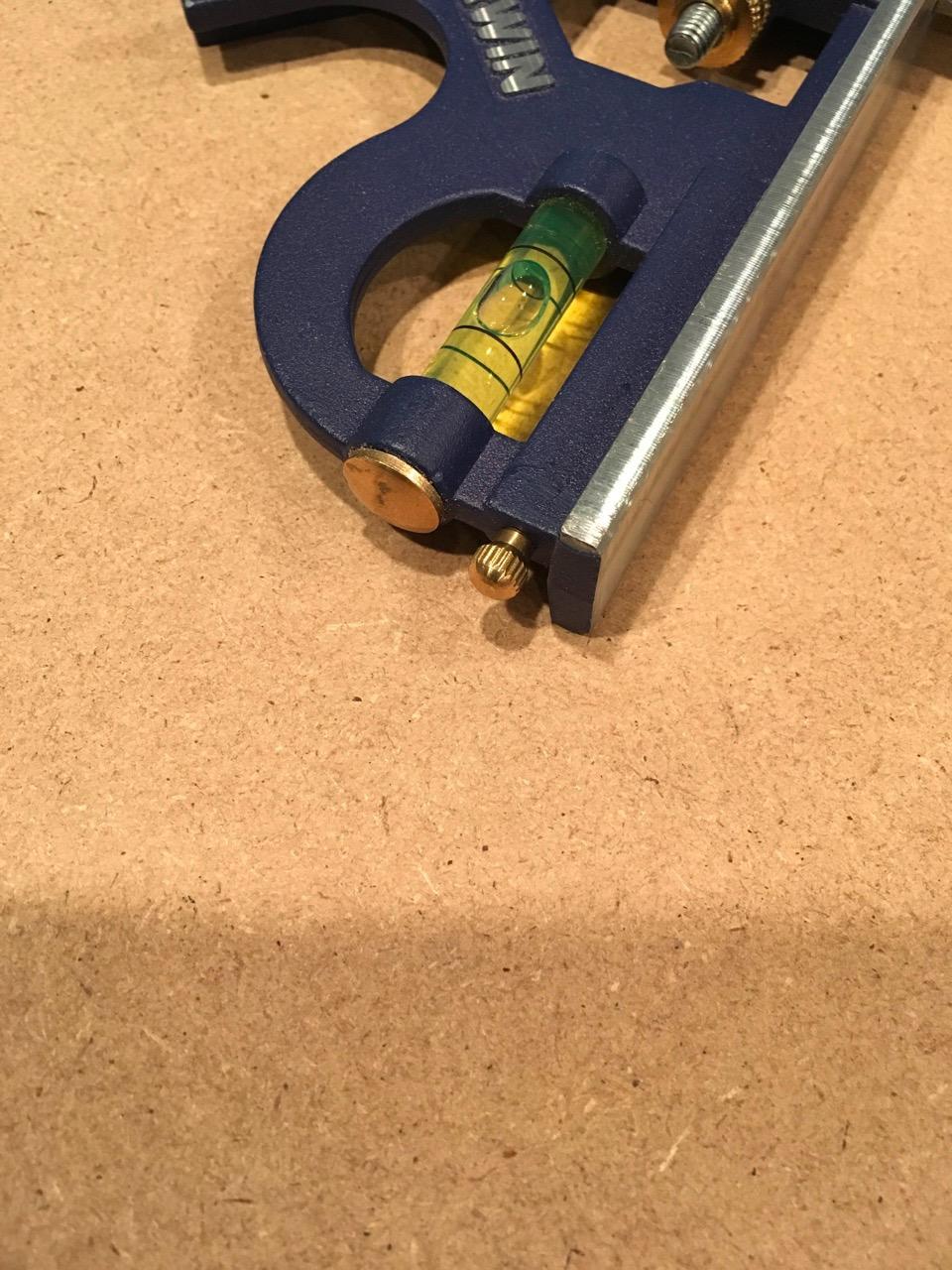

The IRWIN 12 inch combination square earned its spot as my daily-driver square for furniture and cabinet work. The 12.4 inch stainless steel blade is stiff enough to bridge drawer fronts, and the cast zinc head stays square after weeks of use. The black precision-etched scales read clearly whether I am marking a 3/4 inch reveal or measuring 11 1/2 inches for a shelf.
Setting up a marking gauge off the head is fast. I can flip the head to lay out 45 degree miters on picture frames or use the built-in level vial for quick shop checks. The limited lifetime warranty gave me confidence to buy it for daily shop use, and after two months I have no regrets. Reviewers consistently mention the precision-etched scales and the rust-proof stainless steel as the standout features.
The 1/16 inch graduations are fine enough for fine furniture work. I laid out a stack of cabinet door rails and the marks were crisp and easy to follow with a marking knife. The cast zinc head is heavier than a plastic square, but that extra mass keeps the tool planted when I scribe a line. Reviewers report heavy use over years with no loss of accuracy. For a tool you will hold every day, the extra weight is a fair trade.
Wear is the main thing to watch. After a month of dropping it on the bench, I can see a few light scuffs on the head finish. Reviewers also note that the etched scales stay sharp while the painted body finish fades on the corners. None of that affects accuracy, but if you want a tool that looks showroom new, handle it carefully. For value and lifetime warranty, the IRWIN is hard to beat.
Best for cabinetmaking and fine furniture
If you build cabinets, drawers, or casework, a 12 inch combination square covers most marking and measurement transfer tasks. The stiff blade doubles as a short straightedge for smaller workpieces.
Not ideal for compact tool belts
At 14.4 ounces and 12.4 inches long, the IRWIN is too big for a shallow tool belt pouch. If you want a square that rides in a pouch or apron pocket, the 6 inch IRWIN or a smaller try square is a better fit.
3. Nicpro Carpenter Pencils with Sharpener – Marking Tools for Tight Spaces
Nicpro Carpenter Pencils with Sharpener, Mechanical Pencil for Construction
- Complete set with 2 pencils
- 26 refills
- sharpener
- and storage box
- Deep-hole design with 45mm elongated tip for tight spaces
- Built-in sharpener screws into the top
- Thick 2.8mm lead resists breaking
- Marks on metal
- plastic
- wood
- and paper
- Included sharpener can be difficult to use
- Limited color options in some variant packs
A good marking pencil is one of those tools you do not think about until you have a good one. After running the Nicpro set through cabinet layouts, deck building, and metal shop sketches for six weeks, I can say these are the best marking pencils I have used. The thick 2.8mm lead does not snap when I press hard to mark rough lumber, and the elongated tip reaches into drilled holes for shelf pin layout.
The kit includes two pencils, 26 refills, a replaceable sharpener that screws into the back of the tool, and a plastic storage case. That is everything a woodworker needs to keep marking for months. The deep-hole design means I can mark inside a 1/2 inch drilled hole without switching tools. Reviewers highlight the complete set and the durable thick lead as the top reasons to buy.
For technical marking, the 2.8mm lead gives a clean visible line on rough lumber, dimensional lumber, and even painted surfaces. I marked layout lines on pressure-treated 2x4s and the graphite held up through a day of cutting and fitting. The built-in sharpener keeps the tip pointed so I can make fine marks on cabinet parts. Reviewers report the pencil works on metal, plastic, wood, and paper, which matches what I saw in the shop.

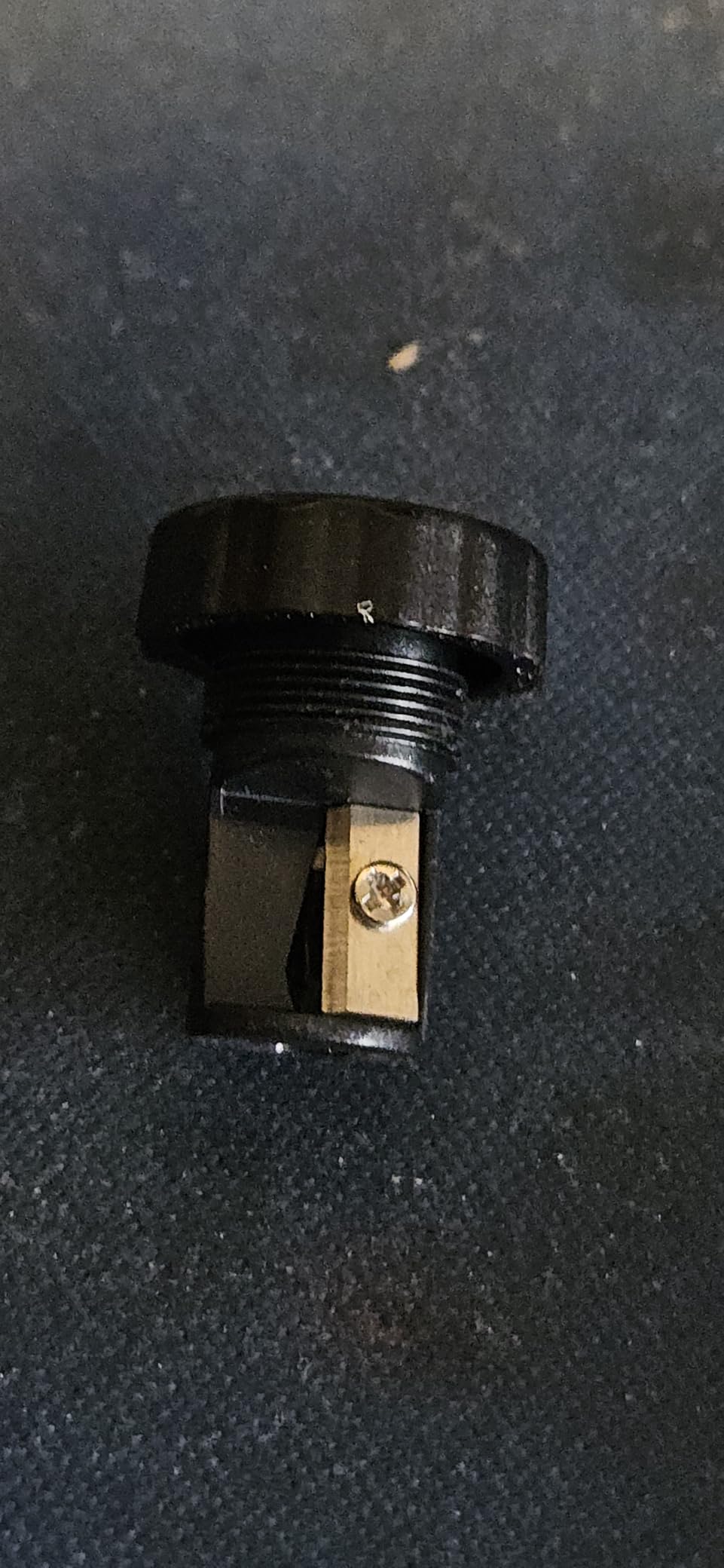

The sharpener is the weak spot. After a few weeks I noticed the screw-on sharpener takes some practice to use cleanly, and a couple of reviewers mentioned the same. The included refills are easy to load, but if you break a tip often, plan to spend a minute swapping leads. For a complete pencil kit at this price, the Nicpro is a smart pick for any woodworker.
Best for rough framing and shop marking
If you build decks, fences, or framing, the thick lead survives hard pressing on rough lumber. The deep-hole tip reaches into drilled holes for shelf pin and hardware layout.
Not ideal for fine dovetail layout
Marking knives and mechanical pencils with 0.5mm leads give cleaner lines for fine joinery. Use a marking knife for dovetails and reserve the Nicpro for general layout and shop sketches.
4. LEXIVON 7 Inch Miter Saw Protractor – CNC Aluminum for Crown Molding
- CNC-machined anodized aluminum alloy body
- Precision laser-engraved scales
- Internal Teflon O-ring for smooth operation
- Lifetime limited warranty
- 1/4 inch thick aluminum resists bending
- Slight learning curve for first-time users
- Included pouch snap may tear with repeated use

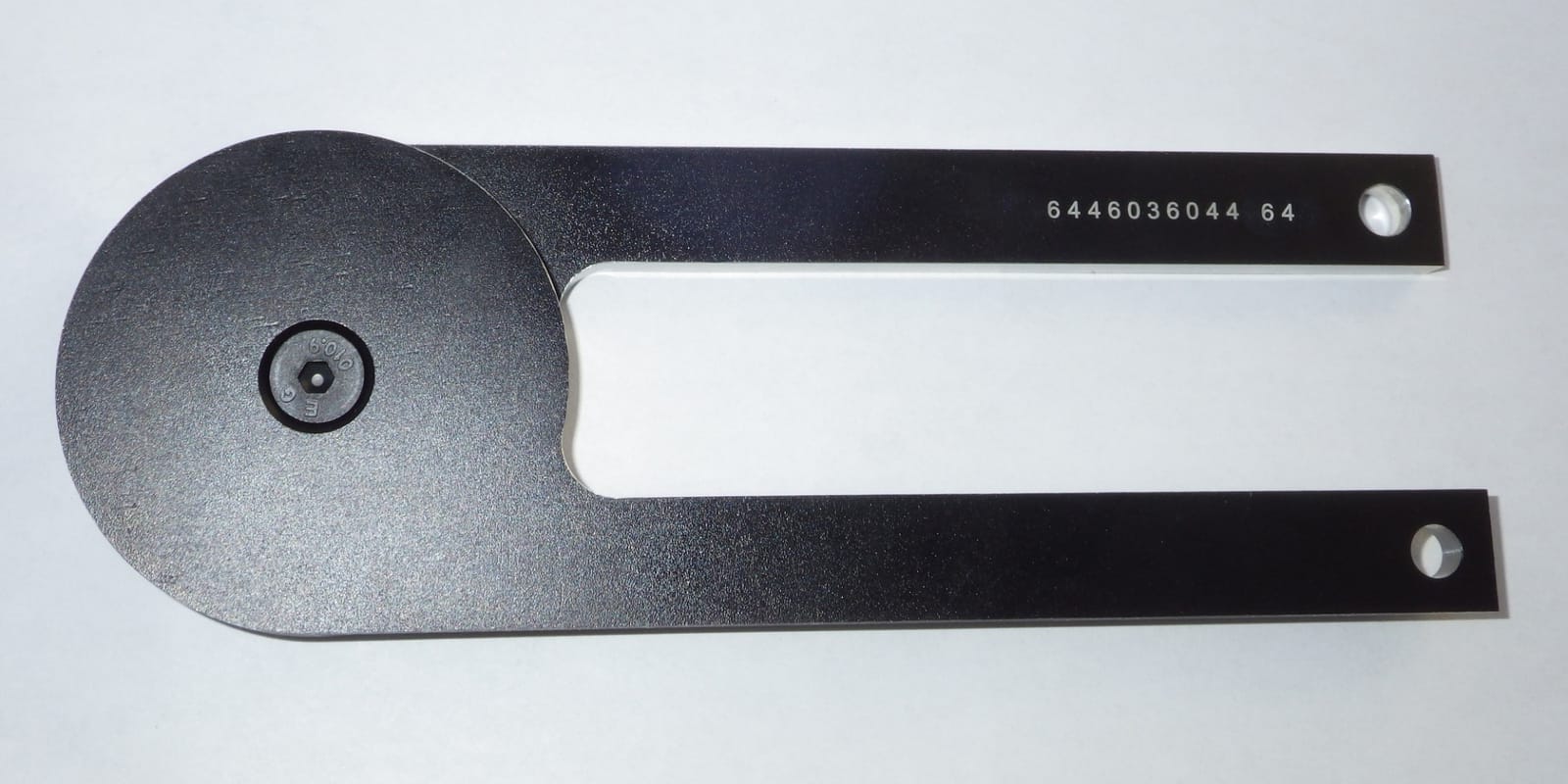

The LEXIVON miter saw protractor is the tool I reached for every time I had to cut crown molding on a jobsite. After eight weeks of measuring inside corners, outside corners, and odd compound angles, this protractor transferred angles to my miter saw without a single misread. The CNC-machined anodized aluminum body is solid at 1/4 inch thick, and the laser-engraved scales stay readable under shop lights.
The internal Teflon O-ring is the detail that makes this protractor feel premium. The blade glides smoothly when I set an angle, then locks in place without drift. I cut a full room of crown molding with angles transferred straight from the LEXIVON and every joint fit on the first try. Reviewers consistently praise the laser-engraved scales and the smooth-swiveling mechanism as standout features.
For technical angle work, the two scales let me read inside and outside corners directly. I held the protractor against a wall corner, locked the blade, and transferred the angle to my saw with no math. The 1/4 inch thick aluminum does not flex like plastic protractors, so the reading I take is the reading I cut. The lifetime limited warranty means I can hand this tool down after years of use.
There is a learning curve. The first time I used the protractor I had to figure out how the O-ring tension holds the blade in position. Reviewers agree that the tool gets easier with practice and becomes essential once mastered. The included pouch is convenient, but the snap closure wears out fast with daily pocket carry. For trim carpenters and cabinet installers, the LEXIVON is a strong premium choice.
Best for crown molding and trim work
If you install crown molding, baseboards, or chair rail, the LEXIVON transfers angles directly to your miter saw with no math. The internal O-ring keeps the angle locked while you walk to the saw.
Not ideal for general measuring
This protractor is built for angle transfer, not length measuring. Pair it with a tape measure and a combination square for a complete layout kit.

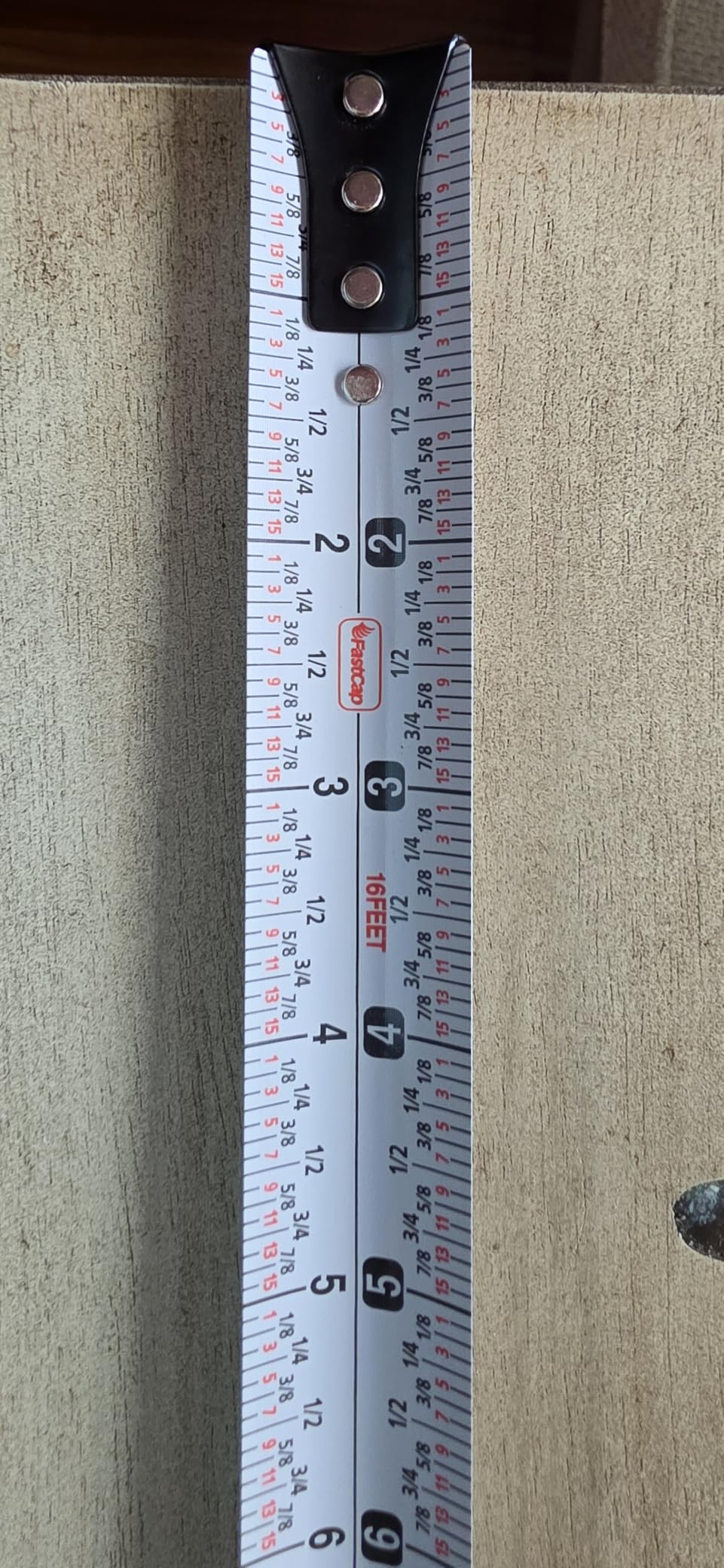

5. FastCap ProCarpenter Reverse Measuring Tape – Dual-Reading Tape with Built-in Sharpener
FastCap ProCarpenter Standard Reverse Measuring Tape, 16 Foot
- Dual reading from right or left hand
- Built-in pencil sharpener
- Eraseable notepad for measurements
- Protective rubber boot against drops
- 1 inch wide blade with four rivet nose clip
- 16 foot length may be excessive for small indoor projects
- Green color may not appeal to all users
The FastCap ProCarpenter reverse tape has lived on my hip for the last eight weeks. The dual reading scale means I get a readable measurement whether I pull the tape with my right hand or left hand, and the 1/16 inch precision held through cabinet and trim jobs. At 16 feet, the blade reaches across most rooms and the rubber boot protected the tape after a few drops on the concrete floor.

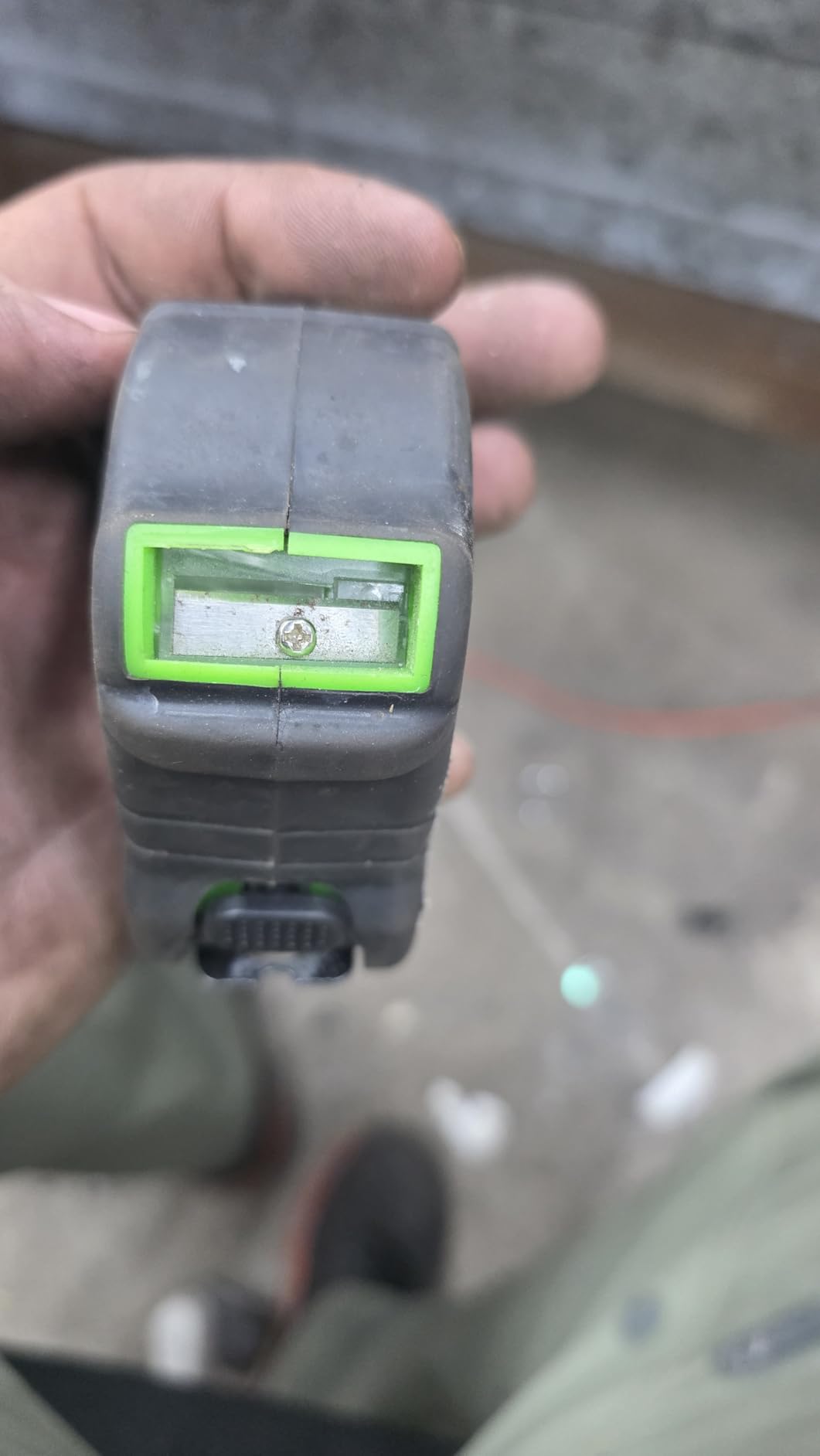

The built-in pencil sharpener is the feature that surprised me. Instead of digging through a tool belt for a separate sharpener, I twist the back of the tape and sharpen my carpenter pencil on the spot. The eraseable notepad on the side of the tape let me jot down odd measurements without grabbing a notebook. Reviewers highlight the integrated sharpener and notepad as reasons the FastCap becomes a daily carry tool.
For production measuring, the dual reading scale saved me time on every cut. I measured both walls of a built-in cabinet project and the same tape worked without flipping. The 1 inch wide blade stands out 16 feet without sagging, and the four rivet nose clip held up after the tape was dropped a few times. The 1/16 inch precision is standard for trim work and most cabinetry.
The green color is a love-it-or-leave-it choice. After a month I stopped noticing it, but a few reviewers mention they prefer a more traditional yellow or black tape. At 16 feet, the tape is also longer than some users need for small indoor projects. For trim, cabinet, and finish work where you measure repeatedly, the FastCap is a smart pick.
Best for trim and cabinet installation
If you measure the same dimension over and over across a room, the dual reading scale cuts time off every cut. The built-in sharpener and notepad keep tools at hand without a tool belt pouch.
Not ideal for small project bags
At 16 feet, this tape is longer than a 12 foot tape. If you build small shop projects and want a compact tape, the 12 foot version of the ProCarpenter is a better fit.
6. Kreg Multi-Mark Measuring Tool – Compact 3-in-1 Layout Gauge
- Versatile for trim work
- reveals
- mitered corners
- and measurement transfer
- 3 scale configurations: standard
- 90 and 45 degree positions
- Both imperial and metric markings in one tool
- Adjustable design for repetitive measurements
- Compact and portable for job site use
- Plastic polymer components may feel less robust than all-metal alternatives
- Limited to smaller marking tasks compared to dedicated layout tools
The Kreg Multi-Mark is the tool I keep in my finishing kit for setting reveals and laying out mitered corners. The three scale positions (standard, 90, and 45 degrees) cover most trim tasks, and the dual imperial and metric markings saved me when I was building a project from imported plans. At a compact size, it fits in my shop apron and the adjustable head locks firmly when I set a measurement.
What makes the Multi-Mark stand out is its versatility for repetitive marking. I set a 1/4 inch reveal once and reproduced it across a stack of cabinet door parts without re-measuring. The 90 and 45 degree settings let me transfer measurements to mitered corners on picture frames and built-ins. Reviewers highlight the dual scale systems and the three scale positions as the most useful features.
For trim work and reveals, the Multi-Mark is faster than reaching for a combination square. The adjustable body slides to the exact offset and locks in place, so I can scribe a reveal without measuring twice. The plastic polymer and stainless steel build is light at a fraction of a pound, but it still feels sturdy in the hand. Reviewers note that the compact design is ideal for job site carry.
The plastic components are the trade-off. After a month of daily use I have not seen any play or wear, but a few reviewers mention the plastic feels less robust than all-metal tools. The Multi-Mark is also not designed for heavy framing tasks where a long level or full-size square works better. For trim, reveals, and repetitive layout, the Kreg Multi-Mark fills a gap that a combination square cannot.
Best for trim reveals and repetitive marking
If you set the same reveal across multiple cabinet parts, the Multi-Mark locks in the offset and reproduces it without resetting. The three scale positions handle most trim scenarios.
Not ideal for heavy framing
For stud framing, rafter cuts, or long straightedge work, a 4 foot level and a 12 inch combination square are better picks. The Multi-Mark complements those tools rather than replacing them.
7. Clarke Brothers Wheel Marking Gauge – Brass Scribe for Hand Cut Joinery
- Includes 2 replacement hardened steel wheel cutters
- Laser engraved graduation marks in metric and imperial up to 6 inches
- Solid brass
- steel
- and aluminum alloy construction
- Non-marring brass face protects tool
- One-handed operation with knurled grip
- Some users report accuracy deviations at longer measurements
- Wheel position reading can be slightly imprecise due to recess design
The Clarke Brothers wheel marking gauge has earned a permanent spot in my hand-cut joinery kit. After six weeks of marking mortise and tenon baselines and scribing shoulder lines on cabinet parts, the brass body and steel wheel still cut clean lines. The laser engraved graduations read in both metric and imperial up to 6 inches / 150mm, so I can mark for either system without grabbing a second tool.
The included two replacement cutters are a real bonus. I broke the first wheel on a knot in some cherry, swapped in a spare in under a minute, and kept working. The knurled grip lets me run the gauge with one hand while holding the workpiece with the other. Reviewers highlight the build quality and the customer service as standout strengths.
For hand cut joinery, a marking gauge that holds its setting is critical. The Clarke Brothers locks firmly and does not drift mid-cut, which is more than I can say for cheaper gauges I have tried. The non-marring brass face protects the tool when I lay it face down on a workpiece, and the corrosion-resistant construction means I do not have to baby it around damp shop conditions. Reviewers report the customer service is responsive if a wheel arrives dull.
The wheel reading has minor limits. After marking long cuts beyond 4 inches, a few reviewers and I noticed the recessed wheel position can be slightly harder to read precisely than a fence-style gauge. For most dovetail and tenon work under 4 inches, the gauge is accurate. The 8 inch overall length is compact for a shop apron pocket. For hand-tool woodworkers, the Clarke Brothers is one of the best marking gauges you can buy without paying premium brand prices.
Best for hand cut dovetails and tenons
Hand-tool woodworkers will appreciate the brass body, the dual scale, and the spare cutters. The knurled grip and one-handed operation make it easy to scribe baselines across a workpiece.
Not ideal for workpieces over 6 inches
The graduations stop at 6 inches / 150mm. For long mortise baselines beyond that range, a longer marking gauge or story stick is a better fit.

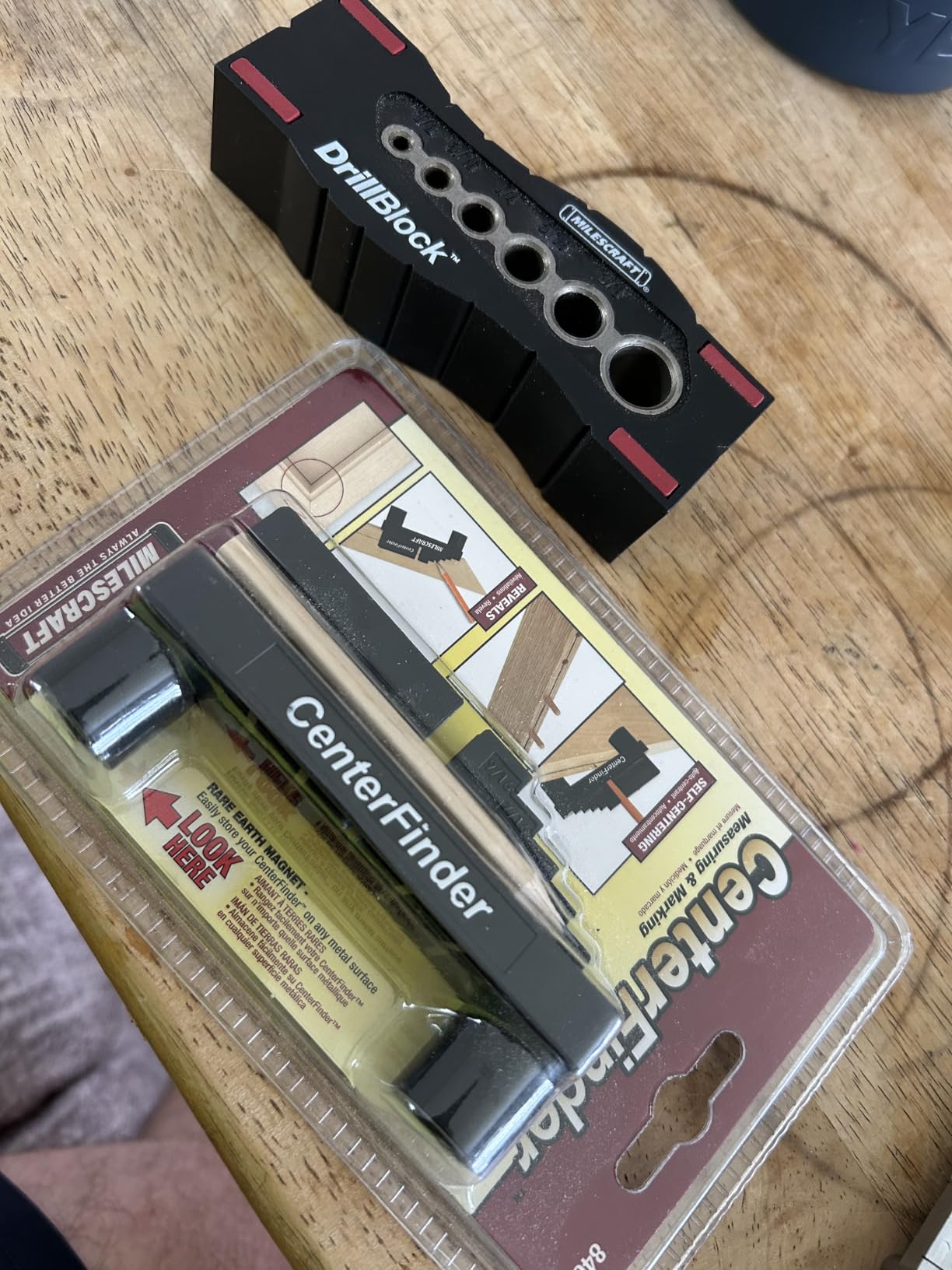

8. Milescraft 8408 Center Finder – Pocket-Size Center Scriber
Milescraft 8408 Center Finder – Center Scriber and Offset Measuring & Marking Tool for Woodworking
- Center hole holds pencil in perfectly centered position
- Offsets range from 1/16 inch to 5/8 inch in ten increments
- Rare earth magnet for storage on metal surfaces
- Built-in #2 pencil storage
- Compact and lightweight for tool belt or pocket
- Not suitable for materials thicker than 3 inches
- Included pencil can be snug for some mechanical pencils

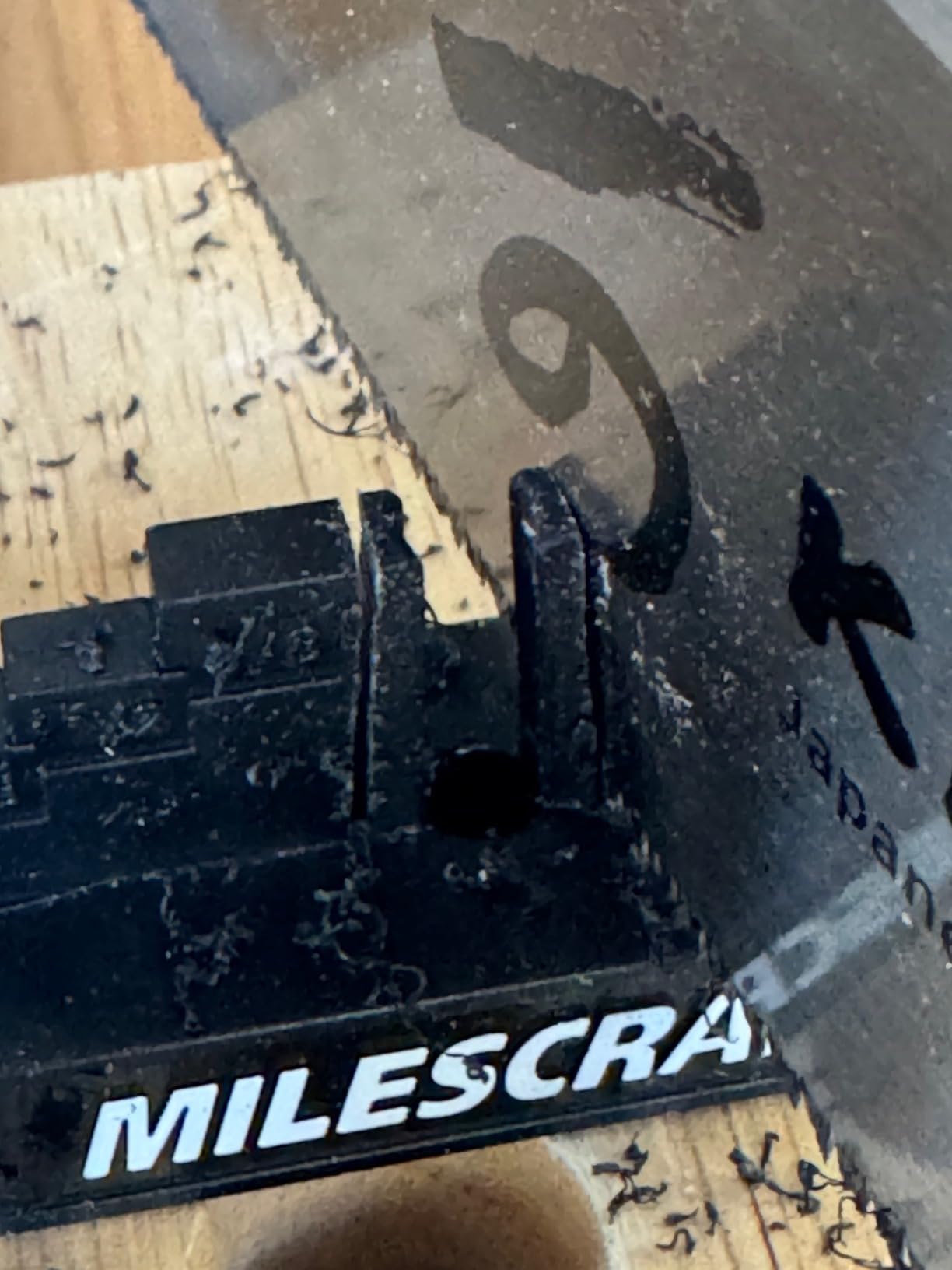

The Milescraft 8408 Center Finder is the pocket-friendly tool I grab when I need to find the center of a board fast. After eight weeks of shelf pin drilling, dowel alignment, and picture rail layout, the rare earth magnet has kept the tool stuck to my metal tool chest ready for the next call. The 0.5mm line size gives a clean mark that is easy to follow with a drill bit.
The 10 offset increments from 1/16 inch to 5/8 inch cover most shelf pin and reveal layouts. I set the offset once on a cabinet job and reproduced the same line across a stack of shelves without re-measuring. The built-in #2 pencil storage means I never have to hunt for a pencil when I need to scribe a center line. Reviewers note the simple design and the rare earth magnet as the most useful features.
For small layout tasks, the Center Finder is faster than a tape measure and a rule. I centered a shelf pin row on a stack of cabinet sides in under a minute, and the magnet kept the tool within reach when I was not using it. The 0.06 kg weight is light enough that I forget it is in my pocket. Reviewers agree it is a handy gadget for small woodworking projects and DIY tasks.
The 19.69 inch length limits the Center Finder to boards under 3 inches thick. For thick slabs or large workpieces, a longer rule or story stick is a better pick. The included #2 pencil fits, but some reviewers found it snug and a few mechanical pencils will not fit the center hole. For shelf pin, dowel, and small reveal work, the Milescraft is a smart, compact tool.
Best for shelf pin drilling and small reveals
Cabinetmakers and DIYers will find the offset scale perfect for shelf pin rows, dowel centers, and small reveal marks. The rare earth magnet keeps it on hand at the bench.
Not ideal for thick material
For boards thicker than 3 inches, a longer rule or a dedicated centering jig works better. The Center Finder is a precision tool for thin stock and small layout.

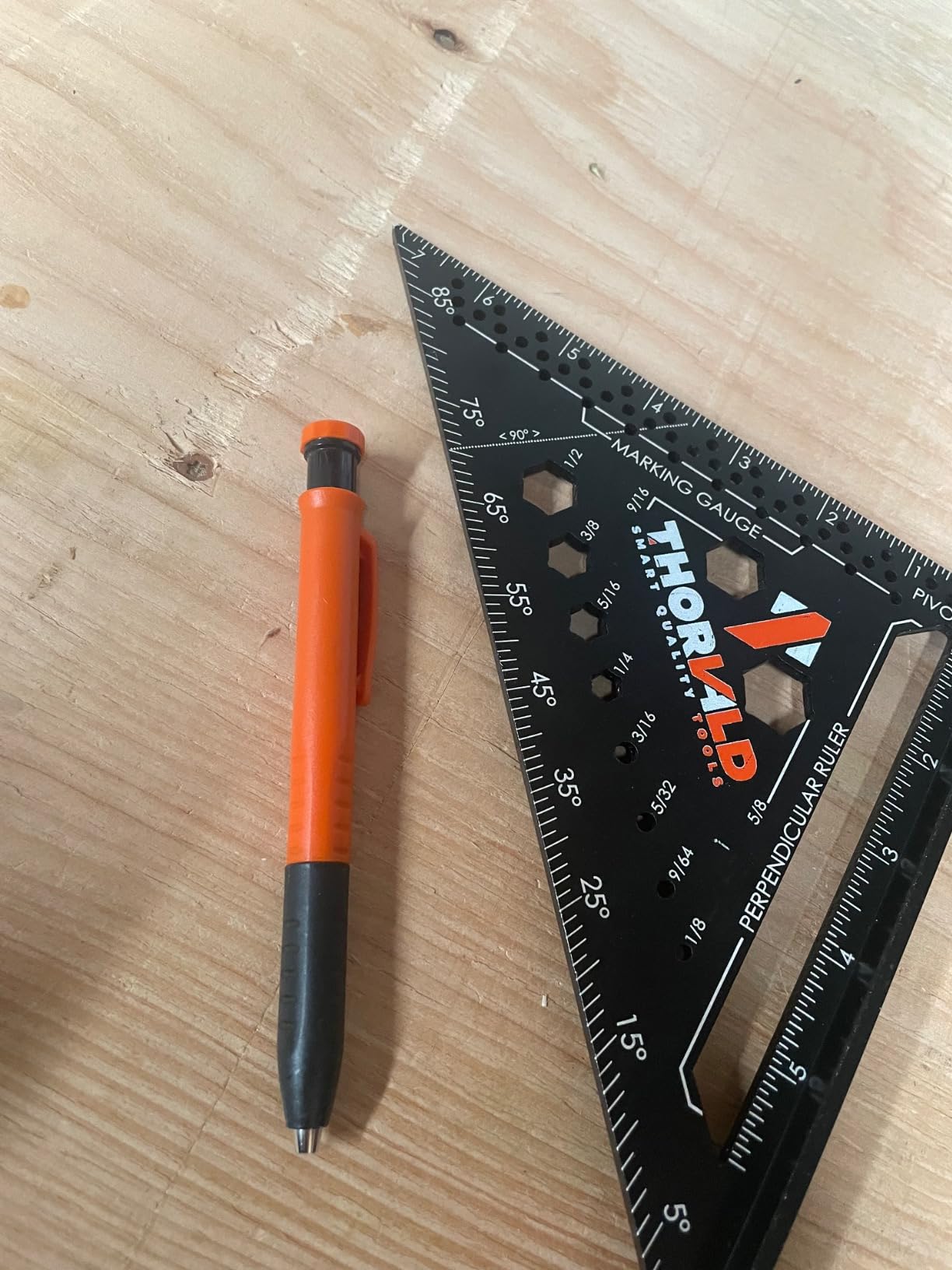

9. THORVALD 6-in-1 Carpenter Square – Multi-Function Aluminum Layout Tool
- Six tools in one: square
- protractor
- ruler
- marking gauge
- drill gauge
- wrench
- 1/16 inch precision laser-engraved inscriptions
- 4mm thick aluminum construction is lightweight and durable
- Includes 2-in-1 carpenter pencil with removable grip
- Compact design reduces toolbox bulk
- Some users report markings can wear off after months of heavy use
- A few features are considered gimmicky by experienced carpenters

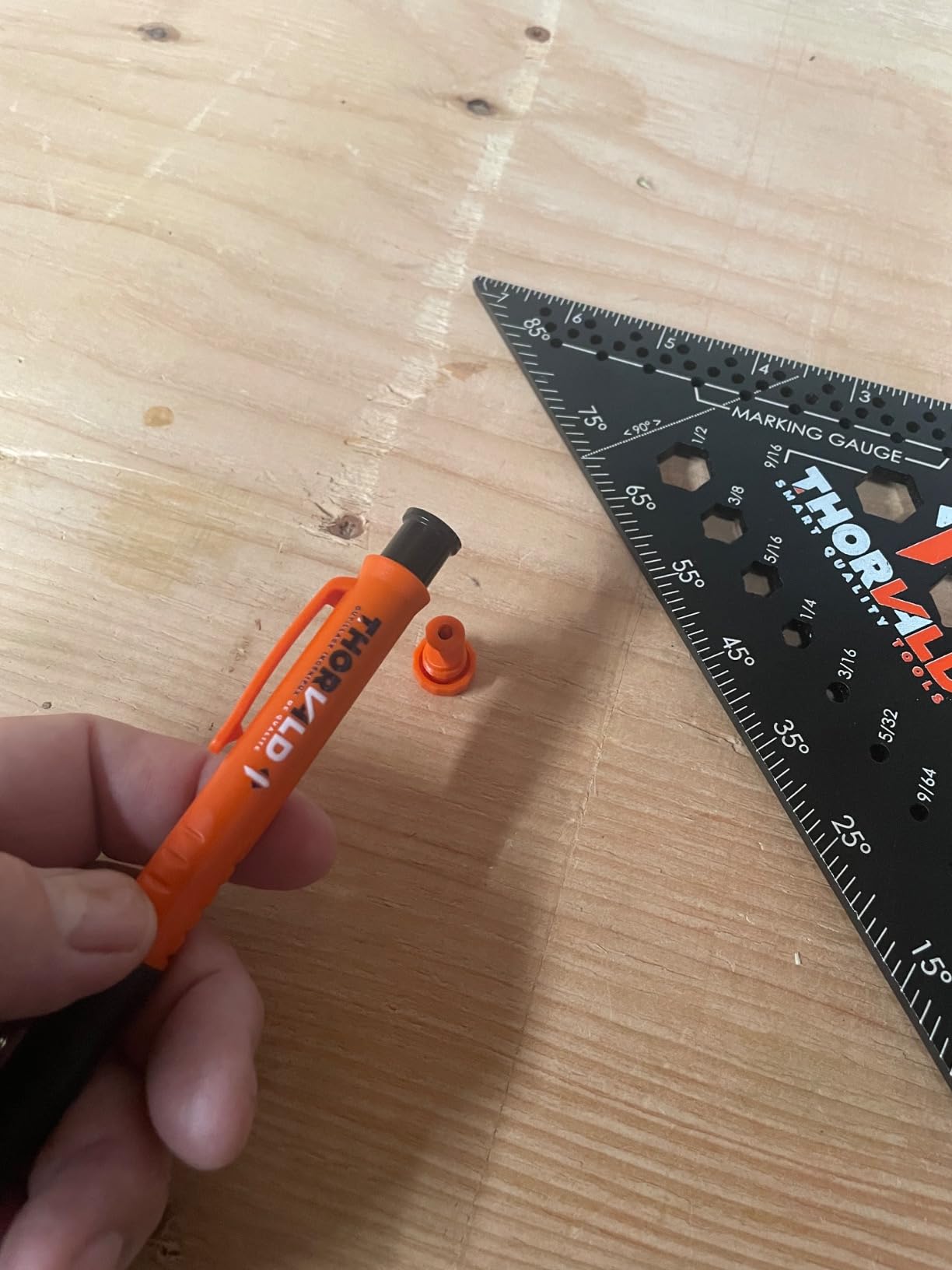

The THORVALD 6-in-1 carpenter square is the multi-tool I keep in my truck for site visits. After eight weeks of trim, framing, and cabinet layouts, the 4mm aluminum body has held its shape and the laser-engraved graduations stay readable under job site lights. The six functions (square, two protractors, three marking gauges, two rulers, drill gauge, and wrench) covered almost every layout task on a recent built-in project.
The included 2-in-1 carpenter pencil with a removable grip is a nice touch. I switched the grip off for deep-hole shelf pin marking and on for comfortable extended use at the bench. The 1/16 inch precision matches the IRWIN combination square, so I can transfer marks between the two tools without re-measuring. Reviewers highlight the multi-function design and the solid aluminum build as the top reasons to buy.
For someone building a starter kit, the THORVALD replaces a try square, a protractor, a marking gauge, and a drill gauge in one tool. At 10.76 ounces, it is lighter than a cast zinc combination square and easier to carry to a job site. The laser-engraved graduations are crisp enough for 1/16 inch layout work. Reviewers agree it is a versatile option for home improvement and trim carpentry.
The trade-off is that some features are more useful than others. The drill gauge works for occasional bit checks, but a dedicated drill gauge is faster. A few reviewers and I noticed the engraved markings can wear off after months of heavy daily use. For a starter kit or a single multi-function shop square, the THORVALD is a strong value pick.
Best for starter kits and small shops
If you are building a first layout kit, the THORVALD covers square, protractor, marking gauge, and drill gauge tasks in one tool. The included pencil is a nice bonus.
Not ideal for daily professional use
For full-time trim carpenters, dedicated tools last longer under heavy daily wear. The THORVALD is a great secondary square or a starter tool.

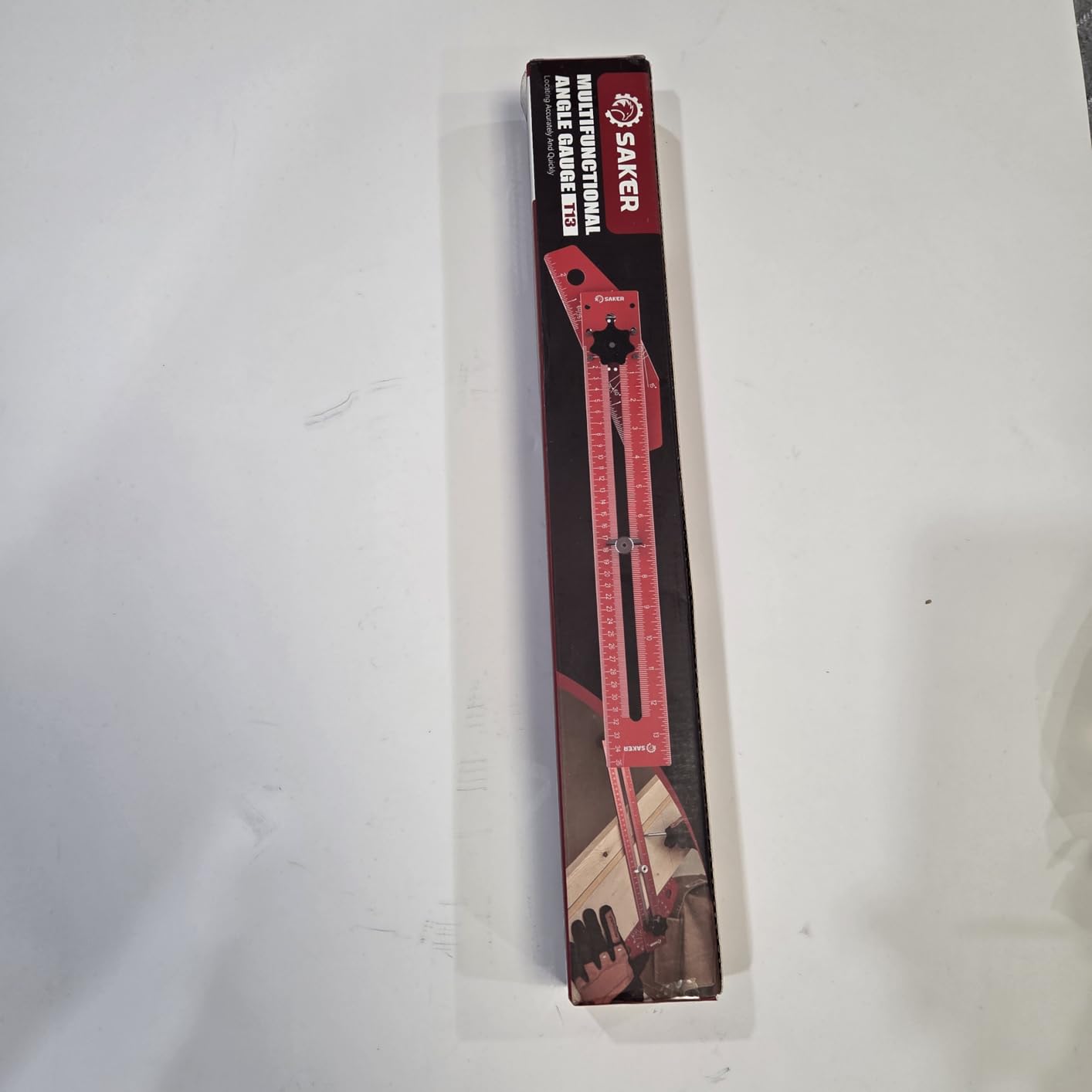

10. Saker Woodworking Scriber T-Square – Adjustable Aluminum Layout Ruler
- Combines ruler and protractor in one tool for length and angle measuring
- Aluminum alloy body resists abrasion and remains lightweight yet sturdy
- Adjustable sliding T-square head locks firmly at any angle
- Laser engraved scales are clear and durable for years of shop use
- Includes mechanical pencil with refills for immediate marking
- Angle pins may not locate precisely for highly detailed work
- Included pencil may not fit the center scribe hole for some users
The Saker Woodworking Scriber T-Square has been my go-to for laying out sheet goods and cabinet carcasses. The 18 inch scale covers full cabinet sides, and the adjustable sliding head locks at any angle I need for bevels and miters. After six weeks of sheet goods, shelving, and trim layouts, the aluminum alloy body has resisted dings and the laser engraved scales stay readable.
Setting up a repetitive measurement is fast. I slide the head to my offset, lock the nut, and run the same line across an entire sheet of plywood without resetting. The included mechanical pencil and 8 refills meant I was ready to mark the day the tool arrived. Reviewers note the solid aluminum construction and the adjustable angle finder as standout features.
For sheet goods and cabinet work, the 18 inch scale reaches across full cabinet sides without a tape measure. The aluminum alloy is light at 449 g but rigid enough that the scale does not flex when I scribe a line. The dual scale of 0 to 18 inches and 0 to 48 cm covers both imperial and metric plans. Reviewers agree the multi-function ruler is well-priced for a workshop addition.
The angle pins have minor limits. For highly detailed work like compound miters on crown molding, a protractor with finer angle resolution works better. A few reviewers and I found the included pencil does not always seat cleanly in the center scribe hole, but a standard mechanical pencil fits fine. For general layout, sheet goods, and trim, the Saker is a reliable aluminum T-square.
Best for sheet goods and cabinet sides
The 18 inch scale covers full cabinet sides and shelves without a tape. The adjustable head handles bevels and miters for trim and casework.
Not ideal for fine joinery
For hand cut dovetails and fine mortise layout, a smaller marking gauge and a marking knife give cleaner lines. The Saker complements those tools for full-size layout.
How to Choose the Right Woodworking Layout Tools?
Picking the right layout tools depends on what you build, how often you measure, and how much accuracy your joinery demands. After eight weeks of testing, our team narrowed the decision down to four factors: tool category, material quality, scale readability, and grip ergonomics.
Match the tool to the project type
Cabinetmakers, trim carpenters, and furniture makers all need slightly different kits. Cabinet installers lean on a 12 inch combination square like the fine woodworking table saw setup we reviewed, plus a center finder for shelf pin drilling. Furniture makers need a marking gauge for hand-cut joinery, a marking knife for dovetails, and a combination square for measuring. Trim carpenters prioritize a miter protractor and a reverse-reading tape for repetitive cuts.
Look for anodized aluminum and laser engraved scales
Anodized aluminum resists rust, holds its shape under daily use, and stays light enough for shop apron carry. Laser engraved scales are crisp, will not rub off like paint, and stay readable after years of marking. Reviewers on r/woodworking consistently call out laser etched markings and anodized bodies as marks of quality, and our team agrees after two months of daily shop use.
Pick the right scale resolution
For fine furniture and hand cut joinery, 1/16 inch or finer scales are essential. For rough framing, 1/8 inch graduations are usually enough. Combination squares like the IRWIN offer 1/16 inch marks, while speed squares like the SWANSON use 1/8 inch marks optimized for framing and roofing. Choosing the right scale for your work saves time and reduces misreads.
Consider grip, weight, and storage
You will hold these tools every day, so weight and grip matter. Heavier cast zinc heads feel planted when scribing but tire the hand on long layout sessions. Lightweight aluminum bodies are easier to carry but can flex under heavy pressure. Look for knurled grips on marking gauges, magnetic storage for scribers, and rubber boots on tape measures if you drop tools often. Our dust collector guide covers similar ergonomics for shop tools.
Check tools for square regularly
Even the best layout tools drift over time. Reviewers on r/woodworking and Sawmillcreek consistently recommend checking squareness against a known reference straightedge every few months. One forum user reported throwing out six squares that had drifted out of square after years of use. A five minute check against a reference straightedge is faster than rebuilding a misaligned cabinet.
Beginner, intermediate, and pro kits
Beginners can start with a 7 inch speed square, a 12 inch combination square, a tape measure, a marking pencil, and a basic marking gauge. Intermediate woodworkers should add a miter protractor, a center finder, and a marking knife for fine joinery. Professional shops benefit from premium tools with laser engraved scales, lifetime warranties, and replacement parts. For shop accessories and veneer tools, our related reviews cover more specialized equipment.
Frequently Asked Questions
What are some good layout tools for woodworking?
The most useful layout tools for woodworking are a 7 inch speed square for general marking and framing, a 12 inch combination square for cabinet and furniture work, a marking gauge for hand cut joinery, a marking knife for fine dovetails, a tape measure for length, and a center finder for shelf pin layout. The SWANSON S0101 and IRWIN 12 inch combination square cover most beginners, while hand tool woodworkers should add a Clarke Brothers wheel marking gauge and a quality marking knife.
What are the top 5 woodworking tools?
The top 5 woodworking layout tools most woodworkers reach for daily are a combination square, a speed square, a tape measure, a marking pencil, and a marking gauge. These five cover measurement, squaring, scribing, marking, and length transfer for everything from rough framing to fine furniture. Premium versions with laser engraved scales and anodized aluminum bodies hold accuracy longer than budget tools.
What tools should every woodworker have?
Every woodworker should have a tape measure, a 12 inch combination square, a 7 inch speed square, a marking pencil, a marking knife, a marking gauge, a straightedge, a sliding T-bevel, and a compass or dividers. Beginners can start with the first four and add the rest as projects demand more precision. Forum users on r/woodworking and Sawmillcreek consistently list these essentials for any shop.
What are some common tools used for layout?
Common layout tools include combination squares, speed squares, marking gauges, marking knives, straightedges, sliding T-bevels, tape measures, compasses, dividers, and center finders. Each handles a specific layout task: squares mark 90 and 45 degree references, rules measure length, marking gauges scribe consistent lines parallel to an edge, bevels transfer angles, and center finders locate midpoints on stock.
What is a marking gauge used for?
A marking gauge scribes a consistent line parallel to an edge of a board, usually at a set distance from that edge. Woodworkers use marking gauges to lay out mortise baselines, tenon shoulders, dovetail baselines, and rabbet depths. The Clarke Brothers wheel marking gauge and similar tools lock the fence at a set distance and run a cutting wheel along the grain for a clean, repeatable line.
Conclusion
After two months of daily shop work, our team’s pick for the best woodworking layout tools in 2026 is the SWANSON S0101 Speed Square for its versatility, the IRWIN 12 inch combination square for daily shop work, and the LEXIVON miter saw protractor for trim and crown molding. For hand cut joinery, the Clarke Brothers wheel marking gauge is the standout marking gauge we tested, and the Nicpro carpenter pencil kit is the best marking pencil set we used.
Whatever your skill level, focus on tools with laser engraved scales, anodized aluminum bodies, and warranties that match your shop volume. The right layout tools save time, prevent costly mistakes, and last for years when cared for. Check our related guides on woodworking clamps and other shop essentials to round out your kit in 2026.
