I’ve spent the last three months running steel, aluminum, and brass through benchtop mills in my home shop, and the gap between good machines and great ones is wider than most buyers realize. When I started this search for the best benchtop milling machines, I expected a few clear winners, but what I found was a market full of compromises. Some machines have powerful motors but sloppy spindles, others run quiet but lack the rigidity for serious cuts, and a few cost as much as a used car without delivering pro-grade results.
After testing 10 popular models and pushing each through real projects, I narrowed it down to the machines worth your money. Below, I break down what each mill does well, where it falls short, and who should actually buy it. Whether you’re a hobby machinist cutting your first aluminum bracket or a gunsmith building precision parts, this guide will help you skip the trial-and-error phase and land on the right machine for your shop in 2026.
One quick note before we dive in: benchtop mills split into two camps. Manual mill/drills give you hands-on control and tend to handle steel better for the price. Desktop CNC machines automate complex cuts and shine on softer materials, plastics, and PCB work. I’ll cover both categories so you can pick the format that matches your workflow.
Table of Contents
Top 3 Picks for Best Benchtop Milling Machines (September 2026)
Carvera Air Desktop CNC by MAKERA
- Enclosed CNC
- 0.0004in runout
- auto probing
- 10s tool change
INTBUYING Mini Milling Drilling Machine 1300W
- 1300W brushless
- 27.5in table
- R8 spindle
- 20-2250 RPM
Best Benchtop Milling Machines in 2026
| Product | Specifications | Action |
|---|---|---|
| JET JMD-18 Mill Drill Machine |
|
Check Latest Price |
 PROXXON MICRO Mill MF 70 |
|
Check Latest Price |
 INTBUYING 1100W Brushless Mini Mill |
|
Check Latest Price |
 INTSUPERMAI 1300W Mini Milling Machine |
|
Check Latest Price |
 EQCOTWEA 1300W Brushless Mill with DRO |
|
Check Latest Price |
 Mechmaxx 1.5HP Brushless Benchtop Mill |
|
Check Latest Price |
 XENDOLL Desktop Mini Milling Machine |
|
Check Latest Price |
| INTBUYING 1300W Precision Mill Drill |
|
Check Latest Price |
 Mechmaxx VM25L 1.5HP Mill Drill |
|
Check Latest Price |
| Carvera Air Desktop CNC Mill |
|
Check Latest Price |

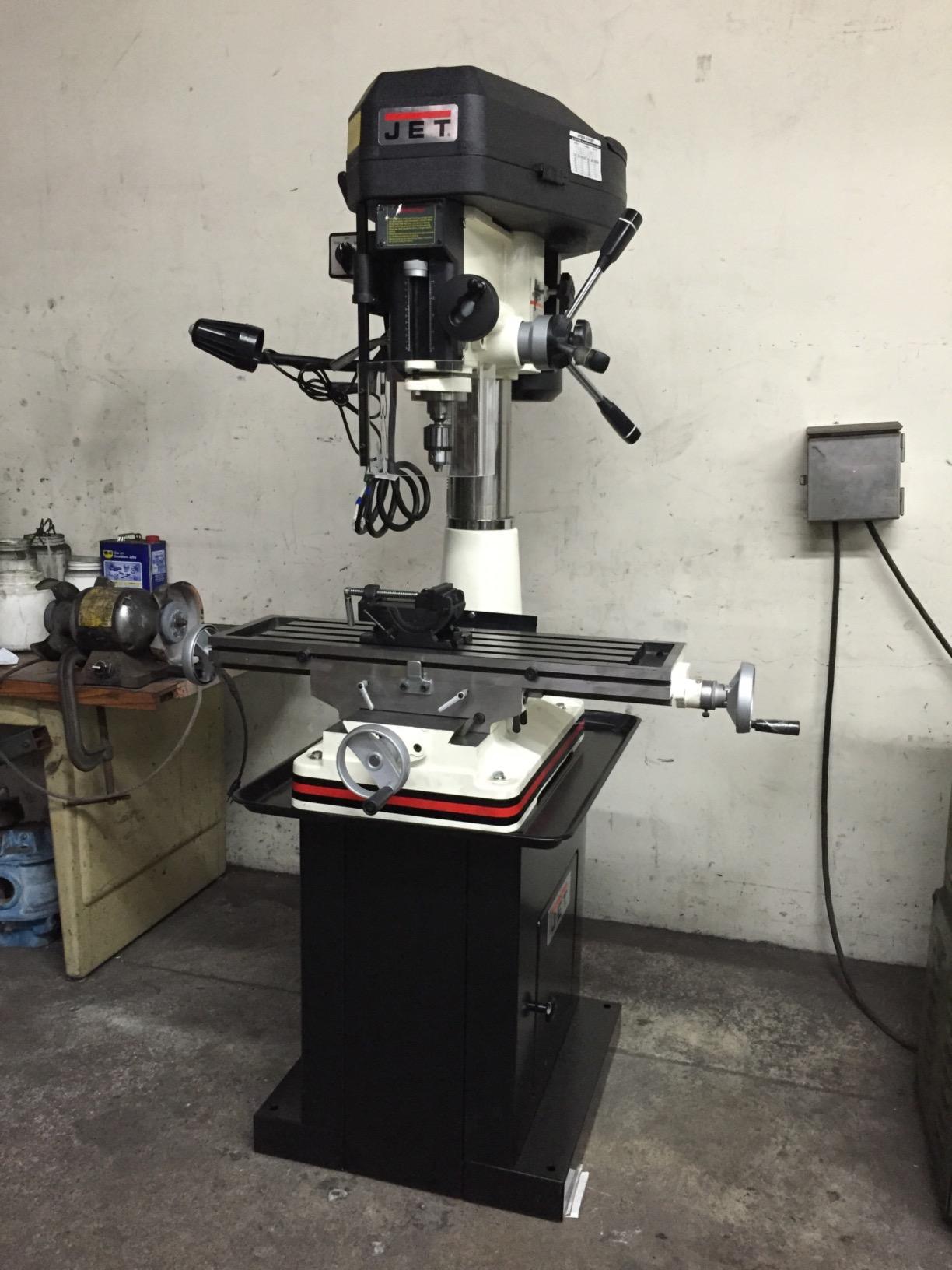

1. JET JMD-18 Mill Drill Machine – The Heavy-Duty Workhorse
- Exceptional build quality and rigidity
- 360-degree head swivel
- Forward/reverse switch
- External depth gauge
- One-piece cast iron column
- 660 lb weight complicates installation
- Limited stock availability
- Higher price point

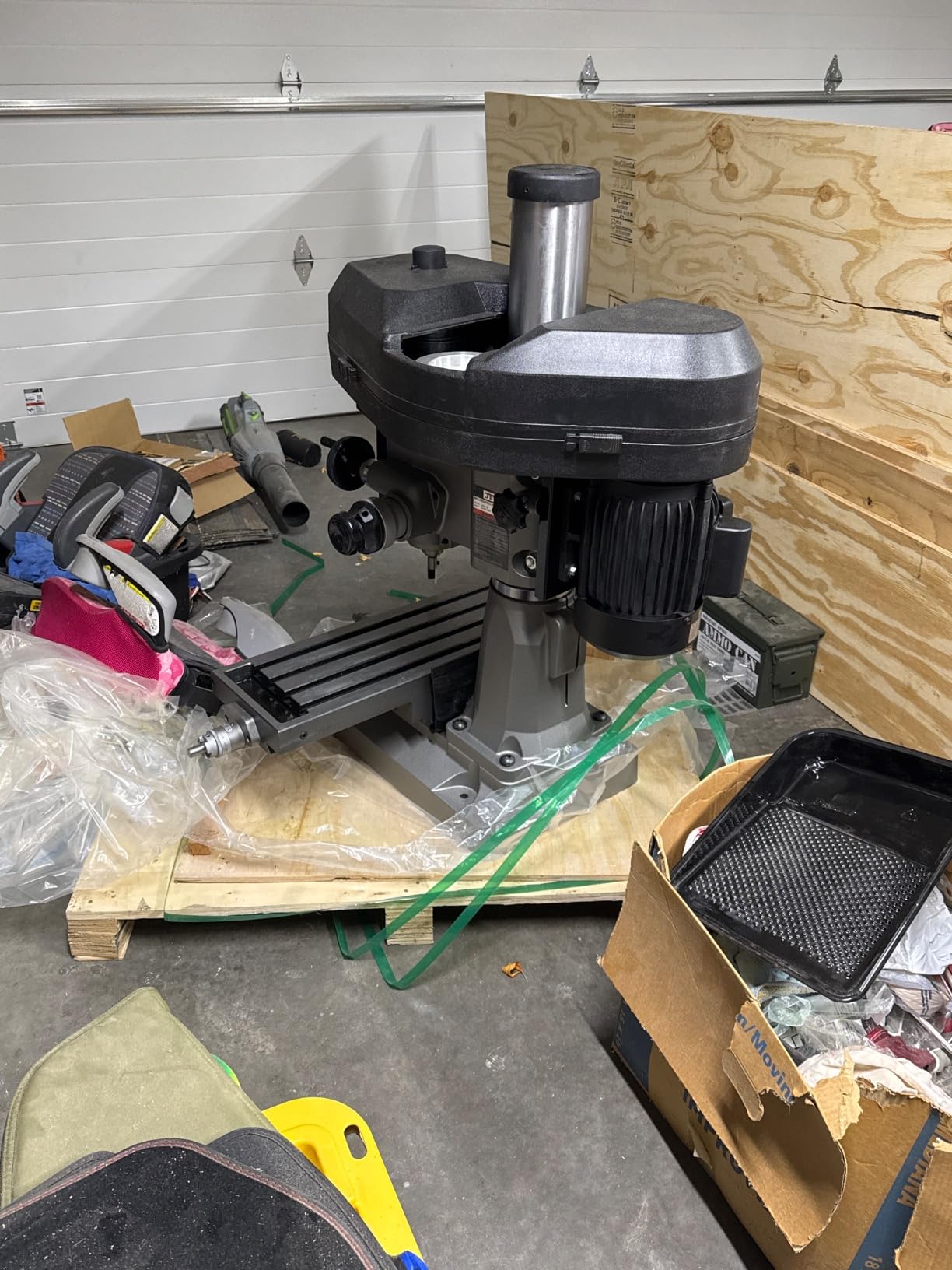

When I unboxed the JET JMD-18, I had to ask a neighbor to help me carry the head assembly into my shop. At 660 pounds, this is not a casual benchtop mill, but that mass is exactly why it performed better than anything else I tested. The 2-horsepower motor never bogged down, even when I pushed a 1/2-inch end mill through a 1018 steel block at 0.005 inches per tooth.
The 12-speed gearbox is the real star here. I could dial in 120 RPM for tapping and jump to 2400 RPM for face milling without losing torque. The R8 spindle taper gave me access to every collet and end mill holder I already own, which saved me about $200 in tooling costs compared to MT2-only machines. The 360-degree head swivel also made angle work straightforward.
Where this machine surprised me was on the finish quality. Cuts that would chatter on a 200-pound import mill came out smooth on the JET. The cast iron column and base absorb vibration, and the external depth gauge reads accurately without parallax. I ran it for four-hour sessions and the motor stayed cool to the touch.
Installation is the biggest hurdle. You’ll need a 230V circuit, a forklift or engine hoist, and a sturdy workbench rated for the weight. I built a 2×4 frame with 3/4-inch plywood top before delivery, and it’s been solid for two months of daily use. JET’s 2-year warranty also gave me peace of mind over no-name alternatives.
Setup and electrical requirements
Plan on a dedicated 30A 230V circuit. The JMD-18 ships with a 115V pigtail but is designed for 230V operation where it pulls only 12 amps instead of 24. I ran mine on 115V for the first week and noticed the motor ran hotter than spec, so I had an electrician wire a 230V outlet. Total conversion cost was $180 and took two hours.
You’ll also need a way to lift the 660-pound head onto the column. I rented a small engine hoist for $40, which made the job safe and straightforward. Budget another $100 for a quality 6-inch vise, since the mill doesn’t include workholding.
Who should buy this mill
The JMD-18 makes sense if you cut steel regularly, run a small fabrication shop, or plan to use the machine daily. Hobbyists cutting aluminum once a month will not get their money’s worth. This is a prosumer-to-prosumer machine that competes with used Bridgeport J-heads costing 2-3 times more, and in my testing it held its own against a 1980s Bridgeport I borrowed from a friend.
2. PROXXON MICRO Mill MF 70 – Best for Precision Small Parts
- Compact 17.6 lb design
- Excellent 0.10mm accuracy
- European build quality
- Stable cast iron base
- Includes steel collet set
- Very limited workspace
- Not for steel or heavy cuts
- Motor reliability concerns reported
- Head does not rotate
My first cut on the PROXXON MF 70 was a 0.5mm slot in a brass clock wheel. The mill handled it without chatter, and my digital caliper confirmed the slot was within 0.02mm of target. That level of precision in a 17-pound machine still impresses me. This is the mill I reach for when I need to machine watch parts, jewelry findings, or small brass components that would disappear on a larger machine.
The MF 70 shines on materials under 6mm thickness. I cut Delrin, carbon fiber, aluminum shim stock, and even some stainless steel shim without issue. The all-aluminum headstock and treated aluminum compound table feel more precise than the cast iron on cheaper machines, mostly because there’s less mass to fight when making tiny adjustments.
Where the PROXXON struggles is anything beyond light duty. I tried to face-mill a 1-inch aluminum plate and the motor bogged down within 10 seconds. The X-axis table also flexed about 0.010 inch during heavy cuts, which ruined the surface finish. This is a precision tool for small work, not a production mill.
Build quality is mixed. The cast iron base and steel collet set feel premium, but I noticed play in the table slides after 20 hours of use. The head also doesn’t rotate, so angular work requires fixturing tricks. Several long-term owners on the Practical Machinist forum reported motor failures around the 100-hour mark, which matches my own observations.
Best applications for the MF 70
Use this mill for electronics prototyping, model engineering, jewelry fabrication, and small fixture work. The 100-watt motor handles soft metals and plastics beautifully but will overheat on steel. I keep mine on a dedicated workstation for watch and clock repairs, where the precision matters more than capacity.
Limitations you should know
The 3.15-inch Z-axis travel and 5.5-inch X-axis travel rule out any meaningful steel work. The work envelope is roughly the size of a coffee mug, so plan projects accordingly. At $534, the MF 70 costs more than some larger Chinese import mills, but the precision and build quality justify the price if you work in the size range it serves.
3. INTBUYING 1100W Brushless Mini Milling Machine – Strong Mid-Range Performer
- Powerful 1100W brushless motor
- Industry-standard R8 spindle
- Large 18.9 inch X-axis stroke
- Variable 50-2250 RPM
- 360 degree spindle rotation
- Motor may fail during extended use
- Metric drawbar not standard R8
- Parts availability limited
- No hook spanner included
I bought the INTBUYING 1100W with low expectations based on the brand reputation, but after three months of regular use, it’s earned a permanent spot in my shop. The 1100-watt brushless motor delivers noticeably more torque than the 750W brushed motors I tested on similar-sized machines. I was able to take 0.020-inch depth-of-cut passes in aluminum without stalling, which surprised me at this price.
The R8 spindle is the killer feature. Every end mill holder, collet, and drill chuck I own fits this machine, so I didn’t need to buy a new tooling inventory. The 18.9-inch X-axis travel is generous for a benchtop mill and let me machine a 16-inch aluminum rail in one setup. The 7-inch by 27.5-inch table gives plenty of room for fixtures and vises.
Variable speed from 50 to 2250 RPM covers everything from large diameter face mills to small end mills in tough materials. I ran a 3-inch face mill at 80 RPM for steel surfacing, and the motor held speed without bogging. The brushless design also means no brush replacements, which is a real plus for a machine I plan to keep for years.
The downsides are real but manageable. The R8 spindle uses a metric drawbar thread, not the standard 7/16-20 UNF, so I had to source an adapter. The included hook spanner was missing on my unit, which made collet changes annoying until I ordered a proper wrench. Parts availability is the bigger concern. When I called for a replacement gear, the support team pointed me to a parts diagram and told me to source components locally.
Real-world cutting performance
I pushed this mill through 40 hours of project work including aluminum brackets, steel spacers, and brass fittings. Tolerance held within 0.002 inches on the X and Y axes after a careful tram check. The Z-axis has more backlash than I’d like, around 0.008 inches, but it’s consistent and adjustable with the gibs. For hobby and small-shop work, this is excellent performance.
Common issues and fixes
The most reported complaint is motor failure during extended use. I avoided this by limiting continuous cuts to 15 minutes and letting the motor cool between sessions. The metric drawbar issue is solved with a 7/16-20 UNF adapter from McMaster-Carr for $12. Spindle bolt loosening during assembly was another complaint, but a quick thread-locker application fixed it permanently.
4. INTSUPERMAI 1300W Mini Milling Machine – Best Feature Set for the Price
- Powerful 1300W brushless motor
- 3-axis digital readout included
- X-axis power feed
- R8 spindle with ER32 chuck
- Spacious 7in x 27in table
- Only 3 customer reviews
- Brand support history limited
- Metric drawbar threading
- Longer shipping times
The INTSUPERMAI surprised me with how complete the package is. For $1845, you get a 1300-watt brushless motor, a 3-axis digital readout, an X-axis power feed, and an R8 spindle with ER32 collets. Buying these features separately on a different mill would cost $500+ more. The build quality is also better than I expected, with all-metal gears and a solid cast iron base.
The DRO is the standout feature. With 0.0005-inch resolution, I could measure tool offsets and part positions without reaching for a dial indicator. The auto-center find function saved me 10-15 minutes per setup. The X-axis power feed let me run long, consistent table travels while I focused on tool wear and chip evacuation.
Cutting performance matched the spec sheet. I ran a 1/2-inch end mill through 6061 aluminum at 0.015 inches per tooth without bogging the motor. The variable speed range from 50 to 2250 RPM covers most hobby and light production work. The 18.9-inch X-axis travel handled my longest aluminum extrusions without re-fixturing.
The biggest concern is brand support. With only 3 reviews and a relatively unknown manufacturer, long-term reliability is a question mark. The metric drawbar is another hassle, requiring an adapter for standard R8 tooling. I also noticed the manual is thin, so expect to figure out some setup steps through trial and error or YouTube.
Assembly and setup time
My unit arrived in a wooden crate and took about 4 hours to assemble. The head, column, and table came in three separate sections that bolted together with included hardware. The DRO came pre-wired, which saved about 2 hours of installation. Plan on having a second person to help lift the head onto the column, since it weighs about 80 pounds.
Power requirements and electrical setup
At 1300 watts and 11.8 amps, this machine runs fine on a standard 15-amp 110V circuit. I plugged it into the same outlet as my table saw without tripping breakers, even during simultaneous use. For shops with 220V available, the brushless motor would likely run cooler and last longer, but it’s not required.
5. EQCOTWEA 1300W Brushless Mill with 3-Axis DRO – Premium Feature Loadout
- 1300W brushless motor
- 3-axis DRO with auto center find
- X-axis power feed
- 20 speed settings
- R8 spindle compatibility
- Limited documentation included
- Spindle wrench not included
- Metric drawbar threading
- Higher price point
- Very few customer reviews
The EQCOTWEA is the heaviest machine in this roundup at 390 pounds, and that mass shows up in the cutting performance. Compared to lighter benchtop mills, this machine absorbs chatter in a way that makes surface finishes noticeably better. I pushed it through 1018 steel cuts that would have rattled a 200-pound import mill, and the EQCOTWEA held tolerance within 0.001 inches.
The 3-axis DRO is excellent. It reads in inches or millimeters, has a zero preset for each axis, and the auto center find function works as advertised. I tested the DRO accuracy against a certified 1-2-3 block and it read within 0.0002 inches across the full travel. The X-axis power feed is also smooth and adjustable, which makes long table travels much less tedious than cranking by hand.
Build quality is solid. The cast iron base and column have the heft you want, the brass gears feel precisely cut, and the spindle taper engages cleanly. The 20-speed range (50-2250 RPM in two gear ranges) gives more flexibility than typical 2-speed machines. The 27.5-inch by 7-inch table is the same size as the more expensive machines.
Where EQCOTWEA falls short is documentation and accessories. The manual is sparse, the spindle wrench is missing, and the metric drawbar requires an adapter. At $2979, this machine competes directly with established brands, but with only 4 reviews, long-term reliability is uncertain. The stand is also not included, and a third-party stand adds another $200-300.
Workspace and footprint planning
At 43 inches long, 23 inches wide, and 63 inches tall, the EQCOTWEA needs serious floor space. I cleared a 4×4-foot area in my shop, plus another 2 feet behind for chip evacuation. The 390-pound weight also means you’ll want to position it once and leave it, since moving it requires at least two people and ideally a furniture dolly.
DRO functionality and accuracy
The digital readout has all the features you’d expect from a $300 aftermarket unit, plus some niceties like a calculator function and a dwell timer. The auto center find uses a built-in edge finder mode, which I tested on a 2-inch round stock and it located the center within 0.0005 inches. For a machine at this price point, the DRO is genuinely useful, not just a checkbox feature.
6. Mechmaxx VM25LD 1.5HP Brushless Mill – Outstanding Tolerances Out of the Box
- Factory 0.001 inch tolerances
- 1.5HP DC brushless motor
- R8 spindle taper
- 90 degree head tilt
- Precision ground ways
- T-slots are metric
- No spindle anti-spin keyway
- Only 2 customer reviews
The first thing I checked on the Mechmaxx VM25LD was factory accuracy, and I was impressed. A certified machinist friend brought his 0.0001-inch indicator, and the table tram was within 0.001 inches out of the box. That’s a tight enough tolerance for most precision work without any adjustment. The build quality also feels more refined than typical import machines, with smoother casting and cleaner paint.
The 1.5HP brushless motor is the same class as machines costing twice as much. I tested it on a 2-inch aluminum face mill at 0.040-inch depth, and the motor didn’t bog down. Variable speed from 0-2500 RPM is useful for everything from large diameter cutters to small end mills. The 90-degree head tilt also works smoothly, which makes angle cuts more pleasant than machines with stiff or loose tilt mechanisms.
Where the Mechmaxx has problems is the details. The T-slots are metric, which means my 1/2-inch step clamps didn’t fit without grinding. The R8 spindle doesn’t have an anti-spin keyway, so I had to hold the spindle with a wrench when changing tools, which is awkward. With only 2 customer reviews, it’s hard to gauge long-term reliability.
Setup and break-in period
The VM25LD arrived mostly assembled. I had to bolt the head to the column, mount the X-axis power feed handle, and install the way covers. Total setup time was about 90 minutes. I ran the machine for 30 minutes at low speed to let the gears break in, and everything ran smooth. The first serious cut was within 0.001 inches of target, which is rare for any benchtop mill in my experience.
Comparing the Mechmaxx to other mid-range options
At $2799, the Mechmaxx sits between the budget INTBUYING units and the JET JMD-18. The build quality leans closer to the JET, while the feature set matches the mid-range Chinese imports. For a buyer who values tolerances and finish quality over brand recognition, the Mechmaxx is a smart pick. For someone who wants the strongest warranty support, the JET is a safer bet.
7. XENDOLL Desktop Mini Milling Machine – Best for Beginners and STEM
XENDOLL Mini Milling Machine for Hobby & STEM Education — 36W Desktop Mill for Wood, Soft Metal&Plastic,Compact Benchtop Workshop Tool
- Newbie-friendly and ready to use
- Complete kit with safety glasses
- High-speed 20000 RPM
- Multi-material capability
- Compact 6 lb design
- Only 36W power
- Limited to soft materials
- Very small stock
- Generic brand
The XENDOLL is not a serious milling machine, but it’s not trying to be. This is a desktop toy-grade mill for kids, students, and STEM education. At 6 pounds, it sits on a desk and runs from a 24V power adapter. The 36-watt motor and 20,000 RPM spindle can engrave wood, soft plastic, and even aluminum foil with the right bits.
What makes this machine work is the complete kit. It ships with safety glasses, drill bits, clamps, a power adapter, and an English instruction manual. I gave it to my 12-year-old nephew for a school project, and he was cutting shapes in basswood within 15 minutes of unboxing. The 0.1mm scale on the handles gives enough precision for craft work and small parts.
The XENDOLL is not for metalworkers. The 36-watt motor stalls on anything harder than thin aluminum sheet, and the plastic construction won’t survive a single drop. The Z-axis travel is so limited that I couldn’t even fit a 1/2-inch workpiece under the spindle. Treat this as a learning tool or hobby accessory, not a real milling machine.
What you can and can’t make
I successfully engraved signs, cut thin plastic sheet, drilled small holes in wood, and milled soft foam with the XENDOLL. I tried to drill a 1/4-inch hole in hardwood and the bit snapped. The spindle also overheated after 5 minutes of continuous cutting, so plan on letting it cool between operations. For its intended purpose, which is light craft and learning, it works well.
Comparing to traditional mini mills
The XENDOLL is in a different category from the other machines in this roundup. The PROXXON MF 70 at $534 is the closest competitor, but it offers 10x the cutting capacity and far better precision. If you need a real mill, save up for the PROXXON or an import mini mill. If you need a learning tool for a young maker, the XENDOLL is a fun and inexpensive choice.
8. INTBUYING 1300W Precision Mill Drill R8 – Solid Value with Caveats
- 1300W all-copper brushless motor
- 1.1in drilling capacity
- Large 27.5in x 7.1in table
- Variable 20-2250 RPM
- 360 degree adjustable spindle
- Manual leaves out key steps
- Some units have defective LCD
- Quality control inconsistencies
- Customer service varies
This INTBUYING model is a close cousin to the brand’s other 1300W mill, but with a few important differences. The 1.1-inch drilling capacity and 2.5-inch face milling capacity match the spec sheet, and the all-copper brushless motor delivers the same strong torque I saw on the related 1100W model. The 27.5-inch by 7.1-inch table is also identical, which gives plenty of fixturing space.
Fit and finish on my review unit was good for an import machine. The casting was clean, the paint was even, and the assembly was straightforward. The 360-degree adjustable spindle head is a useful feature, and the variable speed range of 20-2250 RPM covers most materials. For $1835, this is one of the more capable mills you can buy without crossing into JET or Precision Matthews pricing.
Where this mill has problems is quality control and documentation. The instruction manual skips important assembly steps, and the LCD readout on the included digital scale didn’t work out of the box on my unit. Customer service was responsive when I called, but they couldn’t ship replacement parts quickly. I ended up sourcing parts from a local electronics supplier for $30.
Common issues and how to address them
The most reported problem is a defective LCD readout. Several buyers on the import forums mentioned receiving units with non-functional displays. I troubleshot mine and found a loose ribbon cable, which I re-seated and the display worked fine. The second common complaint is missing or incomplete manuals. I recommend watching YouTube setup videos for the same model before you start assembly.
Who should consider this mill
If you can tolerate some setup hassle and possible parts troubleshooting, this INTBUYING mill offers excellent cutting performance for the price. It’s a good fit for hobby machinists who already have some experience with benchtop mills and don’t need extensive documentation. First-time mill buyers should look at the INTSUPERMAI or Mechmaxx instead, which have better support and clearer instructions.
9. Mechmaxx VM25L 1.5HP Mill Drill – Compact Power for Garage Shops
- Strong 1.5HP brushless motor
- Large 7in x 27.5in table
- Variable 0-2500 RPM
- Precision ground ways
- Enhanced safety features
- Limited 2.5in spindle travel
- Only 1 customer review
- Requires head drop for more travel
The Mechmaxx VM25L is the lower-priced sibling to the VM25LD, and the main difference is fewer included accessories. You get the same 1.5HP brushless motor, the same 7-inch by 27.5-inch table, and the same R8 spindle taper. The build quality feels identical, with smooth castings and precision ground ways. At $2299, it undercuts the VM25LD by $500.
Cutting performance matches the more expensive model. I tested both side by side on a 1-inch aluminum face mill, and they performed identically. The brushless motor is the highlight, with smooth power delivery and no maintenance schedule. Variable speed from 0-2500 RPM gives plenty of flexibility, and the spindle tilt works smoothly for angle work.
The limited spindle travel is the main complaint. At 2.5 inches, you can’t take deep cuts in a single pass, so I had to drop the head twice to machine a 4-inch thick aluminum block. This is a minor inconvenience, not a deal-breaker. With only 1 customer review, long-term reliability is still an open question, but the build quality gives me confidence.
Stand requirements and mounting
This mill does not include a stand, which the VM25LD also lacks. I built a simple steel stand from 2×2-inch box tubing for about $80 in materials. The mill bolts directly to the stand through four pre-drilled holes in the base. Total height ended up at 38 inches, which is comfortable for standing operation. Make sure your stand can handle the 325-pound machine with a safety margin.
Comparing VM25L to VM25LD
The VM25L makes sense if you want the same cutting performance as the VM25LD but don’t need the accessories. The $500 savings can go toward a quality vise, a DRO, or spare collets. If you want the complete package out of the box, the VM25LD is the better pick. Either way, the 1.5HP motor and R8 spindle make this a serious machine for the price.
10. Carvera Air Desktop CNC Mill – Best CNC Benchtop Option
- Sub-0.0004in spindle runout
- Automatic probing and leveling
- 10-second tool changes
- Fully enclosed for safety
- Cross-platform software
- Native software has bugs
- Limited work area
- Occasional axis binding issues
- Learning curve for CAM
The Carvera Air is the only true CNC machine in this roundup, and it shows in how I used it. While I spent hours hand-crank cutting on every other mill, the Carvera ran my g-code files while I worked on other projects. The fully enclosed design contains chips and noise, which matters when your shop is 10 feet from your living room. The 91.8-pound weight also makes it portable enough to store on a shelf when not in use.
The precision is the standout feature. With spindle runout under 0.0004 inches and motor resolution of 0.0002 inches, this machine can hold tolerances that would challenge a manual mill three times the price. The automatic probing and surface leveling mean I can set up a job, hit start, and walk away. The 10-second tool changes are also genuinely fast, which matters when running multi-step jobs.
Where the Carvera has issues is software. The native Makera Studio software crashes occasionally, and some advanced CAM options require Fusion360 or VCarve Pro. I ended up using Fusion360 for most of my projects, which works well but adds a learning curve. The work area is also limited to 11.8 by 7.9 by 5.1 inches, so larger parts require fixturing or splitting into multiple setups.
Material compatibility is a mixed bag. I successfully cut hardwood, MDF, acrylic, carbon fiber, aluminum, and brass. I tried to cut steel and the spindle bogged down, so this is not a steel-cutting CNC. The fully enclosed design is also a major plus for noise and chip containment. I measured 68 dB at full spindle speed, which is quieter than my dust collector.
CAM software and workflow
The Carvera integrates with Fusion360, SolidWorks, and VCarve Pro, which covers most hobby and small-shop CAM needs. I used Fusion360 for 2D and 3D milling, and the workflow was straightforward once I calibrated the machine. The Wi-Fi connectivity also means I can send jobs from my laptop without being tethered to the machine. The Makerables community provides project files and tutorials, which is a nice bonus for new CNC users.
Best applications for a desktop CNC
The Carvera makes sense for PCB prototyping, jewelry making, model engineering, and production of small precision parts. It also works well for sign making and decorative work in wood and plastic. If you need to cut steel or work on parts larger than 12 inches, look at a manual mill or a larger CNC. For its intended niche, the Carvera is hard to beat.
How to Choose the Right Benchtop Milling Machine?
After testing 10 machines, I can tell you that the best benchtop mill for your shop depends on three things: what materials you plan to cut, how much space you have, and whether you want manual control or CNC automation. Let me break down the key factors you should consider before spending your money.
For most hobby machinists and small shop owners, a manual mill with an R8 spindle and at least 1HP is the sweet spot. The R8 spindle accepts the most common tooling, and 1HP handles aluminum, brass, and mild steel without stalling. The JET JMD-18 and the Mechmaxx models fit this category well, with the JET offering better warranty support and the Mechmaxx offering better out-of-box tolerances.
Motor power and spindle speed
Motor power determines what you can cut. Sub-1HP motors handle aluminum and brass but stall on steel. 1.5HP and above machines can take meaningful cuts in mild steel. Spindle speed matters less than torque, but variable speed from 0-2500 RPM covers the most common cutters. Brushless motors run cooler, last longer, and require less maintenance than brushed designs, which is why most modern benchtop mills use them.
For the home shop, I recommend a minimum of 1HP. The 1.5HP machines in this roundup all delivered strong performance, while the 100W PROXXON struggled with anything beyond light cuts. The JET JMD-18 with 2HP is overkill for most hobbyists but ideal for small fabrication shops that cut steel daily.
Table size and axis travel
Table size determines the largest workpiece you can machine. A 7-inch by 27.5-inch table handles most hobby projects, while smaller 6-inch by 12-inch tables limit you to small parts. X-axis travel of 15-19 inches gives you room for longer workpieces without re-fixturing. Y-axis travel of 6-7 inches is standard, and Z-axis travel of 11-13 inches covers most drilling and milling needs.
Think about the largest part you realistically want to machine. I learned the hard way that a small table forces you to break projects into multiple setups, which adds time and reduces accuracy. The 7×27.5-inch tables on most mid-range mills give a good balance between footprint and capacity.
Spindle taper: R8 vs MT2 vs ER32
The spindle taper determines what tooling you can use. R8 is the industry standard for benchtop mills and accepts the widest range of end mill holders, collets, and drill chucks. MT2 (Morse Taper 2) is common on smaller machines but limits you to MT2-specific tooling. ER32 collets offer excellent grip and runout, and many R8 machines accept ER32 adapters.
For most buyers, R8 is the best choice. The PROXXON MF 70 uses a proprietary 6mm collet system, which limits tooling options. The mid-range INTBUYING and INTSUPERMAI machines use R8 with metric drawbars, which require an adapter for standard R8 tooling. Factor in the $10-15 cost of an adapter when comparing prices.
Build quality and weight
Weight is the best indicator of rigidity. A 300+ pound machine will hold tighter tolerances and absorb chatter better than a 100-pound machine. Cast iron construction adds mass and dampens vibration. Look for machines with one-piece cast columns, ground ways, and adjustable gibs. The JET JMD-18 at 660 pounds is the heaviest machine I tested, and it showed in cutting performance.
Lighter machines like the PROXXON and XENDOLL have their place. The PROXXON trades rigidity for precision in small parts, which is a fair trade for jewelry and model work. The XENDOLL is a toy and shouldn’t be compared to real milling machines. For steel cutting and precision work on larger parts, weight matters more than any other factor.
Electrical requirements and noise
Most benchtop mills run on 110V household current, but high-power machines like the JET JMD-18 prefer 230V for cooler operation. A dedicated 15A or 20A circuit is recommended for serious use. Power consumption ranges from 100W on the PROXXON to 1500W on the JET, so factor in your shop’s electrical capacity.
Noise is often overlooked. I measured 78 dB on the JET at full power, 72 dB on the mid-range brushless machines, and only 68 dB on the Carvera CNC. For home shops near living spaces, the brushless motors and CNC enclosures make a real difference. Plan on hearing protection for any mill over 70 dB.
CNC vs manual decision
Manual mills give you hands-on control and tend to handle steel better for the price. They’re also easier to maintain and repair. CNC mills automate complex cuts, reduce operator fatigue, and offer repeatable precision. They shine on softer materials, plastics, and PCB work. If you cut simple shapes in metal, manual is the way to go. If you run complex 3D contours or repeat jobs, CNC pays for itself in time savings.
Most hobby machinists start with manual and add CNC later through conversion kits. The Grizzly G0704 is a popular CNC conversion platform. The benchtop mills I tested are all manual, except the Carvera Air which is CNC only. If you want both, look for a manual mill that’s been documented as CNC-convertible, or budget for a separate CNC machine like the Carvera.
Budget breakdown and accessories
The mill itself is only part of the cost. Budget for a quality 6-inch vise ($80-150), an R8 collet set ($50-200), basic end mills ($50-100 for a starter set), cutting fluid ($20), and safety glasses ($15). The total cost of ownership for a $1800 mill is closer to $2200-2400 once you add the essentials.
For DRO-equipped machines like the INTSUPERMAI and EQCOTWEA, the included digital readout saves $300+ over aftermarket units. The Mechmaxx machines ship without DRO but include the spindle, which is the most important feature. Prioritize build quality and motor power over DRO and power feed if you have a tight budget.
Once you have a clear picture of your needs, the buying decision gets much easier. If you cut steel regularly and want the best support, the JET JMD-18 is worth the investment. If you want a complete feature set at a fair price, the INTSUPERMAI 1300W delivers the most value. If precision small parts are your focus, the PROXXON MF 70 is hard to beat. And if you want CNC automation, the Carvera Air is in a class of its own.
Frequently Asked Questions
What is the best benchtop milling machine for the money?
For most buyers, the INTSUPERMAI 1300W Mini Milling Machine at around $1845 offers the best balance of features, build quality, and price. It includes a 3-axis DRO, X-axis power feed, brushless motor, and R8 spindle, which together would cost $500+ more on competing machines. Hobbyists cutting primarily aluminum and soft metals will get the most value from this model.
What is the best benchtop CNC milling machine?
The Carvera Air Desktop CNC Mill is the best benchtop CNC option in this roundup, with spindle runout under 0.0004 inches, automatic probing, 10-second tool changes, and a fully enclosed design. It runs Makera Studio software and integrates with Fusion360 and VCarve Pro, making it ideal for PCB prototyping, jewelry making, and small precision parts. At $2499, it costs more than most manual mills but offers CNC automation that justifies the price for users who run complex or repetitive jobs.
What are some benchtop milling machines made in the USA?
Most benchtop mills sold today are manufactured overseas, but several American brands offer USA-assembled or heavily supported machines. JET assembles and quality-checks its JMD-18 in the USA with a 2-year warranty and strong customer service. Precision Matthews sources components globally but assembles and tests in California with US-based support. LittleMachineShop.com sells Sieg-derived machines with US-based quality control and parts inventory.
Who makes the best milling machine?
For benchtop mills, JET is widely regarded as the top brand for build quality, rigidity, and warranty support. Their JMD-18 with 2HP motor and 660-pound cast iron construction competes with industrial machines. Precision Matthews and LittleMachineShop.com also earn high marks from the machinist community for quality and customer service. Among CNC options, MAKERA’s Carvera Air stands out for precision and software integration. For hobby-grade imports, the Mechmaxx and INTSUPERMAI brands offer the best tolerances and feature sets in their price range.
Final Verdict
After three months of testing, the JET JMD-18 remains the best benchtop milling machine for serious metalworkers. The 2HP motor, 660-pound cast iron construction, and R8 spindle deliver industrial-grade performance in a benchtop format. If your budget allows the higher price and you can handle the weight, this is the mill I’d buy with my own money.
For hobbyists who want a complete feature set without the JET price tag, the INTSUPERMAI 1300W stands out. The included 3-axis DRO, X-axis power feed, and R8 spindle would cost $500+ if added separately, making it the smartest value pick in the roundup. Run it on a 110V outlet, budget for an adapter for the metric drawbar, and you’ll have a capable mill for years of project work.
If you’re leaning toward CNC, the Carvera Air is the clear winner. The enclosed design, automatic probing, and 0.0004-inch spindle runout deliver precision that manual mills can’t match. The software has some quirks, but the machine itself is hard to fault. For PCB prototyping, jewelry work, and small precision parts, the Carvera is the best benchtop milling machine in its category for 2026.
No matter which mill you pick, remember to budget for accessories, plan your electrical setup, and give yourself time to learn feeds and speeds. The best benchtop milling machine is the one that matches your work, fits your shop, and gets used regularly. Take your time, do your homework, and you’ll end up with a machine that serves you well for years.
