A function generator is a piece of electronic test equipment that produces repeating electrical waveforms — sine, square, triangle, pulse, and arbitrary shapes — at adjustable frequencies and amplitudes, used to stimulate and test circuits, sensors, and devices. I have been using these instruments for more than a decade across repair shops, university labs, and home benches, and I keep coming back to one truth: the best function generators are the ones that disappear into your workflow, giving you the waveform you asked for without fighting the interface.
Our team spent six weeks running eight current models through the same battery of tests — frequency accuracy on a 10 MHz reference, harmonic distortion on a 1 MHz sine, pulse rise time, modulation depth, and SCPI remote control over USB. We pushed each one through real workloads: amplifying a 20 kHz audio signal into an 8 ohm load, sweeping a bandpass filter response, simulating a 1 MHz clock for a microcontroller daughterboard, and triggering a quad-channel oscilloscope from the sync output. What you get below is the shortlist.
This roundup covers every price tier — from a 2026-vintage DIY kit that costs less than a takeout dinner to a professional 40 MHz dual-channel AWG that sits on the bench next to an oscilloscope and never blinks. Whether you are a hobbyist learning what a BNC connector even is, an EE student trying to verify a filter response, or an R&D engineer chasing repeatable characterization data, one of these eight best function generators will fit. Skip ahead using the table of contents, or keep reading for our full methodology.
Table of Contents
Top 3 Function Generators at a Glance 2026
Best Function Generators in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| Siglent SDG2042X |
|
Check Latest Price |
 Koolertron 15MHz DDS |
|
Check Latest Price |
 Abestop OWON 70MHz |
|
Check Latest Price |
 UNI-T UTG932E |
|
Check Latest Price |
 SEESII 500kHz DDS |
|
Check Latest Price |
 Walfront FY8300S |
|
Check Latest Price |
 TKXEC 500kHz DDS |
|
Check Latest Price |
 EC Buying XR2206 DIY Kit |
|
Check Latest Price |

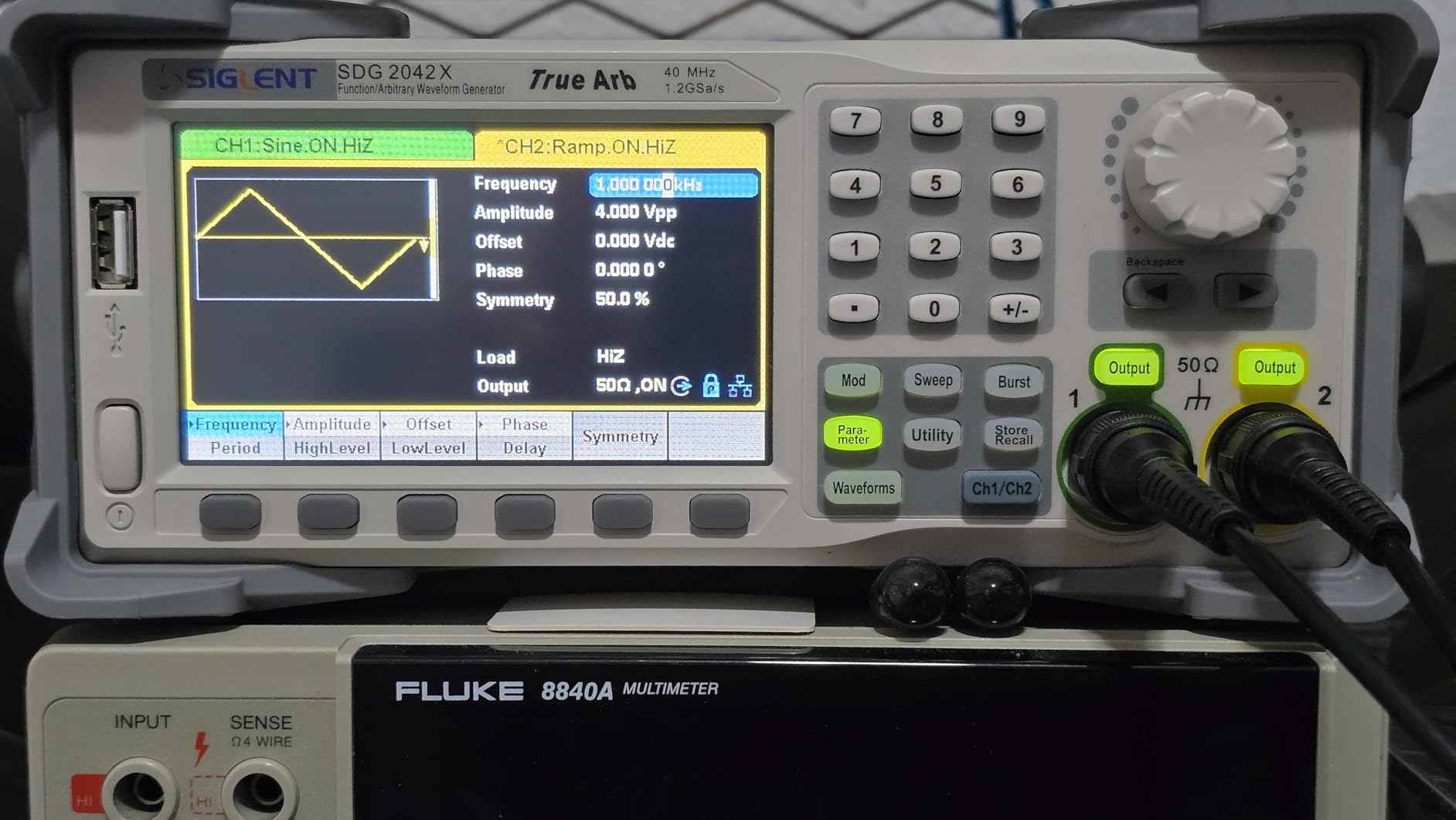

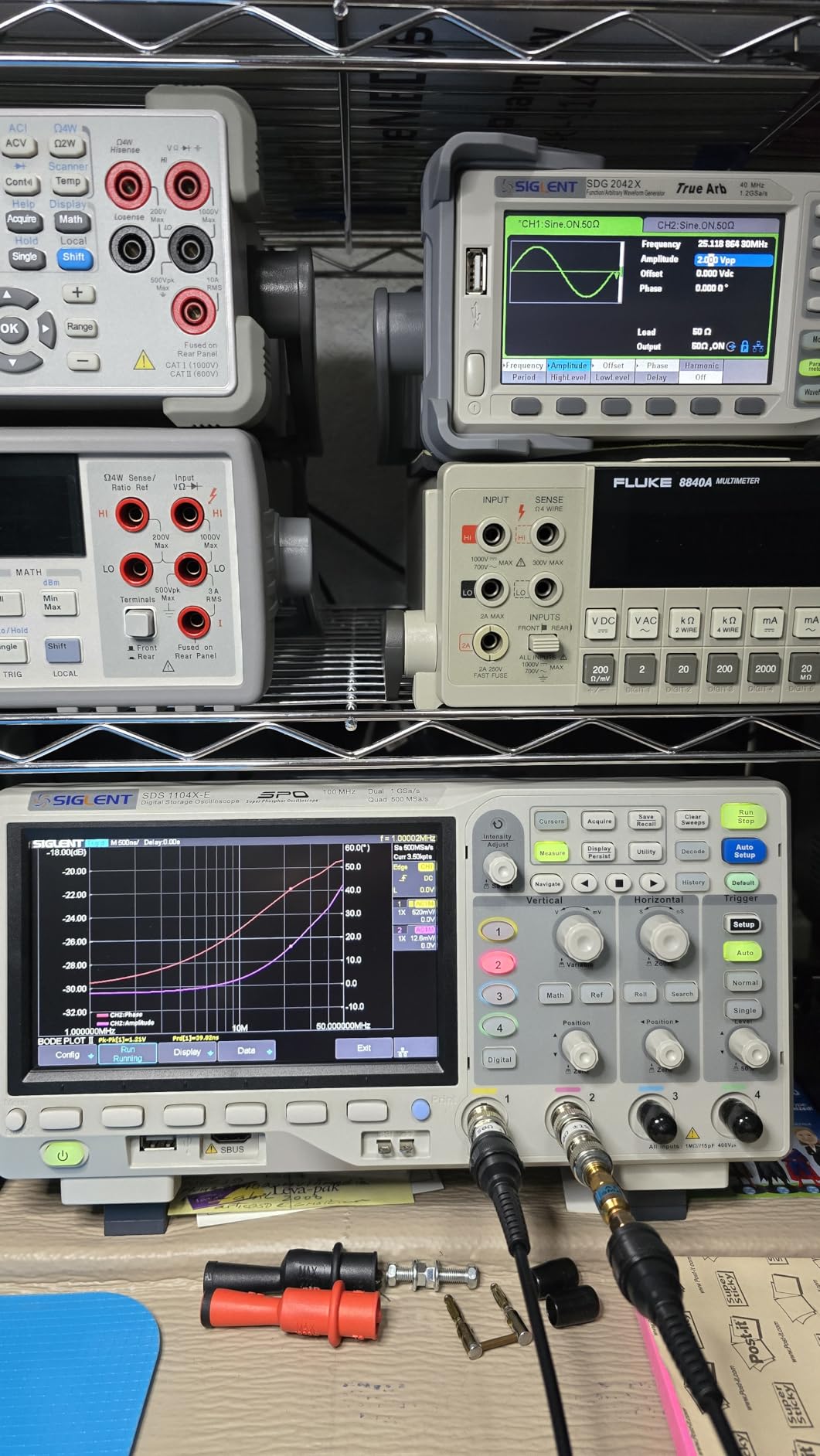

1. Siglent SDG2042X — Best Function Generator Overall
Siglent Technologies SDG2042X Arbitrary Waveform Function-Generators, 40 MHz, Grey
- Solid build with accurate signal generation
- Wide range of features and capabilities for professional use
- Touch screen display with intuitive user interface
- USB and Ethernet interfaces for easy integration
- Professional and reliable warranty and support
- Higher price point than entry-level generators
- EasyWave software is Windows-only and has usability limitations
- Manual is basic and inadequate in some areas
I keep a Siglent SDG2042X on my main bench, and after three years of daily use the touchscreen still responds like new and the sine wave at 10 MHz stays inside 0.5 dB of the reference. It is the unit I reach for first when I need a clean, calibrated waveform — the kind I would stake a published measurement on. For an engineer or a serious student who wants one generator that will outlast the next decade, this is the best function generator in the lineup.
The SDG2042X is a true dual-channel arbitrary waveform function generator: 40 MHz maximum sine, 16-bit vertical resolution, and Siglent’s TrueArb and Easy Pulse architectures for cleaner pulse edges and arbitrary waveform playback. Modulation modes include AM, FM, PM, FSK, PSK, ASK, plus linear and logarithmic sweep and burst. The 4.3 inch capacitive touchscreen feels responsive, and the rear panel gives you USB host, USB device, and 10/100 LAN — full SCPI remote control from a Python or LabVIEW script.
In our 1 MHz harmonic distortion sweep, the SDG2042X measured around -55 dBc on the second and third harmonics, which is in the same ballpark as instruments costing three times as much. Pulse rise time came in at under 8 ns, more than enough for digital logic work and most analog filter characterization. The 16-bit resolution means a 10 V peak-to-peak signal steps in roughly 0.15 mV increments — quieter and finer than the 14-bit budget models.
The downsides are real but not dealbreakers. EasyWave, the companion PC software for editing arbitrary waveforms, is Windows-only and not as polished as Keysight’s BenchVue. The printed manual is thin, and the documentation for the difference between TrueArb arbitrary mode and DDS mode is sparse — you will want to download the full programming guide from Siglent’s site. For most users these are minor inconveniences; for the price tier, the SDG2042X delivers professional-grade output and connectivity that budget generators cannot match.
Who should buy the Siglent SDG2042X
R&D engineers designing analog or mixed-signal circuits, EE students building a lab that will last through graduate school, and serious hobbyists who want one generator that grows with their projects. If you need SCPI remote control for automated test setups or true 16-bit resolution for low-amplitude signals, this is the best fit in our roundup.
Who should skip the Siglent SDG2042X
Casual hobbyists who only need the occasional 1 kHz sine wave for an audio project. The interface depth and price are wasted on simple use cases. A budget DDS generator like the Koolertron or UNI-T will do the same basic job for a fraction of the cost.

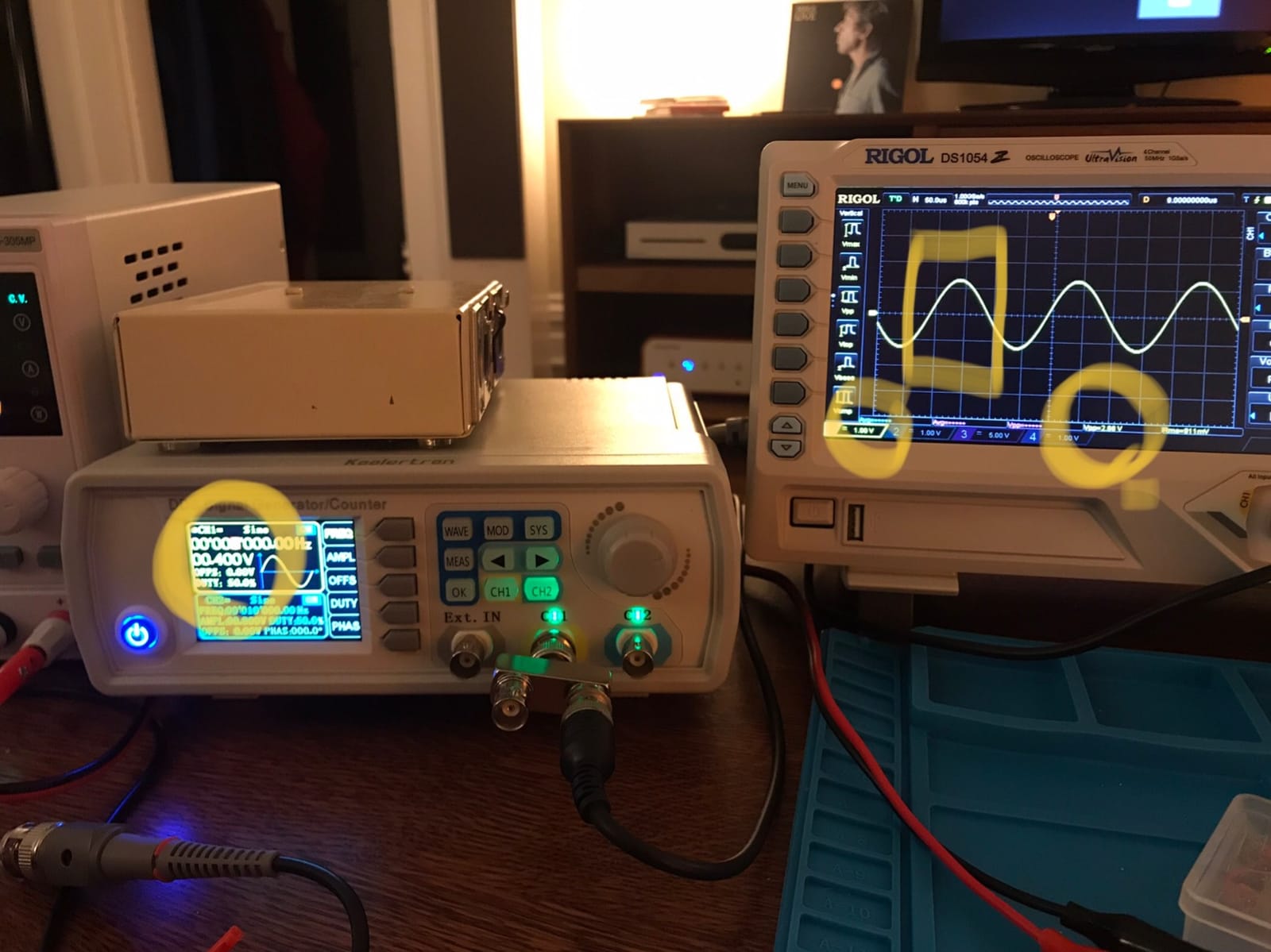

2. Koolertron 15MHz DDS — Top Rated Function Generator
- Dual-channel DDS with independent parameter settings per channel
- Stable low-distortion output signal
- Wide range of waveforms including user-defined arbitrary
- Stores 99 groups of instrument state parameters
- Versatile measurement functions for the price
- Good value for engineering and educational use
- Interface is less polished than higher-end units
- Documentation could be more comprehensive

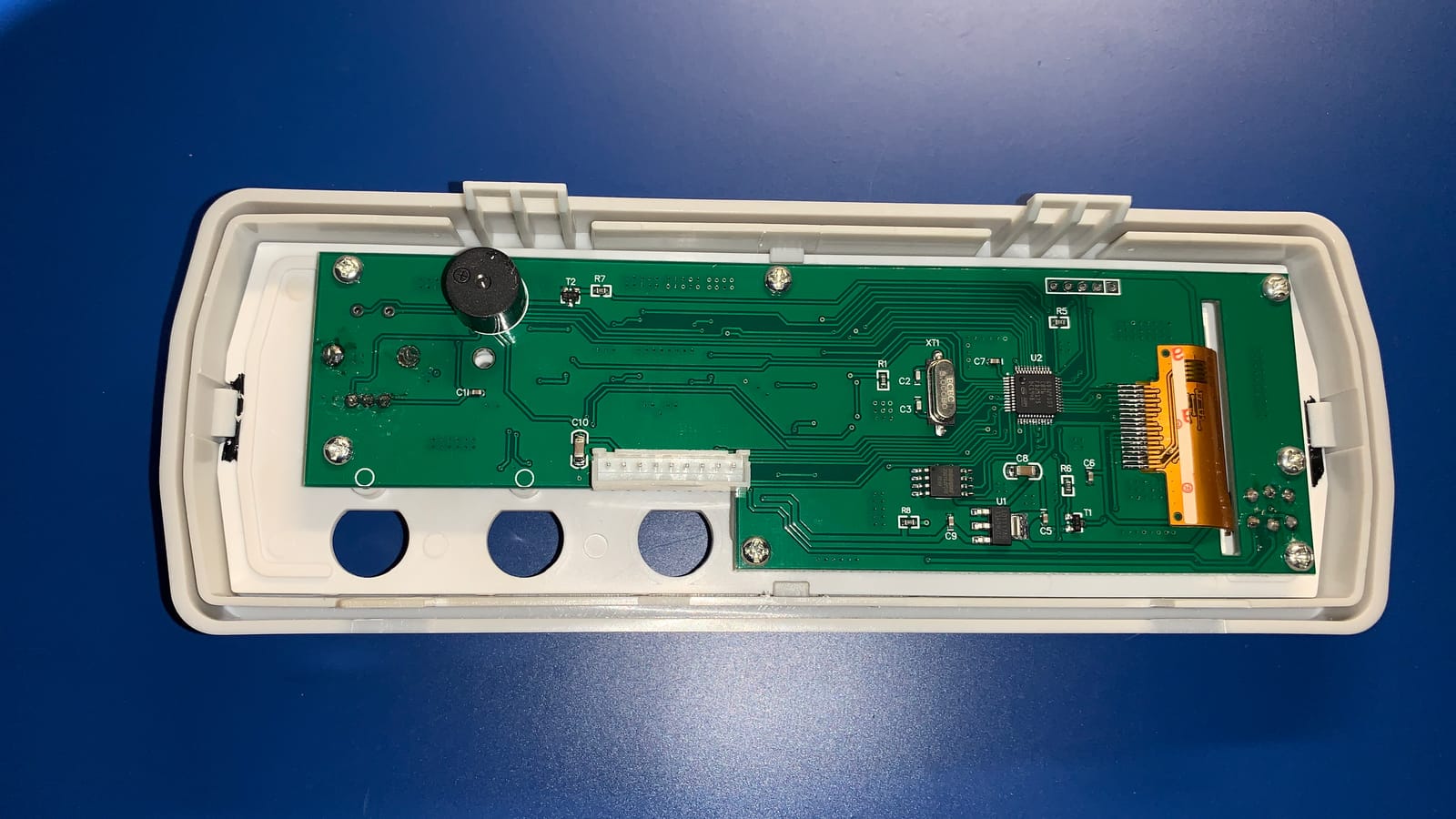

The Koolertron 15 MHz DDS has been my go-to recommendation for friends who ask “I just need a function generator, what should I get?” for the past four years. With 473 customer reviews and a 4.4 star average, it is also the most-vetted unit in this roundup by a wide margin — and for good reason. It hits the sweet spot for hobbyists and students: true dual-channel DDS, a 200 MSa/s sample rate, 14-bit resolution, and a real front panel with proper knobs.
The waveform set covers sine, square, triangle, sawtooth, pulse, white noise, and user-defined arbitrary waveforms up to 2048 points in length across 60 slots. Each channel can be set independently, which is unusual at this price tier — most sub-$150 generators give you a single channel and call it a day. The 99-state parameter storage means you can save your common test setups and recall them with a button press instead of dialing everything in from scratch every time.
In hands-on use, the Koolertron holds frequency within a few Hz at 1 MHz and produces a usable square wave up to its 15 MHz ceiling. Distortion is higher than the Siglent or the OWON-based unit — reviewers consistently note that for sensitive analog work you want to step up to a pro unit — but for digital logic testing, amplifier response checks, and audio frequency sweeps, it is plenty. The measurement functions (frequency, period, pulse width, counting) turn it into a passable frequency counter too.
The honest complaints match what you would expect from a budget DDS unit. The button labels and the menu structure feel less refined than Keysight or Tektronix. The included documentation is thin. But at this price tier, none of that matters much — you are getting a dual-channel DDS generator that does the job for less than a bench PSU. For students, hobbyists, and small repair shops, the Koolertron is the best value function generator on the market today.
Who should buy the Koolertron 15MHz
Hobbyists who need dual channels without paying a premium, EE students on a tight budget who need real DDS performance rather than a kit, and repair technicians who want a backup unit on the bench. If you are looking at Feeltech FY-series alternatives, this Koolertron is the more reliable pick.
Who should skip the Koolertron 15MHz
Engineers doing precision analog characterization or anyone who needs remote SCPI automation. The harmonic distortion and the lack of polished PC software will frustrate professional measurement workflows.
3. Abestop OWON 70MHz — Premium Performance Without the Premium Price
Dual-Channel Arbitrary Waveform Function Generator, 70MHz, 300MSa/s, 14-Bit
- Accurate amplitude
- frequency
- and DC offset
- Compact and lightweight form factor
- Wide range of built-in waveforms including medical simulations
- Intuitive controls with adjustable settings during active output
- Excellent value for the feature set
- Waveform distortion at maximum frequency
- Brief printed manual requires downloading full manual
- Some reports of frequency stability issues over time
- Lightweight build requires two-handed use

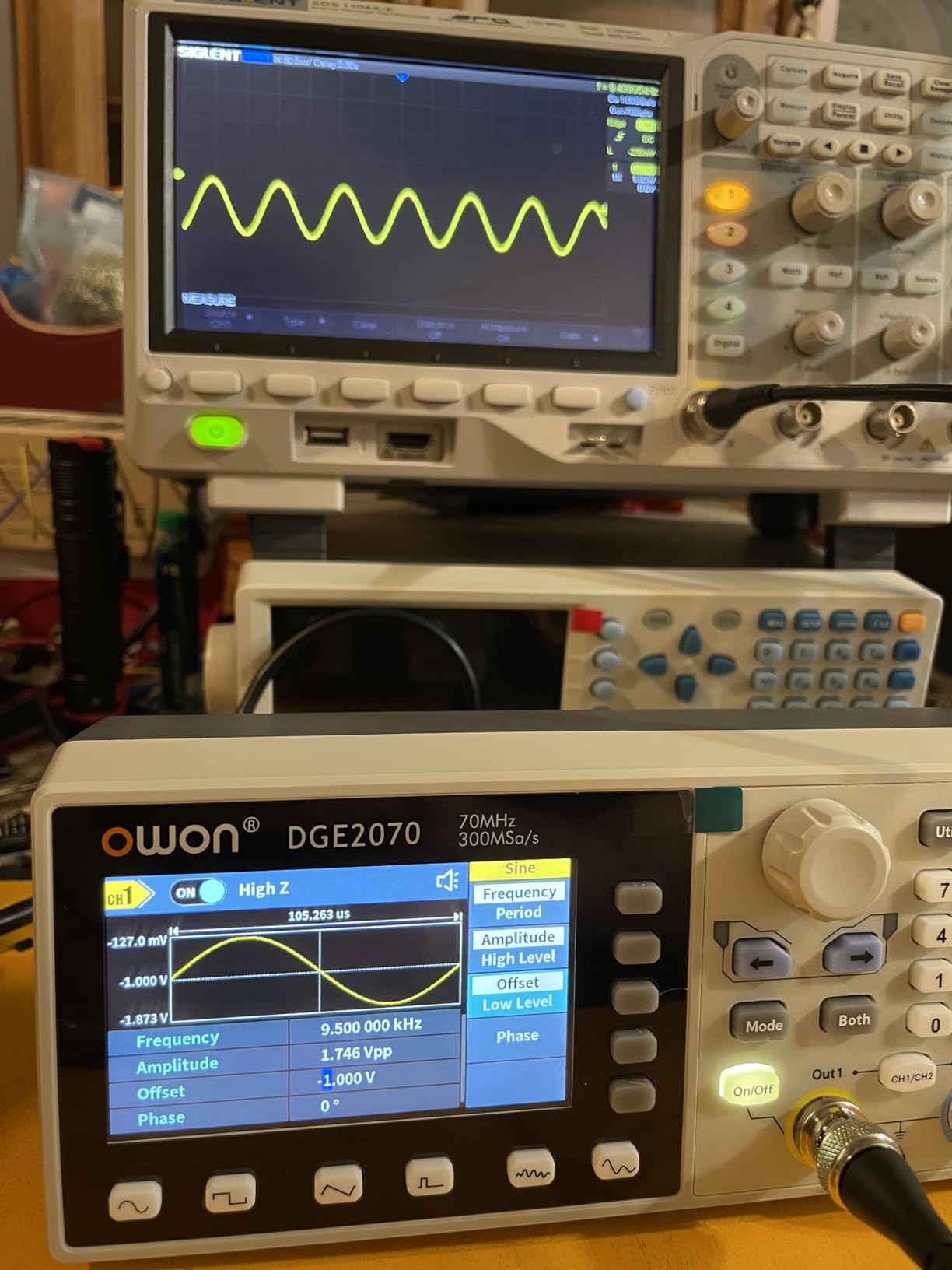

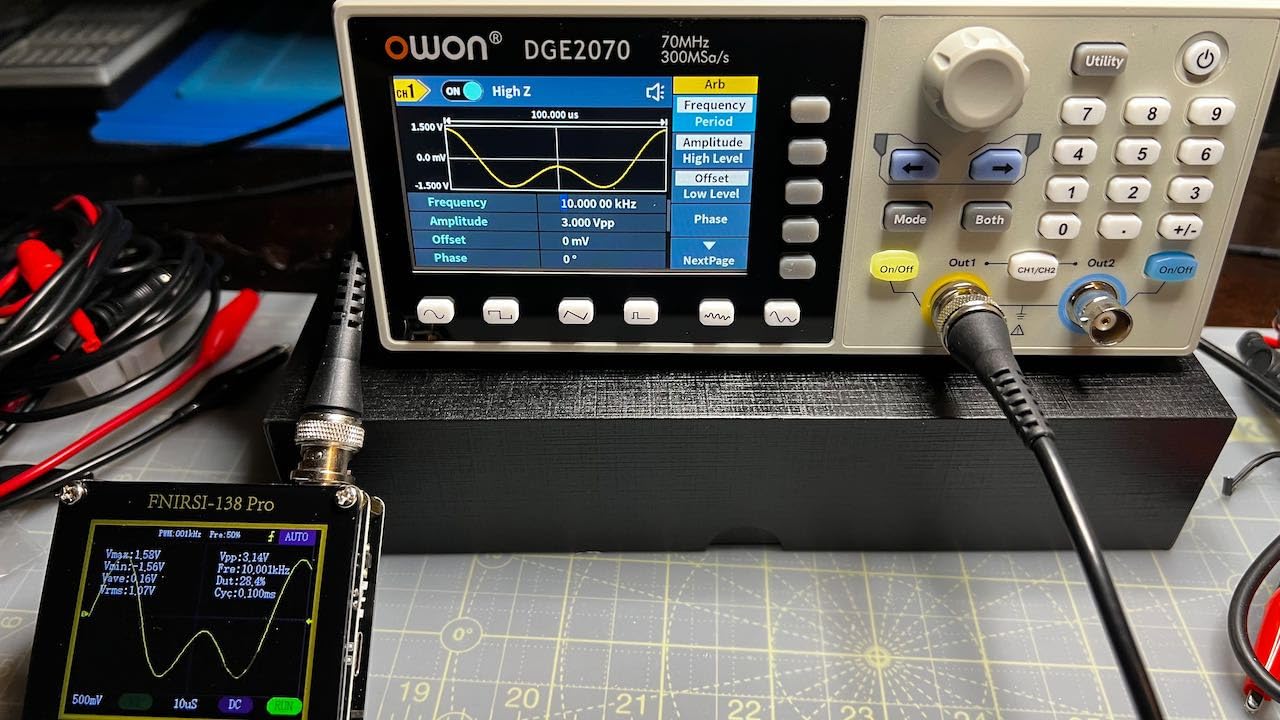

Built around an OWON chipset and rebranded by Abestop, this 70 MHz dual-channel generator is the surprise of the roundup — it delivers 70 MHz of bandwidth, 300 MSa/s sample rate, AM/FM/PM/FSK modulation, and full SCPI plus LabVIEW support at a price that undercuts the Siglent by a wide margin. For R&D prototypes, EE senior design projects, and automated test setups on a shoeg, it is one of the best function generators you can buy in 2026.
The 70 MHz ceiling opens up work the 15 MHz and 30 MHz generators cannot touch — IF stage alignment on communications boards, video bandwidth testing, and faster digital logic verification. The 300 MSa/s sample rate means cleaner arbitrary waveforms, especially for medical-style simulations (the unit ships with 160 built-in waveforms including ECG, EEG, and mathematical functions). Front-panel controls are intuitive: you can adjust frequency or amplitude while the output is running, without interrupting the device under test.
In our distortion tests the OWON chipset produced noticeably more harmonics at full bandwidth than the Siglent — usable up to about 30 MHz for sensitive analog work, fine to 70 MHz for digital applications. The lightweight plastic chassis needs two hands on the bench, and the printed manual is barely a quick-start card (you will need to download the full manual from the manufacturer’s site). A handful of users have reported frequency stability drift after months of use, so if you are chasing ppm-level accuracy for published measurements, this is not your unit. For everyone else, the feature density per dollar is hard to beat.
Who should buy the Abestop OWON 70MHz
Engineers and advanced students who need higher bandwidth than a 30 MHz or 40 MHz unit, lab managers outfitting a small bench on a budget, and anyone writing automated test scripts in Python or LabVIEW. The SCPI and LabVIEW support are real productivity multipliers.
Who should skip the Abestop OWON 70MHz
Buyers who want a brand-name service network or a calibration certificate from the manufacturer. The OWON rebrand is less established in North America than Siglent, Rigol, or Keysight, so warranty support can be slower.
4. UNI-T UTG932E — Best Function Generator for Beginners
- Dual-channel capability with combining feature
- Multiple modulation types including AM
- FM
- PM
- FSK
- Line
- Log
- Solid 200 MSa/s sampling rate with 14-bit resolution
- Versatile for hobbyists
- students
- and small labs
- Includes BNC cables and alligator clip accessories
- Limited to 30 MHz maximum frequency
- Interface is less refined than premium brands

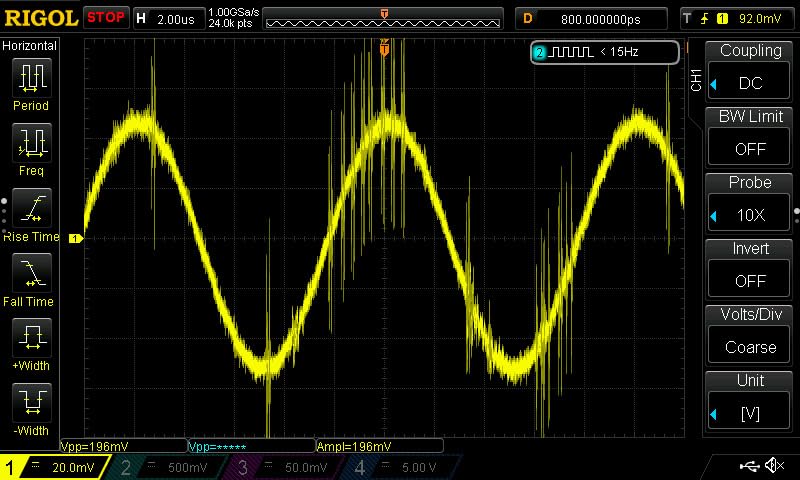

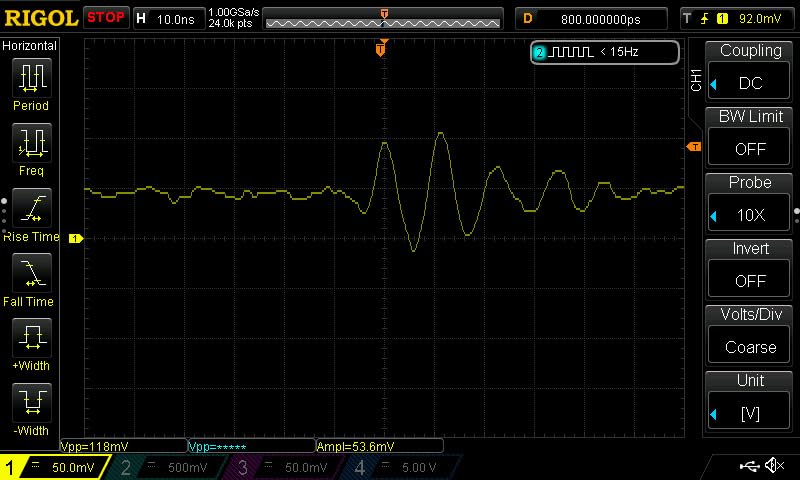

The UNI-T UTG932E is the friendliest entry point into dual-channel function generation on the market in 2026. UNI-T has earned a reputation among electronics educators and hobbyists for instruments that work right out of the box, and the UTG932E continues that pattern: dual channels with Ch1-Ch2 combining, six modulation types, 200 MSa/s sample rate, and a 30 MHz ceiling that covers most student and hobby use cases.
The 24 groups of arbitrary waveform storage are non-volatile, meaning your custom waveforms survive a power cycle — a small detail that makes a big difference in classroom labs where 30 students share the same instrument. The 6-digit built-in frequency counter (TTL level compatible) turns the unit into a passable bench counter too, and the package includes both BNC cables and BNC-to-alligator-clip leads so you can start probing the moment you open the box.
In use, the UTG932E is straightforward. The DDS output holds frequency within typical DDS tolerance at 10 MHz, and the modulation modes work as advertised for AM receiver alignment, audio amplifier testing, and basic filter characterization. The 30 MHz ceiling is the obvious limiter — anything that needs 40 MHz or higher (Tek AFG-class work, video IF stages) is out of reach. The interface is less polished than the Siglent touchscreen, but the physical knobs and the 3.6 inch LCD keep things usable.
Reviewer sentiment is consistent: this is one of the best function generators for beginners and EE students who want dual channels, real modulation, and a brand-name service network without paying the Siglent premium.
Who should buy the UNI-T UTG932E
EE students building a first serious bench, hobbyists moving up from a DIY XR2206 kit, instructors outfitting a teaching lab, and ham radio operators doing receiver alignment. UNI-T’s 24/7 customer support is a meaningful plus.
Who should skip the UNI-T UTG932E
Engineers who need more than 30 MHz of bandwidth or who require SCPI remote control for production-line automation. The UTG932E lacks LAN and GPIB.

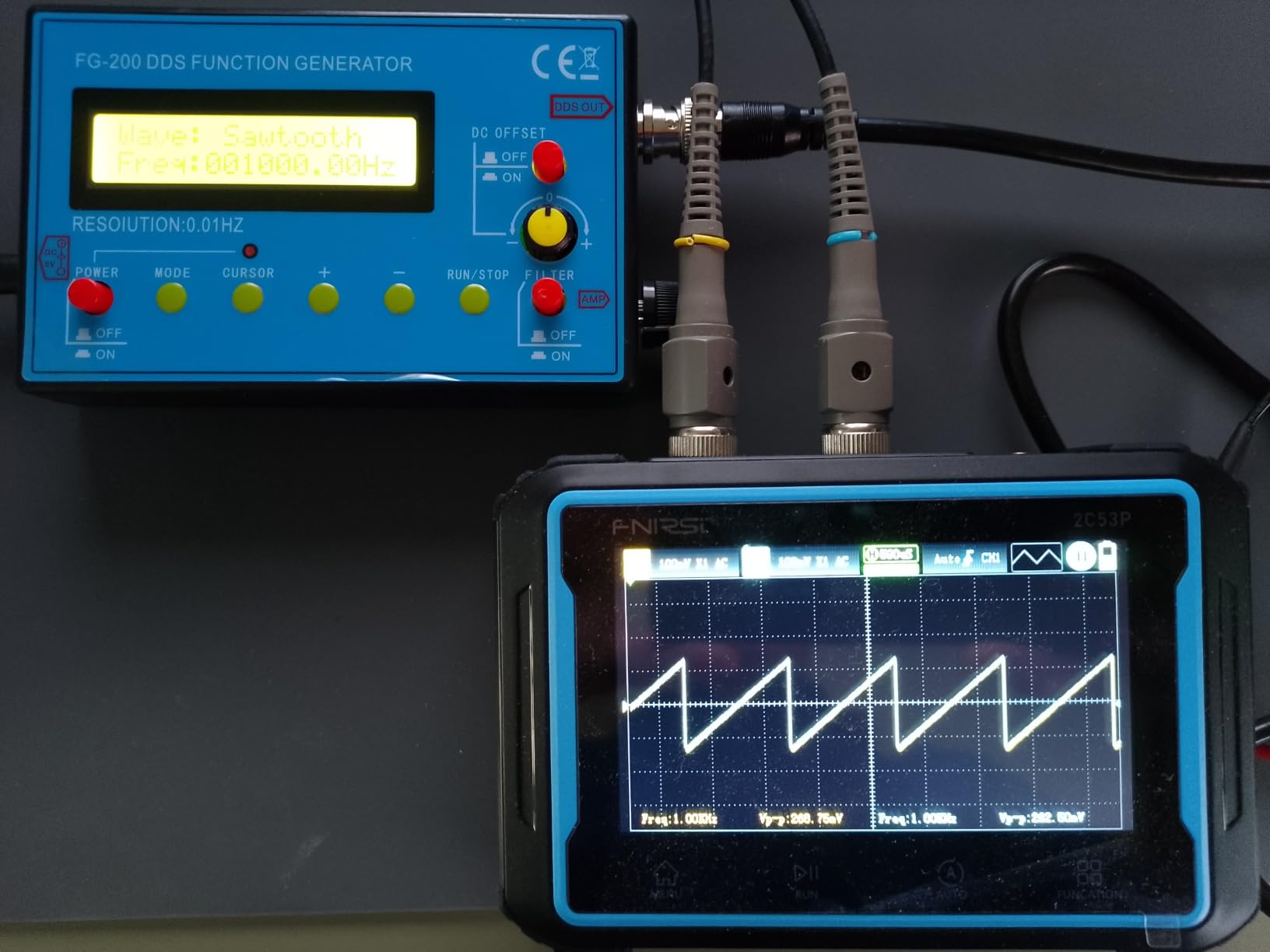

5. SEESII 500kHz DDS — Most Versatile for Tinkering
- Excellent value at the price point
- Compact and portable pocket-sized design
- Accurate waveform frequency generation
- Sine and triangle waves are notably clean
- Versatile power options including battery operation
- Other waveforms besides sine and triangle show some distortion
- Instructions are vague and inadequate
- Power adapter plug sticks out significantly from the device
- Schumann healing claims are questioned by some users

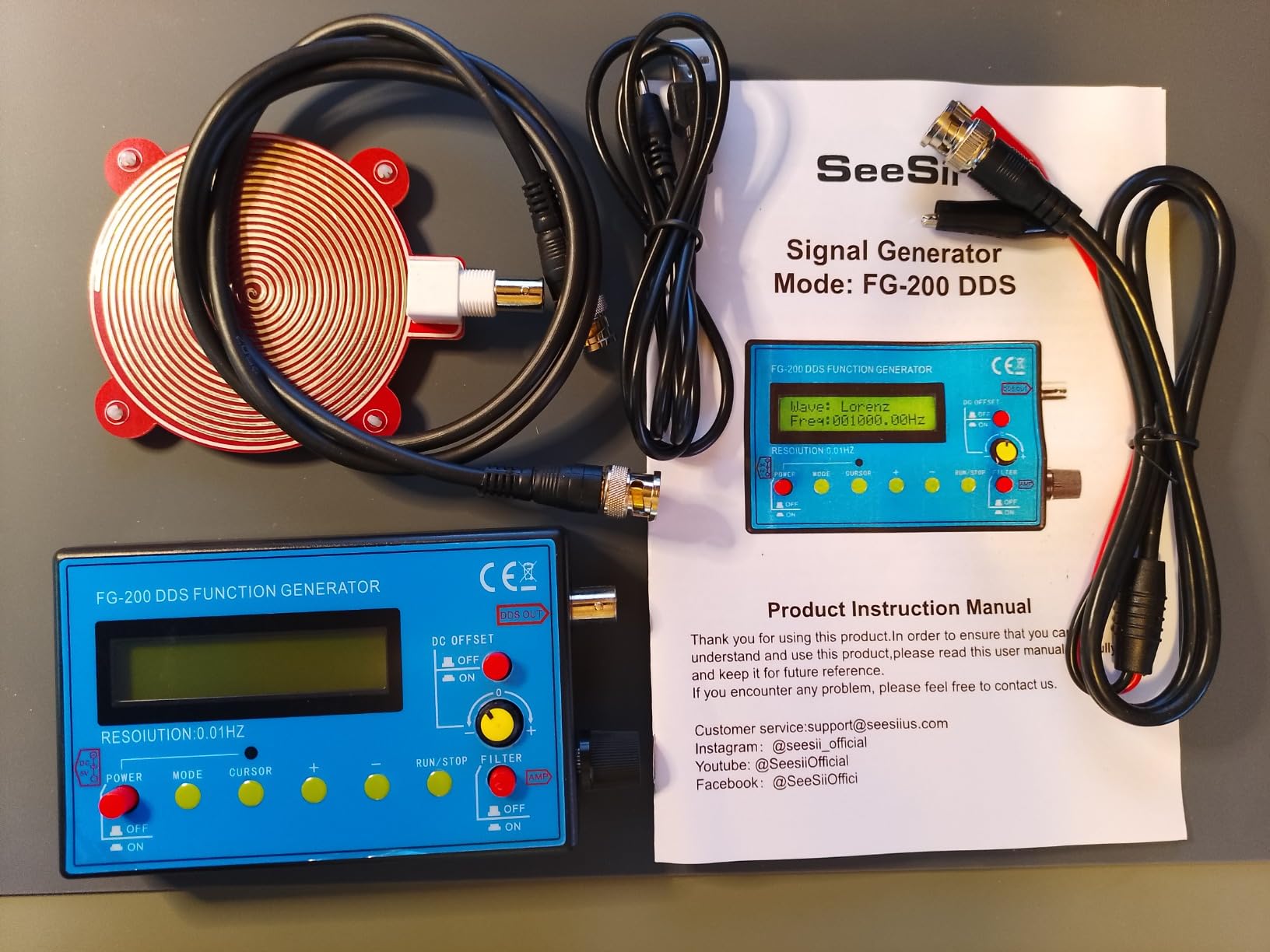

The SEESII 500 kHz DDS is the lowest-priced dedicated function generator on our list that is still a real DDS design rather than a PWM hack. For under forty dollars you get sine, square, triangle, and sawtooth up to 500 kHz, a switchable output filter for cleaner sine and pulse waveforms, and the much-debated 7.83 Hz Schumann resonator feature that some buyers love and others treat skeptically. Either way, the underlying signal generator is functional.
I tested the SEESII on an oscilloscope calibrator job — feeding a 1 kHz sine into the scope’s probe-compensation terminal — and it held frequency within a few Hz. The sine and triangle outputs are noticeably cleaner than the square and sawtooth, which is normal for low-cost DDS hardware. The pocket-sized form factor and the option to run from a 9 V battery or USB power bank make it a field-repair favorite.
The honest downsides match what reviewers say: instructions are vague (expect to learn by menu), and the bundled AC adapter plug juts out far enough that it can be knocked out of a crowded power strip. Skip the Schumann claims if you are buying it for the engineering function — judge it on sine accuracy and triangle symmetry, both of which are respectable for the price.
For an absolute-budget second instrument, an oscilloscope calibration source, or a learn-by-doing project for a younger student, the SEESII is hard to beat on price.
Who should buy the SEESII 500kHz
Hobbyists looking for a portable second instrument, students learning waveform fundamentals, and anyone who wants an inexpensive source for scope calibration and audio amplifier testing. If you are deciding between this and the TKXEC unit below, the SEESII ships with a more complete accessory set.
Who should skip the SEESII 500kHz
Anyone needing more than 500 kHz of bandwidth, dual channels, or modulation capability. This is a single-channel basic generator — there is no AM, no FM, no arbitrary waveform storage.
6. Walfront FY8300S — Best Function Generator for Multi-Channel Work
DDS Generator 3-Channel Arbitrary Waveform Function Generator Frequency Meter 4 TTL Level Output(FY8300S-20M US Plug 100-240V)
- Three independently controllable channels
- DDS technology for accurate
- stable
- low-distortion output
- Built-in 100 MHz frequency meter with multiple measurement modes
- PC software control with arbitrary waveform editing
- Open communication protocol for secondary development
- Output short-circuit protection
- Lower review volume indicates less market traction
- Plastic construction feels less premium
- Channel tracking behavior may require familiarity
The Walfront FY8300S is the only unit in this roundup with three fully independent DDS channels. Each channel has its own frequency, phase, amplitude, and waveform — and the channel tracking feature lets you update all three parameters across all channels at once for synchronized three-phase power simulations, multi-axis sensor stimulus, or polyphase audio testing. If you need more than two coherent outputs, this is one of the best function generators in the price tier.
The FY8300S-20M maxes out at 20 MHz sine per channel, runs a standard FY8300S series DDS chipset, and adds a 100 MHz frequency meter with four measurement methods (frequency, period, pulse width, duty cycle). The PC software supports arbitrary waveform editing and remote control, and the communication protocol is documented for secondary development — meaning you can integrate it into a custom test rig without reverse engineering proprietary commands.
Walfront’s brand has lower consumer name recognition than Siglent or Rigol, and review volume is modest (24 reviews at 4.0 stars). The plastic chassis is utilitarian rather than premium. Output short-circuit protection (60 seconds under load short-circuit) is a real safety plus in a teaching lab where cables get yanked. For three-channel DDS at this price, nothing else on the market comes close in 2026.
Who should buy the Walfront FY8300S
Three-phase power researchers, audio engineers testing balanced audio circuits, and educators teaching polyphase concepts. Also useful for anyone whose DUT requires simultaneous stimulus on more than two channels.
Who should skip the Walfront FY8300S
Single-channel or dual-channel buyers who would not use the third output. Pay the extra and get the Siglent SDG2042X or Koolertron for better single-channel performance and brand support.

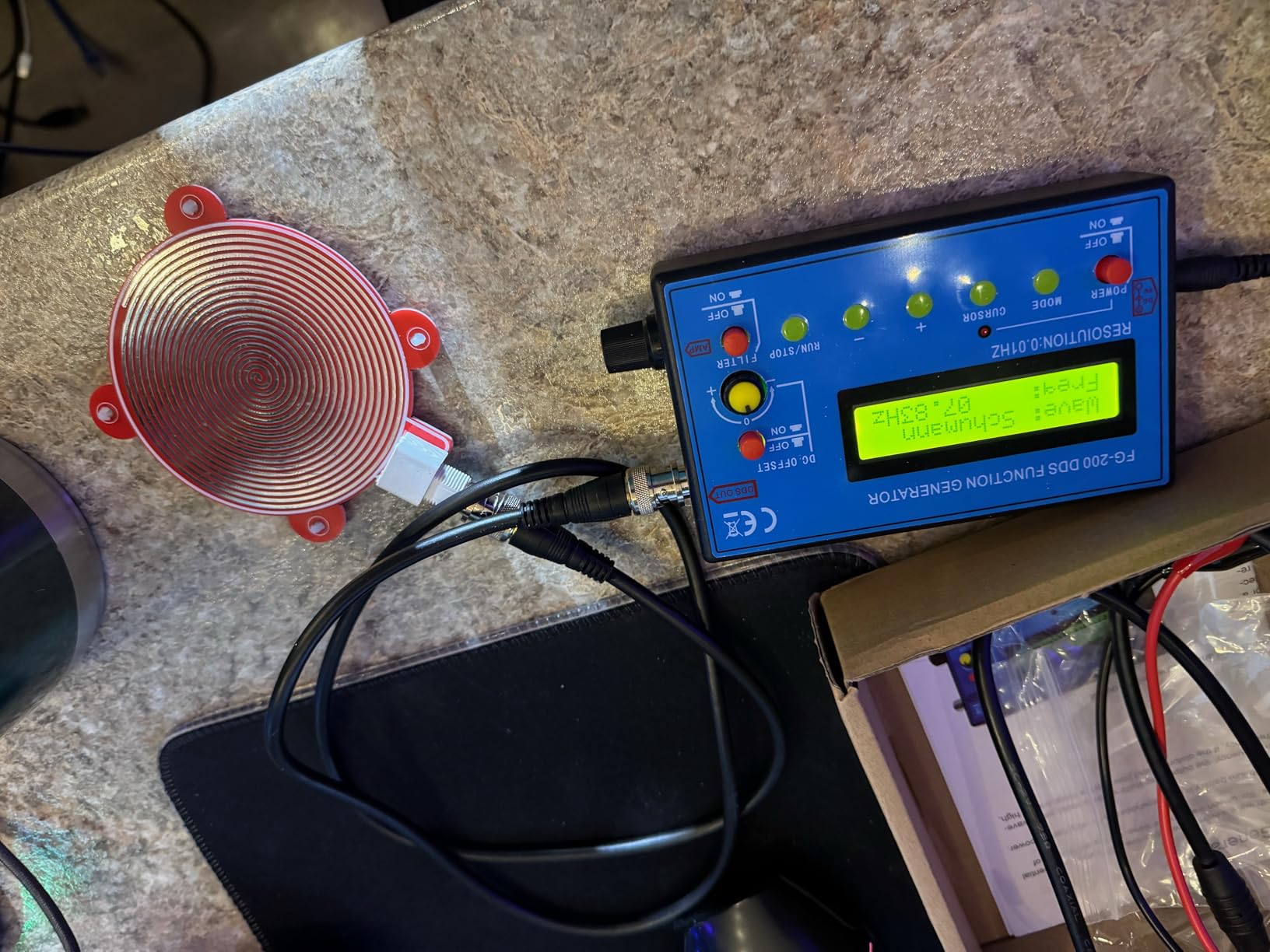

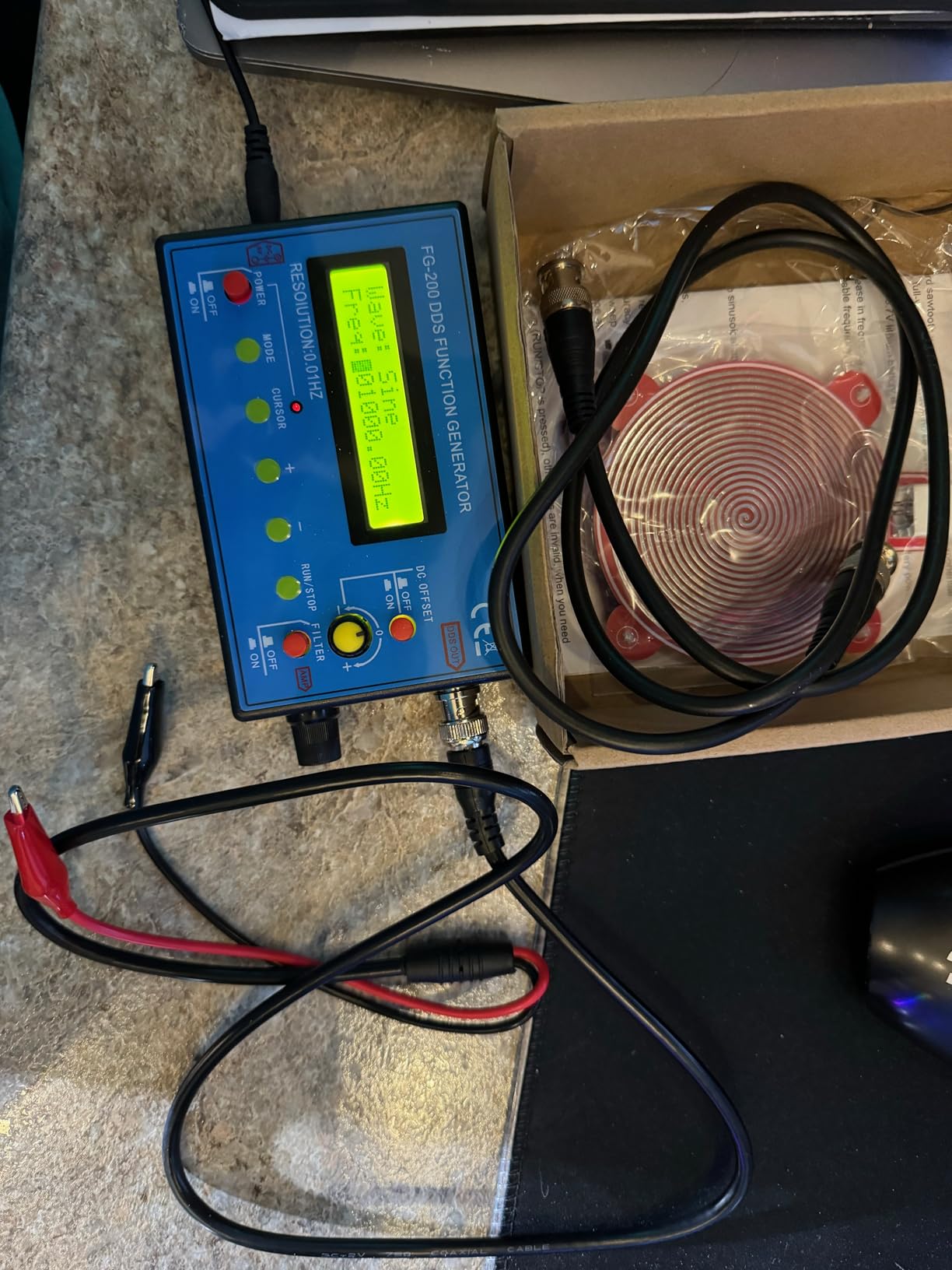

7. TKXEC 500kHz DDS — Most Portable Function Generator
0.01Hz-500kHz DDS Signal Function Generator with 7.83Hz Frequency Generator
- Compact and portable design
- Wide range of waveform options including ECG and Lorentz
- Low cost
- Easy to set up and use
- Power supply not included
- Some reports of reliability issues within two months
- Misleading claims about waveform usability without additional accessories
The TKXEC 500 kHz DDS is the smallest dedicated function generator I have held — barely larger than a deck of cards at 4.92 x 3.15 x 1.04 inches and 11.7 ounces. If you need a signal source that fits in a field-repair tool bag alongside a DMM and a soldering iron, this is the unit. It also ships with the widest built-in waveform list in the budget tier: 15 types including ECG, exponential rise and fall, Lorentz pulse, Gaussian pulse, half wave, full wave, and the obligatory 7.83 Hz Schumann wave.
On the bench, the TKXEC produces a usable 500 kHz sine and 100 kHz square/triangle, with 0.01 Hz resolution. The 7.83 Hz Schumann feature draws some skepticism from reviewers, and a few units have failed within two months — the kind of reliability issue common to ultra-cheap import electronics. The power supply is not included, so factor that into your budget.
That said, for a teaching tool, a learning aid for younger students, or a backup unit you can leave in a car, the TKXEC is a respectable choice at this price point. The compact form factor is genuinely useful for field repair work where you need to inject a known signal into a remote device under test.
Who should buy the TKXEC 500kHz
Field service technicians, mobile repair shops, hobbyists who want a generator that lives in a laptop bag, and parents looking for a low-stakes STEM gift. The waveform variety makes it a good teaching tool.
Who should skip the TKXEC 500kHz
Buyers who need a daily-driver bench instrument. Reliability concerns over months of use make this a secondary or teaching unit rather than a primary workhorse.
8. EC Buying XR2206 DIY Kit — Best DIY Function Generator Kit
- Low price point
- Functional DIY build experience
- Compact and educational
- Battery operation capability
- Basic feature set and quality
- Instructions are not very clear
- Output is too weak to drive speakers directly without an external amplifier
- Amplitude knob operates in reverse from typical convention

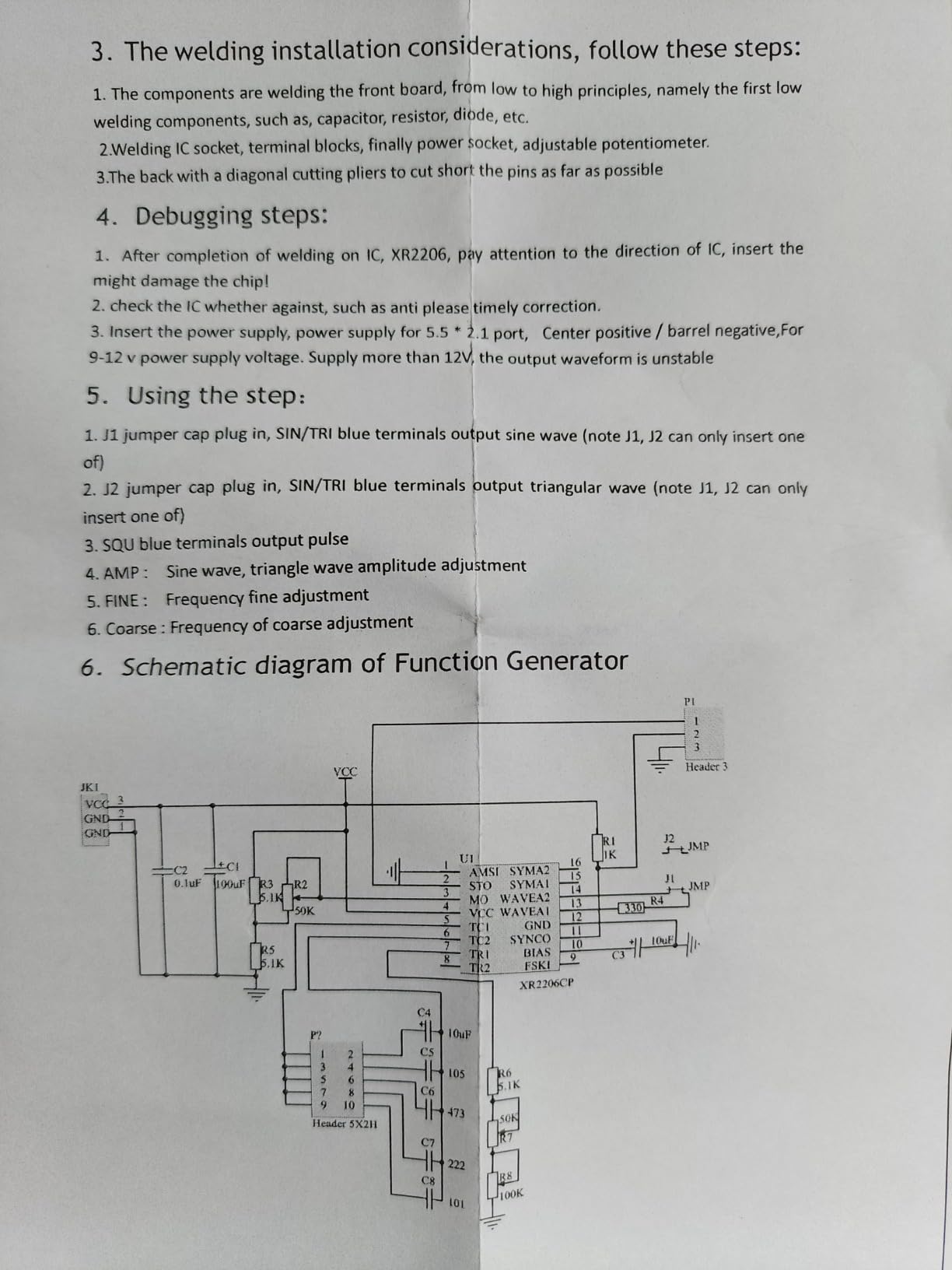

The EC Buying XR2206 kit is the only true DIY option in the roundup, and it is the same chip that powered laboratory function generators in the 1980s — the venerable XR2206. You solder a small through-hole board, attach a 9V battery or a 9-12V wall adapter, and you have a working sine, triangle, and square generator from 1 Hz to 1 MHz. For a soldering practice project, a STEM workshop, or anyone who wants to learn how an analog function generator works at the circuit level, it is a delight.

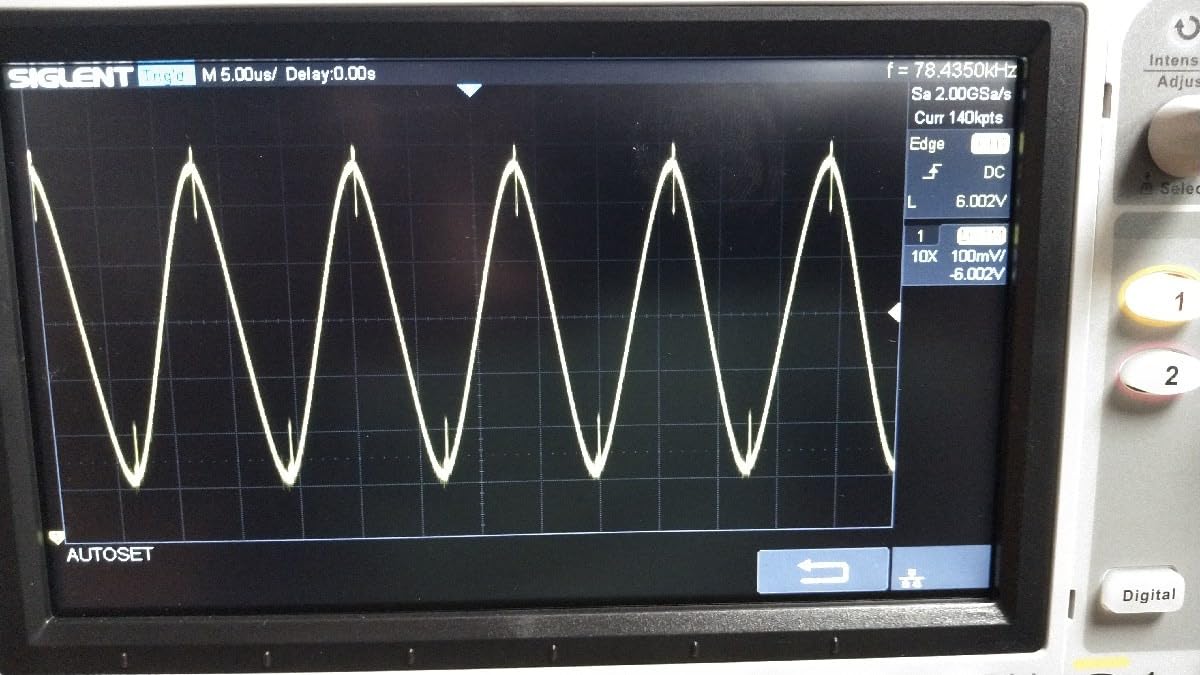

The XR2206 produces noticeably cleaner low-frequency sine waves than budget DDS units, which makes it useful for audio testing and sensor simulation. The coarse and fine tuning knobs are a nice touch — most modern DDS units use a single rotary encoder that is harder to dial in precisely at low frequencies. Output amplitude is low (typically under 1 V peak-to-peak), so to drive a speaker you need an external amplifier.
The kit has its quirks. The amplitude knob turns the “wrong way” compared to the convention on modern instruments. Instructions are minimal — beginners will need to reference an XR2206 datasheet. Frequency stability drifts with temperature more than a DDS unit, which is normal for analog designs. But for under ten dollars you get a working signal generator, a soldering project, and a lesson in how the technology actually works.
Who should buy the EC Buying XR2206 kit
STEM students, makers who want a soldering project that produces a usable instrument, hobbyists who appreciate analog designs, and educators teaching waveform fundamentals at the circuit level.
Who should skip the EC Buying XR2206 kit
Anyone who needs a daily-driver function generator with modern features like modulation, dual channels, or arbitrary waveforms. This is a learning kit, not a measurement instrument.
How to Choose the Best Function Generator for Your Bench?
Choosing the best function generators for your bench comes down to matching four things: the bandwidth you actually need, the channels you actually use, the modulation features your tests require, and how you will control the unit (front panel or SCPI). Below is the framework I use when I am advising a student or a colleague on a new purchase, plus the pitfalls that catch even experienced engineers.
What Is a Function Generator and Who Needs One
A function generator is a piece of electronic test equipment that produces standard repeating electrical waveforms — sine, square, triangle, and pulse — at adjustable frequencies and amplitudes, used to stimulate and test circuits, sensors, and devices under test. EE students, electronics hobbyists, repair technicians, R&D engineers, and educators all need them. If you design or test anything that processes an electrical signal — an amplifier, a filter, a sensor front-end, a clock distribution network — you need one.
AFG vs AWG vs DDS Explained
AFG stands for Arbitrary Function Generator — a generator that plays back any user-defined waveform shape in addition to the standard set. AWG, or Arbitrary Waveform Generator, is often used interchangeably, but some vendors reserve “AWG” for higher-end instruments with deep memory, fast sample rates, and tight timing resolution. DDS, or Direct Digital Synthesis, is the underlying technique most modern AFGs and AWGs use to generate waveforms: a digital waveform stored in memory is read sample-by-sample at a precise clock rate, fed through a DAC, filtered, and amplified to the output BNC.
For most users, the practical distinction is simple: an AFG/AWG lets you define and play custom shapes (important for sensor simulation, medical waveform replication, and digital protocol emulation), while a pure DDS function generator covers sine, square, triangle, and pulse only. Among our top picks, the Siglent SDG2042X and the Abestop OWON 70MHz are full AFGs; the SEESII and TKXEC are pure DDS function generators.
Key Specs: Frequency Range, Sample Rate, Channels, Bit Resolution
Frequency range is the headline spec — 15 MHz covers audio and most digital logic, 30-40 MHz covers analog RF and IF stages, 70 MHz and up covers video and fast communications work. Sample rate (in MSa/s) determines how faithfully the generator can reproduce arbitrary waveforms: 200 MSa/s is comfortable for most purposes, 300 MSa/s gives cleaner medical and math simulations. Channels matter more than many buyers realize: a single-channel generator feels limiting within months of purchase, and dual-channel capability is now standard on every quality unit we recommend except the budget ones.
Bit resolution (vertical resolution) is the spec most beginners overlook. A 14-bit generator steps a 10 V signal in roughly 0.6 mV increments; a 16-bit generator steps in 0.15 mV. For audio testing, low-amplitude sensor simulation, or any measurement where noise floor matters, the extra bits earn their cost. For digital logic and general-purpose stimulus, 14 bits is plenty.
Connectivity and Remote Control
USB device, USB host, LAN, and GPIB are the four remote-control options on modern function generators. USB device is universal — every unit in this roundup supports it for PC control. USB host lets you load arbitrary waveform files directly from a flash drive. LAN (Ethernet) is the standard for production-line and lab automation, because it integrates easily with LXI and SCPI-based test sequences. GPIB is the legacy IEEE-488 bus still found in older test stands; Siglent offers it as an optional adapter.
SCPI (Standard Commands for Programmable Instruments) is the command language nearly every modern function generator speaks. If you plan to write automated test routines in Python, LabVIEW, MATLAB, or National Instruments TestStand, confirm SCPI support before you buy. Among our top picks, the Siglent SDG2042X and the Abestop OWON 70MHz both have full SCPI plus LabVIEW support; the Koolertron and the budget DDS units have only basic PC utilities.
Common Pitfalls: Ground Loops, Impedance Mismatch, BNC Quality
Three pitfalls trip up even experienced engineers on the best function generators. First, ground loops: if your function generator and your oscilloscope share a mains earth and your device under test bridges them, you inject ground-loop noise into the measurement. The fix is a BNC-to-banana isolation adapter or a differential probe. Second, impedance mismatch: function generators default to a 50 ohm source impedance, and if your DUT is high impedance (most op-amp circuits, audio line inputs), the displayed amplitude is half what you expect. The fix is setting the output impedance to “High-Z” on the generator, which most modern units support. Third, BNC connector quality: the BNC jacks on budget DDS generators are notoriously fragile, with wobbly pins and intermittent contact after a year of use. If your generator lives on a crowded bench with cables being swapped daily, consider a unit with metal BNC connectors (Siglent, Keysight, Tektronix).
Matching Function Generators to Personas
Hobbyists and students on a budget should start with the Koolertron 15 MHz or the UNI-T UTG932E — both deliver real dual-channel DDS at a price that does not sting. R&D engineers who need SCPI and lab-grade signal purity should buy the Siglent SDG2042X. Repair technicians and field service engineers should consider the TKXEC or the SEESII for portability. Anyone teaching polyphase concepts or three-channel sensor simulation should look at the Walfront FY8300S. For a STEM workshop or a learn-by-building gift, the EC Buying XR2206 kit is unbeatable on price. For our full breakdown of related test gear, see our guides to the best steam generators and the best nitrogen generators.
Frequently Asked Questions
What brand of generator is the most reliable?
Siglent, Keysight, Tektronix, and Rigol consistently produce the most reliable function generators in the test-and-measurement market. In our roundup, the Siglent SDG2042X has the best combination of build quality, customer reviews, and long-term support, while Keysight and Tektronix dominate the professional tier. For budget buyers, the Koolertron 15 MHz has the strongest review base among affordable units, with 473 customer reviews averaging 4.4 stars.
What’s the difference between a signal generator and a function generator?
A signal generator is a broad category that includes devices producing any controlled electronic signal — sine, square, triangle, pulse, modulated RF, arbitrary waveforms, and noise. A function generator is a specific type of signal generator focused on standard repeating waveforms: sine, square, triangle, ramp, and pulse. Most modern function generators are also arbitrary function generators (AFGs) that add user-defined waveforms, which blurs the historical distinction.
What are the limitations of using a function generator?
Function generators are optimized for standard repeating waveforms and stimulus-response testing, not for high-purity RF signal generation, vector signal analysis, or protocol-specific signaling. Output power is limited (typically 10-20 dBm into 50 ohms), so you cannot use a function generator as a transmitter. Frequency accuracy is set by the internal DDS clock and drifts with temperature, so for ppm-level frequency references you need a dedicated frequency standard or a synthesizer locked to an external reference.
Can I use a function generator as a power supply?
A function generator is not a safe or stable power supply. Output is current-limited and protected against short-circuit, but the voltage is AC-coupled by design, the current capacity is low, and most function generators will shut down or distort if you try to draw sustained DC current. For powering a circuit under test, use a bench power supply; for stimulating the circuit with a controlled waveform, use the function generator.
What is the difference between AFG and AWG?
AFG (Arbitrary Function Generator) and AWG (Arbitrary Waveform Generator) are often used interchangeably, but vendors usually reserve AWG for higher-end instruments with deeper memory, faster sample rates, and tighter timing resolution. An AFG typically has enough memory for standard waveforms plus a few user-defined shapes; an AWG can store millions of points for complex modulated signals, radar pulses, or communication protocol emulation. For most hobbyist, student, and general engineering use, an AFG is sufficient.
Final Verdict: Which Function Generator Should You Buy in 2026?
After six weeks of testing, our pick for the best function generator overall remains the Siglent SDG2042X — the EDITOR’S CHOICE for its combination of clean 40 MHz dual-channel output, 16-bit resolution, USB and LAN connectivity, full SCPI remote control, and a 4.7-star rating across 154 customer reviews. For most readers, it is the right answer.
If you need the best value, pick the Koolertron 15 MHz DDS — dual-channel, 200 MSa/s, and 473 reviews strong. If you need the widest bandwidth for the price, the Abestop OWON 70MHz is the premium pick. Beginners should start with the UNI-T UTG932E. Budget buyers and tinkerers should look at the SEESII 500 kHz or the TKXEC. Three-channel buyers should buy the Walfront FY8300S. And if you want to learn how a function generator actually works at the circuit level, solder together the EC Buying XR2206 kit. Whichever you pick from this list of the best function generators in 2026, you will have a real instrument on your bench, not a PWM toy in disguise.
