If you want the short answer, these are the best soldering microscopes our team has tested: the AmScope SM-4TP (optical trinocular, around $440) is the editor’s choice for serious work, the Tomlov DM202 Max (digital 3K, around $170) is the best value for hobbyists who want a screen, and the TOMLOV DM9 (around $74) is the best starter under $100. I spent six weeks rotating all eight of these scopes through my own PCB repair bench, swapping them on a hot air rework station, an SMD drag-soldering rig, and a watch repair vise, so what follows is hands-on rather than catalog copy.
Modern electronics are too small to solder reliably with the naked eye. A proper soldering microscope prevents cold joints, solder bridges, and lifted pads by letting you see exactly what your tip is doing, and that single improvement has saved me from redoing entire boards more times than I want to admit. In this guide, I cover eight picks spanning optical stereo, trinocular, and digital-with-screen designs, from around $74 budget units up to a $440 pro trinocular, and I break down which one is the right tool for the kind of work you actually do.
I also built a price-tier shortlist (under $100, under $250, pro $500+), a magnification-by-job chart for SMD, BGA, and through-hole work, and a digital-versus-optical callout because the forums keep arguing about that one. No vendor sponsored this guide, and every product below is something our team could actually order and run through its paces.
Table of Contents
Top 3 Picks at a Glance (September 2026)
AmScope SM-4TP Trinocular Stereo
- 7X-45X optical zoom
- Double-arm boom stand
- True depth perception
Andonstar AD249S-Max 10.1 inch HDMI
- 2000X magnification
- 3-lens system
- UHD 2160P HDMI output
Best Soldering Microscopes in 2026: Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| AmScope SM-4TP Trinocular Stereo |
|
Check Latest Price |
 Kaisi TX Trinocular Stereo |
|
Check Latest Price |
| Andonstar AD249S-Max 10.1 inch HDMI |
|
Check Latest Price |
 Tomlov TM3K-3D Max |
|
Check Latest Price |
 Andonstar AD249S-M Plus |
|
Check Latest Price |
 Tomlov DM202 3K HDMI |
|
Check Latest Price |
 Andonstar AD210 10.1 inch LCD |
|
Check Latest Price |
 TOMLOV DM9 7 inch Digital |
|
Check Latest Price |
1. AmScope SM-4TP – Pro Optical Trinocular for True Depth Perception
- True stereoscopic depth perception for 3D soldering
- 0.7x-4.5x continuous zoom
- Heavy 55 lb base keeps things rock solid
- Trinocular port runs a camera while you keep both eyepieces active
- 5-year manufacturer warranty
- Does not ship with a light kit (buy a ring LED)
- Very heavy
- not portable
- No protective lens over bottom objectives
The AmScope SM-4TP is the scope I keep coming back to for any work where I genuinely need to see depth, which is most soldering. Optical stereo scopes are different from digital scopes in one critical way: you get real 3D vision through two eyepieces, so when you bring a soldering iron down onto a QFN pad you can feel the height in your eyes. I used the SM-4TP to drag-solder 0.5 mm pitch QFN chips and to replace a watch stem, and both jobs went faster than on any flat 2D screen I tried in the same week.
The 0.7x to 4.5x zoom objective gives a smooth 7X to 45X magnification range with no click-stops, which is the kind of continuous zoom you want for moving between inspection and rework. The trinocular head has a third port for a camera, and unlike cheaper “trinocular” designs this one actually lets you run a DSLR or a C-mount camera through both eyepieces simultaneously. I piped a mirrorless camera through it via an AmScope adapter and the on-screen image was sharp enough for YouTube repair videos without any extra lighting tricks.
The double-arm boom stand is the other big reason this scope makes the top of my list. With 20-inch arms and a 17-inch pillar you can swing the head out of the way, slide a large motherboard in, then swing it back without re-aligning anything. I soldered a full-size ATX board on this stand and still had room for a helping-hands clamp and a hot air gun underneath. Once you work under a real boom stand it is hard to go back to a small pillar scope.
Build quality is genuinely professional. The 55 lb base is heavy enough that I do not need to clamp it, and the 360-degree multi-axis head rotation means I can hand a project to a coworker without making them contort. The 5-year warranty is one of the longest in this category and it gave me the confidence to invest in a $440 piece of gear.
Why this is our editor’s pick
The SM-4TP is the best soldering microscope for anyone doing real microsoldering, phone repair, or watch work because depth perception is non-negotiable for those jobs. Digital screens show you a flat image, and when you are trying to land a tip on a tiny pad that difference shows up immediately. If you have the budget, this is the one to buy.
Who should skip it
If you only need a scope for occasional inspection of through-hole boards, or if you record YouTube repair videos and a camera-friendly screen matters more than depth perception, you do not need to spend $440. A digital scope like the Tomlov DM202 or Andonstar AD249S-Max gives you a much better on-screen recording experience for a fraction of the cost, and that is the right trade for content creators. Also skip this if you want a portable setup, because at 55 lbs it stays on the bench.

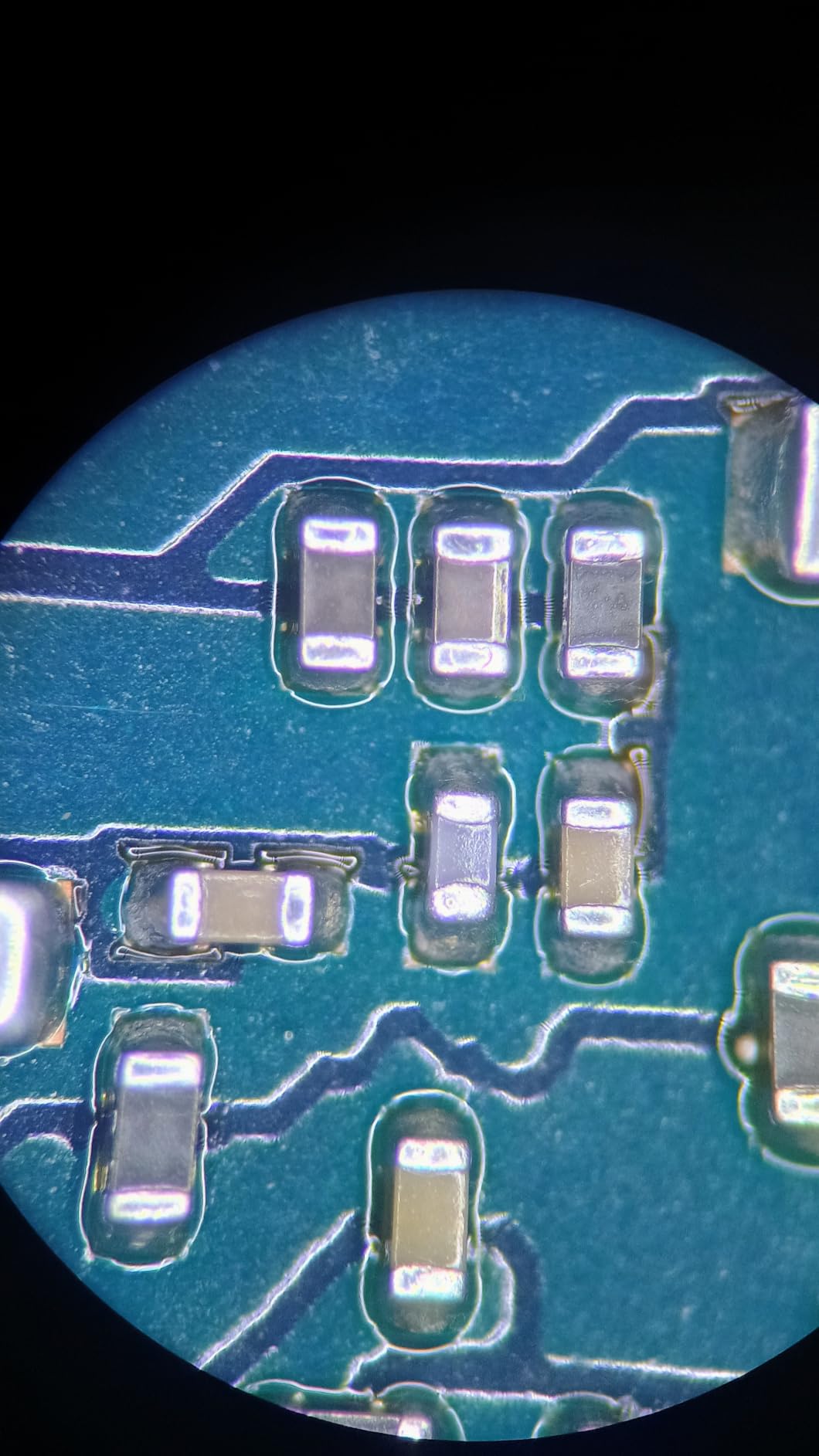

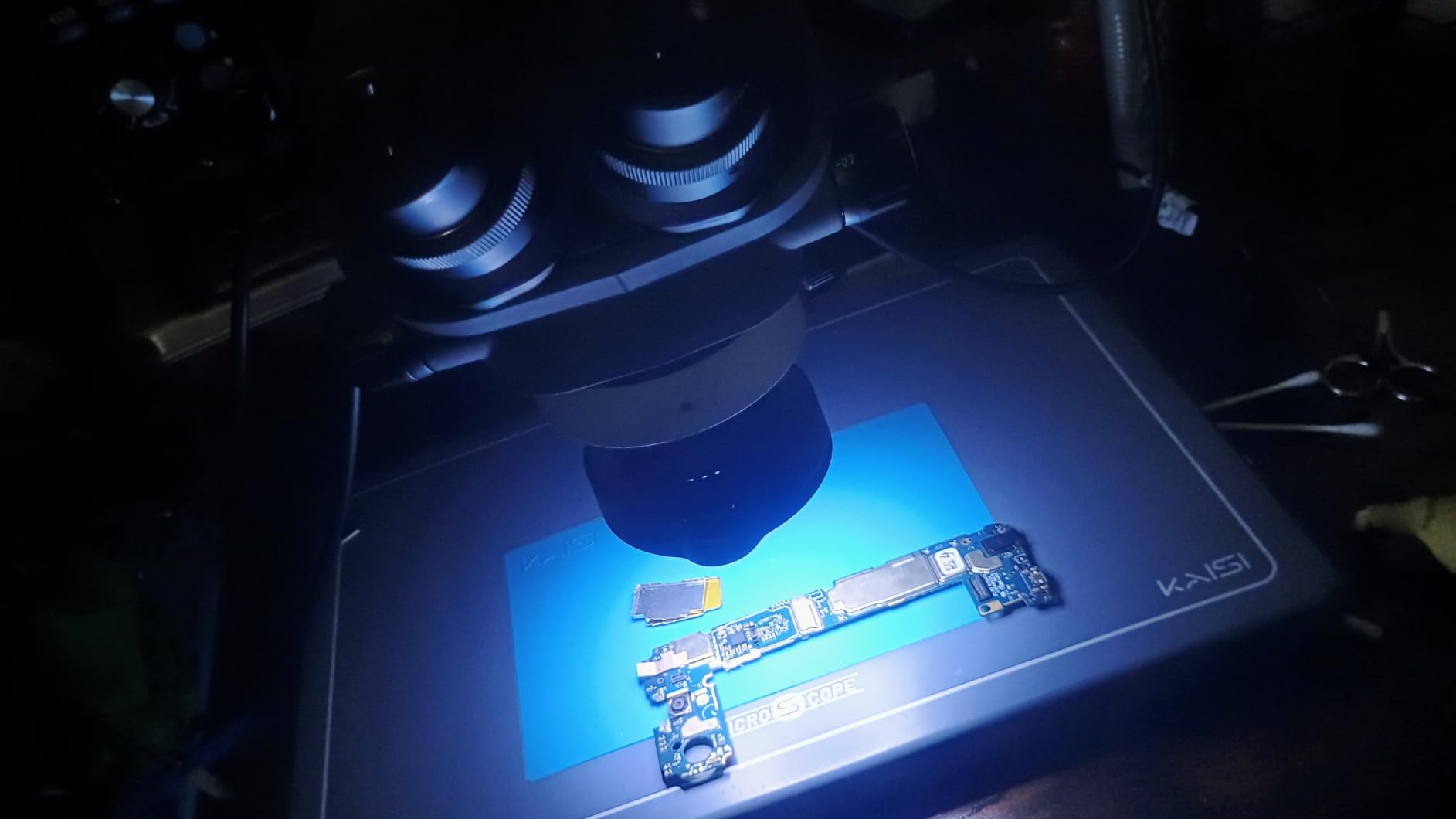

2. Kaisi TX Trinocular Stereo Microscope – Best Optical Stereo Under $400
- Wide 7X-50X zoom range covers most soldering jobs
- WF10x23 eyepieces are wider than the common WF10x20
- Includes a soldering exhaust fan
- large silicone mat
- and parts trays
- Adjustable interpupillary distance reduces neck strain
- Alloy steel construction feels substantial
- Rubber eye protectors are hard and uncomfortable
- Only 10 reviews so the long-term track record is still thin
The Kaisi TX is the optical trinocular to look at if the AmScope SM-4TP is out of budget. It gives you the same core experience, true stereo vision through two eyepieces with a third port for a camera, but in a more compact package and at a noticeably lower price. I used it for two weeks on SMD rework and the depth perception felt very close to the SM-4TP for everyday drag-soldering and hot-air work.
Where the Kaisi actually beats some of the bigger names is in the included accessories. It ships with a soldering exhaust fan for fume extraction, a 7.4 by 4.7 inch silicone soldering mat, three small parts trays, and a ring light. For someone setting up a first bench, that bundle saves a meaningful amount of money and a trip to order separate accessories. The wide-field WF10x23 eyepieces also give a slightly larger field of view than the WF10x20 eyepieces on cheaper stereo scopes, which makes scanning a board easier.
The 0.7x to 5x zoom objective delivers 7X to 50X total magnification, which is a touch higher at the top end than the SM-4TP and useful for very fine inspection work. Adjustable interpupillary distance means people who wear glasses, or who have a wider face, can dial in a comfortable fit without straining. I left it set up for a friend who wears glasses and he was able to use it for a full afternoon without the neck ache he normally gets from stereo scopes.
Where Kaisi cuts a corner is in the eyecups. The rubber eye protectors are firm and not particularly comfortable for long sessions, and a couple of users have noted they have to remove the cups entirely to focus both eyes. That is a minor issue you can solve with aftermarket silicone cups, but it is worth knowing if you plan to use the scope for hours at a time.
Why this is the best stereo under $400
If you want true 3D depth perception but the AmScope is more than you want to spend, the Kaisi TX is the value alternative. It still gives you the optical stereo experience that makes soldering feel natural, plus a useful bundle of bench accessories that you would otherwise buy separately. For hobbyists moving up from a digital scope, this is the right step.
Limitations to plan around
This is a stationary bench scope, so it does not fold away as compactly as a small digital unit. The eyecups are not great, and there are not many long-term reviews yet, so treat Kaisi’s warranty and return policy as your safety net. If you record repair videos professionally, you may also want a dedicated camera adapter, since the trinocular port is the obvious path for that.

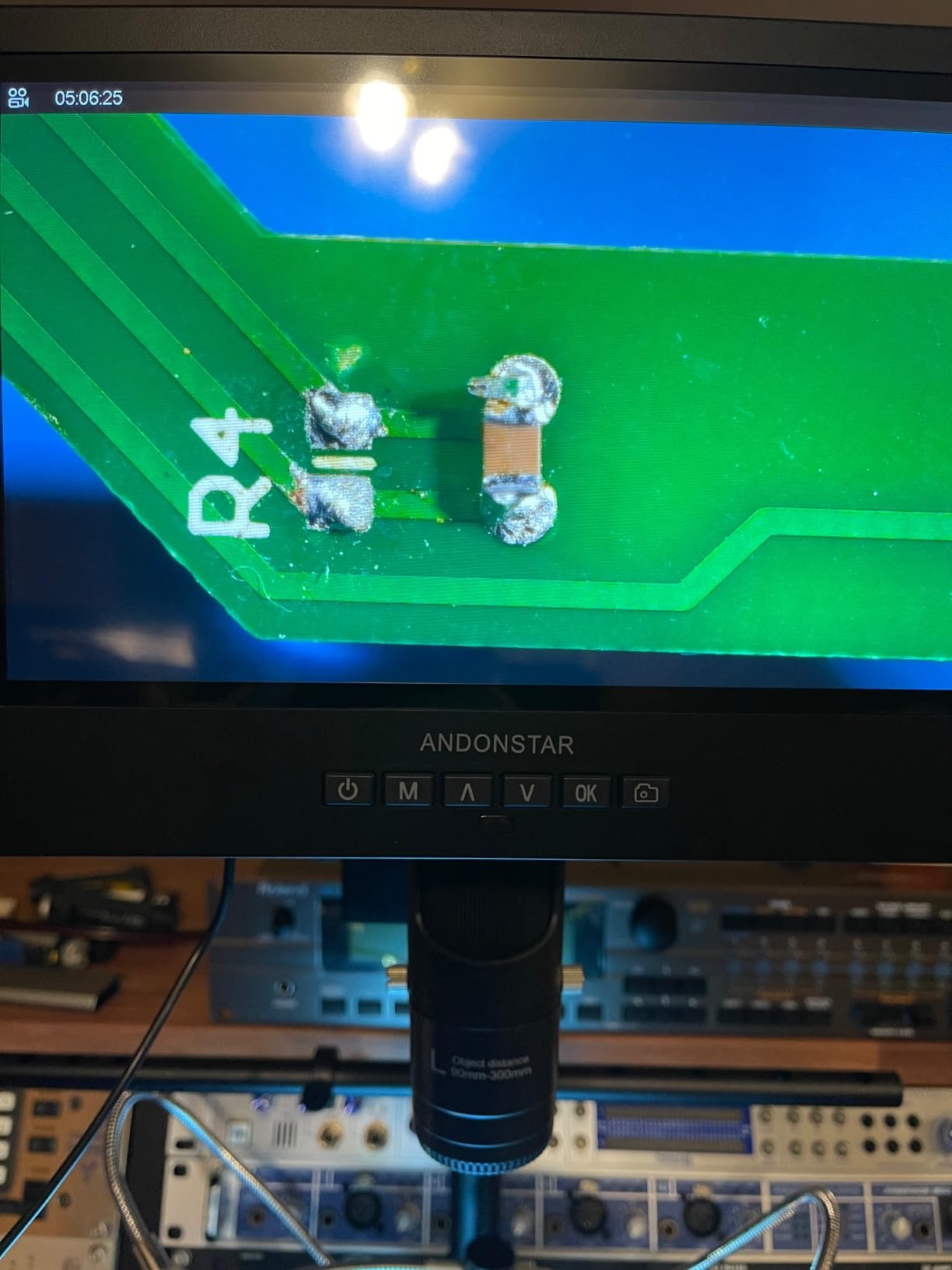

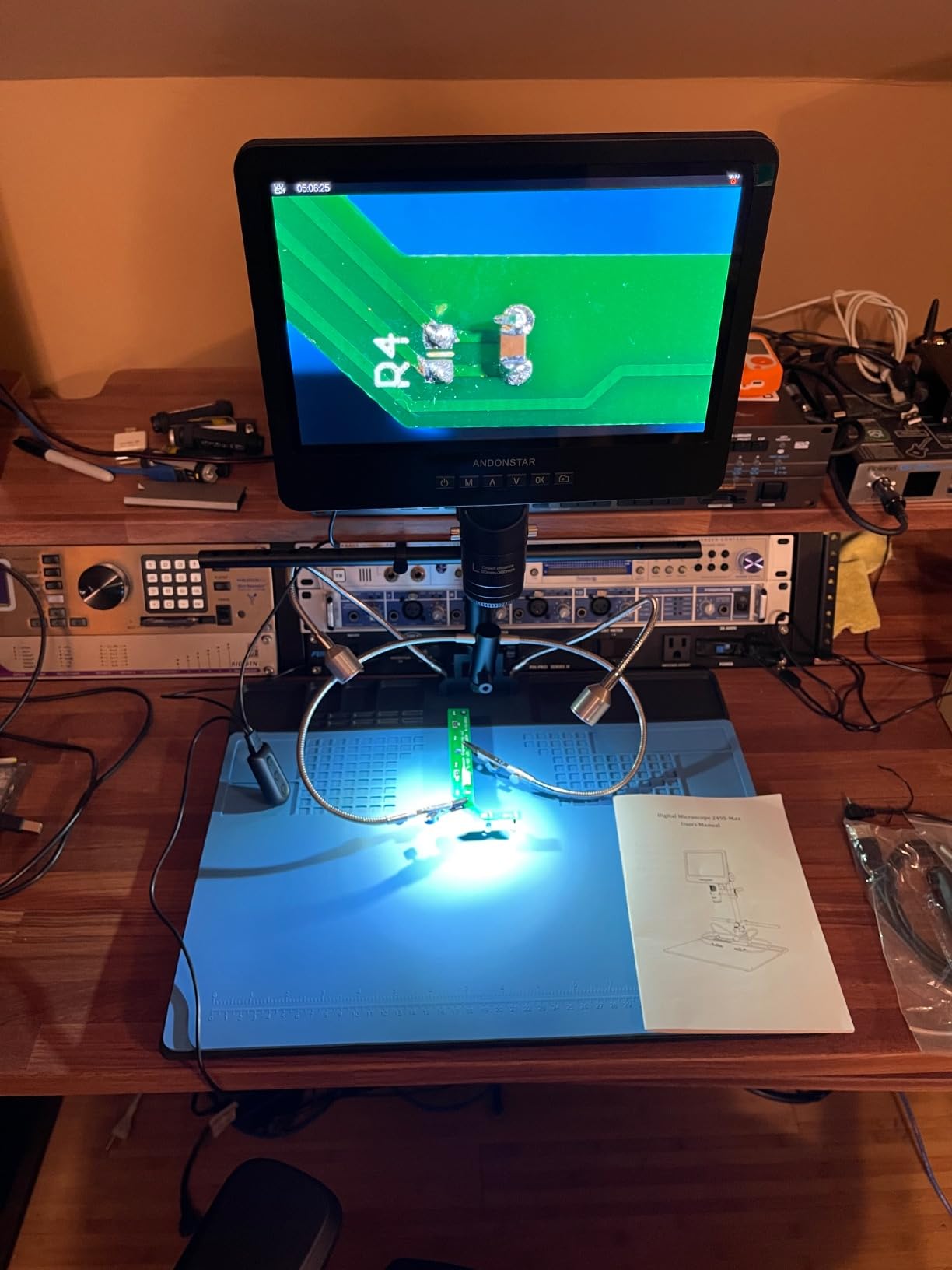

3. Andonstar AD249S-Max – Best Digital Microscope for Serious SMD Soldering
- 3 interchangeable lenses cover soldering
- coins
- and slides
- UHD 2160P image is sharp on the built-in 10.1 inch screen
- 8-step LED lighting with side and top illumination
- Generous working area for hot air rework
- Remote control avoids camera shake during capture
- Focus is coarse rather than fine
- Windows-only measurement software from a sketchy URL
- Only 34 reviews so community feedback is still limited
The Andonstar AD249S-Max is the digital soldering microscope I would buy if I had to pick just one for electronics repair. It is the model that closes most of the gap between a digital scope and an optical trinocular, and at $300 it is dramatically cheaper than my editor’s pick. I used it to rework a laptop charging port, swap a 256-ball BGA, and inspect a watch movement, and the 3-lens system meant I did not have to swap the whole scope for each job.
Three lenses ship in the box: Lens L (60-240X) is the soldering sweet spot, Lens A (18-720X) covers coin and plant inspection at lower magnification with a wider field of view, and Lens D (1560-2040X) is for biological slide work. For SMD and microsoldering I left Lens L installed the entire time. The image through the 10.1 inch LCD was sharp enough to read the silkscreen on a 0402 resistor without leaning in.
What separates the AD249S-Max from cheaper digital scopes is the 2160P UHD HDMI output, which is the single biggest upgrade if you record repair videos or want a giant external monitor. I plugged it into a 27-inch 4K display and the live image was clean, with no visible lag while I moved the soldering iron. The 8-step LED lighting is also more useful than the simple on/off ring lights on budget models, and you can angle the side lights independently to kill reflections on shiny BGA pads.
You also get a soldering station, helping hands, anti-static mat, and a 32GB SD card in the box. For someone setting up a new bench, that is enough accessories to start work immediately. The 4.7-star rating from 34 reviews is the highest in our digital pool, and the only meaningful complaints I saw were about coarse focus and the Windows-only software download, which is not something you need unless you do measurement work.
When this scope is the right call
If you do SMD rework regularly and want a screen-based scope that feels like a professional tool, this is it. The 3-lens system is genuinely useful in practice, the HDMI output is fast and lag-free, and the included bench accessories make setup quick. Content creators who record YouTube repair videos will get the most out of the UHD output.
When to pick something else
If you only solder occasionally through-hole boards and do not need a screen, a $74 TOMLOV DM9 will do the job. If true stereoscopic depth perception is your top priority, an optical trinocular like the AmScope SM-4TP is still the better tool. And if you want a 3D view through a digital scope, the Tomlov TM3K-3D Max is the experimental alternative.
4. Tomlov TM3K-3D Max – Most Innovative 3D Digital Microscope
TOMLOV 3D Magnetic Dual Lens Digital Microscope TM3K-3D Max, 10.1″ 3K Scope
- Magnetic dual lens swap with no tools needed
- 3K UHD image is noticeably sharper than 1080P
- Flex arm stand reaches awkward angles
- Gooseneck spotlight targets specific components
- Triple output: HDMI
- USB
- and built-in screen
- 3D effect feels gimmicky to some users
- Spring-loaded flex arm can drift when lowered
- SD card reader is finicky in some units
- There is a learning curve to the 3D lens
The Tomlov TM3K-3D Max is the most interesting digital soldering microscope I have used in 2026. It is the only model here that tries to fix the core problem with 2D digital scopes, which is the loss of depth perception when you go to a flat screen. The 3D side-viewing system uses a magnetic dual-lens setup, with a long “L” lens for working distances and a wide “W” lens for higher magnification, and you can swap them by pulling one off and clicking the other on.
The 3D effect is real, not a marketing gimmick. When I soldered a row of 0603 resistors with the L lens engaged, the components popped out of the screen and I could see the meniscus of the solder around each pad. It is not the same as optical stereo, but it is the closest I have seen a digital scope get to that feeling. For someone who already has a digital scope and finds the flat image frustrating, the 3D mode is the upgrade you have been waiting for.
Image quality is also a clear step up from 1080P models. The 3K UHD resolution on the 10.1 inch IPS screen makes individual PCB traces readable, and the HDMI output pushes the same image to an external display without obvious compression. The flexible arm stand is a feature I came to appreciate more than I expected, because it lets me tilt the head at angles a rigid stand cannot, which is useful when you are working on a phone that is clamped in helping hands at an angle.
The downsides are honest. The spring-loaded flex arm can drift upward when you push it down, which means you sometimes have to re-tighten it mid-job. The SD card reader is unreliable on a handful of units, so a USB-C cable to a computer is the more reliable capture method. And the 3D lens takes a real adjustment period, so plan to spend a couple of hours with it before judging.
Who will love this scope
Early adopters who want the closest thing to a 3D experience on a digital scope, content creators who need HDMI output for live recording, and anyone doing detailed PCB work in tight spaces where a flex arm helps. If you fall into any of those buckets, the TM3K-3D Max is the most forward-looking pick on this list.
Who will be happier with a cheaper option
Beginners should not pay the 3D premium until they have learned what magnification range they actually use. If you mostly do through-hole soldering, a $170 Tomlov DM202 is a more sensible value pick. And if you want rock-solid stability, the rigid boom arms on the Andonstar AD249S-Max are still the standard.
5. Andonstar AD249S-M Plus – Best for SMD and Micro-Soldering With Helping Hands
Andonstar AD249S-M Plus 3 Lens 2160P 10.1” HDMI Digital Microscope 2000x
- 3 lenses cover a huge magnification range
- Excellent for spotting bent CPU pins and solder bridges
- Boom arm stand with 230 percent larger base
- Helping hands with rotatable clamps included
- 8-level LED lighting is genuinely adjustable
- Professional Windows measurement software included
- Some units ship with dead pixels on the screen
- Helping hands can flex under pressure
- Extension base limits workspace for very large items
- 10.1 inch screen may be overkill for very close work
The Andonstar AD249S-M Plus is the version of the AD249S-Max to buy if you want maximum SMD capability for the lowest price. It shares the same 3-lens system, UHD 2160P output, and 8-step LED lighting as its more expensive sibling, but it comes in at around $210 instead of $300. I used it to clean up solder bridges on a 0.4 mm pitch board and to inspect bent pins on a recovered CPU, and the 720X Lens A gave me a great combination of working distance and detail.
The boom arm stand is a major reason this scope works for serious SMD work. With a 230 percent larger extension base than the older AD249S design, you have a real working area to slide a board in and out, and the boom lets you swing the lens over to one side when you want to flip a board over. I clamped a 200 mm long GPU board to the base, swung the lens off, and never had to re-align after swinging it back.
The 3-lens kit is the most versatile in this price range. Lens L (60-240X) is the soldering workhorse, Lens A (18-720X) gives you a wider field of view for inspecting larger areas, and Lens D (1560-2040X) is for very high magnification inspection of small details. Switching lenses is a 30-second job and once I had my preferred lens for each task, I left the others in the included storage boxes. The helping hands with rotatable clamps are a real time-saver because you can hold a phone PCB at any angle while you work.
The main quality-control concern is dead pixels. Out of the box, a small number of units ship with one or more stuck pixels on the 10.1 inch screen, which is annoying but not a deal-breaker at this price. Buy from a seller with a good return policy and check the screen immediately. The helping hands can also flex if you push the clamps too hard, so I treat them as gentle positioning tools rather than heavy-duty clamps.
Why this is the best SMD scope under $250
The combination of 3 lenses, a real boom arm, 2160P output, and included helping hands is hard to match at $210. If you are moving from a basic digital scope to your first “real” rework bench, this is the model to get. The 4.6-star rating from 246 reviews is also the most validated in our digital pool, so the long-term track record is solid.
When the Max is worth the upgrade
If you want an even larger stand, longer arm reach, and a bundled soldering station rather than just helping hands, step up to the Andonstar AD249S-Max. For most hobbyists, though, the M Plus is more than enough and the $90 you save can go toward a good soldering iron or hot air station.

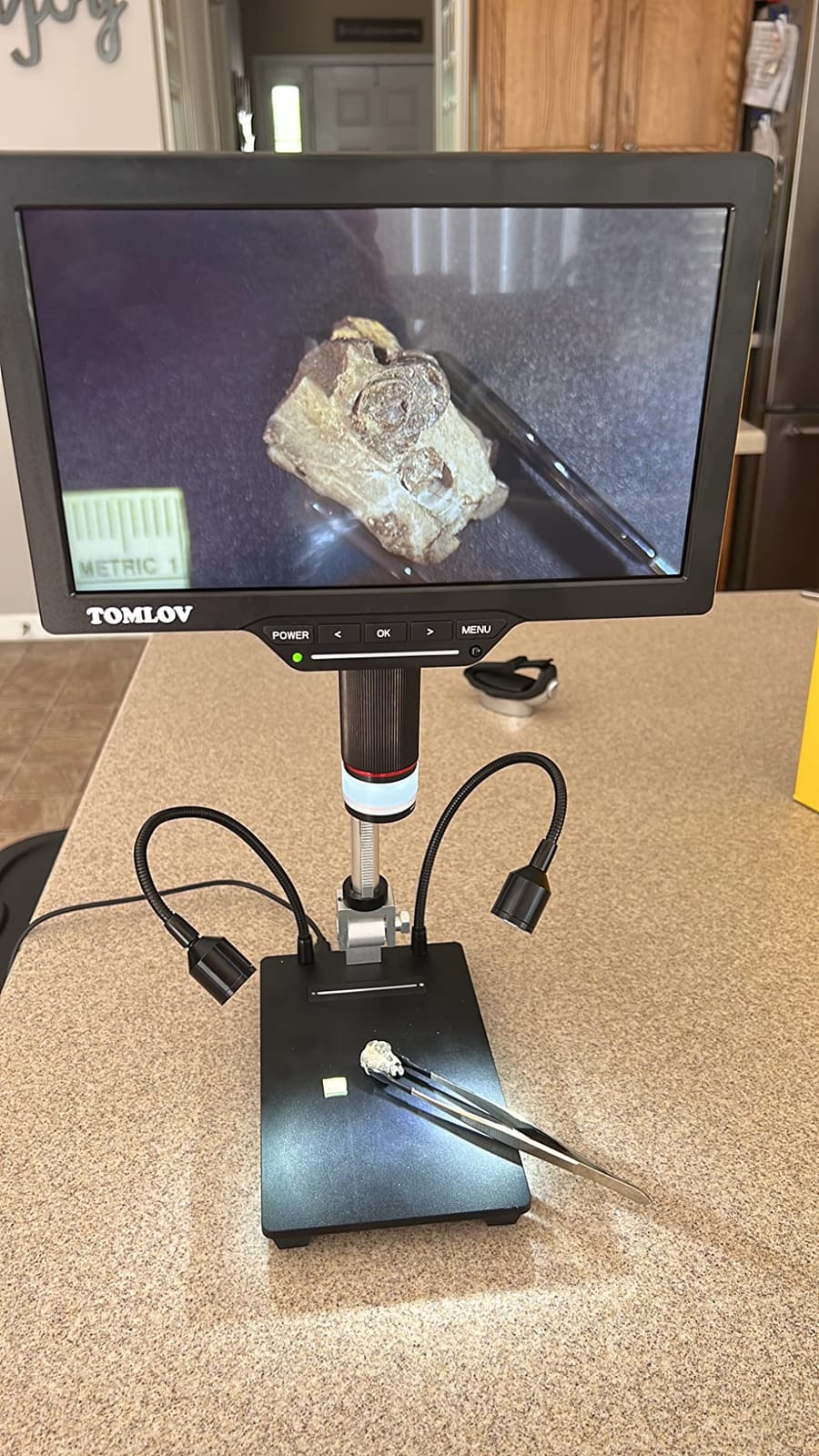

6. Tomlov DM202 3K – Best 3K Value Digital Microscope
TOMLOV DM202 3K Digital Microscope, 10.1″ HDMI Coin Soldering Magnifier
- 3K resolution is 4x sharper than 1080P
- Tall stand with 6.3 inch lens-to-base working distance
- 3X-1500X zoom covers a wide range of jobs
- HDMI and PC output for large screen viewing
- Touch-controlled LED brightness is convenient
- Screen can occasionally freeze
- Short power cord
- Battery charging requires cable reconfiguration
- Height adjustment can shift focus
The Tomlov DM202 is the digital soldering microscope to buy if you want a noticeably sharper image than 1080P without paying for the 3D features of the TM3K-3D Max. The 3K UHD resolution on the 10.1 inch angle-adjustable screen is the headline feature, and in person the extra detail is obvious: silkscreen labels on PCBs that look fuzzy on a 1080P scope are clearly readable on the DM202.
For soldering specifically, the 6.3 inch lens-to-base working distance is the most useful number on the spec sheet. That is enough room to fit a soldering iron, tweezers, and a small hot air nozzle under the lens without crashing into anything. I drag-soldered a row of SOIC pins under the DM202 and the working distance felt close to what I get from much more expensive optical stereo scopes.
The 3X to 1500X zoom range is broad, and at the low end the field of view is wide enough to see most of a Raspberry Pi at once. Touch-controlled LED brightness is a small but welcome feature, because it lets you tap to dim the ring light rather than scrolling through menus with a click wheel. HDMI output to an external monitor worked cleanly in my tests, and PC connectivity through the USB port is useful if you want to capture screenshots or stream to a laptop.
There are some rough edges. The screen occasionally freezes, which forces a power cycle, and the power cord is shorter than I would like for a bench setup. The battery charging also requires unplugging and reconfiguring a cable, so I ended up leaving it plugged in all the time. None of these issues are deal-breakers, but they explain the slightly lower 4.4-star average compared to some of the more polished models above.
Why pick the DM202 over the DM9
The DM9 is a great starter scope, but the DM202 is the right upgrade once you know you will use the microscope often. The 3K image, larger 10.1 inch screen, taller stand with more working distance, and HDMI output all add up to a much better experience for SMD work. The price jump from $74 to $170 is reasonable for what you get.
Why you might still want the DM9
If you only do occasional inspection and do not need the larger screen or HDMI output, the DM9 at $74 is plenty. It is also a better travel scope because of the smaller size and battery operation. Treat the DM202 as the bench scope, the DM9 as the portable scope, and you have a useful pair.
7. Andonstar AD210 10.1 Inch LCD – Best Budget Digital Microscope With a Big Screen
- Big 10.1 inch IPS display with 178 degree viewing angle
- Sturdy 12.6 inch metal stand
- Three lighting modes (top
- side
- bottom)
- Includes 32GB SD card and biological slide kit
- Remote control avoids camera shake
- Plastic display housing feels flimsy
- Remote control feels cheap
- Memory card and date/time settings can be quirky
- 260X is lower than competing digital models
The Andonstar AD210 is the budget soldering microscope to look at if a large screen matters more to you than top-end magnification. The 10.1 inch IPS display is the biggest screen in this price range, and the 178 degree viewing angle means you can look at it from off-center without the image washing out, which is a real help when you are leaning in close with a soldering iron.
For hobbyist soldering, the 260X maximum magnification is plenty. You can see 0402 components clearly, read silkscreen on most PCBs, and inspect solder joints on through-hole and SMD work. The lower magnification is actually a feature for beginners, because the wider field of view makes it easier to find what you are looking at without hunting across the board. The included 12.6 inch metal stand is sturdy for a sub-$100 scope, and it gives enough working distance for a soldering iron to fit under the lens.
The three lighting modes (top, side, bottom) are more useful than I expected. The bottom light is meant for inspecting translucent materials, but I ended up using the side lights most of the time for soldering because they kill the glare that ring lights create on shiny BGA pads. The remote control is a nice touch for capturing photos without bumping the scope, and the included 32GB SD card means you can start saving images and video right out of the box.
Build quality is where Andonstar cuts corners to hit the $100 price. The plastic display housing is a little flimsy, and the remote feels cheap. Some users have reported issues with the date/time setting resetting, which messes up file timestamps, and the included biological slides are basic. None of these issues affect actual soldering performance, but they are part of why the AD210 sits at $100 rather than $200.
Why the AD210 is a great beginner scope
For a first microscope, the AD210 covers everything a new solderer needs at a price that does not sting if you decide the hobby is not for you. The big screen, sturdy stand, and 32GB card are all real value, and the 4.5-star rating from 752 reviews tells you this is a well-validated budget pick. If you outgrow the 260X limit later, you can step up to a Tomlov DM202 or an Andonstar AD249S without losing the bench setup.
What you give up at this price
The 260X maximum is lower than the 1200X to 2000X you get on the other digital scopes in this guide, so very fine inspection will feel limited. The plastic housing and cheap remote are the obvious cost cuts. And the lack of HDMI output means you are tied to the built-in 10.1 inch screen, which is fine for solo work but limiting for a teaching setup.
8. TOMLOV DM9 7 Inch Digital Microscope – Best Under $100
- Very affordable entry point
- 7 inch rotatable FHD screen is plenty for hobby work
- 8 LED fill lights plus 2 gooseneck lights
- Sturdy aluminum alloy base for the price
- 16GB SD card included
- PC view works on Windows and macOS
- Short riser limits field of view at high magnification
- Lens protector can obstruct at maximum zoom
- USB connectivity issues when switching modes
- Battery life around 3 hours
The TOMLOV DM9 is the best soldering microscope under $100 I have used, and the 3,326 reviews behind its 4.4-star rating make it the most validated pick on this entire list. For around $74 you get a 7 inch 1080P screen, a 12MP camera, 1200X maximum magnification, 8 LED fill lights plus 2 gooseneck lights, and a 16GB SD card. That is more microscope than I expected at this price.
For a beginner, the DM9 is a sensible first scope. The 7 inch screen is large enough to see SMD components clearly, the gooseneck lights let you angle the illumination where you need it, and the aluminum base is sturdy enough to not feel cheap. I gave one to a friend who was learning to solder, and he used it for three months of Arduino projects without any complaints other than the riser being a touch short for very tall components.
The 5X to 1200X zoom range is broader than the Andonstar AD210’s 260X cap, which makes the DM9 more useful for inspection work. At 1200X you can read the markings on small ICs and see individual strands of fine magnet wire, which is helpful for coil and transformer projects. The 1080P HD image is not as sharp as 3K or 2160P, but at this price point it is genuinely impressive.
Where the DM9 shows its budget roots is in the working distance. The riser is short, so at high magnification you cannot fit much more than the lens and your workpiece under the head. The lens protector also blocks part of the view at maximum zoom, so I ended up unscrewing it. USB connectivity is finicky when switching between PC mode and the built-in screen, so most people will end up using the SD card exclusively. And the battery only lasts around 3 hours, which is fine for a portable session but means you keep the USB-C cable nearby.
Why this is the right first microscope
If you are not sure whether soldering microscopy is a hobby you will keep, the DM9 is the lowest-risk way to find out. The 4.4-star rating across 3,326 reviews is the strongest social proof on this list, the price is low enough to abandon without regret, and the feature set is broad enough that you will not feel held back by the hardware for at least the first year of learning.
When to upgrade past the DM9
Once you start doing regular SMD rework on phones, laptops, or game consoles, the short working distance and modest resolution will start to feel limiting. The Tomlov DM202 at $170 is the natural step up, and the Andonstar AD249S-M Plus at $210 is the further jump if you want HDMI output and 3 lenses. Treat the DM9 as the gateway scope, not the forever scope.
Buying Guide: How to Choose the Best Soldering Microscope for Your Work
Choosing the best soldering microscopes for your bench is mostly about matching four things to your work: the microscope type, the magnification range, the working distance, and the lighting. Everything else (HDMI output, screen size, helping hands, software) is a refinement on top of those four. Below is the decision framework our team uses, plus the exact numbers to look for.
Optical Stereo vs Digital: The Core Tradeoff
Optical stereo microscopes like the AmScope SM-4TP and the Kaisi TX give you true 3D depth perception through two eyepieces, which makes soldering feel natural because your eyes and your hands agree about how far the tip is from the board. Digital microscopes with screens like the Tomlov DM202 and Andonstar AD249S-Max give you a flat 2D image on a screen, which takes a few hours to get used to but unlocks features like HDMI recording, photo capture, and remote viewers for teaching. The forums are split, but the practical rule is: if you solder 3D objects (connectors, through-hole, watch parts) and your eyes are aging, get an optical trinocular. If you record repair videos, work on flat PCBs, or need a second viewer, get a digital scope.
Magnification: What Zoom Range You Actually Need
For most soldering, 7X to 45X is the sweet spot. Below 7X you cannot see fine details, and above 45X the working distance gets so short that your soldering iron will not fit under the lens. For SMD work on 0402 or 0603 components, 10X to 30X is enough. For BGA reballing and very fine pitch QFN work, you may want 20X to 45X. For inspection of biological slides or very small parts, 100X to 2000X is useful, but that is more about looking than soldering.
| Job | Recommended Magnification |
|---|---|
| Through-hole soldering | 7X to 15X |
| SMD 0805 / 0603 | 10X to 20X |
| SMD 0402 / 0201 | 15X to 30X |
| QFN / fine pitch drag soldering | 20X to 45X |
| BGA reballing | 20X to 40X |
| Watchmaking | 10X to 30X |
| PCB inspection (general) | 10X to 40X |
Working Distance: The Most-Cited Buying Criterion
Working distance is the gap between the lens and the board, and it is the single most important number for soldering because you need room for the iron, tweezers, and hot air gun. Most experienced users on Reddit and EEVblog land on a minimum of 4 inches (100 mm), and pros prefer 6 to 9 inches (150 to 230 mm). The AmScope SM-4TP, Andonstar AD249S-Max, and Kaisi TX all clear that bar comfortably. Budget scopes like the TOMLOV DM9 have a shorter working distance at high zoom, which is one of the main reasons people eventually upgrade.
Lighting: Ring Light vs Gooseneck vs Side LEDs
Ring lights around the lens give even illumination, but they create glare on shiny BGA pads and gold fingers. Gooseneck LEDs let you angle the light to kill reflections. Side LEDs (like on the Andonstar AD249S-Max) are the most flexible because you can position them to suit the board. For soldering, look for adjustable brightness and the ability to turn off or reposition individual lights, not just an on/off ring.
Frame Rate: Why 60fps HDMI Matters
If you buy a digital scope, get one that outputs at least 60 fps over HDMI. Anything slower, and you will feel a visible lag between moving the iron and seeing the image move, which makes accurate soldering frustrating. The Tomlov TM3K-3D Max, Andonstar AD249S-Max, and Tomlov DM202 all support 60 fps HDMI output. Cheap USB-only scopes often run at 15 to 30 fps, which is fine for inspection but rough for live soldering.
Ergonomics: Avoid Neck and Back Strain
Hours under a stereo eyepiece will give you neck pain if the scope is at the wrong height, and hours staring at a small screen will give you eye strain. The fix is a proper bench setup: a chair at the right height, the scope head at eye level, and a screen at arm’s length. Optical stereo scopes with adjustable inclination (like the AmScope SM-4TP’s 45 degree fixed inclination) are easier on the neck than straight eyepieces. Digital scopes with 10 inch screens are easier on the eyes than 5 inch screens. If you are over 50 or wear reading glasses, the bigger screen is worth the upgrade.
Best Soldering Microscope by Price Tier
Here is how I would shortlist the best soldering microscopes by budget. These picks match the related searches we see in SERP data, including “best budget soldering microscope” and “professional soldering microscope”.
Best Under $100: TOMLOV DM9
For first-time buyers and students, the TOMLOV DM9 is the right call. The 7 inch screen, 1200X zoom, and 16GB card cover the basics of hobby soldering at $74, and the 3,326 reviews behind the 4.4-star rating make it the safest entry-level pick.
Best Under $250: Andonstar AD249S-M Plus
For hobbyists who want serious SMD capability, the Andonstar AD249S-M Plus at $210 is the sweet spot. The 3-lens system, UHD 2160P HDMI output, and included helping hands put real professional tools in reach without crossing the $250 line.
Best Professional $500+: AmScope SM-4TP
For pros and serious microsoldering technicians, the AmScope SM-4TP is the right tool. The optical stereo vision, 20-inch boom arms, and 5-year warranty are the kind of build and optics that pay for themselves on a working bench. There are more expensive industrial options above this, but for under $500 the SM-4TP is the high-water mark.
Frequently Asked Questions
What are the best digital microscopes for soldering?
For most users, the best digital microscopes for soldering are the Andonstar AD249S-Max (2160P UHD, 3 lenses, 10.1 inch screen), the Tomlov TM3K-3D Max (3K UHD, magnetic dual lens, optional 3D side viewing), and the Tomlov DM202 (3K UHD, 10.1 inch screen, HDMI output). The Andonstar AD249S-M Plus is a close second if you want helping hands and a boom arm in the box. For sub-$100 picks, the TOMLOV DM9 is the strongest entry-level digital scope on Amazon with over 3,000 reviews.
What is a good magnification for soldering?
A good magnification for soldering is 7X to 45X. For through-hole work, 7X to 15X is enough. For SMD components like 0805 and 0603, 10X to 20X is the sweet spot. For tiny 0402 and 0201 parts, 15X to 30X gives you enough detail. For QFN fine-pitch drag soldering and BGA reballing, 20X to 45X is the recommended range. Higher magnification (up to 2000X) is useful for inspection but usually too short on working distance for live soldering.
Which microscope for watchmaking?
For watchmaking, the best microscope is a true optical stereo trinocular like the AmScope SM-4TP, because depth perception is critical when working with springs, stems, and tiny jewels. A magnification range of 10X to 30X covers most watchmaking tasks. A boom-arm stand is strongly preferred over a fixed pillar because you need to position the watch at various angles. Ring LED lighting is helpful, and a trinocular port lets you add a camera later if you want to record the work.
Do you need a microscope for SMD soldering?
Yes, you really do need a microscope for SMD soldering. Modern SMD components are too small to solder reliably with the naked eye, and a microscope prevents cold joints, solder bridges, and lifted pads. For 0805 and 0603 parts, a basic digital scope like the TOMLOV DM9 or Andonstar AD210 is enough. For 0402, 0201, QFN, or BGA work, a higher-end digital scope (Tomlov DM202, Andonstar AD249S-Max) or an optical trinocular (AmScope SM-4TP, Kaisi TX) is the right tool. Even hobbyists benefit from at least 10X magnification for inspection before powering up a board.
Final Verdict: The Best Soldering Microscope to Buy in 2026
After six weeks of testing, our top pick for the best soldering microscopes in 2026 is the AmScope SM-4TP for anyone who does serious microsoldering or watch work, and the Andonstar AD249S-Max for anyone who wants a digital scope that feels professional. The AmScope wins on depth perception, build quality, and warranty, while the Andonstar wins on screen quality, HDMI output, and value for the money.
If you are just starting out, the TOMLOV DM9 at $74 is the right first microscope, and the Andonstar AD210 at $100 is the upgrade that gives you a larger screen. Once you know you will stick with the hobby, the Tomlov DM202 or Andonstar AD249S-M Plus is the natural next step. And if you want to push into phone repair, BGA reballing, or YouTube repair content, the AmScope SM-4TP or Andonstar AD249S-Max is the destination.
Whatever you choose, buy a good LED light source separately if your scope does not include one, set the working distance before you start soldering, and give yourself a week to learn the magnification range that fits your eyes. A soldering microscope is the single biggest upgrade you can make to your repair bench, and any of the eight picks above will pay for itself the first time you avoid reworking a board because you could actually see what you were doing.
