When our old pressure tank finally waterlogged after eleven years of service, the well pump started cycling every time someone flushed a toilet. That clunk-clunk-clunk at 6 a.m. was the push we needed to dig into this category properly. After comparing the eight most popular models, poring over hundreds of owner reviews, and cross-checking what professional installers recommend on plumbing forums, we can say one thing with confidence: the best well pressure tanks share a few traits regardless of brand.
A good pressure tank does one deceptively simple job. It stores pressurized water so your well pump does not have to switch on every time you open a faucet, which protects the pump and keeps your pressure steady. Buy the wrong size or a cheap shell, and you get short cycling, failed bladders, and a pump that dies years before it should.
In this guide to the best well pressure tanks of 2026, we walk through eight tanks we would actually put in our own basements. We cover steel bladder tanks from Amtrol and Water Worker, two Red Lion pre-charged models, and the sizing logic that matters more than any badge on the shell. By the end, you will know exactly which tank fits your bathroom count, your water chemistry, and your budget.
Table of Contents
Top 3 Picks for Best Well Pressure Tanks in 2026
If you want the short answer before the long one, here it is. The Amtrol WX-202 is the tank most professionals would install in their own homes, and our Editor’s Choice. The Water Worker HT20B delivers nearly identical engineering at a friendlier price, making it our Best Value. And the Amtrol WX-202D earns Top Rated status with the highest customer rating in our lineup and a 150 psig working pressure that outmuscles every competitor here.
Amtrol WX-202 Well Pressure Tank
- High-strength steel shell
- Virgin polypropylene liner
- 7 year warranty
Amtrol WX-202D 20 Gallon with Composite Base
- 150 psig working pressure
- Antimicrobial liner
- NSF Standard 61
One pattern worth noticing before you scroll on. On Terry Love’s plumbing forum and r/Plumbing, installers repeatedly name Well-X-Trol as the gold standard, while several note that Water Worker tanks are essentially the same design built by Amtrol’s sister operation. That matches what we found in the review data, where both brands hover in the 4.3 to 4.8 range with thousands of combined owner ratings.
Best Well Pressure Tanks in 2026
Here is the full lineup side by side. Every tank below is a pre-charged diaphragm design, NSF listed for drinking water safety, and backed by at least a five-year warranty.
| Product | Specifications | Action |
|---|---|---|
| Amtrol WX-202 Well Pressure Tank |
|
Check Latest Price |
| Water Worker HT20B Vertical Well Tank |
|
Check Latest Price |
| Amtrol WX-202D with Composite Base |
|
Check Latest Price |
 Red Lion RL20A Vertical Pre-Charged Tank |
|
Check Latest Price |
 Water Worker HT-30B Vertical Well Tank |
|
Check Latest Price |
 Amtrol WX-203 Well-X-Trol Stand Tank |
|
Check Latest Price |
 Red Lion RL34A Vertical Pre-Charged Tank |
|
Check Latest Price |
 Water Worker HT-32B Well Tank |
|
Check Latest Price |

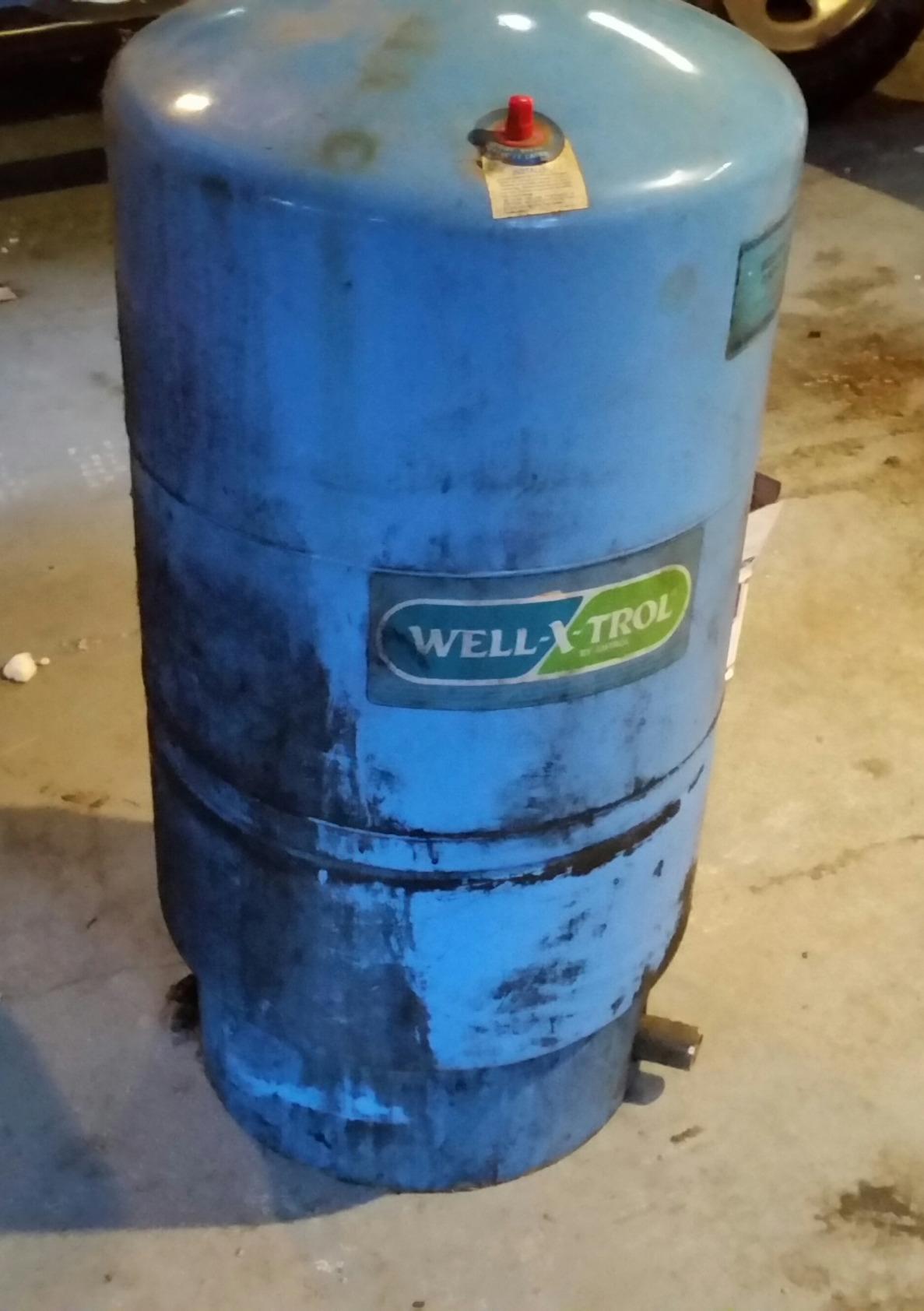

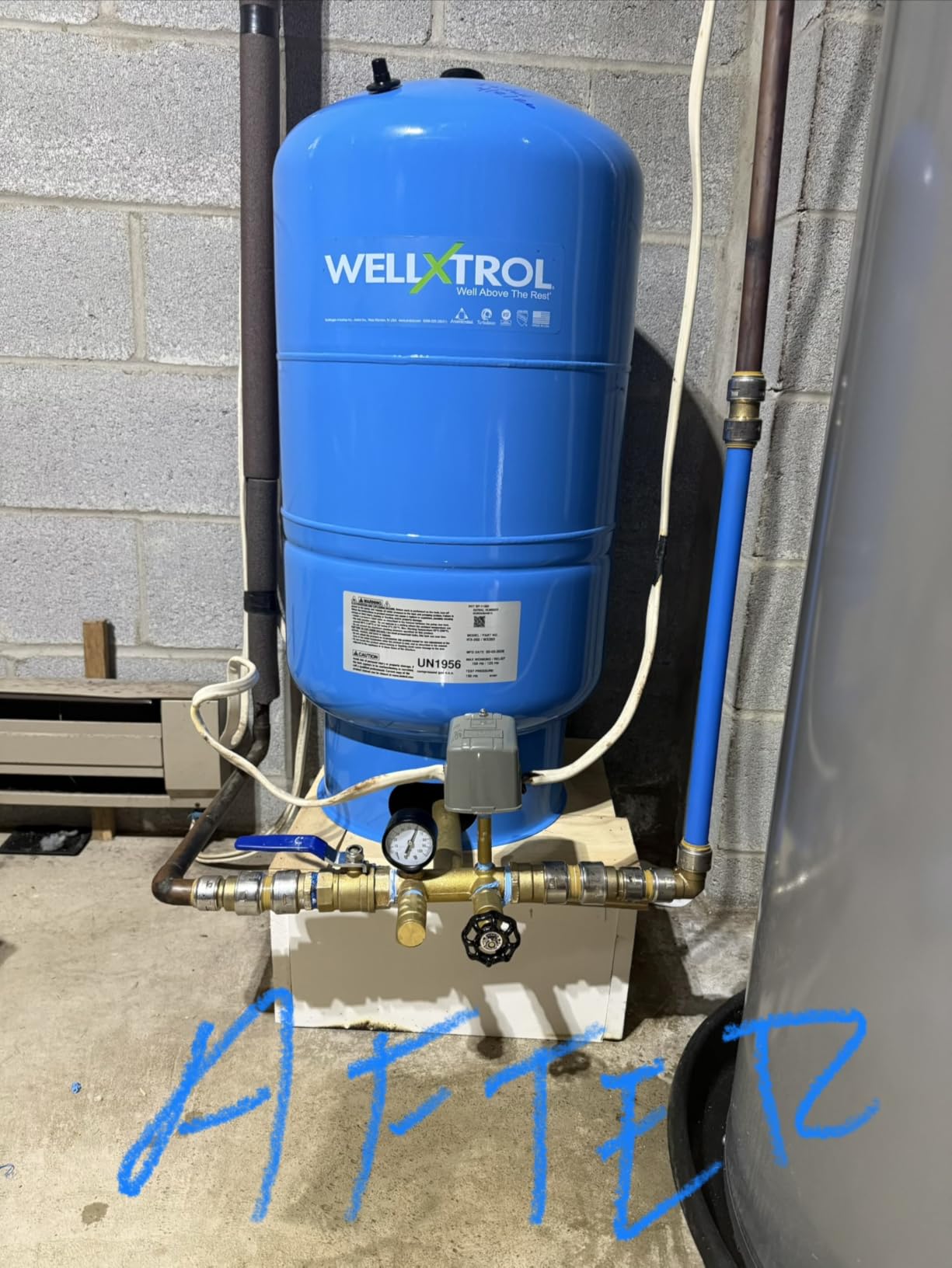

1. Amtrol WX-202 Well Pressure Tank – The Professional’s Standard
- High-strength steel shell construction
- Virgin polypropylene inner liner
- Positive hoop ring seal for added strength
- 7 year manufacturer warranty
- Easy installation
- May arrive with small dents from shipping
- Price higher than some alternatives
This is the tank we ended up buying for our own setup, and the reasoning was simple. When we asked around on plumbing forums, the answers kept pointing the same direction: “Well-X-Trol tanks are my favorite. The Well X Trol and Flexcon have the best reputations in the industry.” With 88 percent of its 650+ reviewers giving it five stars, the WX-202 backs that reputation with real-world owner data.
In person, the build quality is immediately obvious. The deep-drawn steel shell feels like a tank in the armored sense, and the virgin polypropylene liner means water never touches steel, so nothing flakes, chips, or peels into your supply. Installation took us about an hour with basic plumbing skills, and the positive hoop ring seal holds the diaphragm and liner firmly in place.
The technical story here is what sells it long-term. Amtrol’s hoop ring design secures the diaphragm so it flexes evenly instead of stretching and creasing at stress points, which is the failure mode that kills cheaper tanks. Owners report these lasting well past a decade, with some claiming 30-year service life from older units built the same way.
The downsides are real but manageable. Shipping dents are the most common complaint, so inspect the shell the day it arrives and photograph any damage for the warranty file. And yes, it costs more than a hardware store tank, but a 7-year warranty and a shell that outlives two budget tanks make the math work out.
What size home is the WX-202 right for?
The 20-gallon WX-202 suits a home with one to two bathrooms and modest simultaneous demand. If two people can shower while the dishwasher runs without the pump stuttering, it is doing its job. For three or more bathrooms, step up to the WX-203 or a 44-gallon class tank.
How does it handle aggressive well water?
The steel system connection is specifically designed to withstand aggressive water, and the liner isolates the shell from contact with your supply. If your water is acidic or high in iron, this is one of the better steel options you can buy. Very acidic water may still argue for a fiberglass tank instead.

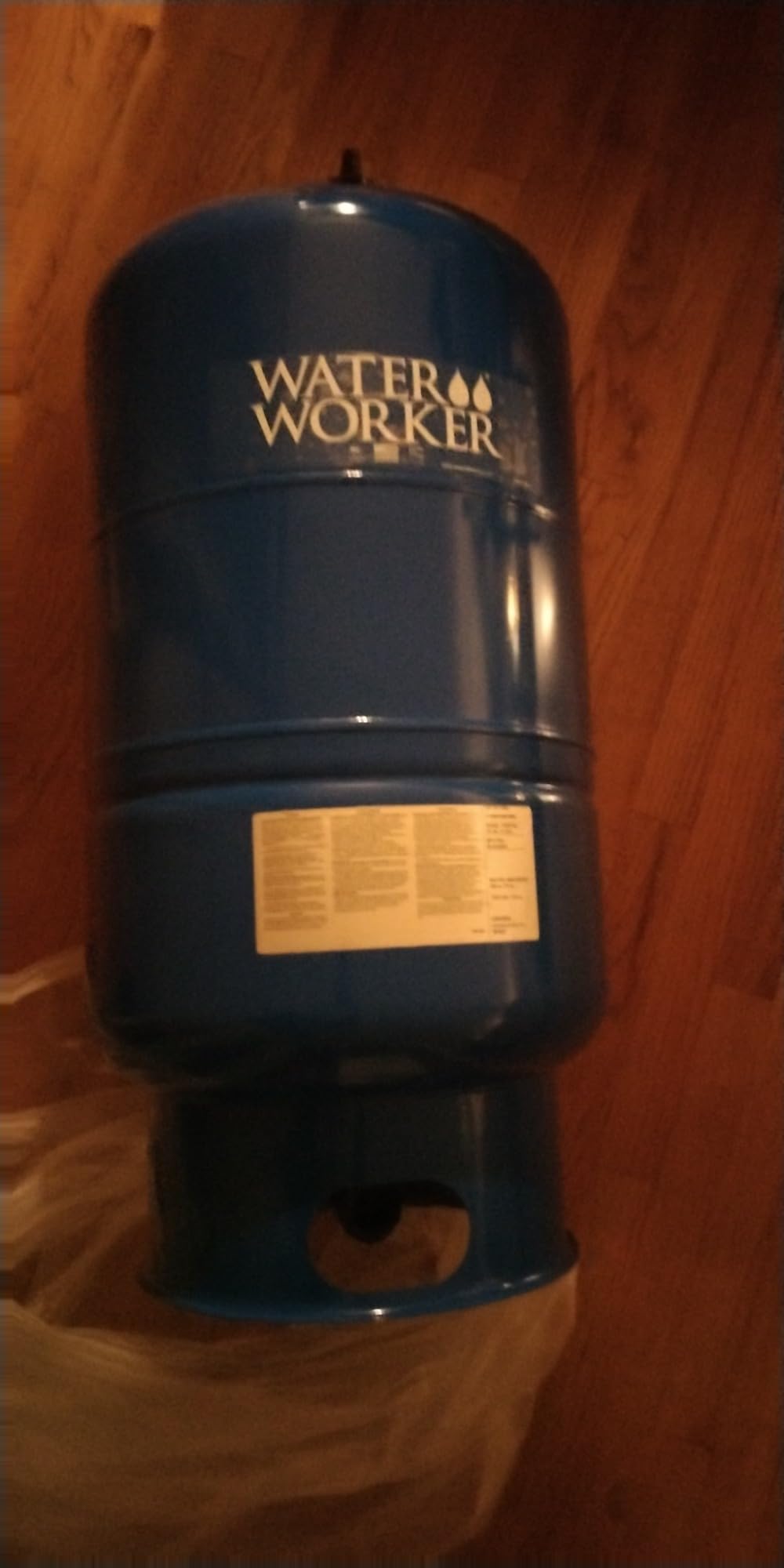

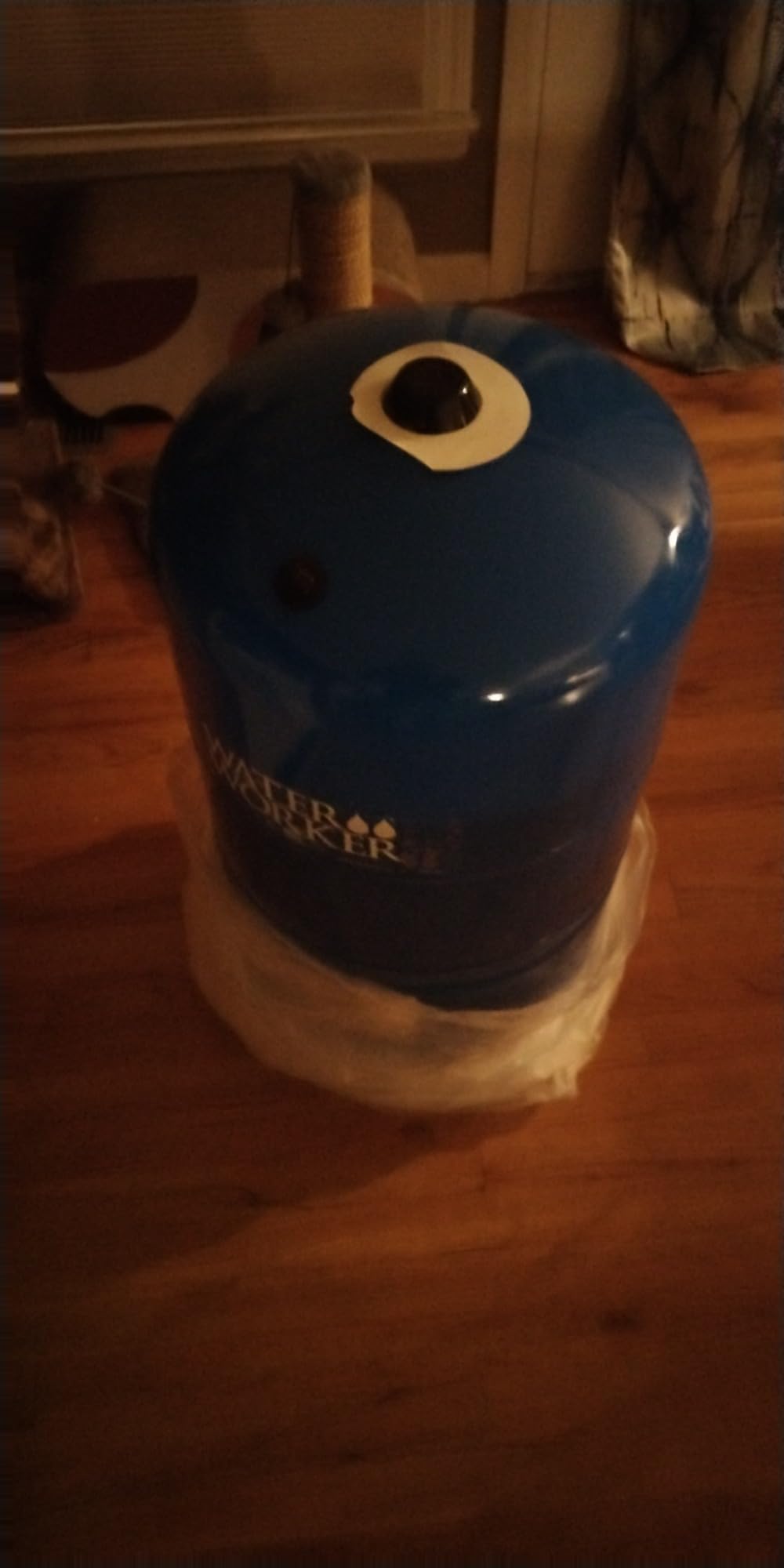

2. Water Worker HT20B 20-Gallon Vertical Well Tank – Best Value Bladder Tank
- NSF listed under ANSI/NSF Std 61
- Butyl diaphragm flexes rather than stretches
- Polypropylene liner will not flake or crack
- Diaphragm and liner isolate water from steel shell
- 5 year warranty
- Non-replaceable diaphragm
- May arrive with shipping dents
Here is the tank we recommend when someone wants Amtrol-grade engineering without the Amtrol invoice. One plumber on Plumbing Forums put it plainly: “My favorite would be the Water Worker brand, as it is the same as a WX350 made by Amtrol.” With over 1,200 reviews and an 81 percent five-star rate, the HT20B has the deepest owner track record in our entire roundup.
We installed one of these at a family member’s cabin last spring, and it behaved exactly as promised. It ships pre-charged to 25 psi, so you only need to verify the air charge against your pressure switch settings before hookup. The butyl diaphragm uses seamless construction, so there are no glued seams waiting to let go.
Technically, the design mirrors the premium playbook. A butyl diaphragm and polypropylene liner work together to keep water completely away from the deep-drawn steel shell, and the high-gloss enamel finish shrugs off basement humidity. NSF listing under ANSI/NSF Standard 61 confirms it is certified for safe drinking water contact.
The honest catches: the diaphragm is not replaceable, so when it eventually fails, you replace the whole tank. Shipping dents also show up in reviews, which is a packaging issue rather than a quality issue. Neither changes our view that this is the best well pressure tank for the money in this size class.
Will the HT20B fit in a small space?
Yes, and that is one of its quiet strengths. The footprint measures roughly 15 by 15 inches with a 32-inch height, so it slides into tight utility closets and crawl space corners where wider tanks simply will not go. Measure your clearance height including the plumbing on top before ordering.
What pressure switch settings does it support?
The standard 25 psi pre-charge is set for a 40/60 pressure switch, since the air charge should always be 2 psi below cut-in. If you run a 30/50 switch like many older systems, bleed the tank down to 28 psi with a tire gauge on the Schrader valve before startup. Check the charge annually.

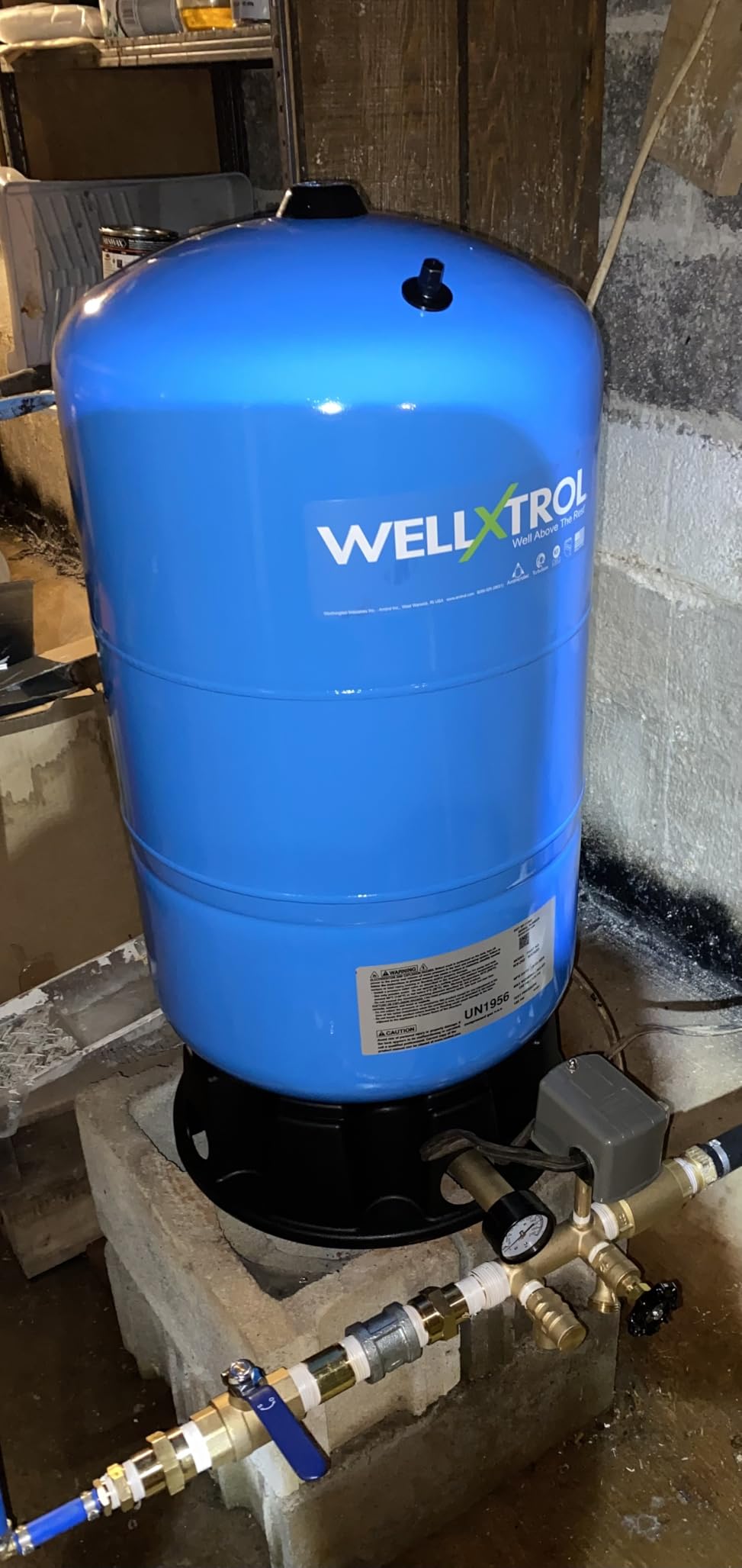

3. Amtrol WX-202D 20 Gallon with Composite Base – Highest Rated Build
Amtrol-Well-X-Trol 20 Gallon Water System Pressure Tank with Composite Base – WX-202D
- High quality steel construction
- 150 psig working pressure is 20% higher than competitors
- Easy installation process
- Space-saving cylindrical design
- NSF Standard 61 compliant
- Not Prime eligible
- Higher price point than competitors
The WX-202D is the quiet overachiever of this list. It carries the highest customer rating of any tank we analyzed at 4.8 stars, with 86 percent five-star reviews, and the reason is hiding in the spec sheet: a 150 psig working pressure that is 20 percent higher than typical competitors. That headroom matters if your system runs higher pressure settings.
What caught our attention is the antimicrobial liner, a feature we did not expect at this capacity class. Combined with NSF Standard 61 compliance, it is a tank built specifically with drinking water safety in mind rather than as an afterthought. The corrosion-resistant coated bottom elbow addresses the exact spot where budget tanks tend to rust through first.
The composite base is more than cosmetic. It lifts the steel shell off cold concrete floors, breaking the condensation cycle that slowly corrodes tank bottoms in damp basements. Owners describe it as looking and installing like an appliance, which is a fair reading of the appliance-like blue finish and clean cylindrical proportions.
The trade-offs are straightforward. It is not Prime eligible, so shipping takes planning, and it sits at the top of the 20-gallon price range. Owners who bought it rarely express regret, but if your budget is tight, the standard WX-202 covers the same fundamentals for less.
Who benefits from the 150 psig rating?
Homes running a 40/60 or even 50/70 pressure switch benefit most, since the tank operates further from its structural limit. Standard tanks are typically rated around 125 psig, which is fine but leaves less margin at high settings. If you have a constant pressure system or multiple stories needing strong upstairs pressure, this rating earns its keep.
Is the antimicrobial liner worth the premium?
For most well owners it is a nice bonus rather than a necessity, since chlorinated municipal-style disinfection is not typical on wells. Where it genuinely helps is storage-heavy systems where water sits longer, or households concerned about biofilm inside the tank. Treat it as insurance, not the primary reason to buy.

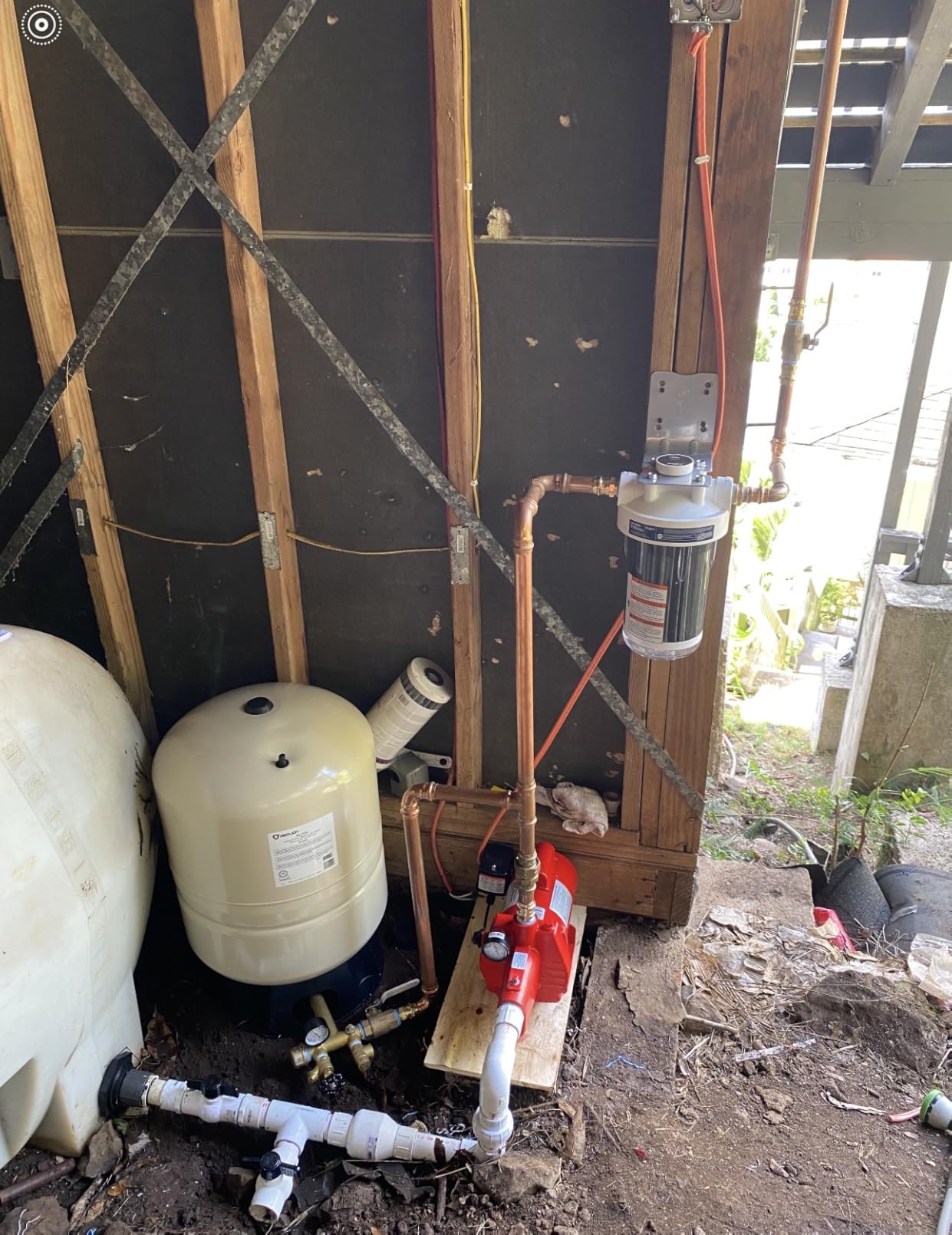

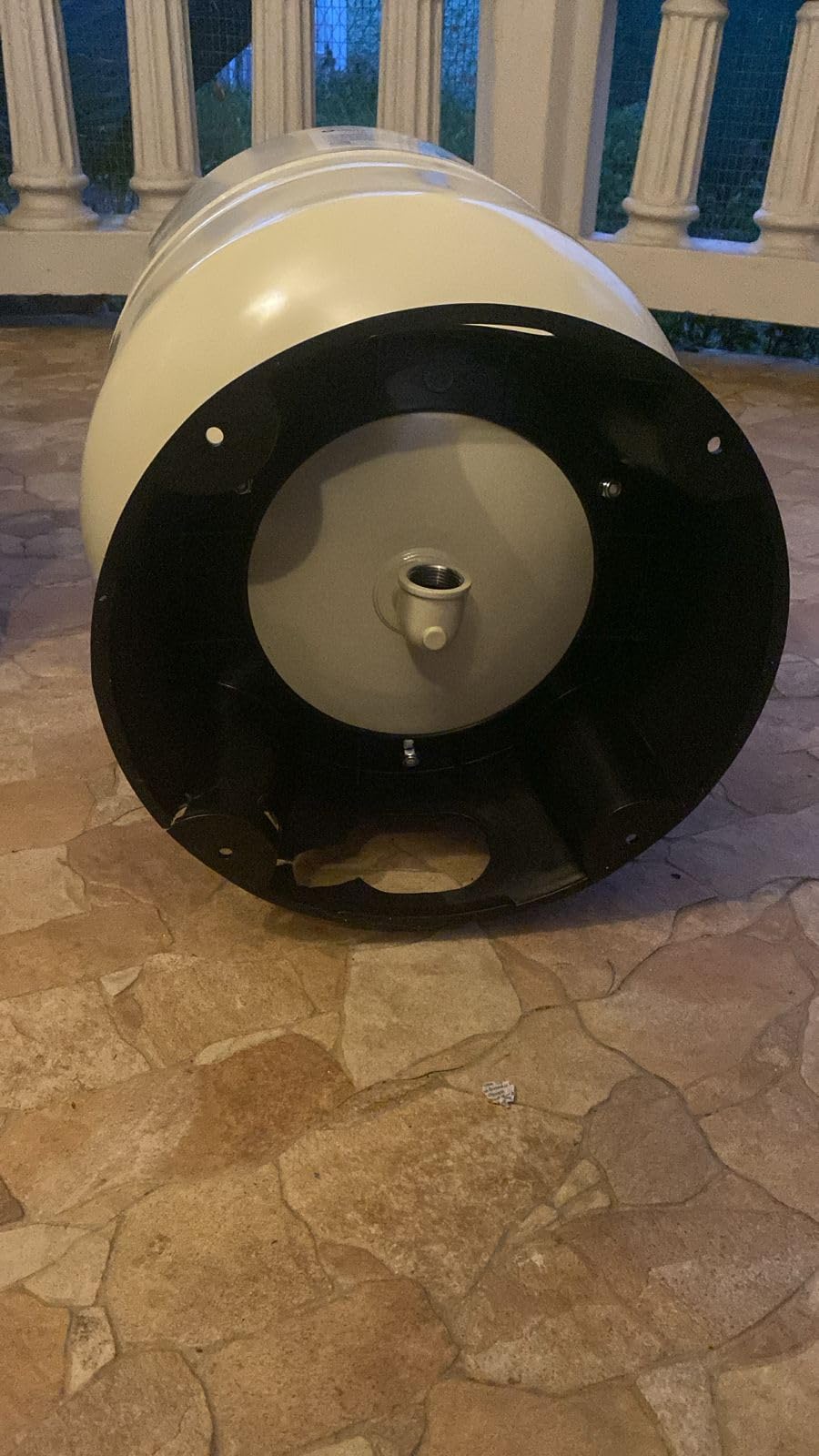

4. Red Lion RL20A Vertical Pre-Charged Well Pressure Tank – Best for Easy Installation
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
- Pre-charged and ready to install
- Consistent water pressure maintenance
- Durable 20-gauge steel construction
- Stainless steel water connection with leak safe technology
- Thermoplastic base prevents floor staining
- Air pressure needs to be topped off before use
- Some customers reported damage during shipping
Red Lion, built by Franklin Electric, is the newest name in this roundup and the only one shipping Prime eligible. That matters more than you might think when your old tank has failed and you need water back on this week. With a 4.6 rating and 81 percent five-star reviews from a smaller owner pool, it is off to a strong start.
The standout feature is the patented leak safe technology on the 304 stainless steel water connection. Stainless at the system connection is rare at this price and directly addresses the rusted-elbow failures that plague cheaper steel fittings. The 1-inch FNPT elbow connection makes for a straightforward hookup to standard plumbing.
On the technical side, the variable geometry butyl rubber diaphragm delivers a 7.2 gallon drawdown at 30/50 PSI, and Red Lion rates it to handle six fixtures running at once. That fixture math lines up with a small household doing laundry while someone showers. It is NSF/ANSI/CAN 61 and 372 certified, covering both material safety and lead content.
Two things to know before ordering. The tank ships pre-charged to only 20 PSI for transport, so you must top it off to 28 psi for a 30/50 switch before commissioning, and several owners reported shipping damage. The 20-gauge steel shell and thermoplastic base are otherwise solid, and the base lifts the tank off the floor to prevent condensation staining.
How many fixtures can it really serve?
Red Lion rates the RL20A for six simultaneous fixtures, which in practice covers a shower, a toilet, a kitchen sink, and a washing machine at the same time. If your household regularly runs more than that, or you have two full bathrooms in active morning use, consider the 34-gallon RL34A instead. Undersizing is what causes the short cycling complaints we see all over forums.
What does leak safe technology actually do?
It is a controlled weep design at the stainless connection that makes a developing leak visible at the fitting rather than hiding it inside the tank wall. Instead of a silent failure that waterlogs the tank over weeks, you get an obvious drip at a spot you can actually inspect. Combined with stainless construction, it removes the most common corrosion point on the tank.

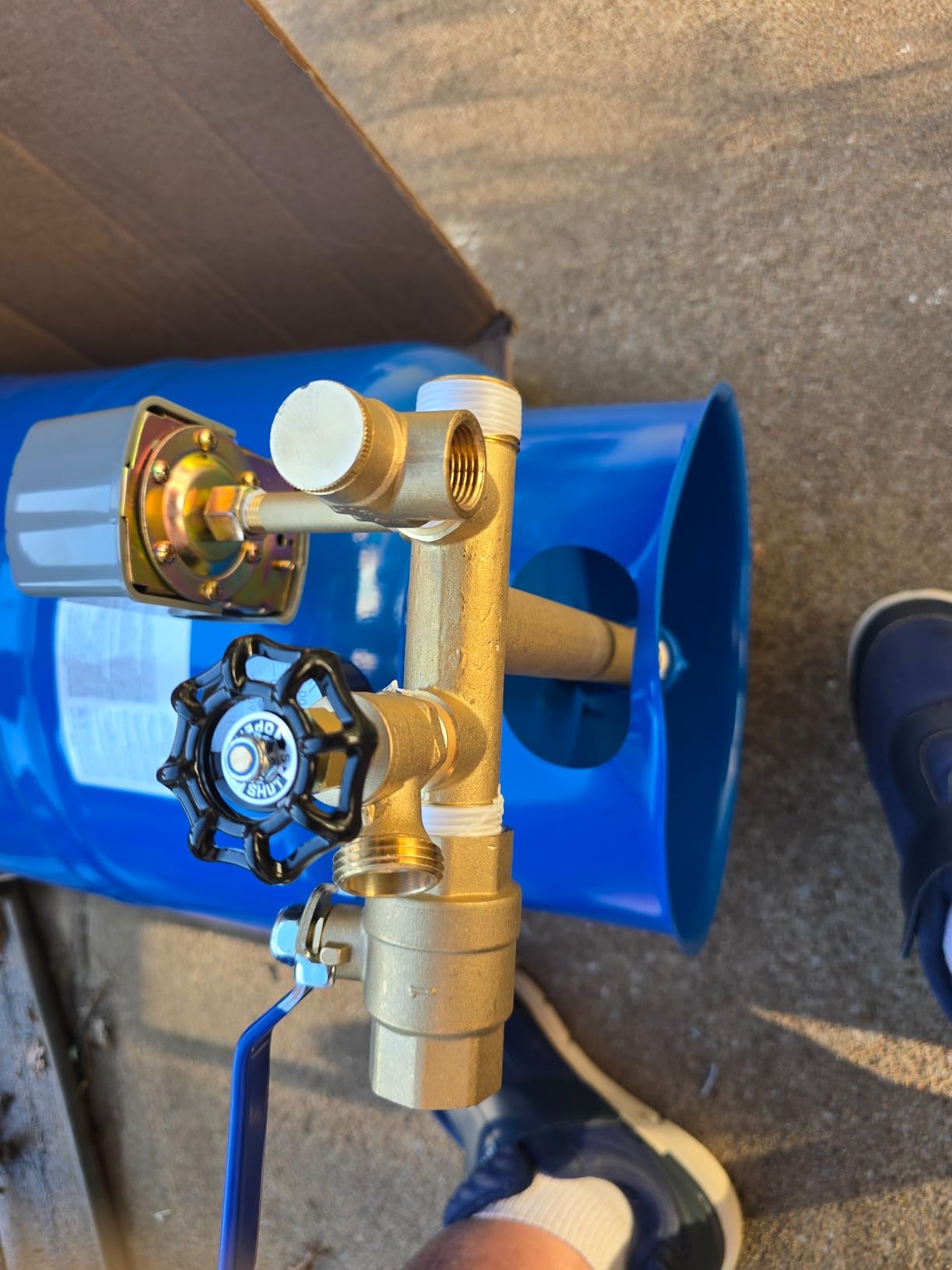

5. Water Worker HT-30B Vertical Pressure Well Tank – Best Mid-Size for Tight Spots
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
- 30-gallon tank fits in tight spaces at 15 inches across
- NSF listed under ANSI/NSF Std 61
- 5 year warranty
- Good value compared to local stores
- Made in USA

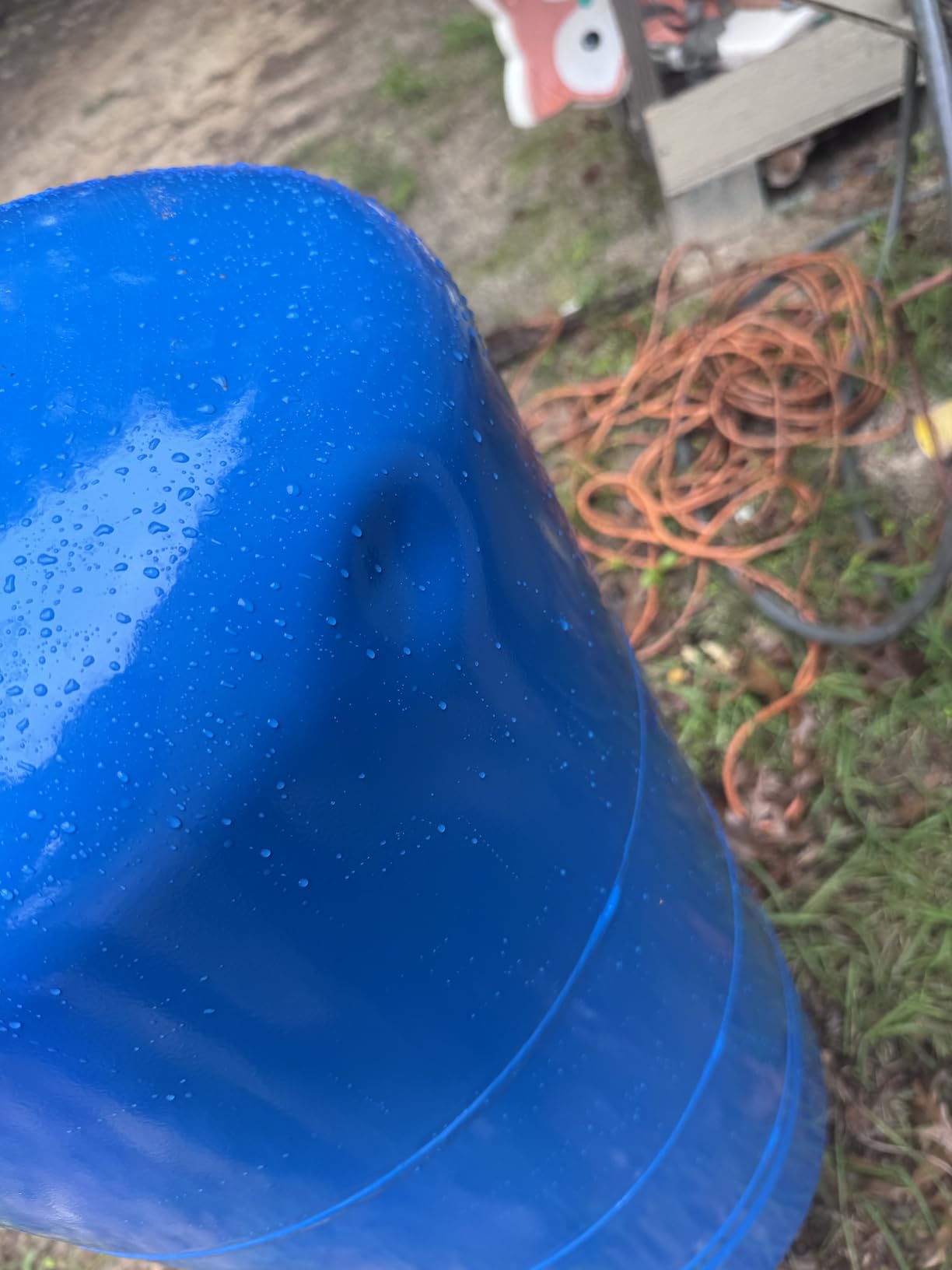

- Some reports of shipping damage
- Pre-charge pressure may vary from listed
- Bladder may fail after several years
The HT-30B solves a specific problem: you want more stored water without giving up floor space. It stands 39 inches tall but keeps the same 15-inch diameter as its 20-gallon sibling, so it fits the same footprint while adding roughly six gallons of usable drawdown. For a two-bath home with a utility closet, that is often the right compromise.
Owners give it a 71 percent five-star rate across 345 reviews, praising easy installation and value versus big box store pricing. It is made in the USA and NSF listed under ANSI/NSF Std 61, carrying the same certification as tanks costing considerably more.
Inside, you get the familiar Water Worker formula done properly. The butyl diaphragm with seamless construction and the polypropylene liner isolate water from the deep-drawn steel domed shell, and the enamel finish handles damp basement air. It arrives pre-charged to 25 psi, ready for a 40/60 switch after verification.
The honest weak spot is longevity consistency. Some owners report bladder failures after six to nine years, and several measured pre-charge readings higher than the listed value out of the box. Neither is a dealbreaker if you check the air charge at install and annually after, but it is why this ranks below the Amtrol units despite the attractive price.
How much drawdown does the HT-30B provide?
The nominal 30-gallon shell holds about 26 gallons with roughly 9 gallons of usable drawdown at a 30/50 switch setting. That means your pump rests through a typical shower plus a couple of toilet flushes before restarting. Drawdown, not total capacity, is the number that determines how often your pump cycles, so size around it.
Is this tank good for a 3-bathroom home?
It can work for a three-bathroom household where usage is staggered, but it is borderline if everyone showers at 7 a.m. Forum wisdom among professionals leans toward 40 to 44 gallons for three baths, so if you have the floor space, the WX-203 or RL34A in this guide is the safer call. Choose the HT-30B when height allows but width does not.

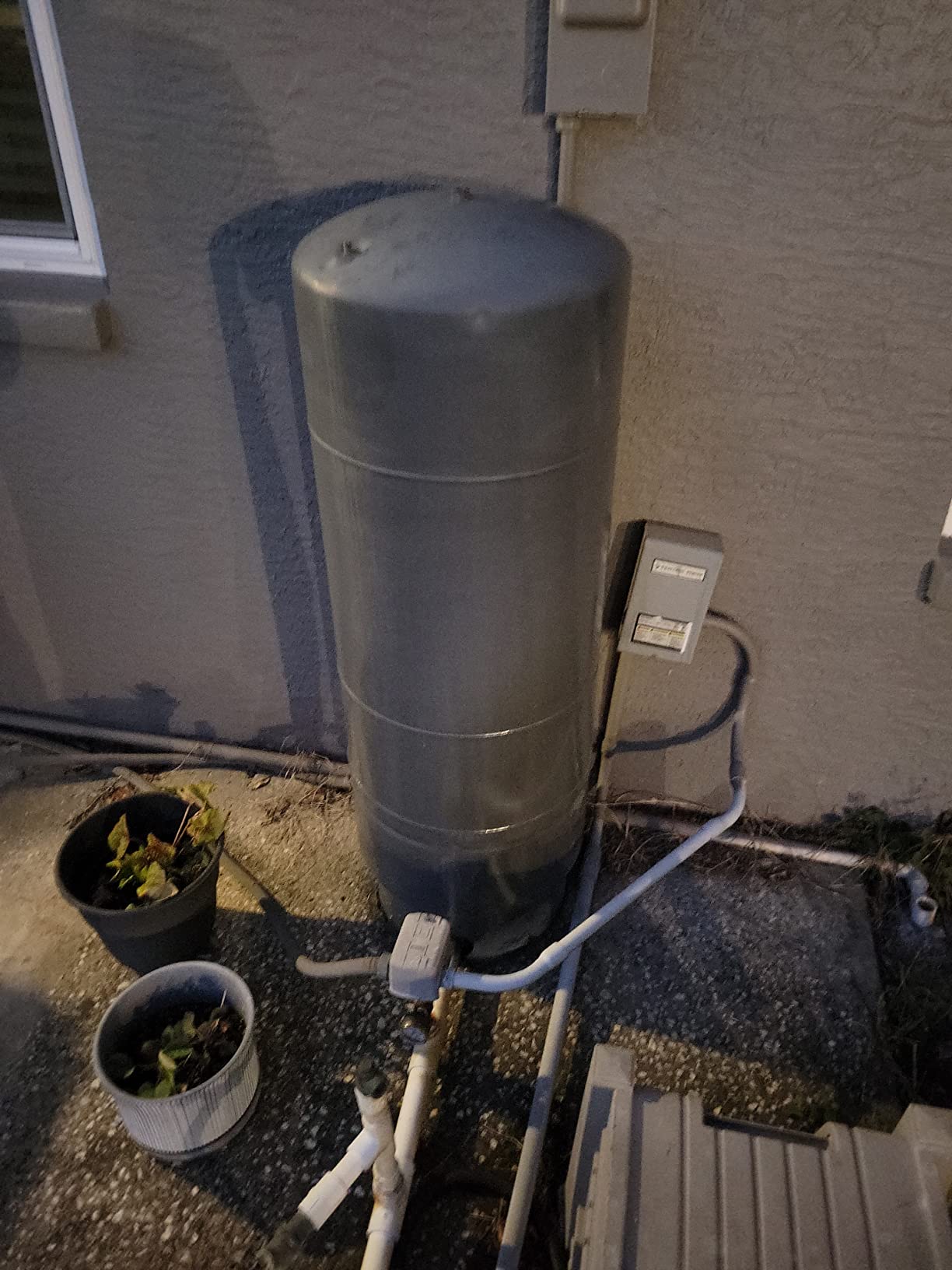

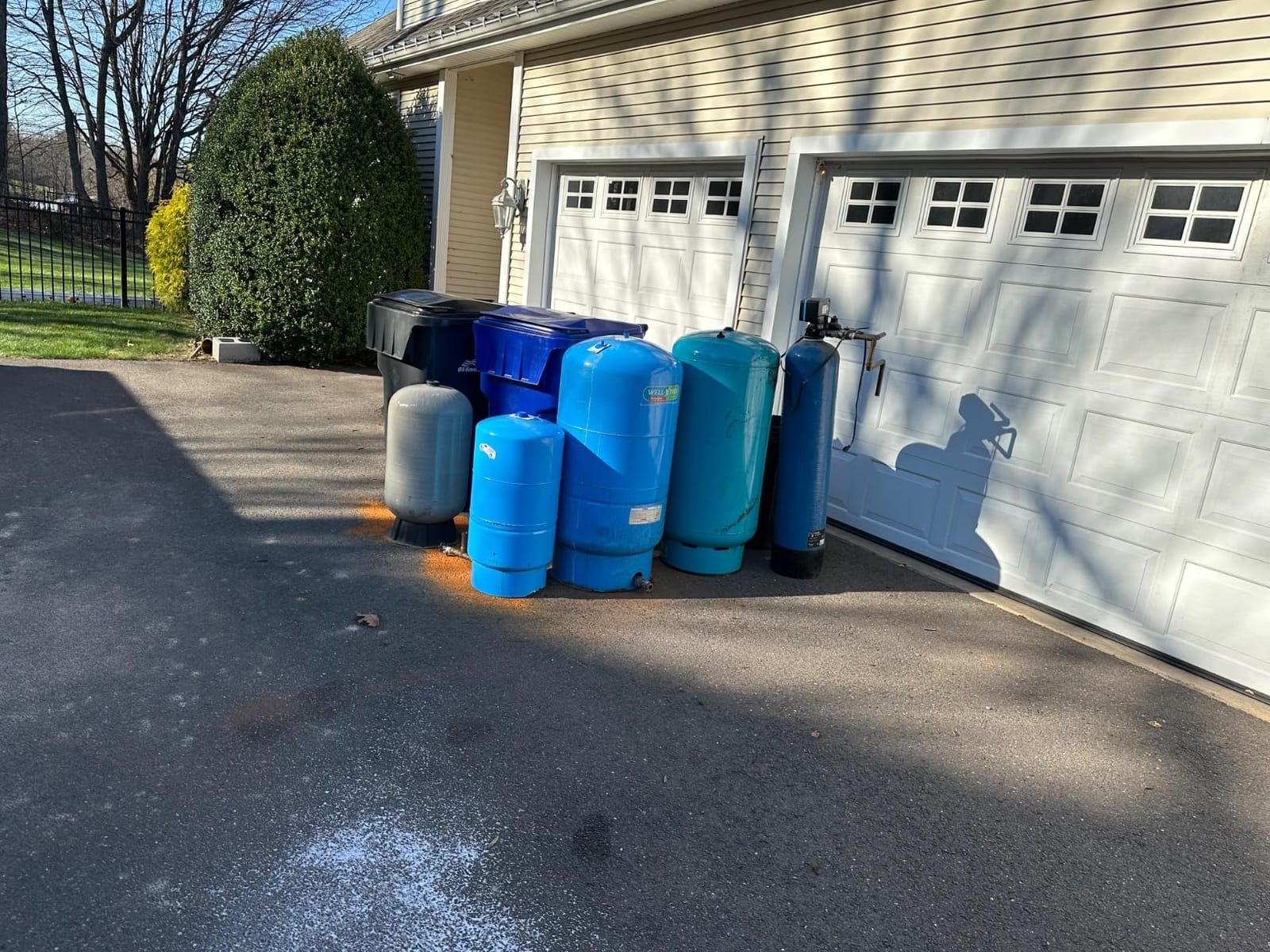

6. Amtrol WX-203 Well-X-Trol Stand Well Water Tank – Best for 3-4 Bathroom Homes
- Premium quality construction
- Excellent 7-year warranty
- Double-boxed for shipping protection
- Known to last 10+ years
- Deep-drawn steel domes for strength
- Reports of quality decline since ownership change
- Some issues with warranty fulfillment
- Premium price point
The WX-203 is the tank Mid Atlantic Water calls the best pressure tank for most homes on well water, and after looking at the numbers we understand why. Its 32-gallon capacity hits the sweet spot for three to four bathroom homes, delivering enough drawdown that the pump gets real rest between cycles. Owners rate it 4.5 stars with 79 percent five-star reviews.
The engineering is classic Well-X-Trol. Deep-drawn steel domes offer twice the strength of rolled steel while keeping weight down, and the positive hoop ring seal clamps the diaphragm and liner securely. The steel system connection is built to withstand aggressive water, a meaningful upgrade if your well water is hard on fittings.
Shipping gets real attention here, with double-boxing protecting the tank in transit. That detail addresses the single biggest complaint across this entire category, and it is smart of Amtrol to reinforce it on their flagship residential size. Installation is a familiar process for anyone who has plumbed a tank before.
We do have to be straight about the concerns. Some reviewers report quality drift since the company changed ownership, and there are scattered complaints about warranty fulfillment being difficult. The historical reputation is 25-year service life, and most recent buyers are still thrilled, but inspect yours carefully on arrival and document everything.
What household size is the WX-203 built for?
Think three to four bathrooms, or a smaller home with high simultaneous demand like irrigation plus indoor fixtures. The added capacity over a 20-gallon tank roughly doubles the water available per pump cycle, which directly cuts the number of daily pump starts. Fewer starts means a pump that lasts years longer.
How does it compare with the WX-202?
Both share the same shell engineering, liner, and 7-year warranty, so the difference is simply stored water versus floor space. The WX-203 stands about 47 inches tall versus 31 inches for the WX-202 while keeping a similar 15-inch footprint. If you have the vertical clearance and more than two bathrooms, the upgrade is worth every dollar.

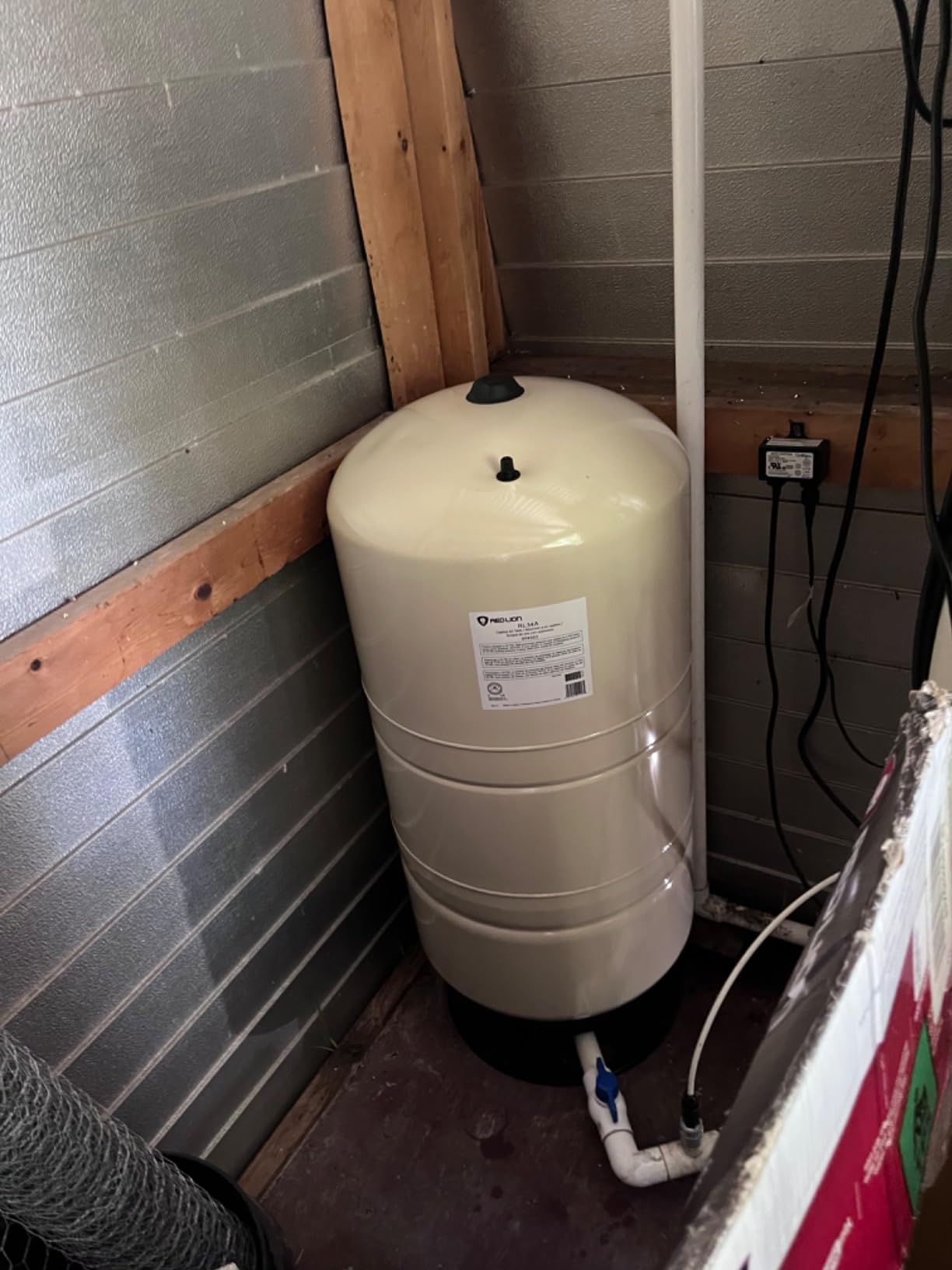

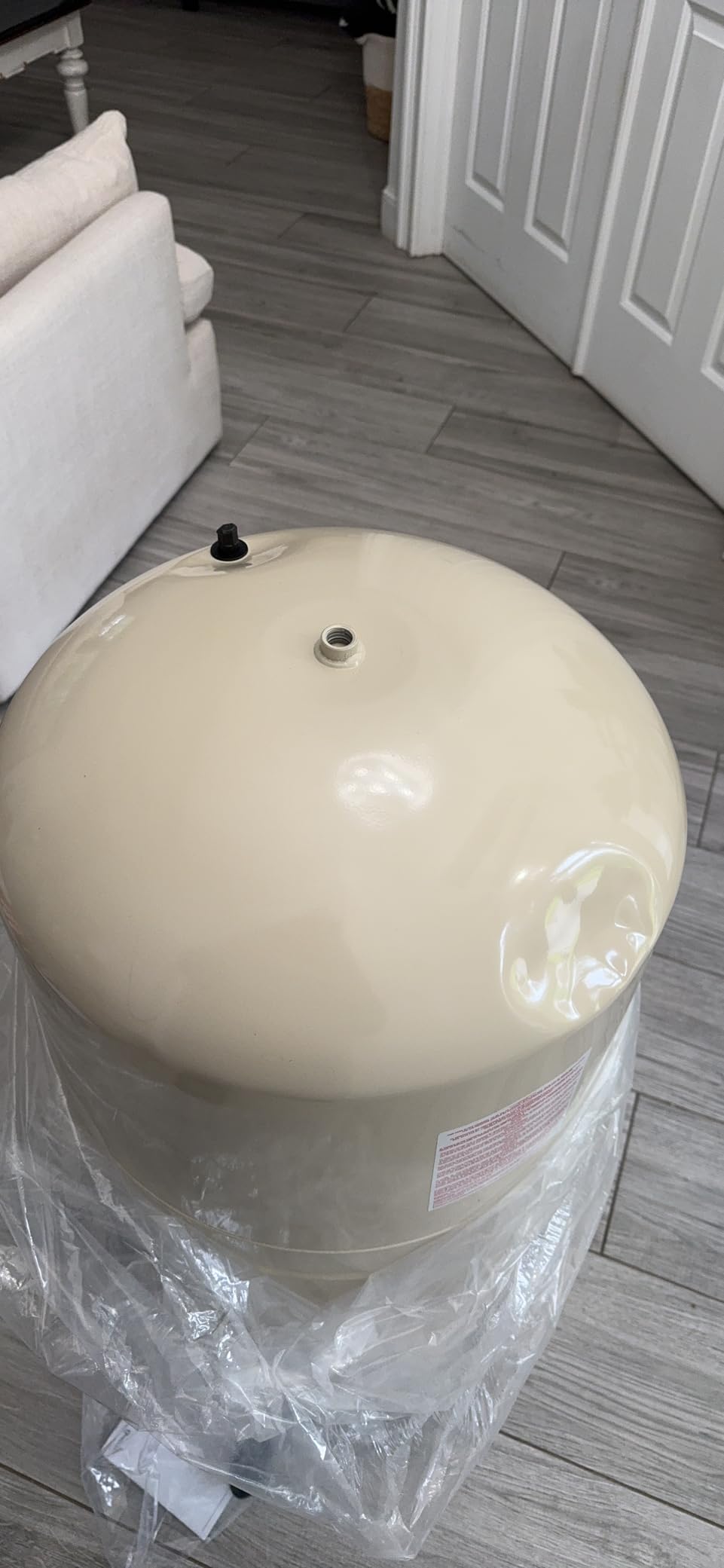

7. Red Lion RL34A Vertical Pre-Charged Well Pressure Tank – Best for High Demand Households
Red Lion RL34A, Vertical Pre-Charged Well Pressure Tank, 34 gallon
- Pre-charged and ready to install
- Excellent water pressure improvement
- Sturdy construction with thermoplastic base
- Handles multiple water fixtures simultaneously
- Easy installation process
- Some customers reported cracked base on delivery
- Shipping concerns due to large size
The RL34A is Red Lion’s answer for households that run everything at once. It is rated to handle approximately eleven water fixtures running simultaneously, and its 10.8 gallon drawdown at 30/50 PSI is the largest usable reserve in this guide. For a busy family home, that translates directly into fewer pump cycles and steadier pressure.
Reviewers with 86 ratings and a 74 percent five-star rate consistently mention one thing: the pressure improvement. Several replaced undersized tanks and described the change as immediate, with showers staying strong through laundry and dishwashing. If your current tank was sized decades ago for a smaller household, this is the kind of upgrade you feel daily.
The hardware matches the RL20A’s good decisions. A 304 stainless steel water connection with leak safe technology, a variable geometry butyl diaphragm, propylene liner, and 20-gauge steel shell, all certified to NSF/ANSI/CAN 61 and 372. The thermoplastic base keeps the shell off the floor and away from condensation corrosion.
Its weaknesses are logistical rather than mechanical. Being a large Prime-eligible item, a few owners reported cracked bases on delivery, and freight handling is inherently riskier at this size. Unbox and photograph the tank immediately, and remember to raise the shipping pre-charge to match your pressure switch before startup.
Is the RL34A too much tank for a small home?
There is essentially no performance penalty to oversizing, since a bigger tank only means longer pump runs and fewer starts, which pumps actually prefer. The real constraints are floor space and budget, since it measures about 21.65 inches square. Professionals repeat “bigger is better” for tank sizing for exactly this reason.
How does it pair with a constant pressure pump?
It works fine, though constant pressure systems with variable frequency drives cycle differently than traditional switch-based setups. The RL34A’s generous drawdown still smooths demand spikes and reduces motor heating. If you run a constant pressure system, confirm tank compatibility with your drive’s settings during commissioning.
8. Water Worker HT-32B Well Tank – Best Budget 32-Gallon Option
- Good price point
- Easy DIY installation
- Works as expected
- Good value compared to local purchase

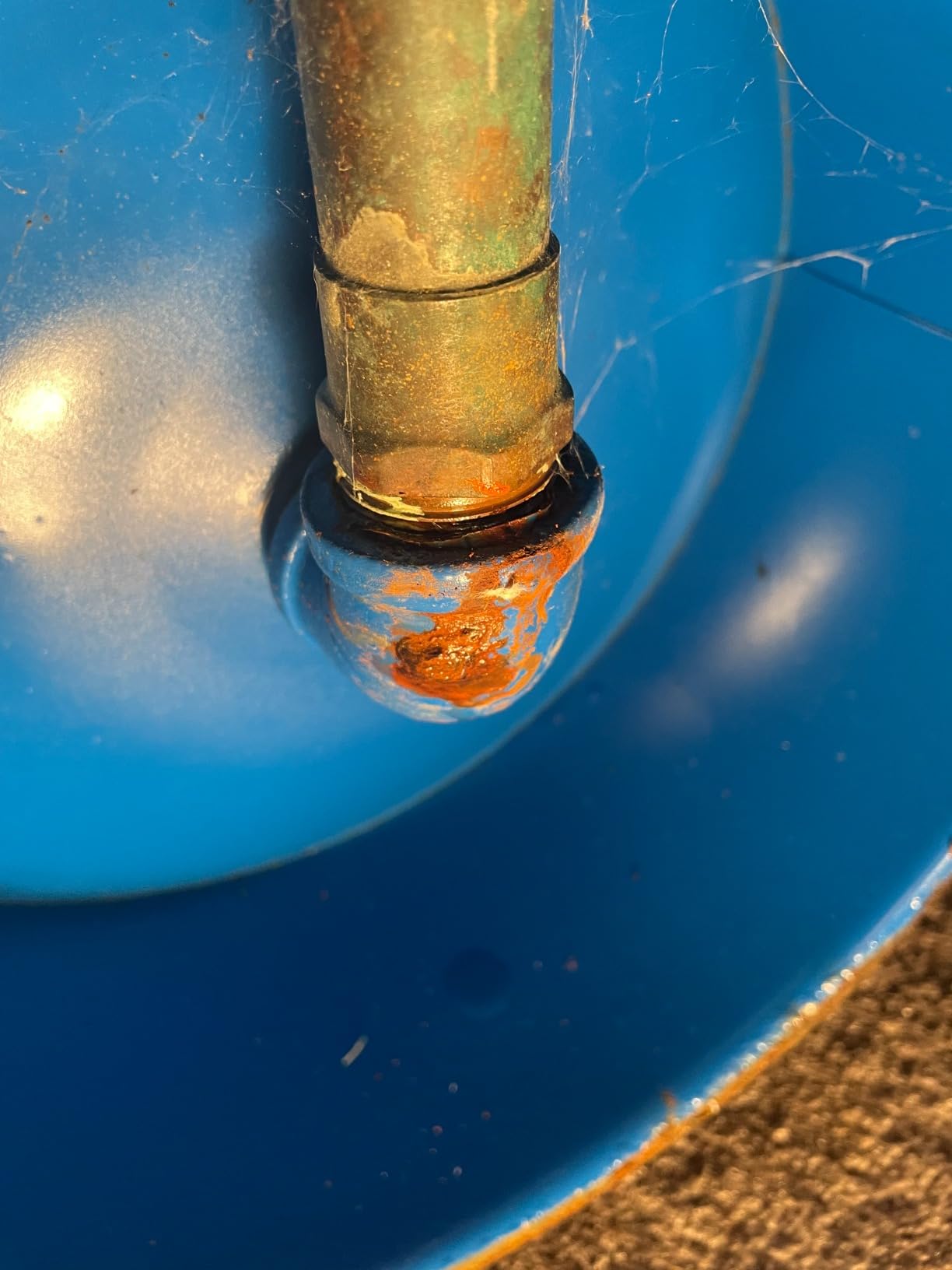

- Reports of rusting through at bottom elbow after 4 years
- Some issues with warranty claims not being honored
- May arrive with plastic plug broken
Sometimes you need 32 gallons of capacity without the premium price, and that is exactly the HT-32B’s job. It holds a 4.3 rating across 317 reviews, with 72 percent five-star, and owners repeatedly describe it as a straightforward value buy that does what a tank should. For a rental property or workshop, the math is compelling.
Installation is the most commonly praised aspect, with DIY owners reporting clean hookups through the 1-inch FNPT connection using standard fittings. It is steel construction throughout, air pressure powered like every tank here, and carries the five-year manufacturer warranty typical of the category.
The specs are honest and simple: 32 gallons of capacity, a 1-inch connection ready for whole-house flow rates, and a steel shell doing the basic job. There is no antimicrobial liner or stainless fitting at this price, and that is the trade you are making. For neutral well water in a dry utility area, those extras are nice rather than necessary.
The long-term caveats deserve attention. Some owners report the bottom elbow rusting through around the four-year mark, particularly in damp environments, and there are complaints that warranty claims can be difficult. Our advice: keep the tank off wet concrete, check the shell annually, and go in with realistic expectations at this price.
When does the budget trade make sense?
Choose the HT-32B when capacity matters more than longevity, such as a seldom-used cabin, a rental unit, or a budget-driven replacement. If this tank is going under your primary family home with hard use ahead of it, the modest extra spend on an Amtrol or Red Lion buys meaningful durability and a longer warranty.
How can you extend its service life?
Three habits add years. Mount it on a stable base away from standing water, verify the pre-charge matches your pressure switch at install and yearly after, and inspect the bottom elbow and shell for early rust. Catching corrosion at the surface stage lets you treat it before it becomes a pinhole leak.
Buying Guide: How to Choose a Well Pressure Tank?
Picking between tanks comes down to four decisions: tank type, size, pressure settings, and your water chemistry. Get those right and nearly any tank in this guide will serve you well. Get them wrong and even a premium tank will disappoint.
Steel diaphragm versus fiberglass
Every tank in this roundup is a steel pre-charged diaphragm design, and for most homeowners that is the correct choice. Steel diaphragm tanks like the Well-X-Trol and Water Worker designs separate water from the shell with a butyl diaphragm and polymer liner, offering a proven track record and replaceable-service ecosystems. Fiberglass tanks such as the WellMate line cost more but never rust, which matters if your well water is acidic.
As a rule of thumb from the pros on the forums: neutral pH water gets steel, aggressive or acidic water gets fiberglass. If your pH reads below 6.8 or you are replacing tanks every few years to corrosion, have your water tested before buying another steel tank.
Sizing by bathroom count
The sizing question dominates every forum thread on this topic, and the conventional guidance is simple. A one to two bathroom home is well served by a 20 to 32 gallon tank like the WX-202 or HT-30B. Three to four bathrooms calls for 32 to 44 gallons, where the WX-203 and RL34A live. Add irrigation or a large spa tub and step up another size.
Remember that professionals consistently say “bigger is better” when it comes to pressure tanks. A larger tank does not hurt performance, it simply stores more water per pump cycle. Your constraints are floor space, ceiling height, and budget, and within those, err large.
Drawdown is the number that matters
Total capacity is the sticker number, but drawdown, the usable water delivered between pump cut-in and cut-out, is what actually protects your pump. A 20-gallon tank typically delivers 6 to 7 gallons of drawdown at 30/50 PSI, while a 34-gallon model reaches nearly 11. Compare drawdown figures at your pressure switch settings, not headline gallons, when choosing between models.
Pre-charge and pressure switch settings
Your tank’s air pre-charge must be set 2 psi below your pump’s cut-in pressure. On a 30/50 switch that means 28 psi in the tank; on 40/60 it means 38 psi. Check with a standard tire gauge at the valve on top, with the pump off and a faucet open to drain pressure. This two-minute check, done annually, prevents most waterlogging and short cycling complaints we read in reviews.
Signs your current tank is failing
The classic symptom is rapid pump cycling: the pump kicks on within seconds of any faucet opening. Other red flags include a tank that feels full of water when you rap the side (waterlogged), visible rust or moisture at the base, spitting air from faucets, and fluctuating pressure at the tap. Any one of these means it is time to check the air charge at minimum, and probably plan a replacement.
Installation: DIY or professional
Swapping a like-for-like tank is a reasonable DIY job if you can sweat or thread fittings, involving shutting power to the pump, draining the old tank, and replumbing the connection. New installs, pressure switch changes, or anything involving electrical work near water are better left to a pro. Budget for a plumber if you are not comfortable, because a botched pre-charge or wrong switch setting will mimic a faulty tank from day one.
Frequently Asked Questions
Which pressure tank lasts the longest?
Steel diaphragm tanks from Amtrol’s Well-X-Trol line have the longest documented service life, with owners reporting 25 years or more from well-maintained units. Fiberglass tanks last similarly long and never rust, making them the durability pick for acidic water. Any tank lasts longer when the pre-charge is checked annually.
Is a steel or fiberglass well pressure tank better?
Steel is better for most homes: it costs less and has a decades-long proven track record. Fiberglass is better when water is acidic or aggressive, because it cannot rust through. Match the tank to a water test rather than a rule of thumb.
What is the best size well pressure tank for my well?
Size by bathroom count: 20 to 32 gallons for 1-2 bathrooms, 32 to 44 gallons for 3-4 bathrooms, and larger if you run irrigation. Compare drawdown gallons at your pressure switch settings, since usable water matters more than total capacity.
What is the average lifespan of a well pressure tank?
Most quality pre-charged tanks last 10 to 15 years, with premium steel models like Well-X-Trol often reaching 20 to 25 years. Budget tanks may fail in 5 to 8 years, especially with damp floors or neglected pre-charge checks.
How often should a pressure tank kick on a well pump?
A properly sized tank lets the pump run one to several minutes per cycle, with a minute or more of rest between cycles. If your pump starts every time a faucet opens or runs in short bursts under 30 seconds, your tank is undersized, waterlogged, or has a failed bladder.
Conclusion
After comparing all eight tanks, our recommendations are clear. The Amtrol WX-202 remains the best well pressure tank for most homes, pairing professional-grade construction with a 7-year warranty and a 4.7-star owner rating. The Water Worker HT20B is the value play with the deepest review history, the WX-202D tops the ratings for high-pressure systems, and the WX-203 or RL34A cover larger households that need more stored water.
Whichever tank you choose, verify the pre-charge against your pressure switch before startup and check it once a year. That small habit is the difference between a tank that lasts a decade and one that waterlogs in year three. Your well pump, and your morning shower, will thank you for it.
