Every astrophotographer learns the same lesson eventually. You can spend months on optics, sensors and processing, and then load a two-hour exposure and find that the stars are little ovals instead of points. Nothing in software fixes that. The mount is the part that decides whether the best telescope mounts for astrophotography are worth owning, because it is the only component that has to hold a camera perfectly still while the sky appears to move across it for minutes on end.
That is why picking a mount feels harder than picking a telescope. Lenses and tubes come with focal lengths and apertures you can compare on a chart. A mount is sold with a payload number, and that number tells you very little on its own. The same mount can produce razor-sharp sub-arcsecond guiding with a light payload and mushy, trailing frames with a heavy one. Two mounts with identical specs can behave completely differently depending on the drive train, the backlash in the declination axis, and how well you balanced the train at 9pm in the cold.
We spent 2026 season working through eight mounts that real imagers actually buy, from pocket-sized star trackers to a 44 lb payload German equatorial that most people assemble with a second adult. The eight cover the full range of realistic setups: a DSLR and telephoto lens, a small refractor with a cooled astronomy camera, a mid-size Newtonian, and a permanently mounted pier. Each one below comes with the payload number stated plainly, the balance math worked out, and an honest note about where it will frustrate you.
If you have not built a rig yet, it also helps to lock the optical tube first. Our guides to the best telescopes for astrophotography and the best lenses for astrophotography will help you size a train first, then you can come back here and pick a mount that carries it without straining.
Table of Contents
Top 3 Best Mounts for Astrophotography in 2026
Before the full reviews, here is the short answer. The Star Adventurer 2i Pro is the one most people should buy first, because it weighs seven pounds, runs for roughly forty hours on a set of batteries, and still produces clean two-minute subs. The iOptron SkyGuider Pro is the smarter machined-metal option for anyone who wants a slightly bigger payload without the plastic parts. The Celestron Advanced VX is where you go when the imaging train grows past a small refractor and you want proper GoTo pointing.
Sky-Watcher Star Adventurer 2i Pro
- 7 lb portable tracking head
- Built-in Wi-Fi with SAM Console app
- Deluxe equatorial base
- Illuminated polar finder
- Auto-guide port
iOptron SkyGuider Pro
- 11 lb payload when balanced
- All-metal machined body
- Integrated AccuAlign polar scope
- Up to 20 hours internal battery
- Auto-guide port
Celestron Advanced VX
- 30 lb payload capacity
- 2-inch stainless steel tripod legs
- NexStar+ hand control with 40
- 000+ objects
- PPEC and All-Star alignment
- 7 to 77 degree latitude range
Two caveats on that list. The Advanced VX and the EQ6-R Pro both trade portability for capacity, and the VX in particular is a 50 lb item before you add a telescope. And none of the three has an auto-guider bundled; you will need a separate guide camera and guide scope for long sub lengths, or you will work with the exposures each mount can do unguided.
All Eight Mounts Compared Side by Side (October 2026)
Every mount in this roundup, with the numbers that actually determine whether it suits your rig.
| Product | Specifications | Action |
|---|---|---|
| Sky-Watcher Star Adventurer 2i Pro Pack |
|
Check Latest Price |
| iOptron SkyGuider Pro |
|
Check Latest Price |
| Celestron Advanced VX |
|
Check Latest Price |
 Sky-Watcher Star Adventurer GTi Kit |
|
Check Latest Price |
 Celestron CG-4 Manual Equatorial |
|
Check Latest Price |
 Explore Scientific iEXOS-100-2 |
|
Check Latest Price |
 Sky-Watcher EQ6-R Pro |
|
Check Latest Price |
 iOptron SkyTracker Pro |
|
Check Latest Price |

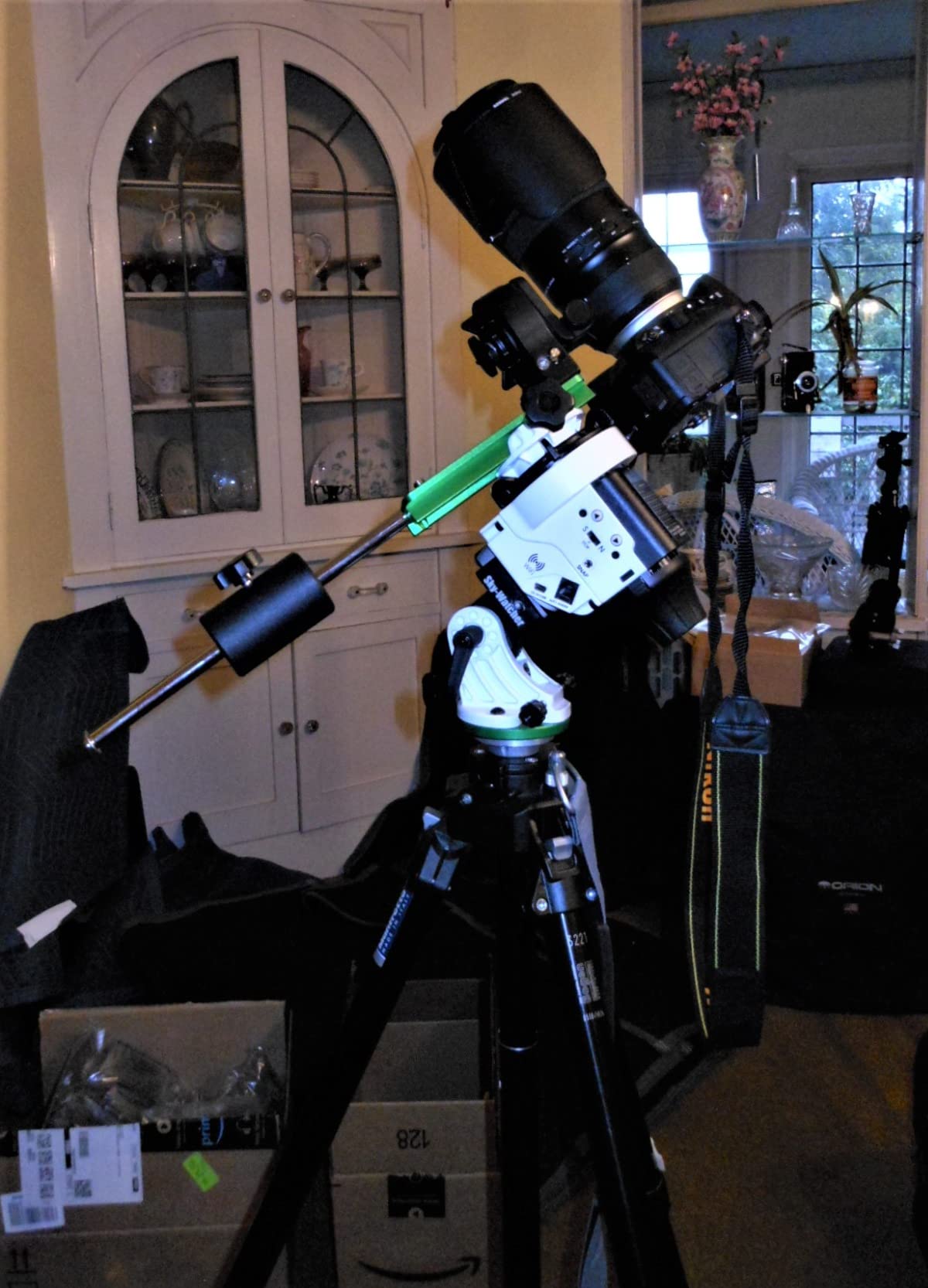

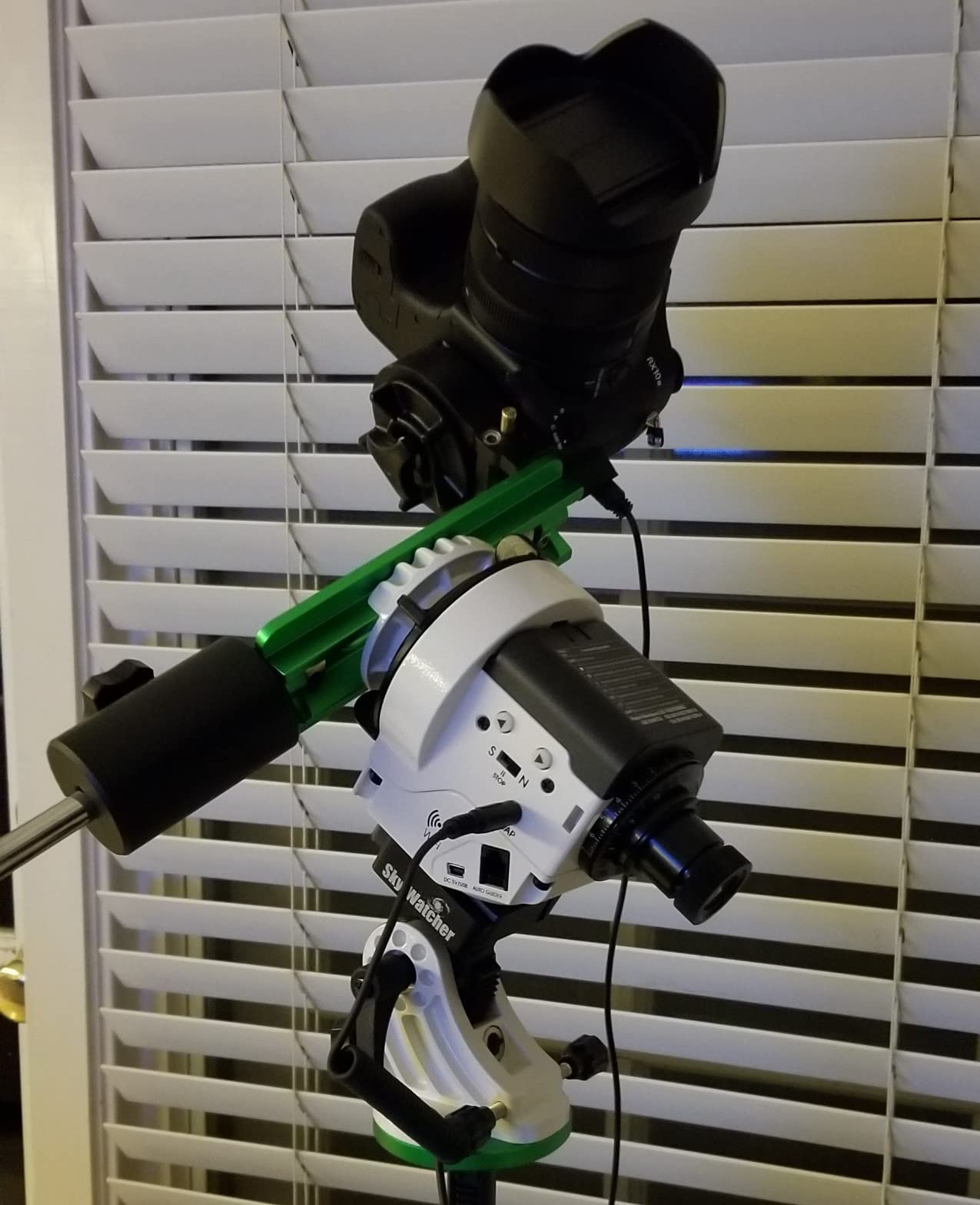

1. Sky-Watcher Star Adventurer 2i Pro Pack: The One Most People Should Buy First
- Collapses small and sets up in about five minutes
- Built-in Wi-Fi gives reliable smartphone control
- Illuminated polar finder makes polar alignment unusually easy
- Reviewers report clean 2-minute subs with DSLR and telephoto
- Runs about 40 hours on one set of AA batteries
- Polar alignment has a real learning curve for first-time users
- External polar scope illuminator is awkward once a camera is mounted
- Bundled SAM Console app is basic
- A few small plastic parts feel flimssy
This is the mount we keep coming back to. At seven pounds for the whole head, it is the difference between imaging from the backyard and imaging from a site forty minutes away with a car full of gear. We carried it in a single padded bag, set the equatorial base on an existing photo tripod, and had the camera tracking in about five minutes from a cold start.
The 2i generation is the upgrade that matters over the original. It has a built-in Wi-Fi hotspot, so control comes from Sky-Watcher’s free SAM Console app on a phone rather than a wired hand controller. That single change turns the mount from an accessory into something you can point at a target, start a time-lapse sequence and forget about while you sleep.
Payload is the honest limitation. There is no published capacity figure on this one, so treat it as a small-scope platform: a DSLR with a 70-200mm lens, or a short refractor with a guide scope. Owners regularly report sharp two-minute subs in exactly that kind of configuration, and forum users confirm the same ceiling. Push past a heavy camera body plus a fast telephoto and you will see the balance get nervous.
Polar alignment is easier than the price of the unit suggests, because the deluxe equatorial base handles polar angle and the illuminated polar finder gives you a real target rather than a guess. The learning curve is real though. Our first session took longer than it should have, and the fix was practice at the kitchen table with a bright lamp and a phone compass, not more equipment.
What you get with a small portable tracker
Battery life is the sleeper feature. Roughly forty hours of tracking from one set of AA lithium cells means a full night of imaging with no power pack, no cable run and no extension cord to trip over in the dark. For travel imaging that matters more than any specification on the sheet.
The mounting flexibility is the other quiet strength. Because the base is a standard equatorial wedge rather than a fixed column, it works with almost any sturdy tripod, including a photo tripod you already own. A guide scope, a field flattener and a small imaging camera all sit comfortably on top as long as you stay light.
Where it falls short
The external polar scope illuminator is the most common complaint, and it is a small thing that irritates a lot of people. It clips onto the dovetail rather than the base, and once a camera body is mounted on top you have to remove and reposition it to get at the alignment. Budget two minutes for that dance every time you set up.
Second, the SAM Console app does alignment and basic pointing and stops there. There is no exposure list, no interval shooting on the level you get from a full mount controller, and no guided dithering sequence. The plastic components, including a thin red bracket and a power switch that is easy to bump in transit, are the parts most likely to feel cheap in the hand.
2. iOptron SkyGuider Pro: The Machined-Metal Travel Mount
- Well engineered all-metal body with brass worm drive and belt transmission
- Only 2.2 lb for the head so it fits in a camera bag
- Integrated illuminated polar scope aligns in a couple of minutes
- Internal rechargeable battery lasts a full night
- Auto-guide port included
- Reviewers report 2-3 minute subs with lenses up to 500mm
- No GoTo so you locate targets yourself
- Included counterweight bar is only 8 inches
- Polar scope can arrive out of collimation
- Polar scope eyepiece fits loosely
If the Star Adventurer feels like a plastic gadget and the EQ6-R Pro feels like moving furniture, the SkyGuider Pro sits exactly in the middle. The head weighs 2.2 lb and the whole package is machined metal with a brass worm drive and a rubber belt transmission. You can feel the difference the moment you slew it, and it stays in a camera bag rather than a telescope case.
The stated payload is 11 lb when balanced, and unlike several budget trackers that number is backed by a real counterweight shaft design. Reviewers report 2-3 minute guided subs with lenses up to 500mm and pin-sharp stars across the frame. Forum users put the practical figure at a similar level: a DSLR plus telephoto, or a small refractor with a guide scope.
Alignment is where this mount quietly beats its price. The integrated AccuAlign polar scope is a dark-field illuminated design built into the mount, so there is no separate scope to clip on and remove. Owners consistently report aligning in a couple of minutes, and one of the advantages over an external illuminator is that it stays available with a camera mounted.
Battery life of up to 20 hours at 20 degrees C means a full session on the internal pack, with the option to run from an external supply for a second night without recharging. Combined with the auto-guide port on the body, it is the most complete single-box travel package in this roundup.
Why the payload number matters here
Eleven pounds sounds modest next to the 30 lb and 44 lb figures further down this list, but payload is not a straight comparison. The VX and EQ6-R Pro numbers assume a rigid dovetail and a distributed load. A star tracker carries a cantilevered camera, so the same weight produces more stress at the mount head.
That is why the SkyGuider Pro is a better fit than its number suggests for travel rigs. Add a camera body, a 300mm lens, a field flattener and a light guide scope and you are well inside the envelope, with margin left for a heavier body.
What you give up
There is no GoTo. You point the camera yourself, which is fine if you plan targets with a planetarium app and can recognise the field, and frustrating if you are starting out and cannot find anything in the dark. The SkyTracker Pro at number eight has the same limitation, and the Advanced VX is the step up when hunting begins to spoil sessions.
The counterweight bar is the part to watch with heavier glass. At 8 inches it balances a moderate telephoto fine and gets tight with a fast 70-200mm plus a full-frame body. Check the polar scope collimation on arrival too; some units ship slightly out of line with the RA axis, and a loose eyepiece that shifts the reticle is a known issue.
3. Celestron Advanced VX: Where Mid-Size Rigs Move To
Celestron Advanced VX Computerized German Equatorial Mount – 30lb Payload
- Sturdy stainless steel tripod and rigid head give a stable imaging platform
- 30 lb payload covers mid-size refractors and Newtonians
- NexStar+ controller with 40000+ object database
- PPEC plus EQ North and EQ South tracking modes
- 7 to 77 degree latitude adjustment
- 47-50 lb total weight is awkward for solo field setups
- Computerized controller and motors add bulk compared with a manual tracker
The Advanced VX is the first mount in this list where the tripod becomes the story. The 2-inch stainless steel legs and the rigid cast head are what make a 30 lb payload behave predictably, and they are also why the total kit weighs around 50 lb before a single piece of optics is added. Set it on a pier and it is excellent. Load it into a hatchback alone and you will reconsider.
Pointing is the reason people upgrade from a tracker. The NexStar+ hand control carries a database of more than 40,000 objects and offers several alignment procedures, so a beginner can slew to a target rather than scan for it with a head torch. For deep-sky work, target acquisition speed is a bigger quality-of-life gain than most buyers expect.
On the accuracy side, PPEC learns the mount’s periodic error pattern and applies the correction permanently, and the EQ North and EQ South modes are useful for long exposures through the meridian. Latitude adjustment from 7 to 77 degrees covers essentially every inhabited observing site, which matters if you travel between northern and southern deployments.
Dovetail compatibility is broad. CG-5, CGE-style and Vixen format plates all fit, so a CG-4, a mid-size refractor or a small SCT can go on top without adapters. The saddle accepts a standard CG-style plate and the mount is compatible with the common imaging accessories in this category.
Matching the VX to your imaging train
Use the 50 percent rule and the headroom is comfortable. A 100mm refractor with a flattener, an 80mm guide scope and a cooled camera typically lands between 18 and 22 lb, which sits at roughly two thirds of the 30 lb rating. That is above half, and it will work, but if you plan to add a filter wheel and an off-axis guider later, start with a lighter train.
Below that weight the tripod’s mass matters more than the payload figure. A balanced train under about 15 lb on this mount is very stable, and we saw no need for a pier in a sheltered backyard. Above 25 lb, a concrete pier makes a visible difference in damping after a slew.
Where the weight gets awkward
Owners rate the VX as a dependable mid-weight GoTo equatorial that handles both visual use and lighter imaging rigs, and the NexStar+ pointing is the headline benefit. The recurring complaint is the mass. Total weight of 47 to 50 lb means two trips to the car, and a solo observer at a remote site will feel it every session.
It is also a manual in the sense that you still do the alignment, balancing and guiding yourself. The controller automates pointing, not polar alignment precision. Budget time for a proper two-star or multi-star alignment if you want good GoTo accuracy, because SkyAlign alone will get you there roughly most of the time.

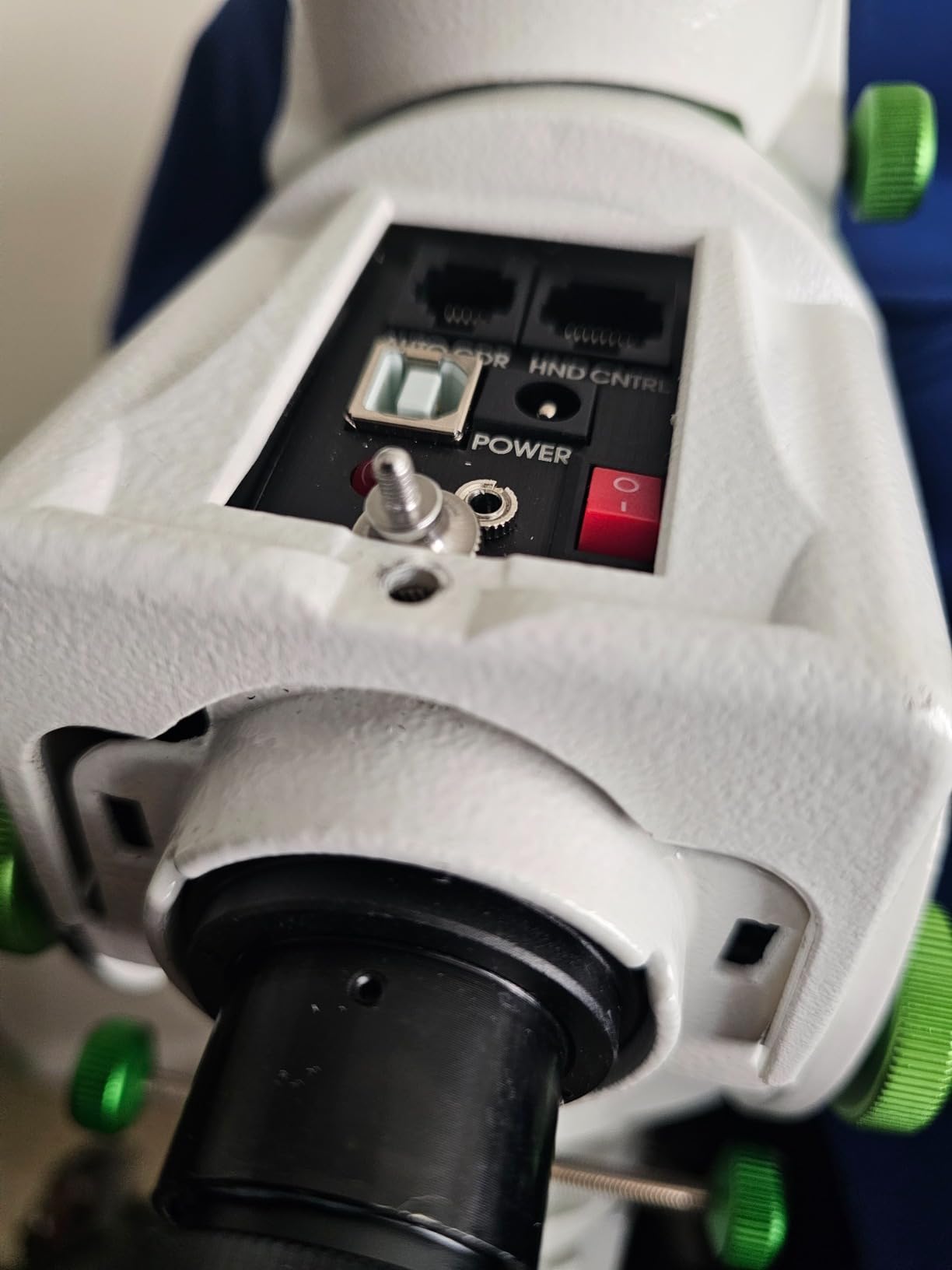

4. Sky-Watcher Star Adventurer GTi Kit: GoTo Without The Assembly
- All-in-one kit bundles head tripod pier extension and counterweight hardware
- GoTo removes the manual target hunting of basic trackers
- Built-in illuminated polar scope streamlines alignment
- Built-in WiFi for app-based control
- Two-year limited warranty
- Heavier than a bare mount head because tripod and pier extension are bundled
- Ball-head style top and accessory-heavy bundle add bulk for travel
The GTi is the Star Adventurer platform with a brain attached. Where the 2i gives you tracking and leaves you to find targets, the GTi adds a GoTo mount head with a catalogue, an illuminated polar scope and Wi-Fi control from a phone app. For a beginner who cannot yet find the Veil Nebula in a finder, that difference decides the session.
This kit is sold as a complete package. The head, a tripod with a pier extension, a counterweight bar and a 5 lb counterweight all arrive together, which removes the most common early mistake: building a portable rig from mismatched parts and discovering at 10pm that the dovetail does not match.
The counterweight hardware matters more than it looks on paper. A bare tracker head balances a camera and lens alone, while a counterweight bar lets you mount a telescope off-centre and balance it properly. That opens the GTi to small refractors and short Newtonians rather than only cameras with telephoto lenses.
Pointing accuracy comes from the built-in illuminated polar scope plus a GoTo alignment routine in the app. Once aligned, slews land close enough that platesolving finishes the job in a few seconds, which is the workflow most modern imagers use anyway.
What the bundle saves you
Owners consistently mention the convenience of the complete package. The head, polar scope, counterweight hardware and tripod all fit together, and the pier extension gives you a way to raise the whole assembly to a comfortable imaging height instead of crouching.
For someone moving from a fixed tripod to tracked imaging, that is a genuinely complete entry point. You add a camera, a lens or small scope and an optional guide scope, and the mechanical side of the build is already solved.
Where the bulk bites
The trade-off reviewers acknowledge is weight. The complete kit is around 26 lb, which is three and a half times the bare 2i head. It is still portable, but it is a two-person carry for the tripod and a one-person carry for the head, and that is a different category of field work.
Second, the ball-head style top means you are not getting a German equatorial geometry with counterweights on both axes. It is a tracking platform with a GoTo brain, not a small GEM. If you later grow into a longer tube with a heavy camera, you will be shopping for a bigger mount rather than adding to this one.
5. Celestron CG-4 Manual Equatorial: Heavy And Simple Under Visual Use
Celestron CG-4 Manual German Equatorial Mount with Steel Tripod
- Robust stainless steel tripod with 1.75 inch legs that damp vibration
- 20 lb payload handles a wide range of telescopes and imaging gear
- Smooth manual slow-motion controls on both axes
- Light enough at 12.5 lb for manual setup and transport
- Can be upgraded with a motor drive later
- Manual slow-motion tracking only with no motorized GoTo in the base configuration
- Adjustment range and control feel are basic against computerized mounts
The CG-4 is the odd one out in this roundup, and that is why it is here. There are no motors in the base configuration. It is a German equatorial head on a stainless steel tripod with manual slow-motion controls on both axes, and for visual observing it is genuinely excellent. For long-exposure imaging it is a starting point or a visual complement, not a finished rig.
The physical build is the strongest part. Stainless steel legs at 1.75 inch diameter damp vibration better than the aluminium legs on cheaper tripods, and the 20 lb payload is honest for a head of this class. The 33 to 47 inch height range covers seated visual use through to a comfortable imaging height with a short refractor.
Owners treat the CG-4 as a dependable, no-frills manual equatorial. The dual-axis slow-motion controls are the part users single out positively, because fine manual tracking with a slow-motion knob is a skill that rewards practice and costs nothing once you have it.
The important caveat is that slow-motion controls are for visual observing, not for photography. Holding a star with a hand-cranked knob for a three-minute exposure is not realistic. If you want tracked images from a CG-4, the path is to add a motor drive, which the head accepts.
Where the CG-4 makes sense
The strongest case is a combined rig: one mount for visual sessions and a tracker for imaging nights. Plenty of imagers buy a CG-4 as the visual mount and a Star Adventurer or SkyGuider Pro as the imaging mount, then use whichever fits the target. The CG-4 carries a mid-size Dobsonian or an 8-inch SCT comfortably, which no tracker here will do.
It also makes sense as a stepping stone. Start visual, learn how a German equatorial balances and how counterweights work, then add a motor drive and a camera later. The 20 lb capacity already covers a mid-size refractor with a camera and a guide scope.
What you are giving up
Motorised tracking, obviously. There is no GoTo, no periodic error correction and no auto-guiding in the base configuration, so every imaging decision is manual. That is the whole point of a manual mount, but it is worth being clear that it is a different category of purchase from the seven above it.
The other limitation is control feel. The adjustment range and the tension in the slow-motion controls are basic next to a computerized mount, and there is no way to reduce backlash in the declination axis without work. For visual use that is irrelevant. For imaging it is the reason this mount sits at number five rather than higher.

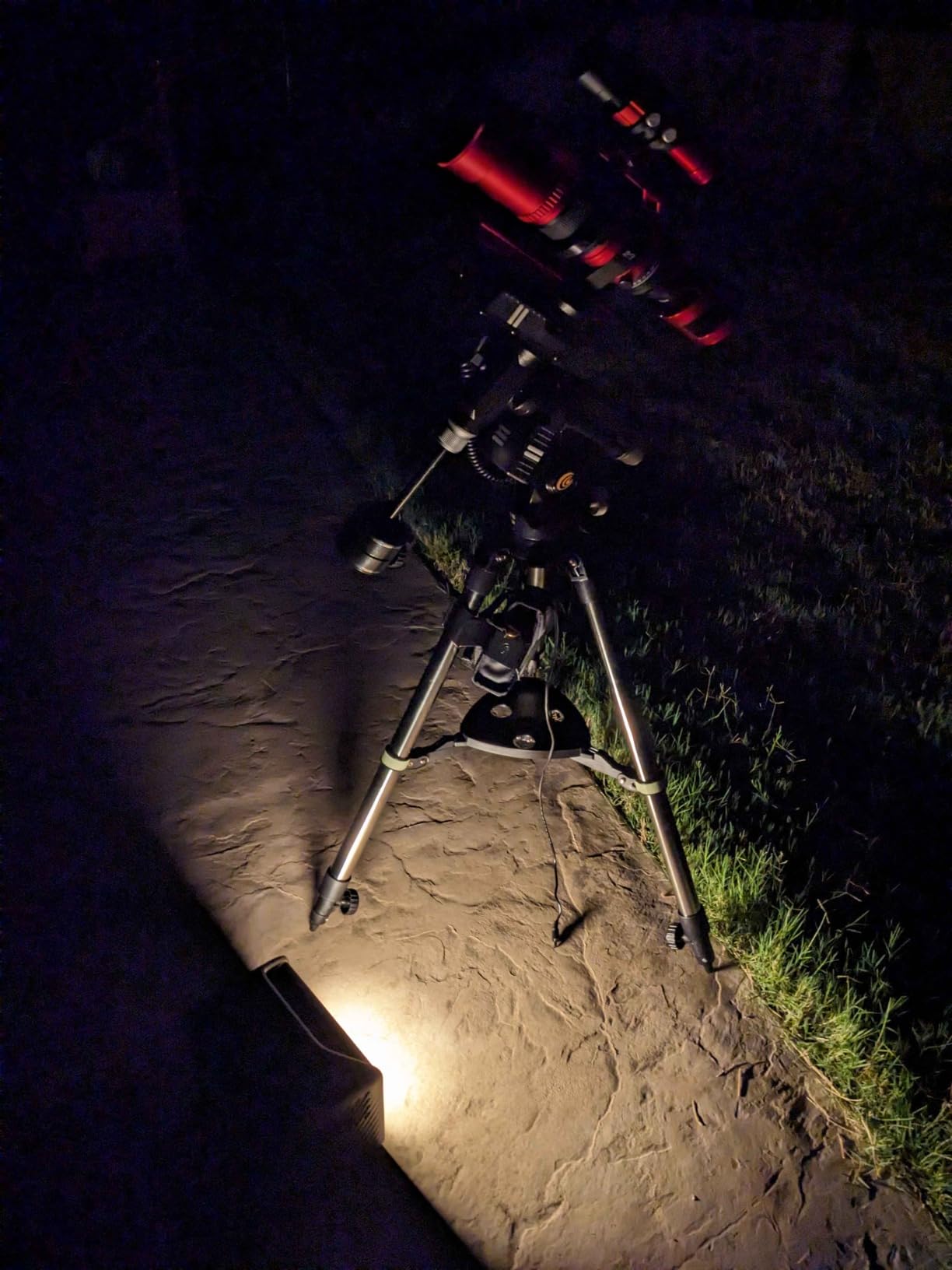

6. Explore Scientific iEXOS-100-2: GoTo On A Modest Budget
iEXOS-100-2 PMC-Eight Equatorial Tracker System Tripod and Mount for Astrophotography with WiFi and Bluetooth Compatible
- Clutched dual-axis worm gears with quiet stepper belt drives make balancing repeatable
- ExploreStars app runs on Apple Android and Windows
- Sight hole through the RA axis speeds polar alignment
- PMC-Eight board built for fast timing intervals and reliable guiding
- Complete mount and tripod package at an accessible price
- Low weight capacity relative to heavier imaging payloads
- Gears are reported to bind occasionally
- Limited third-party software and setup documentation
- Lower rating with a larger share of one-star reviews
We are including this one because it is the cheapest way onto a real German equatorial platform, and the design has genuine strengths. The iEXOS-100-2 pairs a PMC-Eight controller with eight independent CPUs, which is an unusual amount of processing for an entry-level mount and is aimed at short guiding intervals and reliable pulse corrections.
The mechanics are better than the rating suggests in places. Clutched dual-axis worm gears with quiet precision stepper belt drives make balancing smooth and repeatable, and repeatability is what matters when you are re-balancing a train at a different height each session. The sight hole through the RA axis is a neat trick for polar alignment without a separate polar scope.
Connectivity is modern for the class. Wi-Fi and Bluetooth with the ExploreStars app covering Apple, Android and Windows means you are not tied to a Windows laptop and a proprietary driver. The app simplifies GoTo alignment and object selection, and the catalogue runs to tens of thousands of targets.
Then there is the payload ceiling, which is the whole issue. Several users warn against loading this mount with anything like a heavy imaging train, and forum consensus repeatedly says stay well under the rated figure. Treat it as a wide-field camera tracker or a very small refractor setup, and it does that job competently.
Where the design earns its place
The clutch design is the standout feature. On many entry-level mounts, balancing means loosening a bolt and hoping. Clutches let you unlock an axis, let the train swing to neutral, tighten and check, repeatedly, until the balance is right. That is a genuinely useful feature at this level.
The PMC-Eight board is the second one. Mounts that miss guiding corrections because the controller cannot keep up with short pulse intervals are common, and having eight dedicated processors is a reasonable answer to that. Users who tuned guiding settings did report usable results, though not at the level of the premium mounts here.
Where it disappoints
The 3.9 average is the lowest in this roundup, and the rating distribution shows why: a noticeably larger share of one-star reviews than the other mounts. Gears are reported to bind occasionally, which on a worm gear mount is not a small problem because it can force you to re-balance from scratch.
Second, the software ecosystem is thinner. There is less third-party support and less written setup guidance than you get with the mainstream brands, and when something goes wrong at 11pm there is less community documentation to search. If you are comfortable building and tuning a rig yourself, that is manageable. If you want step-by-step help, factor it in.

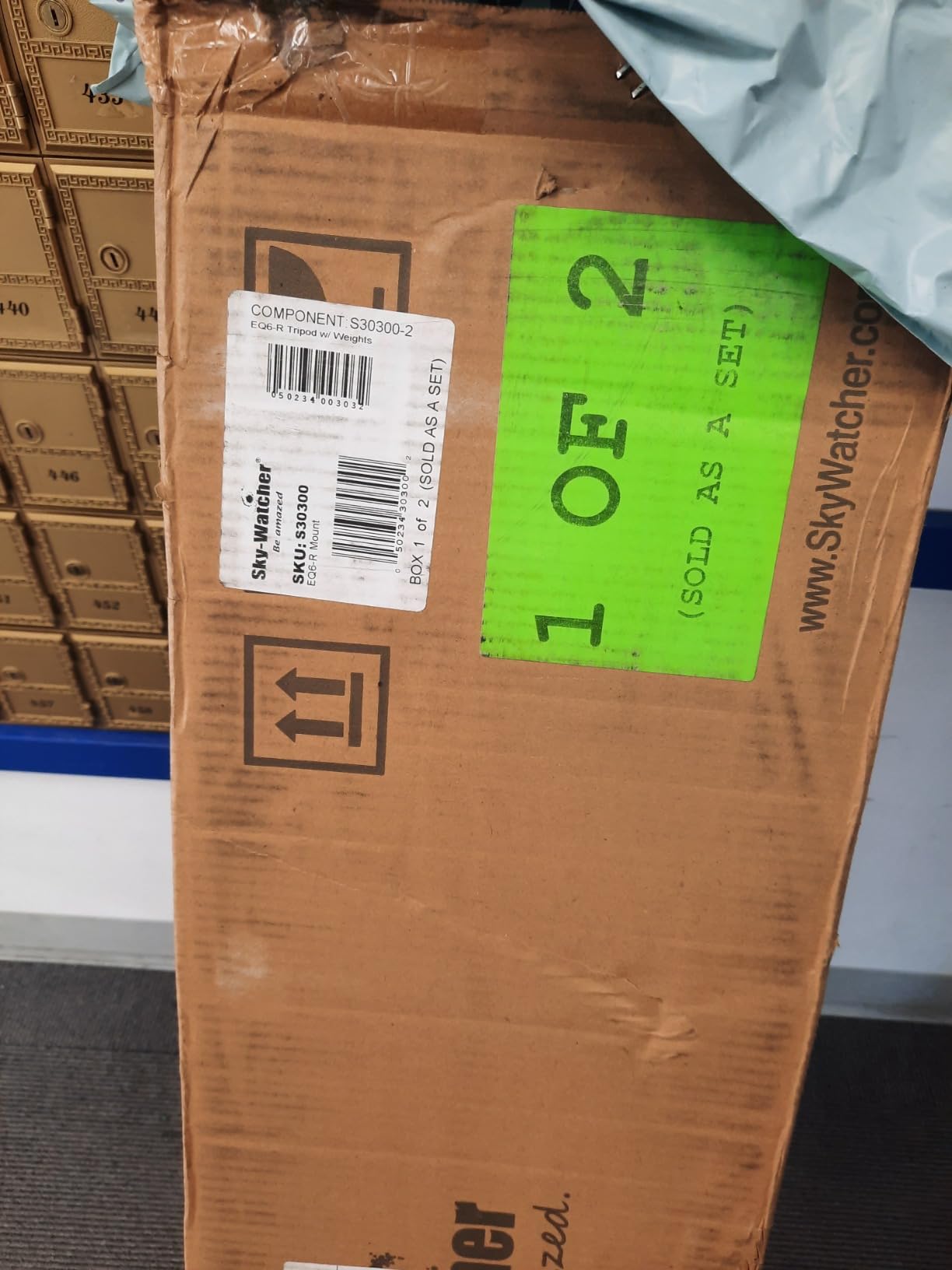

7. Sky-Watcher EQ6-R Pro: The Heavy-Payload Benchmark
- All-metal construction stays stable with heavy imaging payloads
- Belt-driven steppers give quiet slewing and low periodic error
- Users report sub-arcsecond guided results and some better than 0.5 arcsecond
- Built-in encoder supports uploaded PPEC training
- Illuminated polar finder and 42000+ object SynScan controller
- EQMOD compatible for planetarium and guiding software
- Over 75 lb assembled and about 40 lb for the head alone so field use needs two people
- No case included for the head or tripod
- Factory grease can cause stiction while balancing
- Needs a 13V-class power supply or slews stall
When the forum question is what mount can carry a serious imaging train, the EQ6-R Pro is the answer that comes up most often. The 44 lb payload comes from an all-metal construction with belt-driven stepper motors, and the belt drive is the reason this mount guides as well as it does. Belts remove gear mesh from the drive path, which lowers periodic error and makes slews quiet enough to work next to.
Guiding results from owners are the strongest numbers in this roundup. Multiple users report sub-arcsecond total error after guiding, and some better than 0.5 arcsecond with a well-balanced train and a decent polar alignment. The built-in encoder supports PPEC training, so the mount can learn its own periodic error pattern and correct it permanently rather than relying on guiding alone.
Pointing is handled by a SynScan hand controller with more than 42,000 objects and a built-in illuminated polar finderscope. The mount is also EQMOD compatible, which means planetarium and guiding software can drive it directly for plate-solving and unattended sequences. Latitude adjustment spans 5 to 65 degrees, and the D/V saddle accepts the common dovetail formats.
Two 11 lb counterweights and a counterweight bar extension are included, plus the tripod, spreader bar, hand controller, cables and a DSLR trigger cable. It arrives in two boxes. The package is complete for imaging, which removes the usual round of extra purchases.
How much payload you actually need
Forum experience is useful here because the difference between 30 lb and 44 lb is academic in most cases. Users report that an EQ6-class mount comfortably carries a heavy 11-inch Cassegrain for visual work, and that rigs around 19 lb sit in a very comfortable place for imaging. That leaves plenty of headroom for a filter wheel, an off-axis guider and a heavy camera.
The real gain over a mid-range mount is stability, not capacity. When a train is close to its limit, a gust of wind or a fast slew leaves residual vibration in the tripod for seconds afterwards. Heavier mounts recover faster and hold tracking steadier, which shows up as smaller star sizes in the final stack.
What the weight costs you
Assembled, this is over 75 lb, with roughly 40 lb of that in the head alone. Moving it to a dark site is a two-person job, and the head alone will strain one person. No case is included, so you also need to plan transport before the first trip rather than after it.
Second, the power supply matters. The mount wants a 13V-class supply and the minimum is 12V at 4 amps. Sagging voltage causes slew stalls mid-sequence, which can ruin a night. Third, the factory grease on the worm drives can cause stiction that is obvious while balancing. Hypertuning addresses this, and many users consider it close to essential, but it is an afternoon of work rather than a weekend.

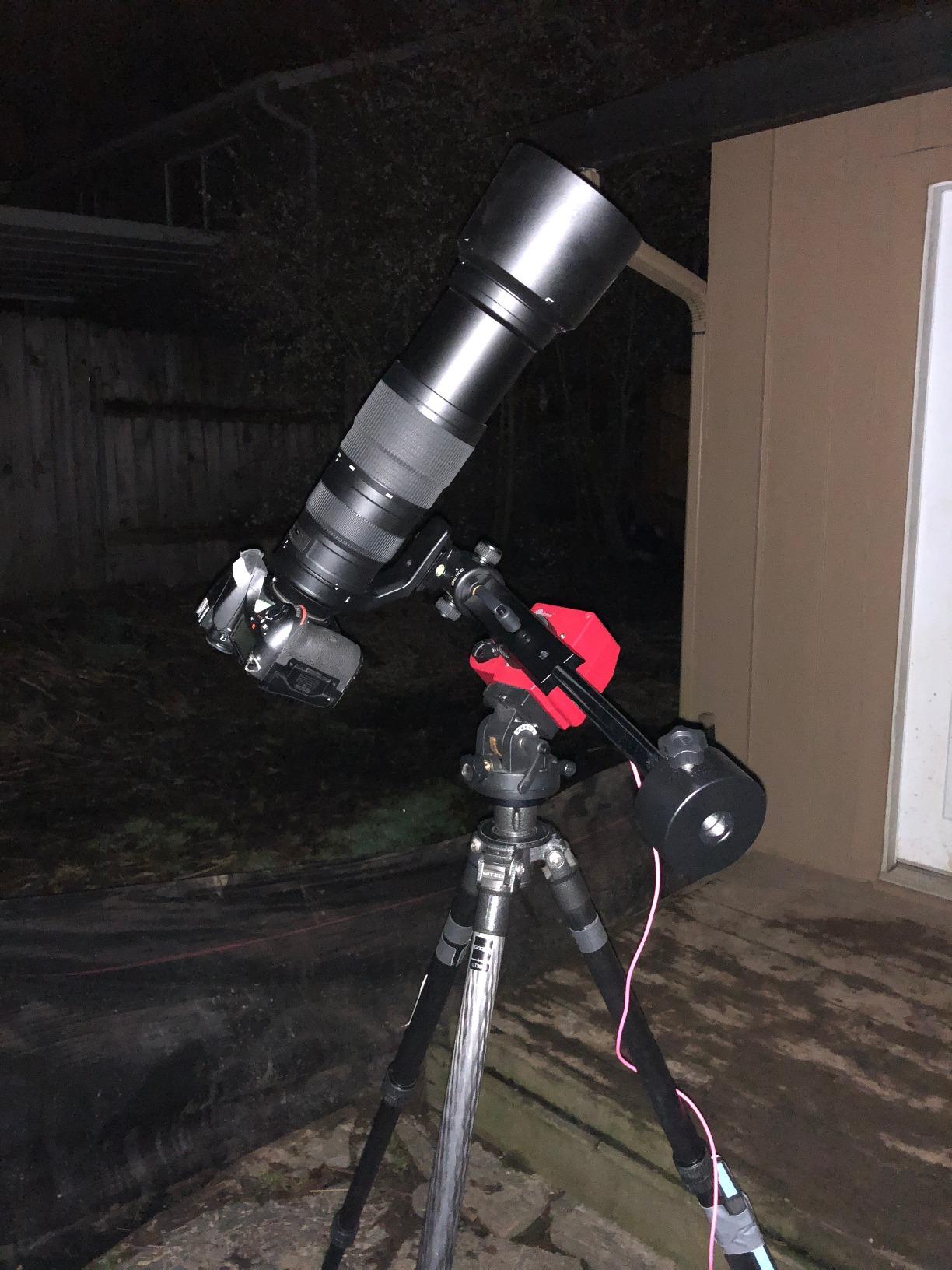

8. iOptron SkyTracker Pro: The Smallest Useful Tracker Here
- Almost silent operation with smooth forward and reverse jog control
- Integrated rechargeable battery removes the need for external power packs
- Many fine-tuning knobs plus a dimmable scope LED speed up alignment
- Four tracking speeds including half-sidereal for ground-and-sky compositions
- Owners report clean 4-5 minute subs with an 11mm lens
- Rubber cushion at the swivel head slips under heavier loads
- Flat base will not index on a tripod with a fixed north mark
- Bundled dovetail base is not Arca-Swiss compatible
- Heavy telephoto lenses exceed 6.6 lb without the counterweight package
- Alignment app sold separately
The SkyTracker Pro is the smallest serious tracker in this group, and for a specific job nothing else here fits: walking to a dark site with a camera bag and no tripod. It weighs 3.3 lb including the padded case, folds to a compact block, and runs from an internal rechargeable battery that reaches 80 percent charge in about five hours over micro USB.
Alignment hardware is unusually generous for the size. There are multiple fine-tuning knobs on each axis and an integrated polar scope with a dimmable LED, so you can set polar angle and azimuth precisely rather than eyeballing a bubble level. That combination of adjustability and a lit reticle is what makes two-minute subs realistic with a fast wide lens.
Tracking speed options are the quiet feature. Alongside 1X sidereal there is a half-sidereal rate, plus solar and lunar modes. Half-sidereal is the one that matters for nightscapes, because it deliberately drifts stars slightly so a foreground and a sky can be composed together without the stars trailing. Several owners report clean 4-5 minute subs with an 11mm lens and a full-frame body.
The drive is a DC servo motor with automatic right ascension tracking and a 600 second worm period on four bearings, which helps explain the near-silent running. The included padded bag means the whole thing fits in a daypack with room left for a lens or two.
Best suited to wide field work
The stated payload is 6.6 lb, and it is a hard ceiling. A DSLR or mirrorless body with a wide or short telephoto lens sits comfortably inside it. A small refractor plus a guide scope can also work, provided you balance carefully and keep the load close to the base.
Forum users consistently point to the same rule here: check the total weight of the train including the camera, and stay under the figure with margin. Overloading this mount is the fastest way to get trailing that no amount of stacking will remove.
The mechanical limits to know about
The most-reported mechanical weakness is the rubber cushion where the swivel head mounts. It slips under heavier loads, which makes it genuinely hard to keep tight with a big telephoto lens. The bundled dovetail base is also not Arca-Swiss compatible and is described as not very stable, so tripod compatibility depends on the base rather than a standard clamp.
Two more practical notes. The flat base will not fit a tripod with a fixed index mark for polar north, so check your tripod before you commit. And the alignment app is sold separately, which is an easy detail to miss. Heavy telephoto glass such as a 70-200mm or 200-500mm exceeds the payload outright and needs the optional counterweight package.
How to Choose a Telescope Mount for Astrophotography?
Everything above is a specific rig, and the reason one of these is right for you depends almost entirely on what you intend to put on top of it. The four decisions that matter are mount geometry, payload, tracking accuracy and how you point the thing.
Equatorial versus alt-azimuth: why field rotation decides it
An alt-azimuth mount tracks the sky with two motors, one for altitude and one for azimuth. It is mechanically simpler, cheaper and lighter for the same payload, which is why it dominates visual observing. The problem is purely photographic. Because two axes move to follow a star, the orientation of the camera rotates as it tracks, and stars at the corners of a long exposure come out as short arcs around the centre of the frame.
That rotation is field rotation, and no stacking or processing step removes it. Capturing the same target at two orientations gives you stars that cannot be aligned on a single point. Field de-rotators exist for research-grade alt-az systems, and they add cost, weight and complexity, which is why the forum consensus is that alt-az mounts are rejected for deep-sky imaging as an inherent limitation.
An equatorial mount solves this by aligning one axis, right ascension, with the Earth’s rotational axis. The declination axis then stays still, the camera holds a fixed orientation, and stars stay round for the length of the exposure. Every mount in this roundup is equatorial, and that is the single most important filter when shopping.
The 50 percent payload rule and how to weigh your train
Payload capacity is a maximum, not a target. The number printed on a mount assumes a well-distributed load on a rigid dovetail, a stiff tripod, balanced in every axis, and a power supply holding voltage under load. Real rigs hit none of those conditions perfectly on the first night. Multiple users across the forums warn against exceeding half the rated capacity, and that is the number we use when matching trains to mounts.
Work out your train weight in four steps:
Add the optical tube, including any flattener, filter wheel or off-axis guider.
Add the imaging camera and its cables, plus the guide camera and guide scope.
Add the mounting hardware: rings, dovetail plate, spacers and adapters.
Halve the mount’s rated payload and check your total is under that number.
As a worked example, a 100mm refractor with a flattener, an 80mm guide scope, a guide camera and a cooled imaging camera typically comes to around 18 to 22 lb. Against the Advanced VX’s 30 lb, that is above half, so it will work in practice. Against a tracker rated around 11 lb, it is far too heavy, and the correct move is a lighter train or a bigger mount.
Balance matters as much as total weight. Aim to have the centre of mass close to the mount’s RA axis, and adjust the counterweight position until the shaft barely holds the train on its own. If the mount swings freely when you loosen a clutch, you can balance it properly; if it is hard to move, the mass distribution is wrong.
Tracking accuracy, periodic error and autoguiding
Tracking error comes from three places. Periodic error is a repeatable wobble in the right ascension axis caused by imperfections in the worm gear, repeating once per worm revolution. Backlash is play in the declination axis, which shows up after every slew as the mount settles in the wrong direction. And polar alignment error causes field rotation, which guiding can partly correct and mostly cannot.
Periodic error is measured in arcseconds and a good mid-range GEM lands somewhere around 20 to 40 arcseconds before correction. It matters more at long focal lengths: the same error covers fewer pixels in a long-focal-length image, so stars are more obviously elongated. PPEC on the VX and the EQ6-R Pro, and PEC training on the SynScan-equipped mounts, learn the pattern and correct it permanently.
Autoguiding is the universal fix. A guide camera watches a star, measures its drift, and pulses the mount motors to cancel it. A well-guided equatorial mount can hold total error under an arcsecond, which is why the EQ6-R Pro’s owner reports of sub-arcsecond results are believable. If your guiding oscillates rather than drifts, the usual diagnosis is large backlash rather than a bad mount, and a mount with clutches in both axes is easier to balance tightly.
A practical rule that survives contact with reality: on a star tracker with no guiding, keep subs at 2 to 3 minutes. On a mid-range GoTo mount with a guide scope, 5 to 10 minutes is realistic. On a heavy German equatorial that is properly polar-aligned and guided, there is no practical ceiling other than sky brightness and your patience.
Polar alignment precision targets by focal length
Polar alignment sets the ceiling on everything else. A mount that tracks beautifully while pointed at the celestial pole still drifts if the polar axis is off, and no amount of guiding fully recovers the resulting rotation.
Use this as a working guide rather than a guarantee. With the wide lenses and small refractors carried by the trackers here, a rough alignment within a couple of degrees is usually enough for 2 to 3 minute subs. With a 500mm to 1000mm refractor or a longer imaging train, tighten to under half a degree. For long-focal-length work where stars are only a few pixels across, get as close as your method allows, ideally under an arcminute.
Method matters less than consistency. A manual polar scope with an illuminated reticle gets you close and is free once you own the mount. Electronic polar scopes and plate-solving alignment routines in the observing software can refine that further. Owners using ASIAIR Plus and dedicated polar scope software report noticeably less alignment time than manual methods, and a shorter alignment means more imaging before dawn.
At high latitudes, polar altitude gets shallow and azimuth becomes harder to judge, which is why several users complain about alignment taking too long in northern locations. The fix is a method that does not depend on eyeballing a bubble level: platesolve two or three frames near the meridian and let the software solve for the centre. In this roundup, the Star Adventurer GTi’s built-in illuminated scope and the iOptron SkyGuider Pro’s integrated scope are the most convenient for this reason.
GoTo or manual pointing, and the software that drives each
GoTo adds a catalogue and an alignment routine. It matters most for beginners and for anyone imaging many targets in one night, because slewing to a coordinate is far faster than scanning with a finder. Once you can recognise a handful of common deep-sky objects, GoTo becomes a convenience rather than a necessity, and the money can go into a better mount or a guide scope instead.
Pointing accuracy is a separate issue from alignment accuracy. Most controllers offer several alignment procedures, and the multi-star or plate-solving routines are noticeably more accurate than a single-star alignment. Use multi-star alignment on the Advanced VX, the iEXOS-100-2 and the GTi if you are slewing across the sky repeatedly.
Software compatibility is worth checking before you buy. The mounts with EQMOD support can be driven by planetarium and guiding software, which is what enables fully unattended sequences with platesolving. ASIAIR integrates with most modern mounts through ASCOM or platform drivers, and PHD2 works with the majority of them for guiding. The thinner software ecosystem on the iEXOS-100-2 is a genuine consideration here, because there is less community documentation when a driver misbehaves.
Accessories that matter: power, counterweights and balancing
Power is the accessory people forget. All-night imaging draws more than you expect, and a mount that is under-supplied will show it. The EQ6-R Pro needs a 13V-class supply with at least 4 amps, and users report slew stalls when voltage sags mid-sequence. Budget a power supply with headroom rather than matching the spec exactly.
Counterweights come in two forms. Threaded counterweights on a shaft are standard for German equatorial heads, and the CG-4, VX, GTi and EQ6-R Pro all use them. They are needed whenever the payload sits off-centre from the RA axis, which is most of the time. Check the shaft length against your heaviest planned train before you finish the purchase.
Finally, accessories that change nothing on paper change a lot in practice. A sturdy tripod matters more than any mount upgrade for a tracker, vibration damping rings help longer focal lengths, and a laptop or controller that will not drop out mid-sequence protects a whole night of data. Our guides to the best telescopes for astrophotography beginners cover the optical side of a first rig if you are still choosing a tube.
Frequently Asked Questions
What mount do I need for astrophotography?
An equatorial mount with a payload at least double the weight of your imaging train. For a DSLR with a telephoto lens or a small refractor, a portable tracker such as the Sky-Watcher Star Adventurer 2i or the iOptron SkyGuider Pro is enough. For a mid-size refractor or Newtonian with a cooled camera, you need a GoTo German equatorial mount in the 30 to 44 lb class. Keep your total payload under half the mount’s rated capacity.
What is the best mount for a beginner astrophotographer?
The Sky-Watcher Star Adventurer 2i Pro is the most common starting point because it weighs seven pounds, runs about forty hours on batteries and produces clean two-minute subs. If you cannot yet find your target in a finder, the Star Adventurer GTi adds GoTo pointing and a counterweight bar so you can carry a small telescope instead of just a camera.
How important is polar alignment for astrophotography?
It sets the ceiling on image quality. Poor polar alignment causes field rotation, where the frame turns as the mount tracks, and no amount of guiding fully removes it. With the wide lenses carried by portable trackers, a rough alignment within a couple of degrees is enough for 2-3 minute subs. With 500mm to 1000mm focal lengths, tighten to under half a degree, and add plate-solving for anything longer.
Can I use a camera tripod for astrophotography?
Not for anything beyond about 30 seconds on a fixed tripod. A fixed tripod does not track, so stars trail across the frame in long exposures. A star tracker is the cheapest upgrade, and models like the iOptron SkyTracker Pro add tracking to a tripod in a small package. Wide-field Milky Way nightscapes with a fixed tripod only work with very fast glass and short exposures.
Harmonic drive or worm gear mount, which is better for imaging?
Worm gear mounts such as the Celestron Advanced VX and the Sky-Watcher EQ6-R Pro have measurable periodic error that can be trained out with PPEC or PEC, and they stay stable with heavy payloads. Harmonic drives have near-zero backlash but higher periodic error than worm gear mounts, and they are typically lighter. Many imagers report a successful PEC training run closing most of that gap.
What accessories do I need for a telescope mount?
At minimum a power supply with enough voltage and current for a full night, counterweights and a shaft matched to your payload, and a stable tripod. A guide scope and guide camera unlock long sub exposures and are close to essential for anything beyond 3 minutes. A vibration damping ring and cable management add little cost and prevent a lot of avoidable problems.
Final Verdict on the Best Telescope Mounts for Astrophotography in 2026
Start with the Sky-Watcher Star Adventurer 2i Pro if you are imaging with a camera and a lens. It is the best balance of portability, battery life and tracking quality here, and the one we would hand to a beginner without hesitation. If you want machined metal and a slightly larger payload in a smaller case, the iOptron SkyGuider Pro is the stronger piece of hardware for a similar weight of gear.
Move up to the Celestron Advanced VX when your train includes a telescope rather than a lens, and to the EQ6-R Pro when payload passes roughly 30 lb or you want the guiding results that a belt-driven heavy mount delivers. The Star Adventurer GTi is the pick if GoTo pointing matters more than absolute lightness, the CG-4 serves as a visual complement or a stepping stone, the iEXOS-100-2 is the budget route onto a German equatorial platform, and the SkyTracker Pro is for dark-site trips on foot.
Whichever you choose, weigh the full train, stay under half the rated payload, and spend the time on polar alignment that you would rather spend on a new camera. That is the difference between these being the best telescope mounts for astrophotography and them being expensive doorstops.
