A boat lift motor is the electric winch unit that drives the cable, sheave and drum assembly to raise and lower your boat on its lift frame, and it is the single most common replacement part on any dock lift. When one fails you are back to cranking by hand or hauling the boat out, usually at the worst possible moment of the season.
Choosing among the best boat lift motors for docks is harder than it looks. The names on the box tell you very little, and the spec that actually decides whether a motor fits your lift – the frame size and mounting style – is stamped on the side of the old motor you are replacing. Get that wrong and the motor never leaves the box.
We compared ten of the most owner-proven replacement and upgrade systems currently on the market, from 3/4 HP painted 56 frame replacements to 1.5 HP rigid-base gearplate motors and 12/24V DC direct drive systems that run straight off your boat batteries. The guide below covers sizing, frame compatibility, and the trade-offs between direct drive and gearplate architectures, updated for 2026.
Table of Contents
Top 3 Picks for Best Boat Lift Motors in 2026
Extreme Max 3006.4553 Wheel Drive
- Complete one-box system
- 120V AC powered
- Fits most hand wheels
- Two-year warranty
Elite 3/4 HP Painted 56 Frame
- 1725 RPM
- IP-55 NEMA enclosure
- 56 frame TENV housing
- Direct A.O. Smith replacement
Elite 1 HP Heavy Duty 56 Frame Kit
- Pre-wired switch and 16 ft cable
- 1725 RPM
- IP-55 NEMA enclosure
- Flat-plate hoist mount
Our top pick is the system that solves the most problems in one box. Our best value goes to the bare motor with the strongest owner record. Our premium pick bundles the switch and control cable so the install is over before your coffee cools.
All 10 Boat Lift Motors Compared Side by Side in 2026
This side-by-side table of the best boat lift motors for docks is the fastest way to match a motor to an existing lift. Scan the power platform, frame and mounting style, and the best-fit column before you read the individual reviews.
| Product | Specifications | Action |
|---|---|---|
| Extreme Max 3006.4553 Wheel Drive System 120V |
|
Check Latest Price |
 SMC YCN5654BX 1 HP Stainless 56C |
|
Check Latest Price |
| Elite 1 HP Painted 56 Frame Motor |
|
Check Latest Price |
| Elite 3/4 HP Painted 56 Frame Motor |
|
Check Latest Price |
| Elite 1 HP Heavy Duty 56 Frame Kit |
|
Check Latest Price |
 Extreme Max 3012.4518 Gen 5 DC Direct Drive |
|
Check Latest Price |
 Leeson 6439191262 1 HP 56C Boat Hoist |
|
Check Latest Price |
 Leeson 6439191261 3/4 HP 56C Boat Hoist |
|
Check Latest Price |
 Leeson 6439191253 1.5 HP Rigid C Mount |
|
Check Latest Price |
 Aqua Marine Supply 1.5 HP Painted Rigid Base |
|
Check Latest Price |
1. Extreme Max 3006.4553 Universal Wheel Drive System – Best Overall Boat Lift Motor
Extreme Max 3006.4553 Boat Lift Buddy Universal Wheel Drive System – 120 Volt
- One-box system combining motor and gearbox and drive wheel
- Fits most boat lift hand wheels
- Roughly 30-40 minute installation for most users
- Two-year limited no-hassle warranty
- Switch box can corrode within a few seasons
- Rubber drive wheel can slip when wet
- Unguarded pinch points near the drive wheel
The Extreme Max 3006.4553 is not a bare motor. It is a complete 120V wheel drive system – motor, gearbox and drive wheel in a single box – that clamps onto the hand wheel of a lift you already own. For anyone who has been winding a boat up by hand, that is the fastest path to electric operation without a new lift frame.
Owner feedback on this system is unusually consistent. Reviewers report lifting 3200 lb ski boats and 5500 lb deck boats without strain, and most describe the install as a 30-40 minute job with basic tools. On some lift frames it needs a V-bar, and on others it is a two-person job, so check your frame before you order.
The design does require shore power with GFI protection, which means it is the wrong choice for an off-grid dock or a boat house with no circuit run. The 25 lb weight and 21.4 x 16.3 x 10.7 inch footprint are manageable, and the two-year limited no-hassle warranty is the strongest coverage in this roundup.
What owners like after a season of daily use
Owners keep coming back to one thing: it removes hand cranking entirely. Several reviewers describe the system as a bargain compared with a full lift-motor rig, which is the comparison that matters when you are pricing a repair against a lift replacement. A two-year warranty with responsive parts support also eases the worry of buying into an unfamiliar brand.
Where it falls short

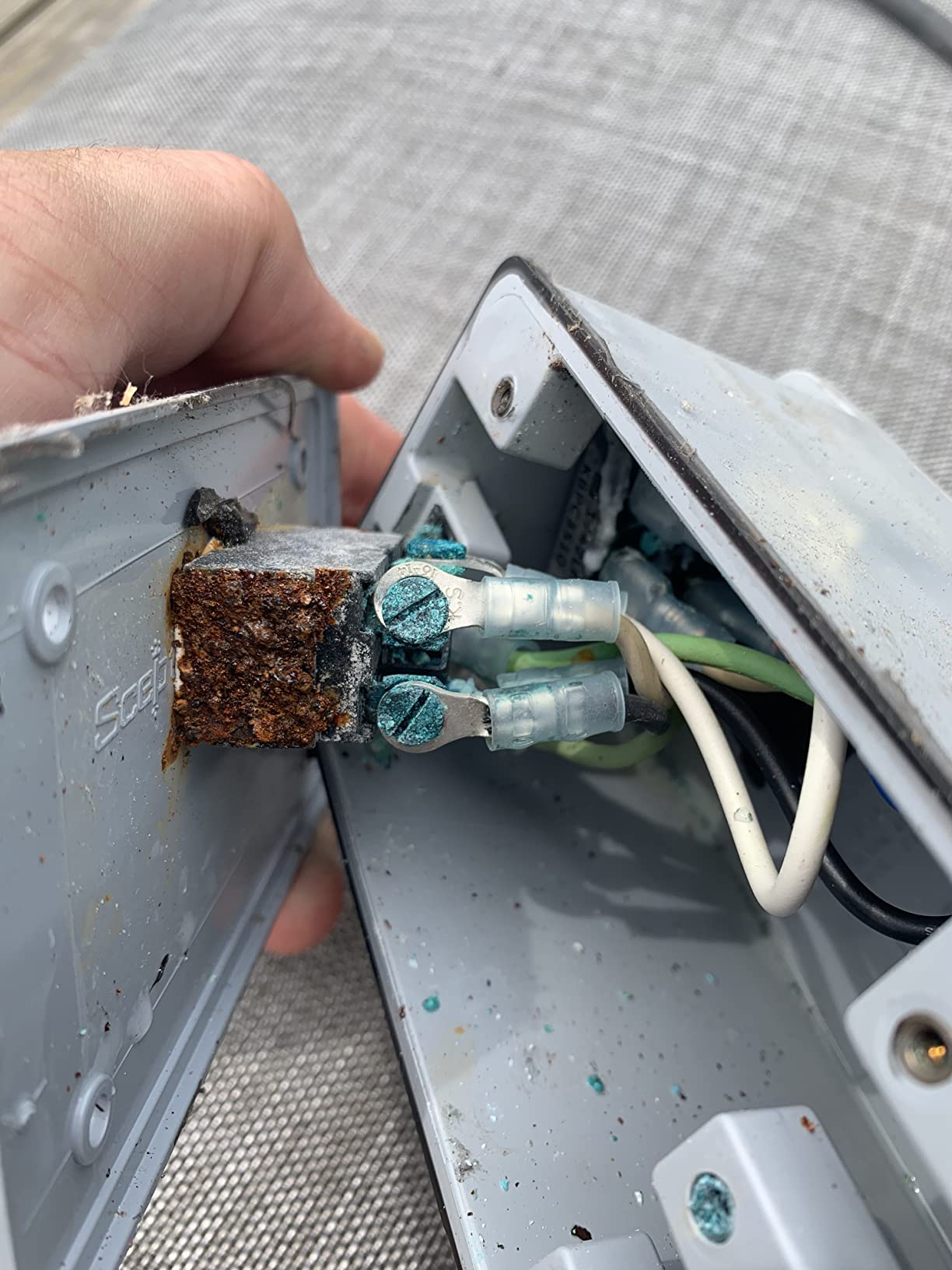

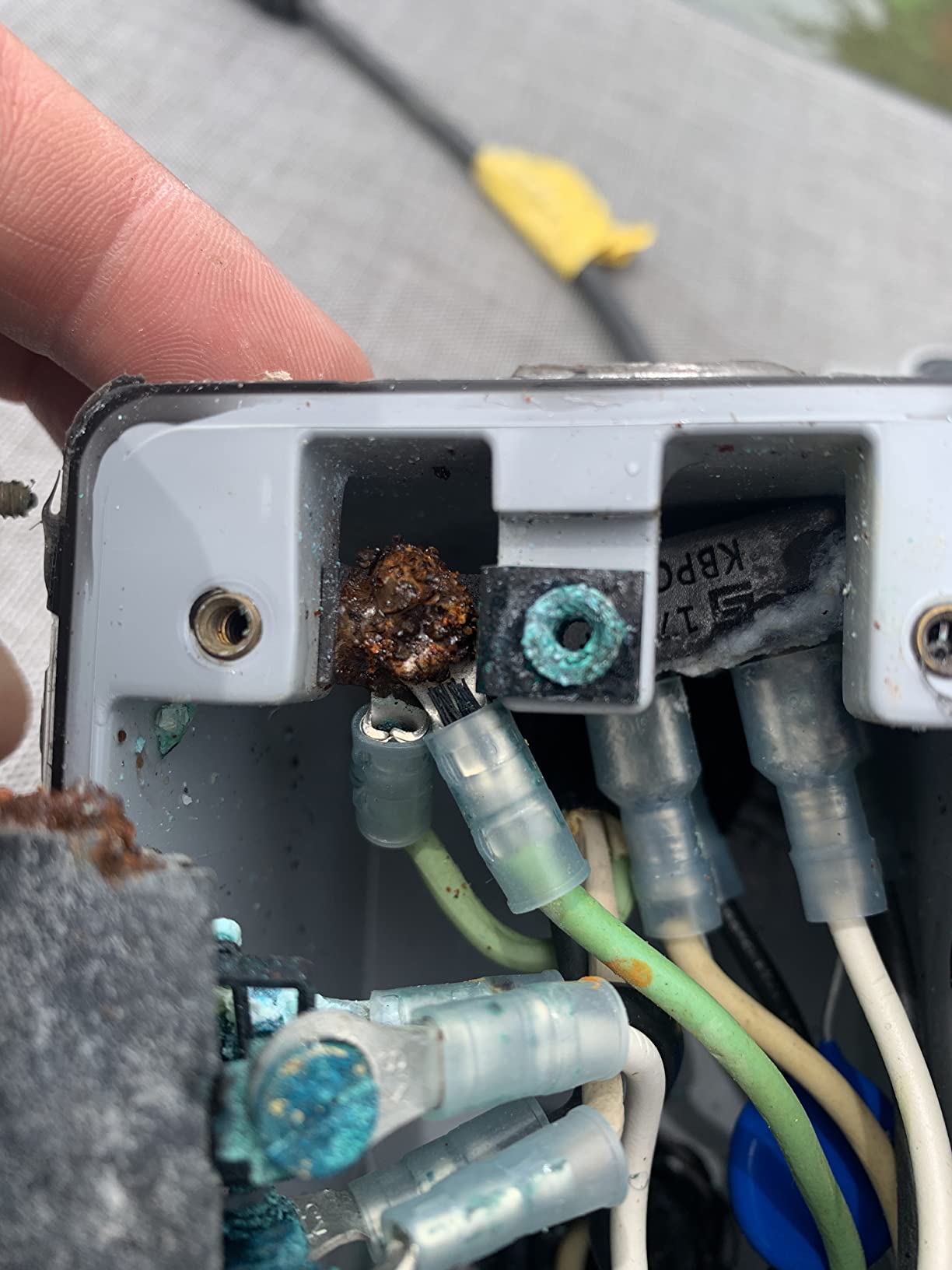

The exposed switch box is the recurring complaint. Several reviewers report it corroding within a couple of seasons, even when the unit was stored indoors, and the rubber drive wheel can slip when wet. There are also unguarded pinch points near the drive wheel, and the installation instructions are described as vague with no full tool list.

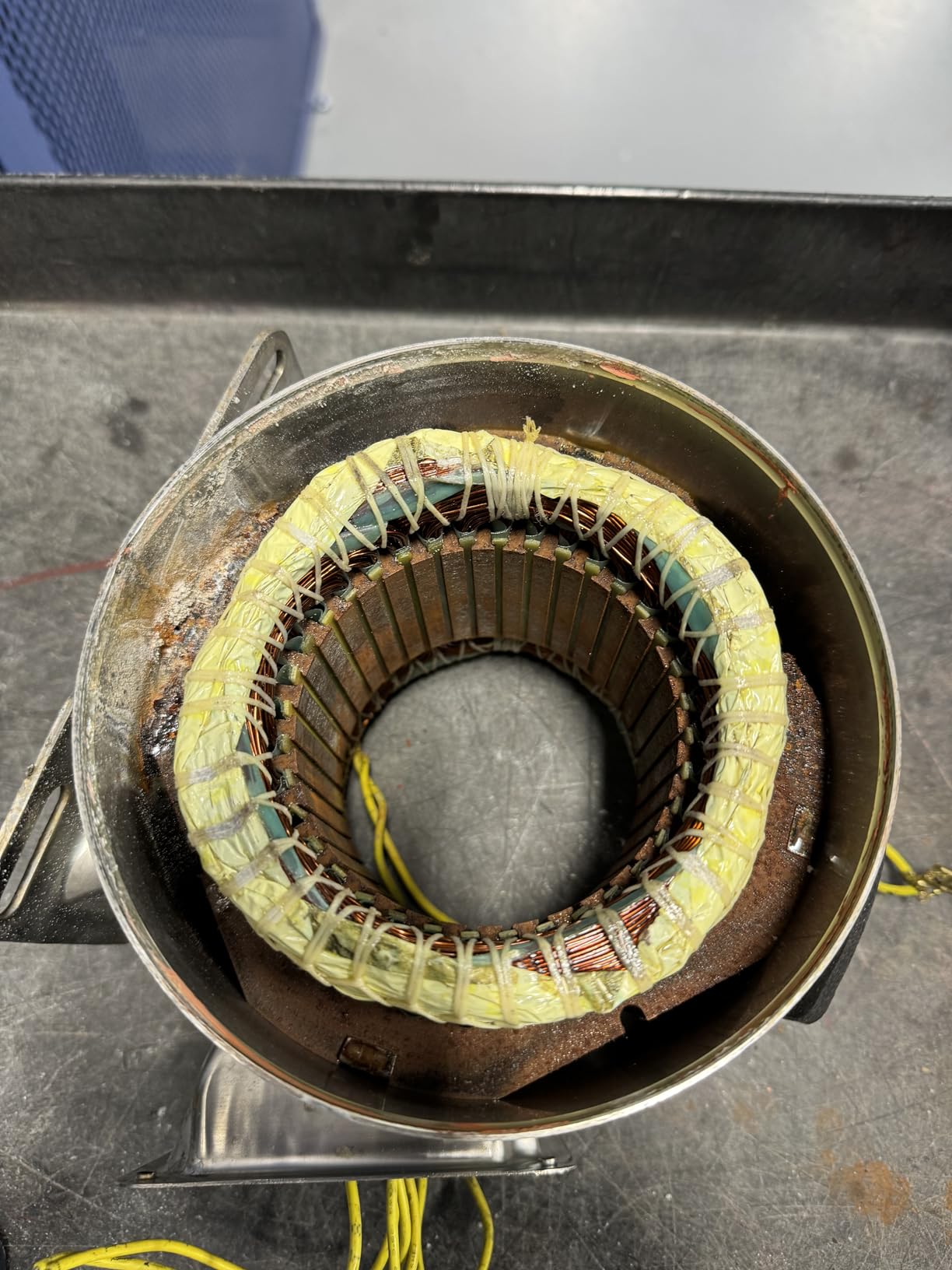

2. SMC YCN5654BX 1 HP Stainless Steel Motor – Best for Saltwater Docks
SMC YCN5654BX 1 HP Stainless Steel Boat Lift Motor, 1725RPM, 1.15 Service Factor, 56C Frame, TEFC, 115/230V, SST Boat Hoist Motor
- Stainless steel housing for saltwater and brackish docks
- Direct 56C face mount drops into existing gearboxes
- UL listed and NEMA compliant
- Convenient wiring access
- Direct replacement for YCN5654BX and YCN5644BX
- Rating spread includes a 14 percent one-star share
- Terminal wiring needs verifying before first power-up
The SMC YCN5654BX is the saltwater pick in a roundup otherwise dominated by painted steel. A stainless steel housing is the single most effective upgrade you can make to a lift motor on a tidal or brackish dock, because it changes how the housing handles constant salt spray over a decade of service.
Mechanically it is a clean drop-in. The 56C face mount bolts straight to an existing gearplate with no bracket, and the listing states it directly replaces the YCN5654BX, YCN5644BX and YCN5634BX 1 HP 56C boat hoist motors. At 1725 RPM with a 1.15 service factor, it is the only motor here with headroom above a 1.0 service factor, which is the number that tells you how hard it can be worked before it cooks.
Rated 3.9 stars across 53 reviews, the split is informative rather than alarming. Sixty percent of ratings are five star, and fourteen percent are one star. The low scores cluster around arrival condition and wiring documentation rather than the motor failing, which is why the easy wiring access matters when you are working in a wet dock box.
Why coastal owners pick stainless over paint

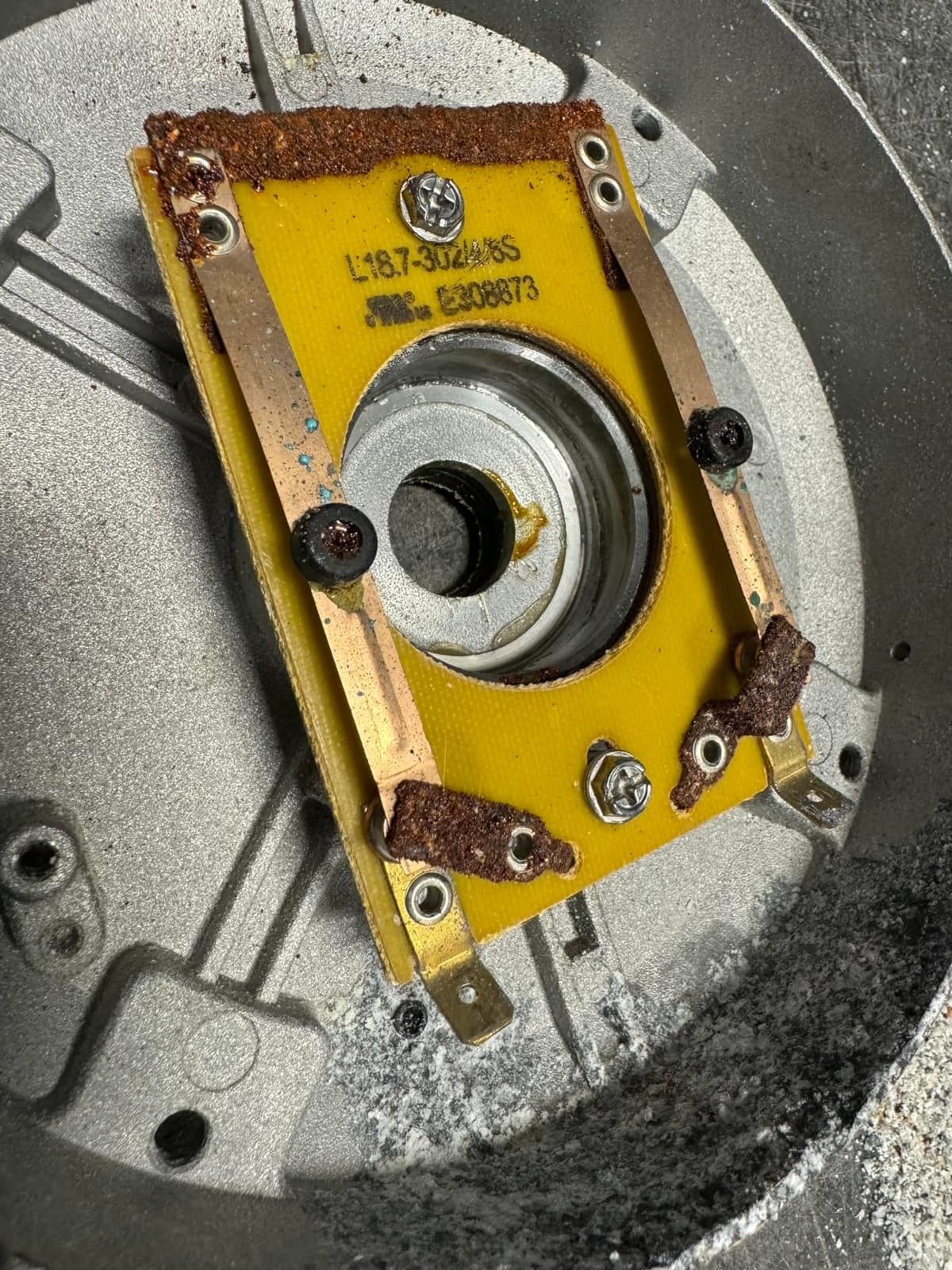

Salt spray does not attack the motor so much as it attacks the coating. Painted steel housings that look fine in year three can be pitted by year seven, and the failure tends to show up at the terminal box where moisture sits. A stainless housing delays that, and the 1.15 service factor adds thermal headroom for long raises in warm air. Reviewers buying for brackish and saltwater docks rate the corrosion resistance as the deciding factor.
Who should look elsewhere
This is a motor-only purchase, so you need a switch, cable and control box already in place. If your lift has no footed base plate and needs a C-face flange, check the exact mounting before ordering. Buyers who want a plug-and-play install with no wiring decisions should read on to the bundled kit at number five.
3. Elite 1 HP Painted 56 Frame Motor – Best Budget Replacement
- Enclosed housing keeps insects and debris out
- UL listed and meets all NEMA requirements
- Compatible with any flat-plate hoist
- Shielded ball bearings for marine duty
- Includes a new shaft key and mounting hardware
- 14 percent of ratings are one star
- Soft stainless bolts can strip if overtightened
- Motor-only configuration needs a separate switch and cable
The Elite 1 HP painted 56 frame motor is the straightforward workhorse of this group. It is a 1 HP, 1725 RPM, single-phase 60 Hz motor in a TENV 56 frame housing with Code L insulation class A, and it is compatible with any flat-plate hoist – which covers an enormous share of the lifts still in service on older private docks.
Reviewers buy it as a dependable, economical replacement for failed A.O. Smith and Century units, and they note that it arrives with a new shaft key and mounting hardware, so the two things most likely to be seized on a decades-old lift are replaced with it. At 22 pounds it is also the lightest full motor in the roundup, which matters if you are working over a narrow bunk.
Two electrical details deserve attention before first power-up. It is rated 7.8 amps with 6.2 starting amps at 220 volts, single phase, and the maximum run time is 15 minutes. A motor that never trips its thermal protection is a motor that will last, so treat that run-time limit as a rule rather than a suggestion.
Why this motor keeps selling
Two things carry it. First, the enclosed housing keeps bugs out, which sounds trivial until you have pulled a marine-grade motor apart and found a wasp nest inside the frame. Second, the shielded ball bearings are specified for marine duty, and bearings are where budget motors usually give out first. Reviewers describe it as dependable rather than exciting, which is exactly what you want from a motor that starts when you press the switch on a cold morning.
What to watch before you install
The 14 percent one-star share is real and worth understanding. Supplied stainless bolts are soft and strip easily if you overtighten, which matters because a stripped bolt on a lift frame is an afternoon you did not plan. It is also motor-only, so the switch and cable come from somewhere else – and wiring documentation is the most cited friction across the Elite line.

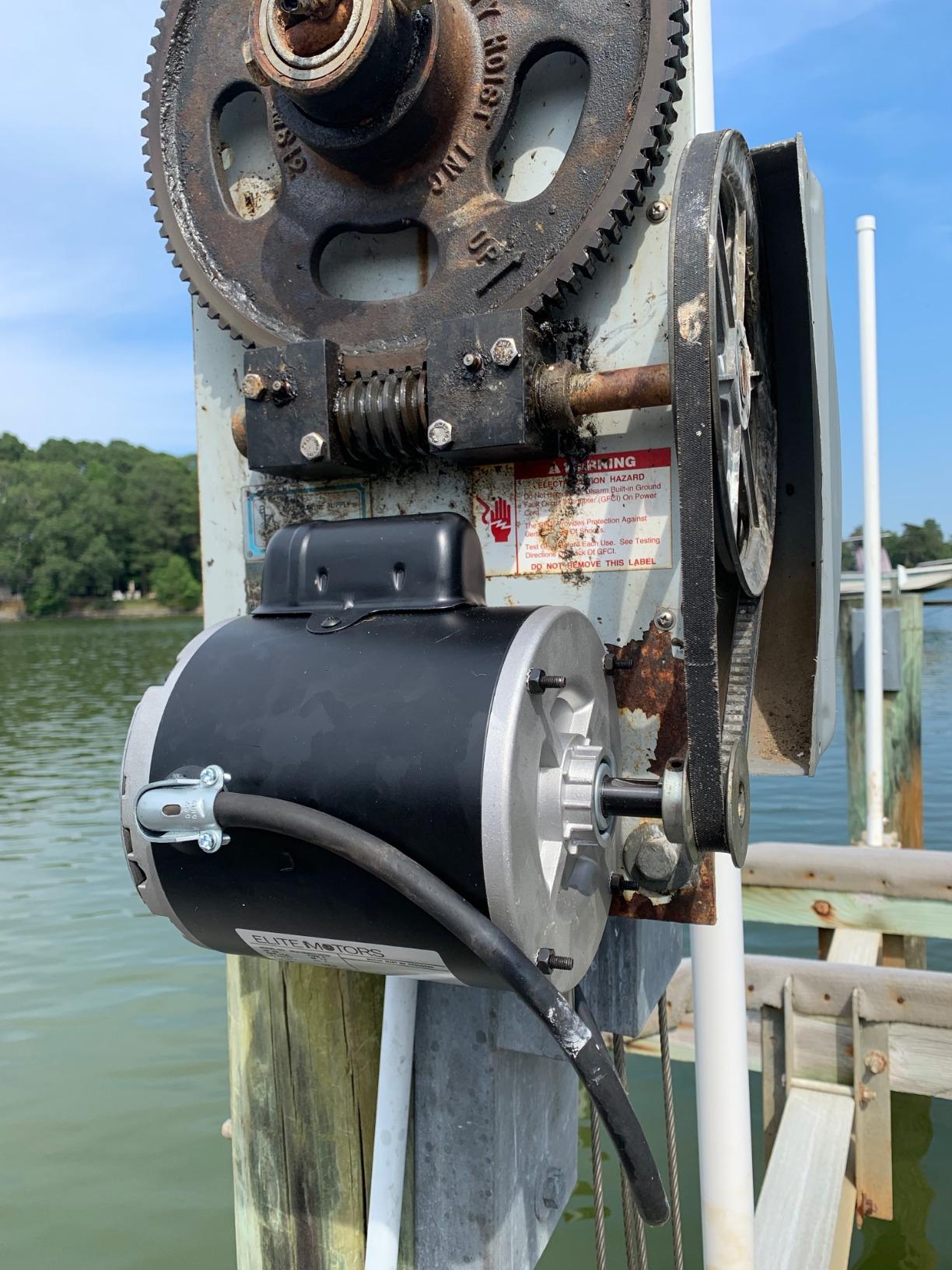

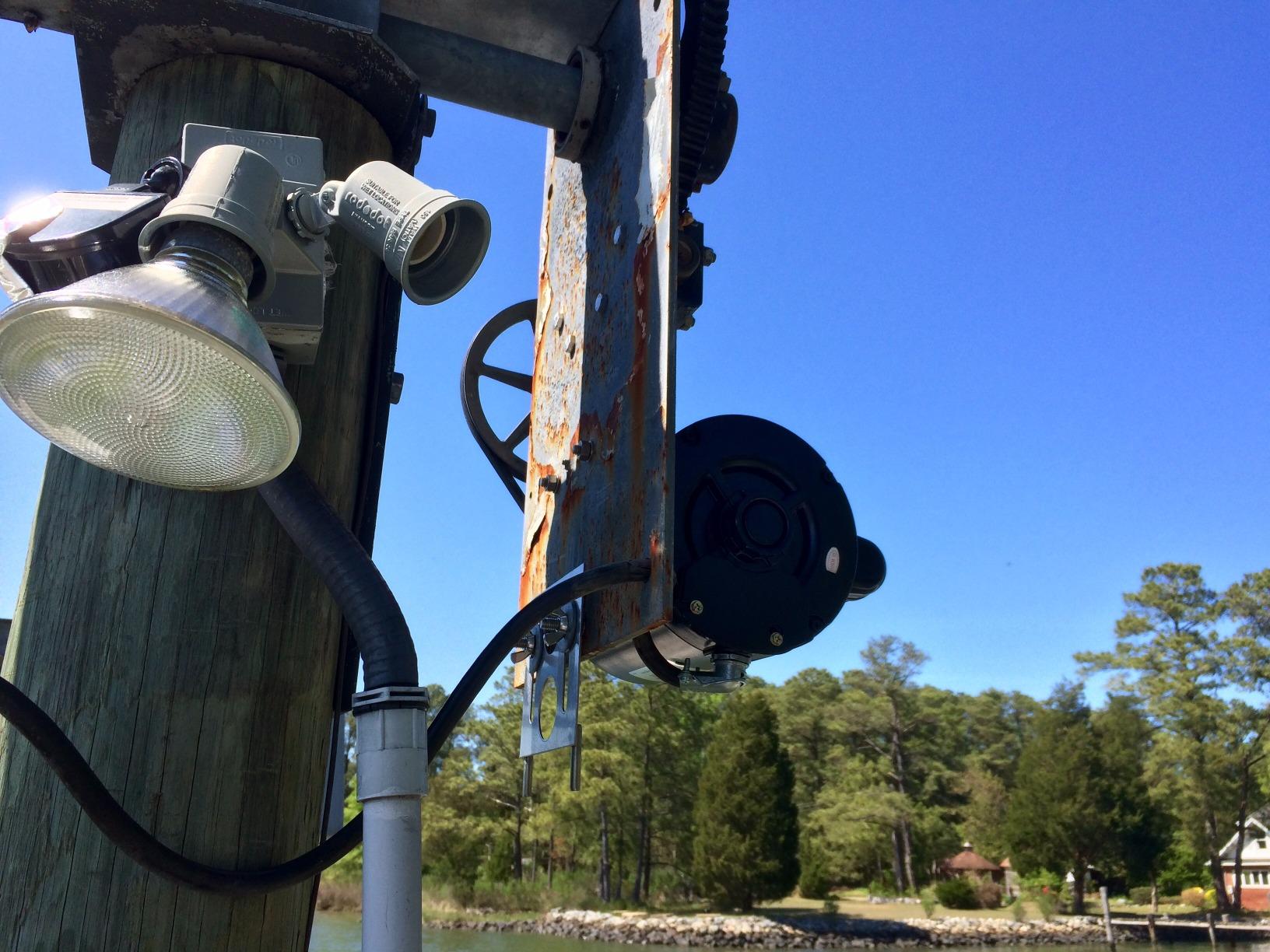

4. Elite 3/4 HP Painted 56 Frame Motor – Budget Pick for 3000-4000 lb Boats
- Direct replacement for A.O. Smith and Century units
- 75 percent of ratings are five star
- Documented 240V to 120V conversion in the manual
- BH-USA support confirms wiring changes before purchase
- Includes a new shaft key and mounting hardware
- Wiring diagram can run one direction until leads are swapped
- Louder hum than the motors it replaces
- Soft stainless bolts strip easily
With 40 reviews at a 4.4 average and 75 percent of ratings at five stars, this has the most solid owner record of any bare 56 frame motor in the roundup. It is also the one that gets recommended most often for smaller boats, which lines up exactly with what owners report on the forums: a 3/4 HP or 1 HP electric motor lifting a 3000-4000 lb boat is a real, proven combination rather than a stretch.
It runs 1725 RPM single phase with a 1.0 service factor, draws 10.8 amps at 115 volts or 5.4 amps at 230 volts, and comes in an IP-55 NEMA enclosure rated for 40°C ambient. The IP-55 rating is a meaningful upgrade over a plain open-frame motor because it means water ingress is a controlled risk rather than an open question.
On a 3/4 HP motor, the detail that saves the most grief is the documented 240V to 120V conversion in the manual. Many owners are replacing a 240V lift motor and running it on 120V shore power, and having that conversion written down removes the single most common install error in this category. The manufacturer also confirms wiring changes before purchase if you call them.
Why the 3/4 HP tier does more than you expect
An owner on the PlanetNautique forum put it plainly when confirming that a 3/4 or 1 HP electric motor lifts a 3000-4000 lb boat. The gearbox does most of the work on a geared lift, so horsepower is not the only lever in the system. Reviewers here run this motor on pontoon and PWC lifts, where the loads are modest and the run times are short – exactly the duty pattern a 1.0 service factor handles comfortably.
What to check before power-up
The wiring diagram differs from the stock motors it replaces, and several owners report the motor running in one direction until the switch leads are swapped. Read the manual before you energize it, not after. Buyers also note a louder hum than the A.O. Smith units they replaced, which is cosmetic rather than mechanical, and the same soft-bolt caveat applies.

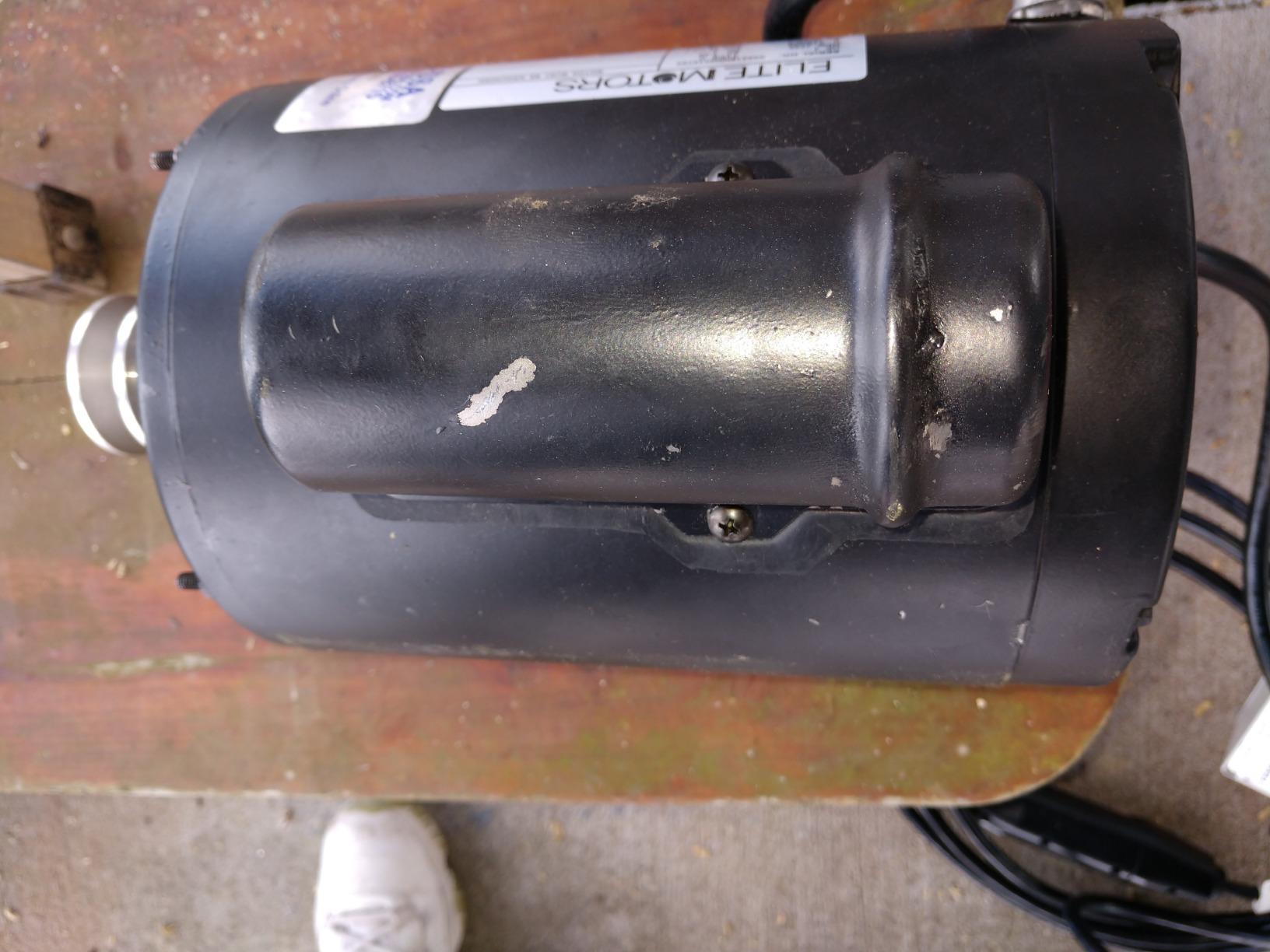

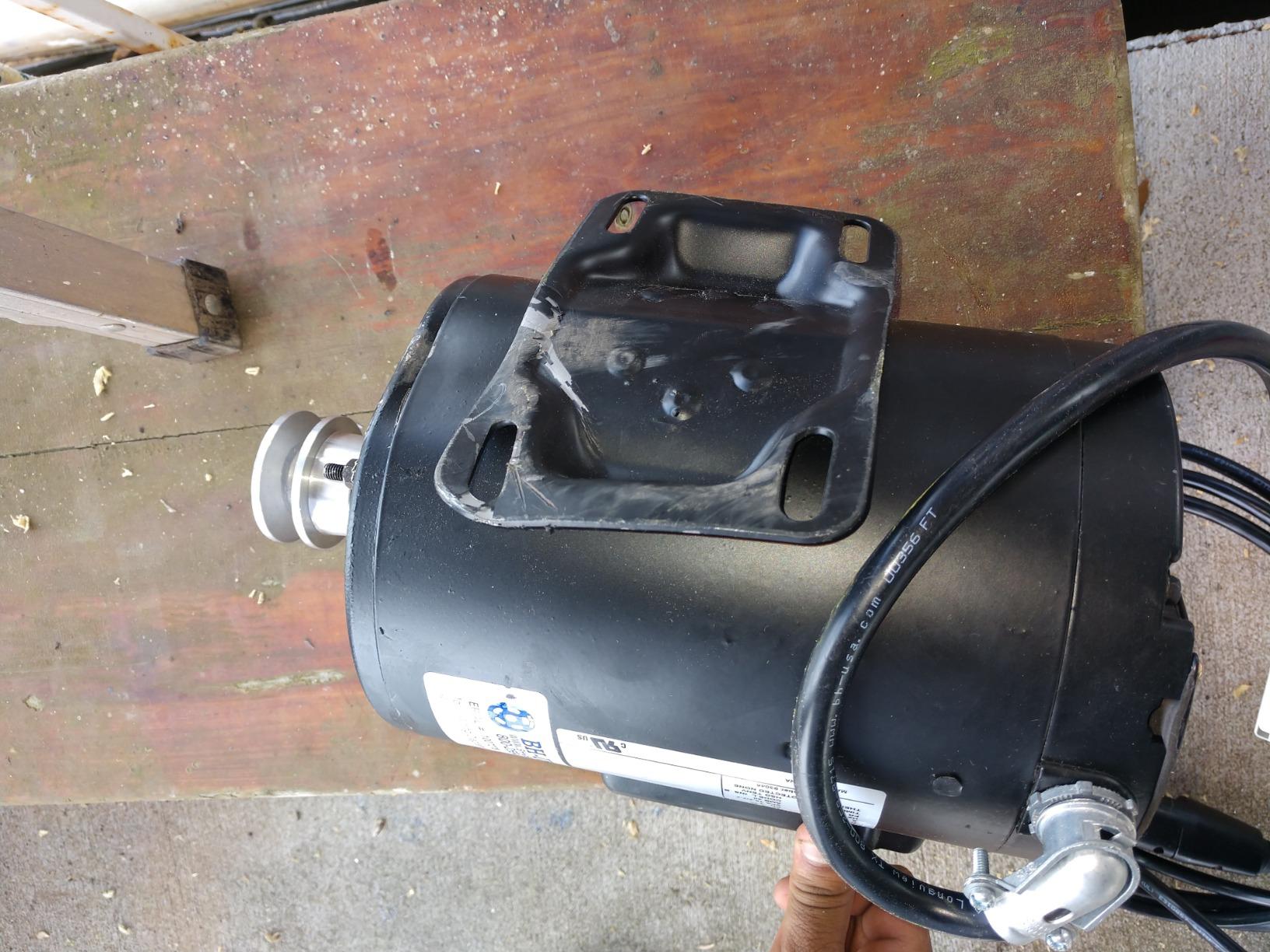

5. Elite 1 HP Heavy Duty 56 Frame Motor with Switch and Cable – Best Pre-Wired Kit
Elite 1 HP Heavy Duty 56 Frame Boat Lift Motor – Momentary Switch / 110v / 16 ft. Control Cable
- Motor
- maintained-up momentary switch and 16 ft cable in one kit
- Pre-wired so most owners finish in 20-30 minutes
- Long-term owners report seven-plus years of service
- Powers lifts holding 4200 lb boats and PWC craft
- Bundled switch knob threads strip and the knob can fall off
- One review reports a heavily damaged motor in the box
- A second switch may be needed
The difference between this kit and a bare motor is the 20-30 minute install. You get the motor, a maintained-up momentary switch and a 16 ft control cable, already wired together, which converts what is normally the longest part of a motor replacement into a half-hour swap. If your old switch is the thing that died, this solves both problems in one order.
Underneath it is a 1 HP, 1725 RPM, single-phase motor in a 56 frame TENV housing with Insulation class A, in an IP-55 NEMA enclosure. It draws 7.8 amps at 115/230V, carries a 5/8 inch drive shaft, and uses a flat-plate hoist 56 frame mount. The 34 lb shipped weight is the heaviest bare motor here because the cable and switch are boxed with it.
Longevity is where this one separates itself. Reviewers include a seven-plus year update from a long-term owner, and it is reported as easily powering lifts holding 4200 lb boats and PWC craft. Seventy-eight percent of the 31 ratings are five star, which is the strongest five-star share of any motor in the roundup.
What the bundle actually saves
Repairability and DIY-ability are decisive positives for the owners who write in on these threads, not merely acceptable compromises. A pre-wired kit means fewer terminations, fewer joints to fail in a wet environment, and no guesswork about switch pinouts. For anyone replacing a motor for the first time, that removes the two steps where most mistakes happen: wiring the control and matching the maintained-up switch direction.
Where the kit disappoints
The bundled momentary switch is the most criticized component. Its red knob has unthreaded stem threads and can fall off, and some buyers end up fitting a second switch. One review also reports a motor arriving heavily damaged in the box, so inspect it the day it turns up rather than when you need it. Everything else about this package is strong.
6. Extreme Max 3012.4518 Generation 5 Direct Drive System – Best for Battery-Powered Docks
Extreme Max 3012.4518 Generation 5 Boat Lift Boss Direct Drive System – 12/24 Volt, Key-Turn
- Direct axle attachment removes belt and wheel losses
- Runs from a single or dual marine battery
- Quiet smooth operation in series for 24V
- Handles a 24 ft pontoon without difficulty
- Separate mounting kit required for many lifts and not included
- One battery produces slow lift speed
- One owner reports a first unit failing after four years
The Generation 5 Boat Lift Boss is the only true 24V DC direct drive system in this group, and that single fact changes where you can install it. Because it runs from a single or dual marine battery, it needs no shore power circuit at all – which makes it the practical choice for an off-grid dock, a boat house slip with no panel run, or any lift where the electrical install is the expensive part.
The mounting philosophy is also different from everything else here. Rather than driving a hand wheel through a rubber tire, it attaches directly to the lift axle with a quick-mount installation, which removes the belt-and-wheel power transfer loss entirely. Owners report quiet, smooth operation and no difficulty handling a 24 ft pontoon.
Sealed, all-weather protected electronics handle the marine environment, and the key-turn control replaces the loose switch-and-cable arrangement. It comes with a two-year limited no-hassle warranty and alloy steel construction at 22 x 16 x 10 inches.
Why direct drive changes the maths
Removing the intermediate transfer means more of the motor’s torque reaches the drum, which is why a system in this class can move a 24 ft pontoon without complaint. It also removes the one component reviewers complain about most in wheel-drive systems – a rubber wheel that slips when wet. Owners running two batteries in series for 24V report the quietest operation of anything we covered.
What to plan for
The mounting install kit is required for many existing lifts and is not included, which pushes some buyers back about a week. Installation is harder than the manufacturer videos suggest on some hoist brands. A single battery gives a slow lift speed, and one owner reports a first unit failing after four years of light use – a small sample, but worth knowing against a two-year warranty.

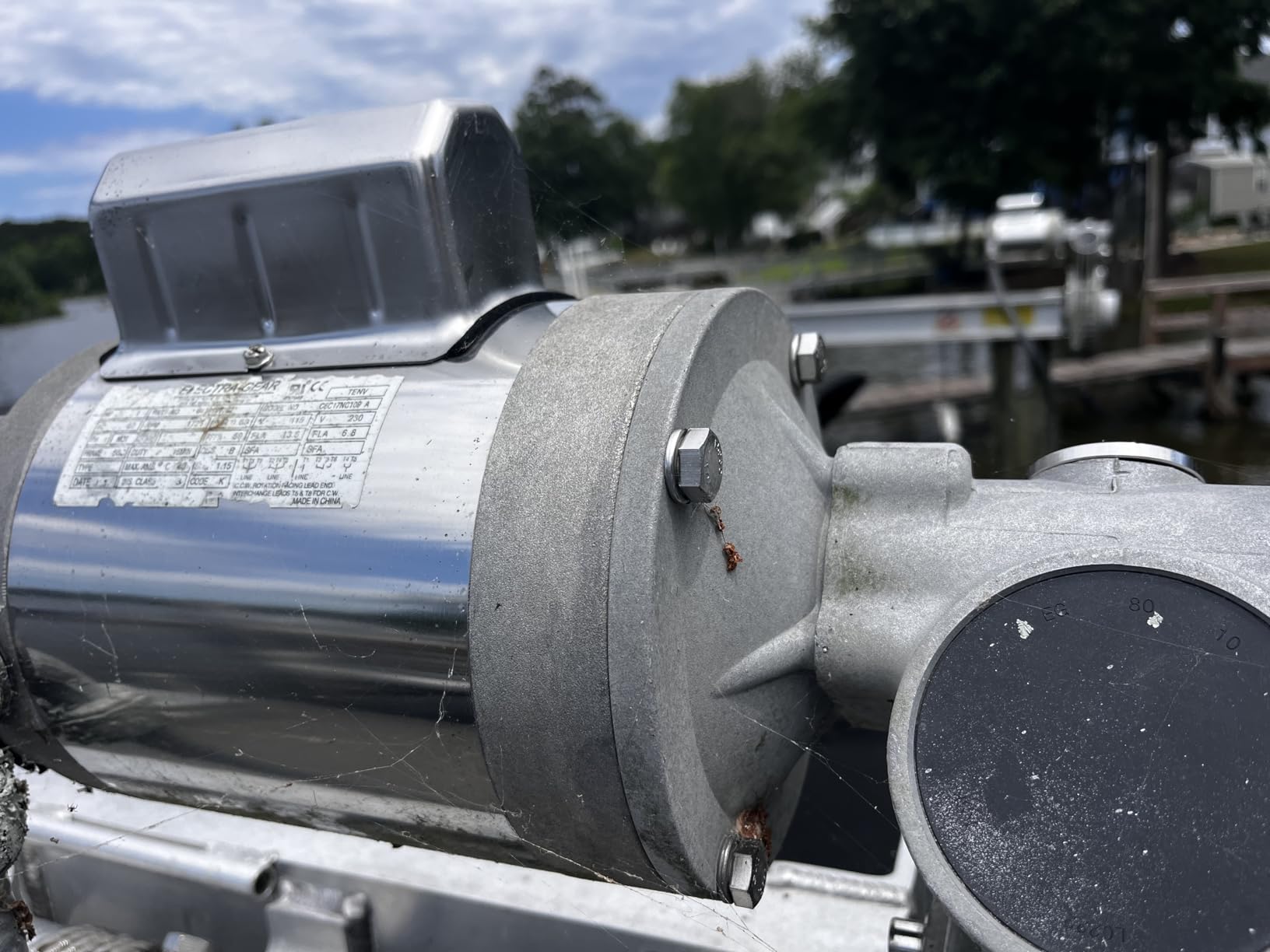

7. Leeson 6439191262 1 HP 56C Boat Hoist Motor – Best Nameplate Brand 1 HP Replacement
Leeson 6439191262 Boat Hoist Motor, 1 Phase, 56C Frame, C Face Mounting, 1HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency
- C-face flange bolts straight to a gearbox with no bracket
- Iron construction from a major nameplate motor brand
- Totally enclosed housing suits damp dock environments
- UL listed and CSA certified
- One buyer needed a bracket their lift did not have
- Technical support is unhelpful on alternative-fit questions
- Only 9 reviews available
Leeson is a genuine industrial motor manufacturer, and that shows in the build. The 6439191262 is a 1 HP, single-phase, 115/208-230V motor rated at 1800 RPM in a totally enclosed non-ventilated housing, UL listed and CSA certified. The iron construction is heavier than a painted steel marine motor, and that mass is part of why the housing holds up in a damp dock environment.
The 56C C-face flange is the reason to buy it. It bolts directly to a lift gearbox with four bolts and no bracket, which is the cleanest possible install on a gearplate lift. One owner installed it on a gearbox with no problem and confirms the flange is meant to bolt straight on.
Be clear-eyed about the evidence here. With only nine reviews, this is a spec-led pick rather than a review-backed one, and the fitment feedback splits: another buyer found it would not mount to their lift without a bracket and returned it. Check whether your gearbox takes a C-face motor before you commit.
When a nameplate brand is worth it
Commercial-grade iron construction and dual UL and CSA certification matter if your lift sees heavy daily use or you run a boat house where downtime is expensive. The TENV housing is rated for dusty or damp environments, which covers the two things that kill exposed motors. Owners also value knowing that bearings and windings are conventional industrial components, so any motor shop can service it.
When it is not the right buy
Leeson technical support is described as unhelpful on alternative-fit questions, so you need to verify the mount yourself before ordering rather than relying on a phone call. It is also a bare motor with no switch or cable, and at this power tier the painted stainless options cost considerably less for freshwater work.
8. Leeson 6439191261 3/4 HP 56C Boat Hoist Motor – Best for Compact C-Face Fits
Leeson 6439191261 Boat Hoist Motor, 1 Phase, 56C Frame, C Face Mounting, 3/4HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency
- All five reviews are five star
- Easy installation on existing boat lifts
- Totally enclosed housing for damp dock environments
- C-face mount keeps gearbox installs clean
- Listed 1800 RPM is really 1725 RPM per an owner review
- Review base of 5 is too small to lean on
The 3/4 HP Leeson is the lighter sibling to the 1 HP version, weighing 24 lb and packaged at 13.1 x 10.2 x 9.6 inches. On a small lift with a compact gearbox and a tight mounting area, that reduced footprint and lower weight is the whole argument. Owners describe installation on existing boat lifts as easy and the C-face mount as keeping gearbox installs clean.
Electrically it is a 3/4 HP single-phase motor on 115/208-230V at 60 Hz, totally enclosed and non-ventilated, UL listed and CSA certified. It is the right fit for the same 3000-4000 lb class of boat the PlanetNautique owners describe using 3/4 HP motors for.
There is one honest correction buried in the reviews. The listing states 1800 RPM, and a verified owner review reports the actual speed is 1725 RPM, which is the normal full-load figure for this class of single-phase 60 Hz motor. Another owner added a protective cover over the motor after a previous unit failed from sea salt – a sensible, cheap precaution on a coastal dock.
Reading the five-star record honestly
All five reviews are five star, which sounds better than it is. A sample of five tells you nobody is disappointed yet, not that the motor is proven. Treat it as a spec-led choice with a good early record, and if you are nervous about that, the 1 HP Leeson at number seven carries the same architecture with a slightly larger feedback base.
Where it fits and where it does not
It is a bare motor, so you supply the switch, cable and control box. It suits a C-face gearbox install, not a footed base plate. At 3/4 HP it will not lift a heavy tritoon, so if your boat is in the 5000 lb and up range, step up a tier rather than straining this one to its limit.
9. Leeson 6439191253 1.5 HP Rigid C Mount Motor – Best for Heavy Tritoon Lifts
Leeson 6439191253 Boat Hoist Motor, 1 Phase, 56C Frame, Rigid C Mounting, 1 1/2HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency
- Highest horsepower tier in the roundup
- Rigid C mounting suits rigid-base gearbox installs
- Totally enclosed housing for damp dock environments
- UL listed and CSA certified
- Only a single review so there is no owner history
- Highest-priced motor in the roundup
This is the ceiling of the category. The Leeson 6439191253 is a 1.5 HP single-phase motor rated at 1800 RPM on 115/208-230V, in a totally enclosed non-ventilated iron housing, UL listed and CSA certified. At 40 pounds it is by far the heaviest motor here, and that weight is the point – it is a substantial industrial machine rather than a trimmed marine motor.
Rigid C mounting is the distinguishing spec. Where a standard C-face motor bolts to a flange that floats slightly, a rigid C mount ties to a rigid base – the configuration a reinforced gearplate and base plate need in order to stay square under load. If you are running a large tritoon or pontoon on a tall lift, that rigidity is what keeps the cable tracking true in the sheave.
When 1.5 HP is the right call
Tritoon and pontoon applications are consistently reported as poorly served by advice written around V-hull boats, and this is where horsepower finally matches the load. A tritoon on a fixed dock was the exact question a boat owner raised in a boating group asking for peer validation rather than dealer guidance. If your rig is genuinely heavy, oversizing to 1.5 HP with a 20 percent margin protects the gearbox and the motor together.
Set expectations before you buy
There is a single review, so there is no owner history to judge it by and every performance claim rests on the specification. It is also the highest-priced motor in the roundup. Validate the horsepower against your lift’s capacity rating before committing, and confirm your base plate accepts a rigid C mount rather than a footed motor.
10. Aqua Marine Supply 1.5 HP Painted Rigid Base Motor – Best 1.5 HP Gearplate Fit
Aqua Marine Supply Boat Lift Motor – Painted Rigid Base, 1725 RPM, 115/230V – Heavy-Duty, Corrosion-Resistant Electric Motor for Marine Use (1.5: Horse Power)
- MarineGuard coating resists rust
- salt spray and harsh weather
- Sealed precision-lubricated bearings cut maintenance
- Reinforced rigid base improves stability and cuts vibration
- Compatible with any boat lift using a gearplate motor system
- Only a single review so there is no owner history
- Motor-only listing needs a separate switch and wiring
The Aqua Marine Supply AM1001 takes a different approach to 1.5 HP power. Rather than an iron industrial housing, it is a painted rigid-base motor in aluminum and stainless steel, specified at 1725 RPM on 115/230V, with a marine-grade corrosion-resistant coating over the housing aimed squarely at salt spray and harsh weather.
Its real strength is compatibility breadth. It works with any boat lift that uses a gearplate motor system, and the same series is available in 0.75 HP, 1 HP and 1.5 HP – so if you buy it now, you can move up or down a tier later without changing mounting approach. The reinforced, precision-engineered base is designed to improve mounting stability and cut vibration, which is the quiet win on a long cable run.
Sealed bearings and precision-lubricated internal components are the maintenance story. On a lift motor, bearing condition is the difference between a five-minute annual inspection and a cable jumping off the drum.
Why sealed bearings matter more than horsepower
Most lift motor failures that owners describe as mysterious turn out to be water where water should not be. A sealed, pre-lubricated bearing eliminates the grease-and-moisture path that eventually reaches the windings, and the reinforced base keeps the shaft running true so the cable does not creep. Both are quiet advantages that only show up after several seasons.
What you are buying on faith
There is a single review, so the coating and bearing claims rest on the manufacturer description rather than owner history. Treat it as a spec-led pick and check the coating against your own water conditions – it is a sensible saltwater choice, but a stainless housing is the harder answer if your dock sees constant spray. It is also motor-only, so plan on a separate switch, cable and control box.
How to Size a Boat Lift Motor: Wet Weight, HP and the 20 Percent Margin
Start with wet weight, not the number on the boat’s build sheet. Wet weight is the loaded weight including fuel, batteries, gear and passengers – the actual figure your lift has to move. Calculate it, then add a 20 percent safety margin before you pick a horsepower tier. That margin is the single most repeated piece of sizing advice in this category, and it is the difference between a motor that lasts ten seasons and one that cooks.
Why the margin matters: a motor running at its rated capacity every raise generates heat it has to shed, and TENV housings shed it less efficiently than open frames. Motors sized with headroom – like the 1.15 service factor model at number two – run cooler under the same load. An oversized-to-load motor outlasts an undersized one, which is the cheapest upgrade in this whole article.
The tier breakpoints that owners on the forums actually confirm are worth remembering. A 3/4 HP or 1 HP electric motor lifting a 3000-4000 lb boat is validated, repeated owner experience. The 1 HP tier comfortably covers boats in the 4000 lb range, including the 4200 lb boats reported for the pre-wired kit at number five. Above that, for heavy tritoons and large pontoons, move to 1.5 HP rather than running a 1 HP motor at its ceiling.
One caveat specific to your platform: 24V DC systems are not sized the same way as AC. A DC direct drive on a single battery gives a noticeably slower raise, so plan on two batteries in series for 24V if lift speed matters to you.
Direct Drive vs Gearplate: Which Motor Architecture Do You Need?
Direct drive means the motor turns the cable drum with no gearbox in between. Gearplate means a worm gear reduction assembly multiplies motor torque, letting a smaller motor move a heavier boat. Every geared lift in this roundup – which is most of them – uses the gearplate, and that is why a 3/4 HP motor can raise a 3500 lb boat.
Direct drive wins on efficiency of transfer and quietness, because there is no gear mesh and no rubber wheel to slip. The 12/24V system at number six is the clearest example, attaching straight to the axle and reporting smooth, quiet operation. Gearplate wins on torque multiplication, mechanical protection of the motor from shock loads, and the ability to use a smaller and cheaper motor for the same lift capacity.
What you should buy: keep the gearplate if your existing lift has one and you are replacing a motor, because swapping architecture means replacing the gearbox or the entire drive. Choose direct drive when you are adding electric operation to a lift that was hand-cranked, when you want to run from boat batteries with no shore circuit, or when noise around the dock matters to you.
The gearbox also has a maintenance cost that direct drive removes. A worm gearplate needs periodic grease service and eventually a rebuild, and the gear plate assembly is one of the common replacement items in dealer catalogs. If your lift already has one serviced, replacing the motor is the cheaper path.
AC Wired vs 24V DC: Choosing a Power Platform
AC wired motors plug into shore power through a control box and are what most residential lifts use. 24V DC systems run off marine batteries, usually through a key-turn control. Both work. The decision is about where the electricity is and how far it has to travel.
Choose AC wired if you already have GFI-protected shore power at the dock. It is the standard, well-serviced choice, draws 5.4 to 10.8 amps depending on voltage and horsepower, and needs a dedicated circuit with correctly sized breaker protection. Choose 24V DC if there is no panel run to the dock, if the cable run from your shore power is long enough to cause a voltage drop, or if you want the lift to work when the power does not.
The DC case is genuinely strong for off-grid and remote slips, and it is why half the premium inventory in this category sits on the 24V platform. The tradeoff is battery maintenance: you are now maintaining batteries, and a single battery gives a slow lift speed. Two in series for 24V restores it.
Neither platform is more reliable than the other in the motor itself. The difference is in the surrounding system, so match your dock rather than chasing a spec.
Motor Frames and Mounting Footprints: The Spec That Decides Compatibility
Buy a motor with the wrong frame or mount and the whole order is dead on arrival. This is the highest-friction spec in the category and the one most buying guides skip, so here is the plain version.
The 56 frame is the standard NEMA motor case size used by nearly every boat lift motor, and the number is stamped on the side of your existing motor. A 56C frame adds a threaded C-face flange on the drive end. C-face or baseless mounting means the motor bolts directly to the gearbox face plate with no feet. A footed motor mounts on a base plate or bracket instead. A rigid C mount ties to a rigid base rather than floating on a flange.
How to verify compatibility with your lift: read the frame number off the old motor, check whether it has feet or a face flange, measure the 5/8 inch drive shaft and shaft height, and confirm the mounting type against your gearbox. On gearplate lifts, match C-face to C-face. On rigid-base lifts, match a rigid C mount. If your gearbox is unknown, send photos to the dealer before ordering – reviewers who did this avoided returns that others did not.
On lift brand compatibility, the major ecosystems to check against are ShoreMaster, Hewitt, CraftLander, LSP/Lakeshore, ShoreStation, Magnum and BH-USA. Club Searay owners also report floating main-channel lifts built by Galvalift, Poly Lift or Roto Lift, so if you are shopping used equipment or reading dealer listings, those names exist outside the major brands and use their own motor conventions.
Before you buy, run through a six-point check: frame size, mount style, voltage platform, cable and sheave diameter, lift-brand fit, and control box compatibility. Six questions, ten minutes, and it eliminates nearly every return in this category. If you are upgrading controls at the same time, our guide to boat lift remote controls covers the wired and wireless options that pair with either platform.
How Long a Boat Lift Motor Lasts, and When to Replace Rather Than Repair
A well-sized, TENV-housed boat lift motor in freshwater typically gives you somewhere in the range of 10 to 15 years of normal use, and the 1 HP heavy-duty kit at number five has an owner reporting seven-plus years of continuous service already. Salt water shortens that. A motor that repeatedly runs to its rated capacity, or one run past its 15-minute limit, ages faster than one sized with a 20 percent margin.
Replace rather than repair when the symptoms point at the motor rather than the system: a hum with no movement, a motor that runs hot enough to trip its own thermal protection, or a breaker that trips on the raise. Diagnose first, though. A lift that will not move is often a limit switch, a corroded switch, or a seized gearbox, and owners replacing a perfectly good motor on those symptoms is a common and expensive mistake.
Repair is still reasonable for a capacitor, a control box, or a set of bearings on a motor whose housing is sound. The economics work when the motor itself is healthy – a new control box is a small fraction of a new motor. If the winding is gone or the housing is pitted with corrosion, no repair returns it to service life.
Longevity reports matter more to owners than brand reputation, and repairability is treated as a genuine virtue rather than a compromise. Both of those criteria should shape your choice. For protecting the rest of the system, our picks for boat lift canopies and aluminum floating docks matter as much to motor life as the motor itself, because UV and constant moisture attack the cable and bunks around it.
Installation Realities: Dedicated Circuits, Breakers and DIY
Plan for a dedicated circuit. AC wired motors in this roundup draw between 5.4 and 10.8 amps depending on horsepower and voltage, and the wheel-drive systems require GFI-protected shore power access. Running a lift motor off a shared dock receptacle is how you get nuisance breaker trips at the worst time of the morning.
On difficulty, the spread is wide. The Extreme Max wheel drive installs in roughly 30-40 minutes for most users, and the pre-wired Elite kit in 20-30. C-face motors onto an existing gearbox are a four-bolt job. The direct axle systems are the exception – owners report them as harder than the manufacturer videos suggest on some hoist brands, and the required install kit is not always included.
DIY installation is genuinely common and owners treat it as a virtue rather than a risk, but the electrical side is where to use a electrician if your dock does not already have a circuit. Full lift installation is a different scale of project from a motor swap – it involves water depth, bottom composition, permits and structure, which is why owners on these forums ask peers about lifts before they buy rather than after.
If you are planning a whole new dock rather than a motor replacement, start with the boat lift and component picks first, then come back to the motor tier that matches its capacity rating.
Frequently Asked Questions
What is the most reliable brand of boat lift?
Reliability in boat lift motors is decided more by build quality than by brand name. Look for a totally enclosed TENV housing, a 56 frame or 56C face mount, shielded or sealed bearings, and a service factor above 1.0. Motors with stainless housings last longest in saltwater. Nameplate brands such as Leeson carry dual UL and CSA certification and use standard industrial components any motor shop can service.
How much to install a boat lift on a dock?
A motor swap and a full lift install are very different jobs. Swapping a motor on an existing lift is often a DIY afternoon, more for a C-face gearplate fit and less for a direct axle system. A full lift install involves water depth, bottom composition, permits and dedicated electrical work, which is the majority of the cost. Buyers on boating forums routinely swap motors themselves and hire an electrician for the circuit.
What is the life expectancy of a 7000 lb boat lift motor?
A well-sized enclosed motor in freshwater typically lasts 10 to 15 years of normal use. For loads in the 7000 lb range you are almost certainly in the 1.5 HP tier with a gearplate reduction. Salt water, repeated runs to rated capacity, and running past the 15 minute limit all shorten life. Sizing with a 20 percent margin is the single biggest lever you control.
How much does a boat lift motor cost?
Motors fall into three practical tiers. Budget painted steel 56 frame replacements suit freshwater lakes and pontoon lifts. Mid-range stainless steel motors and nameplate industrial motors add corrosion resistance and better bearings. Premium direct drive systems running on 12/24V DC add battery power, remote control and quiet operation but need an extra install kit. The last tier price reflects the enclosure and control hardware, not extra horsepower.
What size boat lift motor do I need for my boat?
Use wet weight, not dry weight, then add a 20 percent safety margin. A 3/4 HP or 1 HP motor is proven on 3000 to 4000 lb boats. A 1 HP motor covers boats around 4000 to 4500 lb. Heavy tritoons and large pontoons above that should move to the 1.5 HP tier rather than running a smaller motor at its ceiling on every raise.
Conclusion: The Best Boat Lift Motors for Docks in 2026
For most dock owners, the Extreme Max 3006.4553 wheel drive system is the best boat lift motors for docks pick in this roundup, because it converts an existing hand-cranked lift to electric power in one box and one afternoon. If you are replacing a bare motor on a geared lift, the Elite 3/4 HP at number four has the strongest owner record, and the pre-wired 1 HP kit at number five removes the wiring work entirely.
Before you order, confirm the frame number and mount style off your old motor, check wet weight with a 20 percent margin, and match the voltage platform to the power you actually have at the dock. Those three checks eliminate nearly every return in this category. Updated for 2026, with the ten motors above ranked on owner feedback, verified specifications and fit rather than brand reputation.
